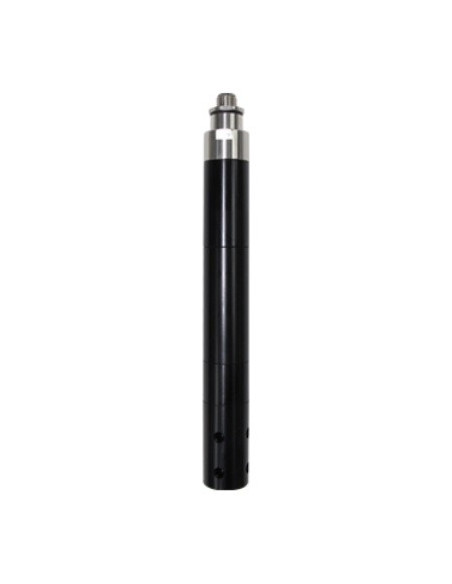

IP68 conductivity analyzer (including temperrature compensation) (0~500ms/cm), POM housing, RS485 communication(3m cable)+Built-in temperaturesensor (Pt 100)(0~85℃)
The Conductivity Analyzer connects directly through the RS485 communication interface. The meter has a tensile strength cable of 1000 N, digital data transmission of up to 1.2 km, the conductivity meter is ideally used in the water / wastewater industry.
■ Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
■ 1 sec On-line Realtime Measurement
■ 0.05W Ultra Low Power Consumption, Ideal for Outdoor Applications
■ Temperature Compensation
■ High Reliability, Drift Free
■ Lightening and Surge Protection for Power and RS485 Communication
■ 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
■ Software Configuration Calibration and Data Monitoring
■ Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost
■ Onboard memory allowing users to easily calibrate and
configure sensor at lab and distribute to various fields sites
SMR10 Turbidity Analyzer:
| Measurement range | SMR07-1: 0 ~ 5 mS/cm SMR07-2: 0 ~ 500 mS/cm |
| Accuracy | ±1% FS |
| Resolution | 0.1 μS/cm |
| Repeatability | ±5% FS |
| Operation pressure | Max. 10 Kgf/cm2 |
| Operating temperature | 0~85 °C; 0~100 °C(optional) |
| Cell constant | 1.00; 10.0 |
| Response time | 1 sec |
| Protection | IP68 |
| Temperature sensor | Pt100 |
| Temperature measurement range | 0 ~ 85 °C; 0 ~ 100 °C (optional) |
| Temperature accuracy | ±0.5 °C |
| Process connection | M28x1.5 |
| Housing | POM |
| Dimension | Φ 25 Χ 210 mm |
| Weight | analyzer: approx.150 g; cable: 80 g/m |
Typical Application:
| Type | Applications | Measurements | Order Selections |
| A | Source Water (River, Reservoir) |
Pressure Level pH Temperature Conductivity Dissolved Oxygen Turbidity Nitrate (NO3- ) Ammonium (NH4+) Chloride (CL-) Nitrite (NO2-) |
SMR01 SMR02 SMR04 SMR06 SMR07 SMR09 SMR10 SMR21 SMR23 SMR27 SMR28 |
| B | Ground Water | Pressure Level pH Temperature Conductivity |
SMR01 SMR02 SMR04 SMR06 SMR07 |
| C | Water Treatment | Pressure Level Free Chlorine pH Conductivity TDS Turbidity Salinity Differential Pressure |
SMR01 SMR02 SMR03 SMR04 SMR07 SMR08 SMR10 SMR11 SMR14 |
| D | Water Distribution | Pressure Level Free Chlorine pH Temperature Conductivity TDS Turbidity |
SMR01 SMR02 SMR03 SMR04 SMR06 SMR07 SMR08 SMR10 |
| E | Wastewater Effulence | Level pH Temperature Conductivity Dissolved Oxygen Suspended Solid Nitrate (NO3-) Chloride (CL-) |
SMR02 SMR04 SMR06 SMR07 SMR09 SMR12 SMR21 SMR27 |
| F | Fisheries, Aquarium and Aquaculture | Level pH Temperature Dissolved Oxygen Turbidity Salinity Level Free Chlorine ORP Temperature Nitrate (NO3-) Ammonium (NH4 |
SMR02 SMR04 SMR06 SMR09 SMR10 SMR11 SMR02 SMR03 SMR05 SMR06 SMR21 SMR23 |
| G | Factory, Commercial Building | Conductivity TDS Humidity and Temperature Differential Pressure |
SMR07 SMR08 SMR13 SMR14 |
| H | Weather | Humidity Barometer Wind Speed and direction |
SMR13 SMR15 SMR24 |
| I | Environment I (Strain, Landslide, Level) |
Rain Gauge Pyranometer Level (water pressure) Vibration Wire Input Noise |
SMR29 SMR30 SMR02 SMR19 SMR26 |
| PAD01 | IP 67 Handheld Muptiparameter Water Quality Meter |
| FDC1 | IP68 Field Display, 1 SMR Sensor input) |
| HMI1 | IP66 Display Controller Logger, 2 SMR Sensor inputs |
| HMI2 | IP66 Display Controller Logger, 4 SMR Sensor inputs |
| HMI3 | IP66 Display Controller Logger, 8 SMR Sensor inputs |
| SFC01 | Flow Chamber (SMR04/05/07/08/09/10/11/12/21/23/27/32/33/34/39/40/41) |
| SFC02 | Flow Chamber (SMR43/44/45/46) |
| BOX01 | RS485 hub(4 ports) |
| BOX02 | RS485 hub(8 ports) |
| CAB12 | IP68 2 ports RS485 cable |
