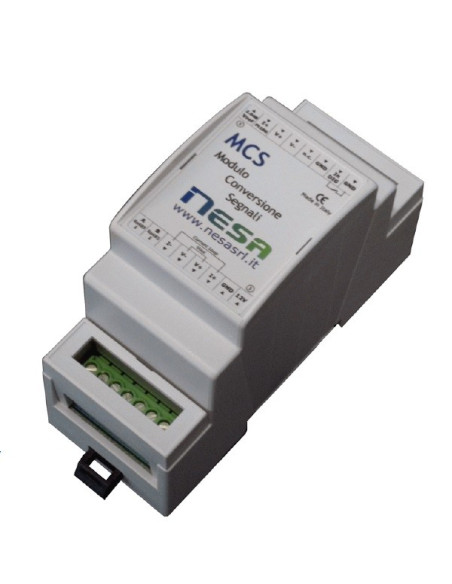

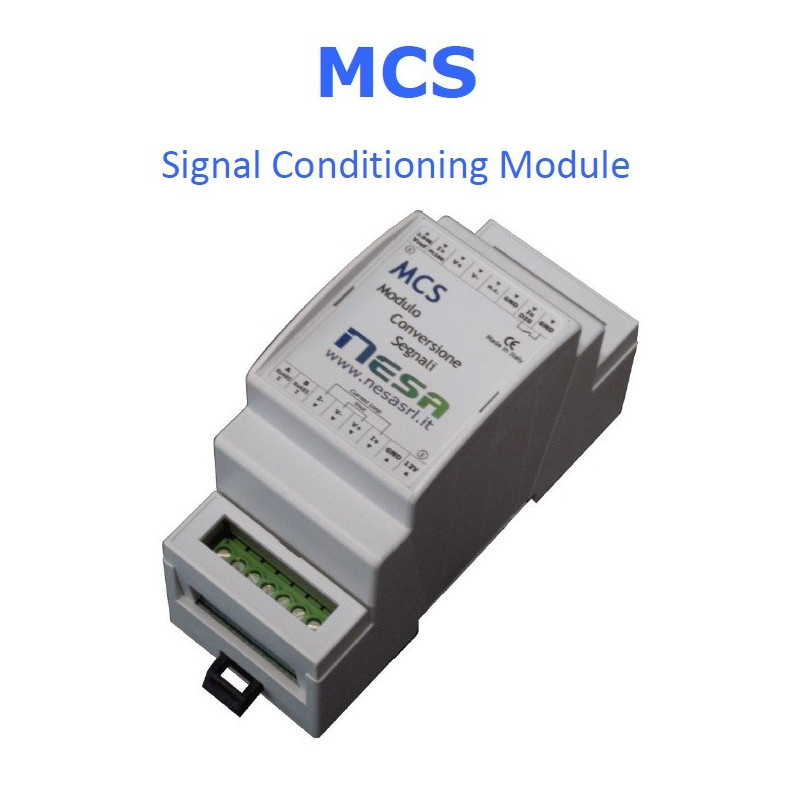

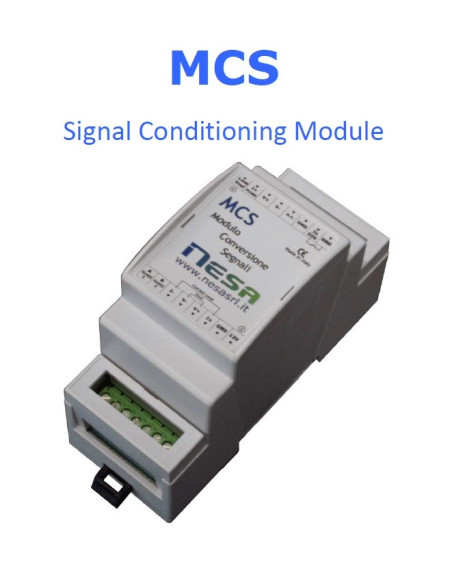

MCS Signal Conditioning Module for Nesa sensors

Reference MCS

Manufacturer: Nesa srl

Condition: New

DIN rail module for signals conversion at high-resolution (18-bit): accepts Pt100, thermopiles, voltages (micro voltage 0÷100mV) and currents or digital signals (frequency or counts) as input, and generates an output signal normalized as: 0÷2Vdc, 0÷20mA, 4÷20mA, RS485, Modbus RS485 serial.

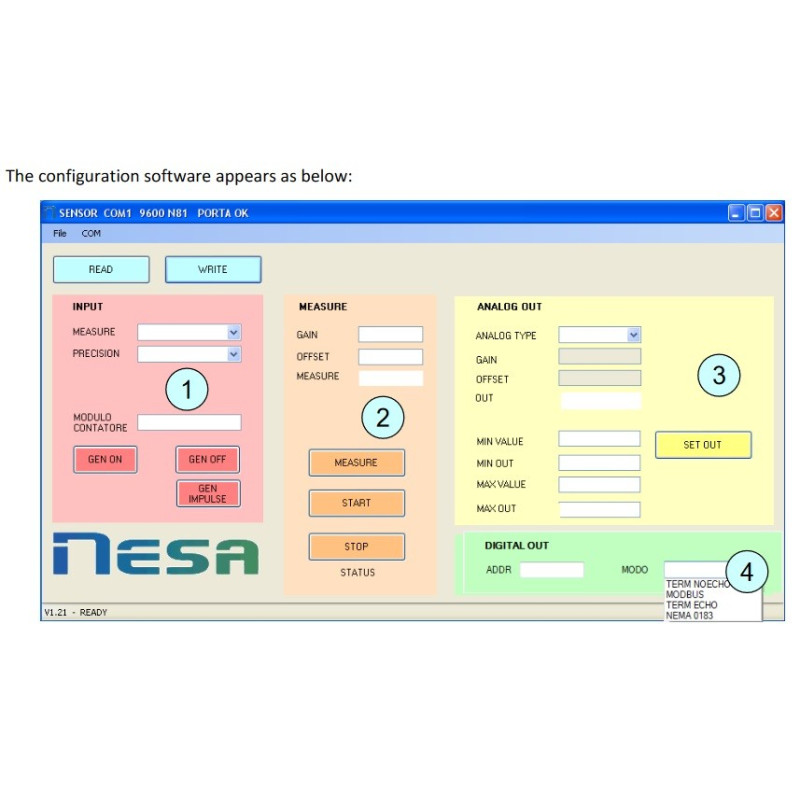

Includes a programming interface and a software that allows the selection of the input/output and the setting of offset and span.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
ORDERING MATRIX
ACCESSORIES
Data sheet
Download

Sensors Accessories:	Amplifier/Conditioner

MCS Download (528.92k)

MCS Manual Download (767.88k)

Single channel module for conditioning digital and analog electrical signals. Fully programmable for binding input/output with the USB interface available as an option.

Main features:

Programmable input signals: Pt100, thermopiles, Voltages up to 2Vdc, Current 0÷20mA or 4÷20mA, frequency up to 1000Hz, Counter for pulses (1ms min)
• Programmable Output signals: voltage 0÷2Vdc; Current 0÷20mA or 4÷20mA Serial RS485 (command line); Modbus RS485
• Resolution: 18 bits with over 262,000 points
• Operating conditions: -40 ÷ +80°C
• DIN rail mounting
• Power supply: 10÷30Vdc (typ. 4mA@12 Vdc)

• Programmable input signals: Pt100, thermopile, Volts up to 2Vdc, Current 0 ÷ 20mA or 4 ÷ 20mA, Frequency up to 1000Hz, Pulse count (minimum 1ms)
• Programmable output signals: Voltage 0 ÷ 2Vdc; Current 0 ÷ 20mA or 4 ÷ 20mA; Serial RS485 (command line); Modbus serial RS485
• Resolution: 18 bits with more than 262,000 points
• Operating conditions: -40 ÷ + 80 ° C
• DIN rail mounting
• Power supply: 10 ÷ 30Vdc, (typical 4mA @ 12Vdc)
