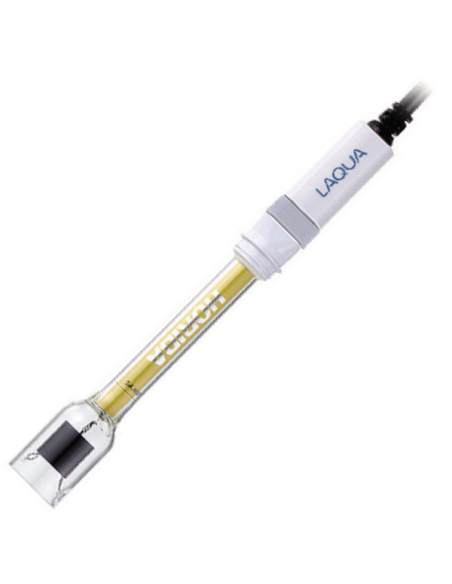

3551-10D LAQUA Conductivity Electrode (Submersible Type / Low Water Conductivity) Conductivity Cell

Horiba

3551-10D LAQUA Conductivity Electrode (Submersible Type / Low Water Conductivity) Conductivity Cell

Horiba

3551-10D LAQUA Conductivity Electrode (Submersible Type / Low Water Conductivity) Conductivity Cell

Reference: 3551-10D (3014081712) - Manufacturer: HORIBA

Conductivity Electrode (with 1m cable, BNC and phono jack)

€585.00

Tax excluded Envío: 1 a 3 semanas

- For low conductivity water (e.g., pure water)
- Glass body, Platinum/Platinum black, k=0.1, conductivity cell with integrated temperature sensor

Cell Constant (cm^-1)	0.1
Measurement Range	0.1µS/cm to 10mS/cm
Sample Volume Required (ml)	50
Temperature Sensor	Integrated
Temperature Range	0 to 60 °C
Connectors	BNC, phono jack
Cable Length	1m
Overall Length	175mm
Diameter	23mm
Cell Material	Platinum coated with platinum black, glass body

The actual cell constants are within ±10% of the nominal value.

- WATER QUALITY -: Conductivity Electrodes
The Sensor measures:: Conductivity

English Brochure

Download (3.07MB)

Download (239.31KB)
