Reference: PIR-A - Manufacturer: Nesa srl

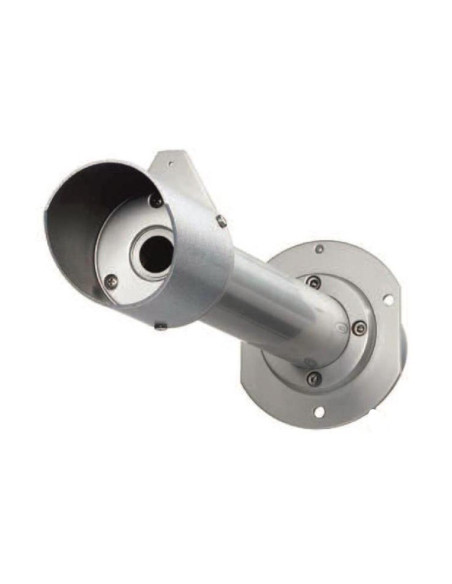

The pyrheliometer (class 1 according to ISO 9060) is an instrument for measuring direct solar irradiance using a thermopile (10 μV/W/m²).

The included DIN-rail MCS module offers alternative outputs of 0 to 2 Vdc, 4 to 20 mA, or RS485 ModBus.

Cable Length
€3,144.00
Tax excluded Envío: 1 a 3 semanas


  • High precision direct sun energy sensor
  • thermopile measuring system
  • Compact and light design in aluminium
  • According to WMO standards
  • Spectrum of radiation 250-4000 nm
  • Easy to clean up and maintain
  • According to norms

• Sensor for direct solar radiation at high precision

• Measuring system with thermopile

• Body in aluminum sturdy and compact, easy to install

• Conforms to standard WMO

• Measuring range typical: 0÷2000W/m2, 250÷4000nm

• Field of View: 5°

• Typical sensitivity: 10 μV/(W/m2)

• Output signal: 10 μV/(W/m2), 0÷2Vdc, 4÷20mA, RS485/Modbus

• Operating conditions: -40 ÷ +80°C

• Power supply: 10 ÷ 30Vdc
