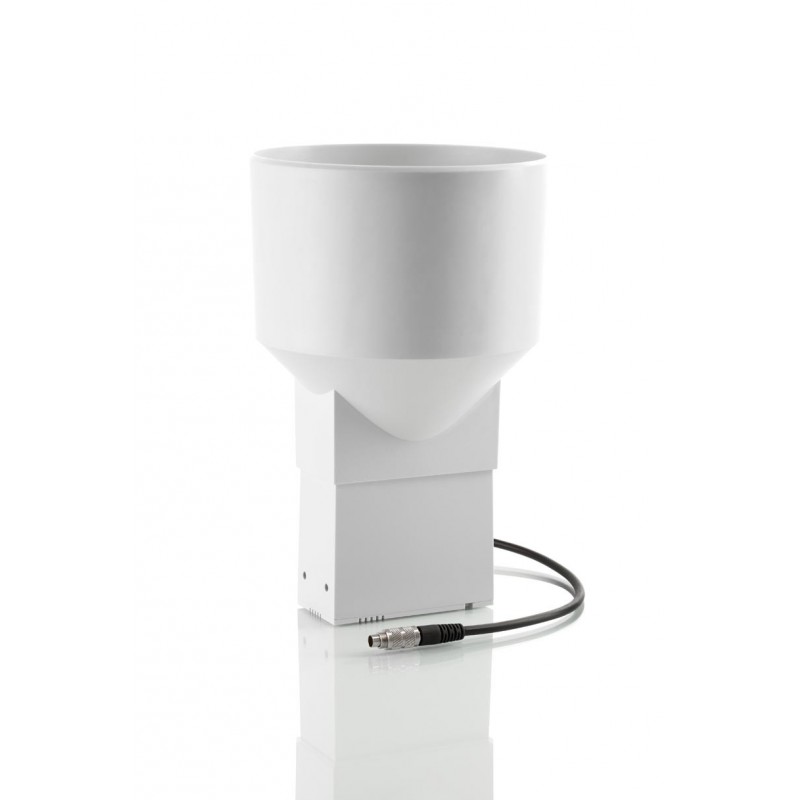

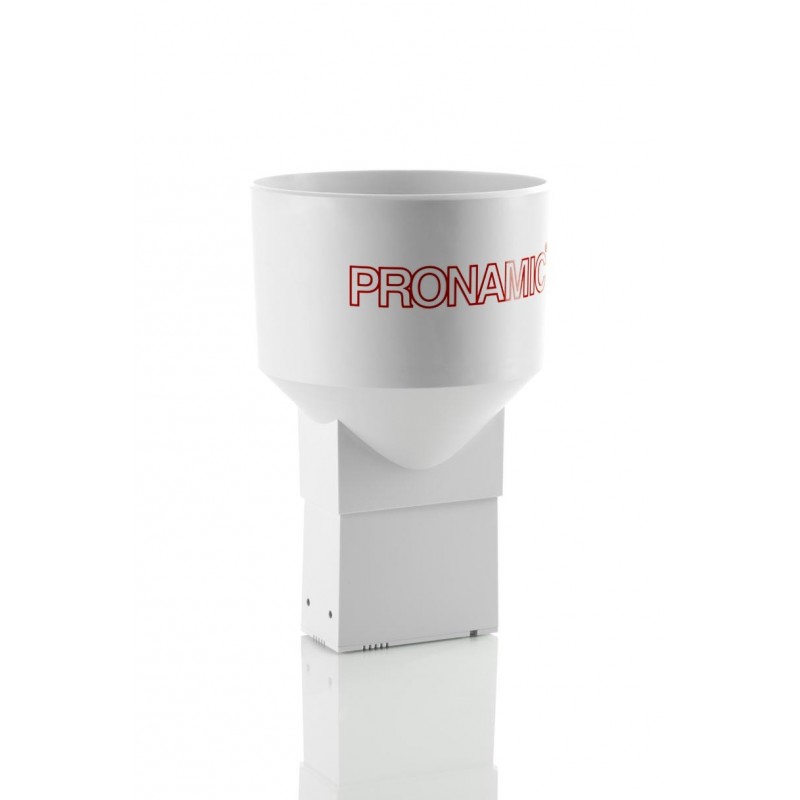

Rain-O-Matic-Pro Professional Rain Gauge (Precision: +/- 2%)

RAIN-O-MATIC's patented self-emptying professional rain gauge is one of the most accurate and reliable rain gauges on the market.

Advantages:
► More accurate measurements
► Just one adjustment screw makes it easy to recalibrate.
► Bucket made of POM, which is a more disrespectful material and therefore prevents dust and dirt from adhering so easily to the bucket and maximizes the release of water.

Calibration:

Calibration is a very important issue for Pronamic and therefore all professional rain gauges are manually calibrated. It gives you the guarantee for a very precise measurement. Accuracy: +/-2%.

Minimum maintenance:

Rain-O-Matic rain gauges require minimal maintenance due to:

► The outer shell is made of STYROSUN which makes the surface easy to clean.
► High quality plastic materials and a simple design for a very long life (10-20 years)

The Rain-O-Matic-Pro PROFESSIONAL Rain Gauge is light (380 gr) but robust which makes it perfect for:

► Weather Stations (MAWS)
► Wastewater treatment plants
► Hydroelectric power stations
► Irrigation and Agriculture
► Military
► Road authorities
► Constructions
► Engineering
► Forestry

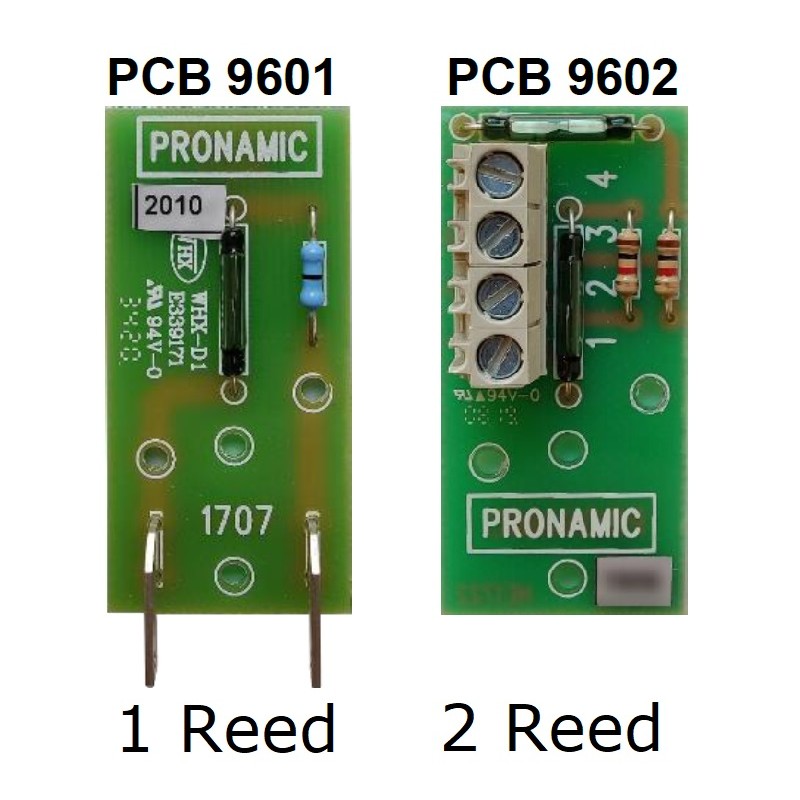

1 Reed Relay PCB 9601 – item no. 300.021

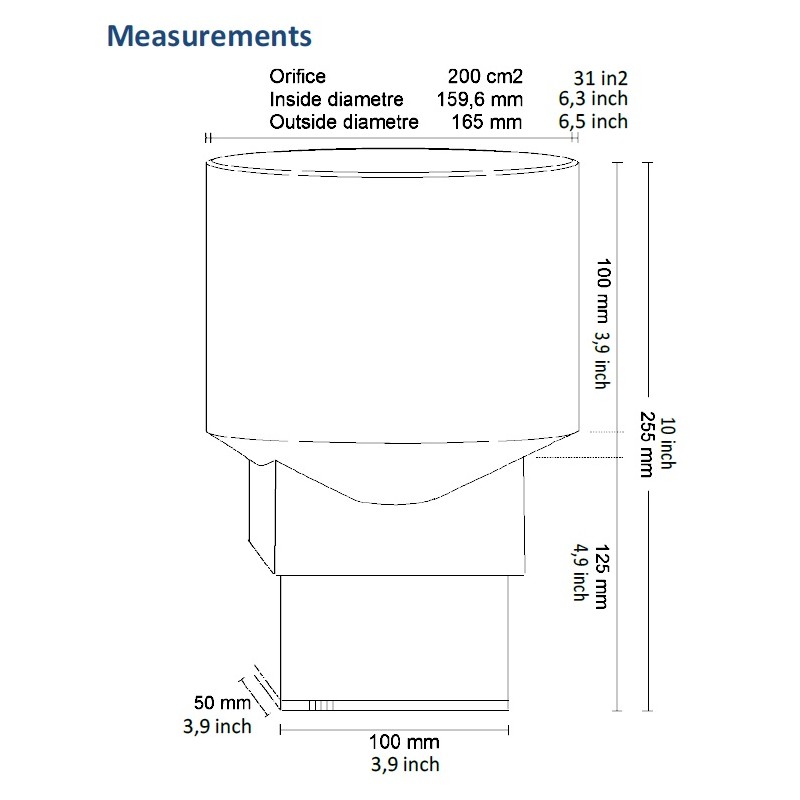

- Professional rain collector, orifice 200 cm2
- PCB No. 9601 has a male connection and one reed switch. The reed switch is NC – Normally Closed.
- Resolution: 0.1 – 0.2 – 0.25 or 0.50 mm rain pr. Tip
- Inclusive of mounting angel brackets 500.310
- Instruction manual included

2 Reed Relays PCB 9602 – item no. 300.023
- Professional rain collector, orifice 200 cm2
- PCB No. 9602 has a terminal strip and two reed switches. The reed switches are NO – normally open and NC - normally closed.
- Resolution: 0.1 – 0.2 – 0.25 or 0.50 mm rain pr. Tip
- Inclusive of mounting angel brackets 500.310
- Instruction manual included

Calibration is a very important issue for Pronamic and therefore all Professional rain gauges are manually calibrated. It gives you the guarantee for a very accurate measurement. Accuracy: +/- 2%.

Rain-O-Matic Professional measures the precipitation by means of a funnel (orifice 200 cm2), which leads the water down into the self-emptying tipping POM bucket, held in place by a hard ferrite magnet. The magnet always exerts just enough tension to allow the measuring bucket to empty in one quick movement (less than 300 ms) and then return to its normal position, ready to once again collect precipitation. This means the counter weight always remains the same opposite to other conventional two spoons tipping bucket rain gauges.

The rain gauge is mainly made in molded modified high-impact polystyrene also known as STYROSUN which is a highly weather-resistant polymer that reduces breakdown and discoloration.

STYROSUN which has passed the Arizona test is extremely resistant against the sun’s UV radiation and it is frost- and heat resistant standing all climatically conditions.

STYROSUN is resistant to common household cleaners, recyclable and easily decorated.
