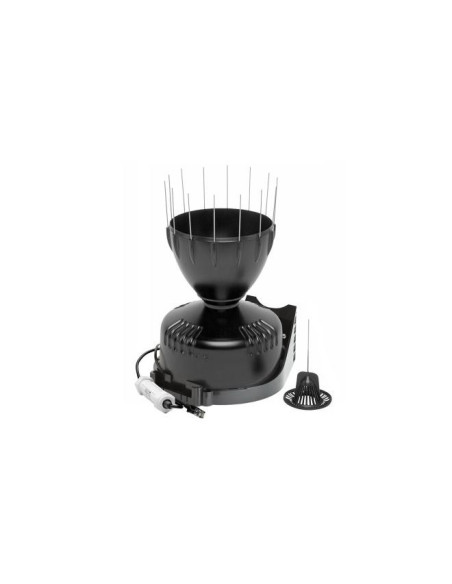

Davis® 0.01" Rain Gauge Smart Sensor - HOBO
Compatible with HOBO weather stations, HOBOware, and HOBOlink, this 0.01" rain gauge sensor features a plug-in modular connector for easy installation; requires no programming or extensive setup.
The Davis® 0.01" Smart Rain Gauge is a high-precision sensor designed to measure rainfall with extreme accuracy. Compatible with all HOBO weather stations, HOBOware, and HOBOlink, this sensor facilitates the collection of essential meteorological data. Its plug-and-play modular design allows for quick and easy installation, while the configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for extensive programming or setup.
Features
- Meets World Meteorological Organization (WMO) guidelines
- Available in a wireless model for use with the HOBOnet Field Monitoring System
- Rugged and weather-resistant design for use in various climatic conditions
| Specification | Details |
|---|---|
| Measurement Range | 0–10 cm or 0–5 in. per hour; maximum 4000 pulses per interval |
| Operating Range | 0° to 50°C (32° to 122°F); survival -40° to 75°C (-40° to 167°F) |
| Mechanism | Tipping bucket, stainless steel shaft with brass bearings |
| Resolution | 0.2 mm (S-RGB) and 0.01 inches (S-RGA) |
| Calibration | Requires annual calibration; can be field calibrated by user or returned to factory |
| Calibration Accuracy | ±1.0% up to 20 mm or 1" per hour |
| Housing | Aluminum housing and collector |
| Dimensions | 22.8 cm height x 15.4 cm diameter (9" height x 6" diameter), 154 mm collector opening (6.06") |
| Approximate Weight | 1 Kg (2 lbs) |
| Cable Lengths | 2 meters, 6.5 feet |
