PZ12-A-025 Rectilinear Displacement Transducer with cylindrical case

Reference: PZ12-A-025 - Manufacturer: Capetti Elettronica s.r.l.

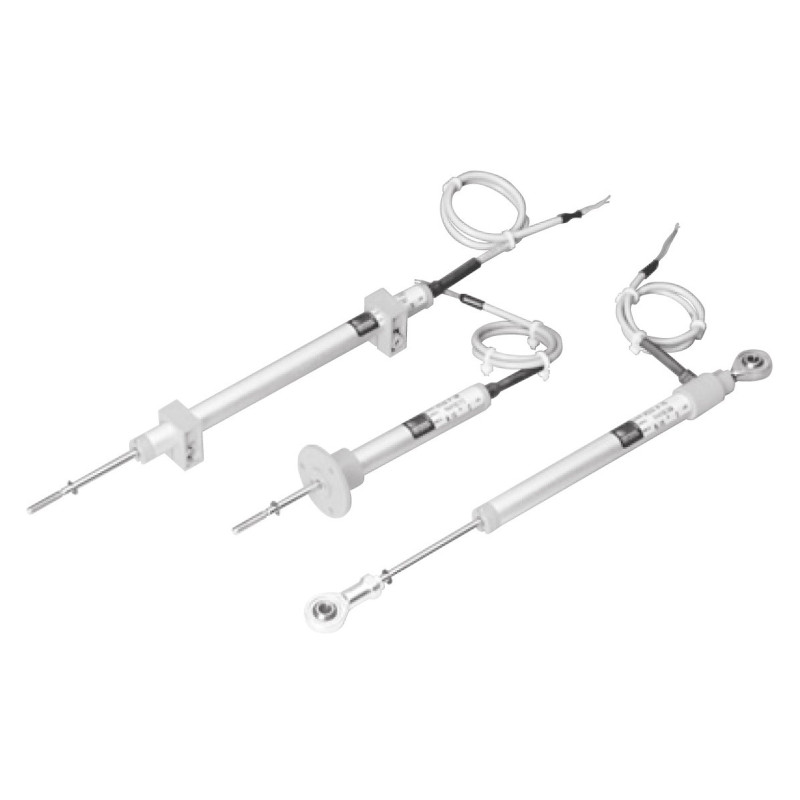

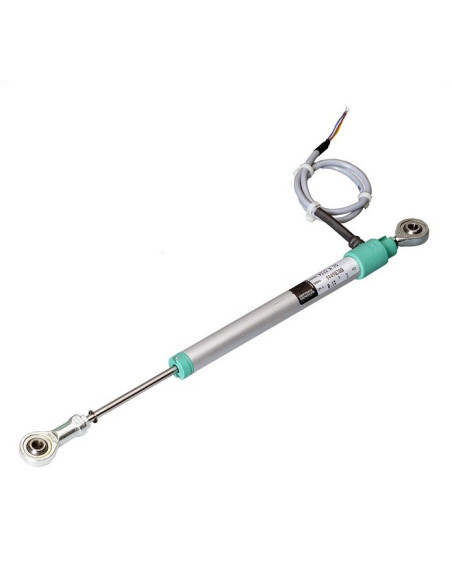

Rectilinear displacement transducer with cylindrical case
- Provided with 3x0.25 three-pin PVC cable
- Cable lenght: three meters
- 25mm useful electrical stroke
- Fixing on brackets, selfaligning ball-joints or flange
- IP65 sealing

► The 1/2” cylindrical housing, plus the option of all fastening systems (brackets, joints or flange), makes the PZ12 series highly versatile for a wide range of applications.
► The optimized mechanical structure makes the transducer suitable for developing various special executions.
► Installation is simplified by the lack of electrical signal variation at output outside theoretical electrical stroke.
► Ideal for wood and glass working and finishing machines and for car test benches.

The Sensor measures:: Linear displacement
Sensor IP Rating: IP65

PZ12-A-025 Data Sheet

Download (211.72KB)

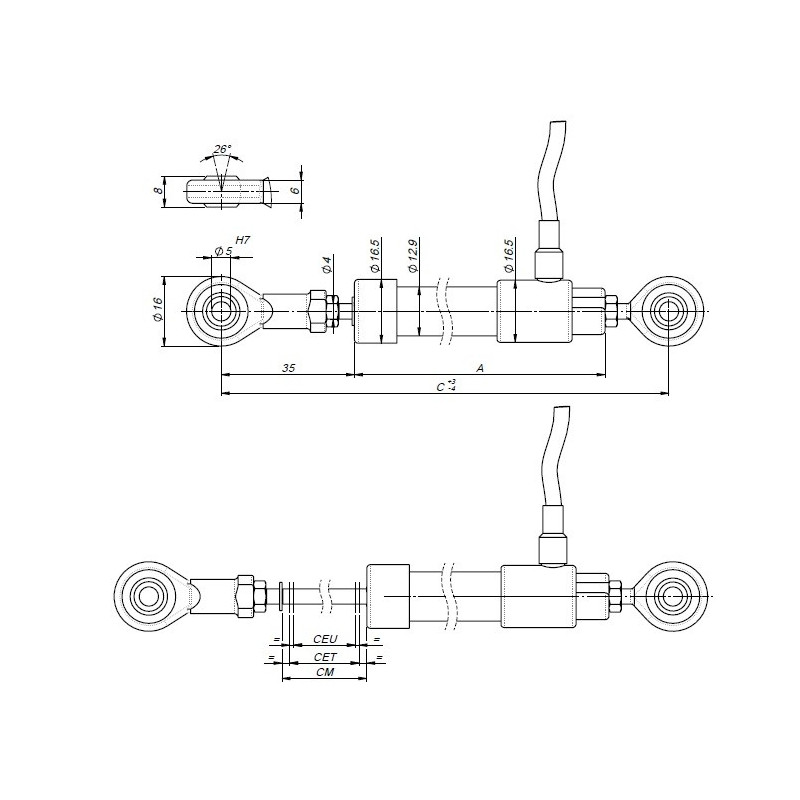

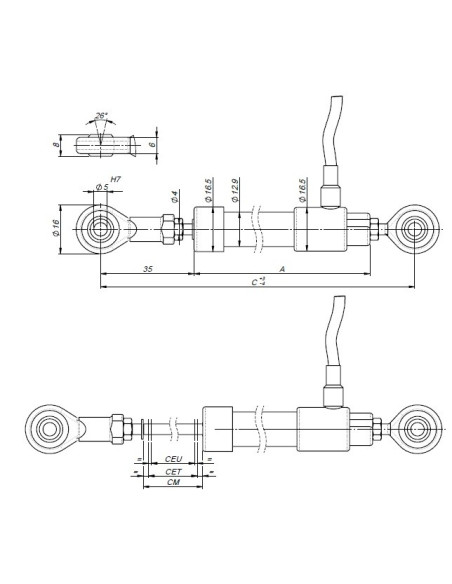

PZ12-A-025 Design

Download (109.7KB)

Download (102.19KB)
