TAS242-EW Easywire "Plug and Play" 3-Phase Measuring Current Transformer. Ranges: 60 to 250A
Plug-and-Play Three-Phase Current Transformer with Patented Technology from Rayleigh Instruments. 333 mV secondary Output. Ranges: 60 to 250A
Description
This system is safer than using traditional current transformers because Easywire transformers incorporate the resistive shunts usually located within the power meter. This means that the secondaries are always loaded, therefore eliminating the possibility of dangerously high voltages developing during open circuit conditions

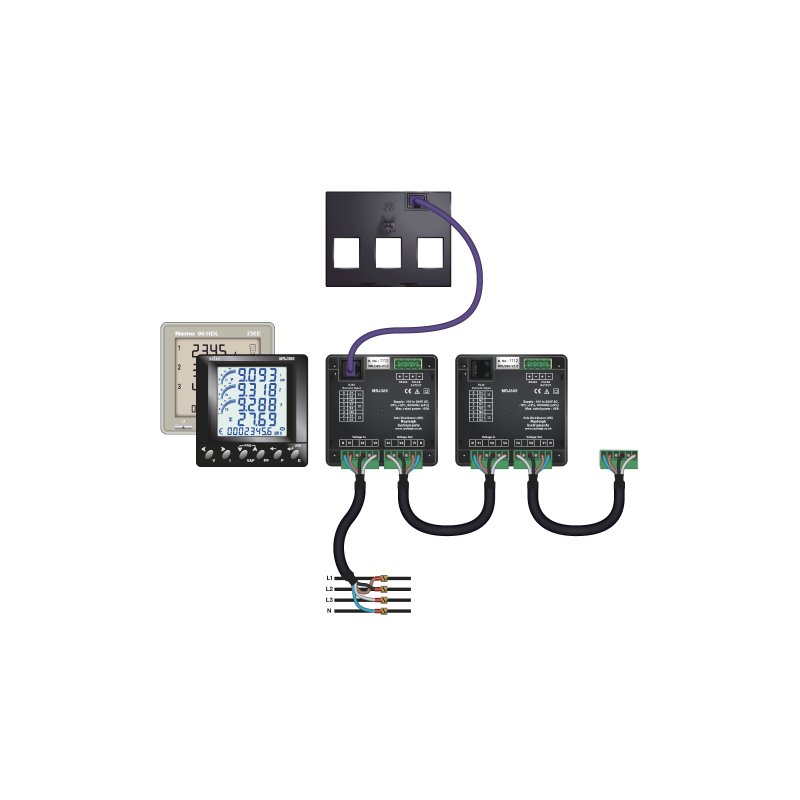

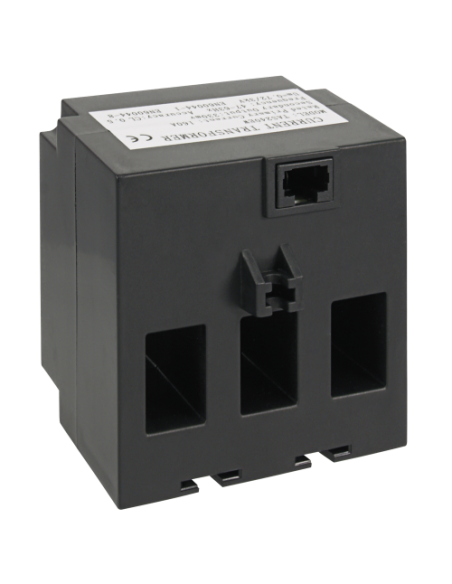

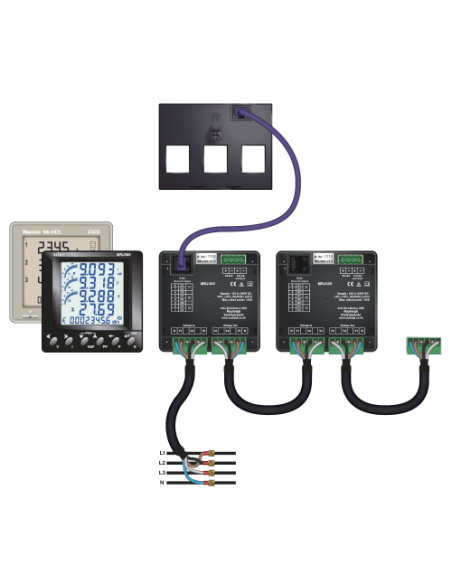

The TAS242-EW is a 105mm wide three phase measuring current transformer designed for use with the Easywire multifunction power meters. This current transformer has three 21 x 25mm holes and is available with primary currents from 60A to 250A .
Internal safety circuitry is provided which automatically limits the output voltage to a safe level, allowing the transformer secondary to be left open circuit under load
Fixing

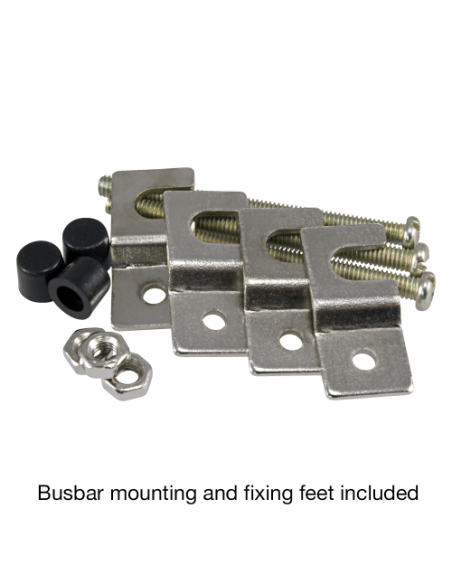

DIN rail mounting clip, Busbar mounting and fixing feet included
Installation
The TAS242-EW uses the Easywire technology allowing much faster installation saving you time and money. Additionally, all our three phase phase current transformers have been designed with hole centres and apertures to fit most standard industrial circuit breakers
Features:
- Ranges: 60 to 250A (330mV Secondary)
- Cable aperture : 3 @ 21 x 25mm
- Primary current : 60 to 250A
- Accuracy Class 1
- 35mm hole centres
- Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
- Weight : 550g

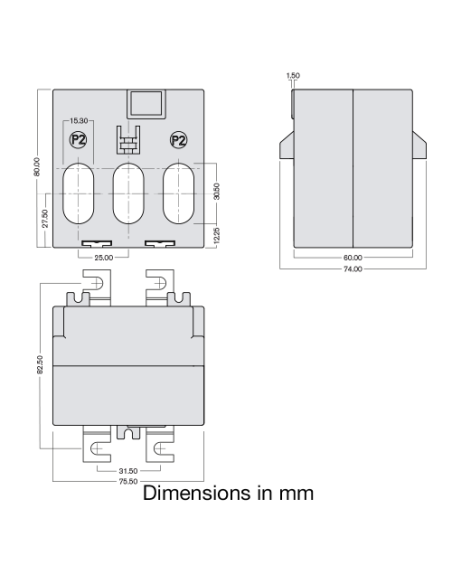

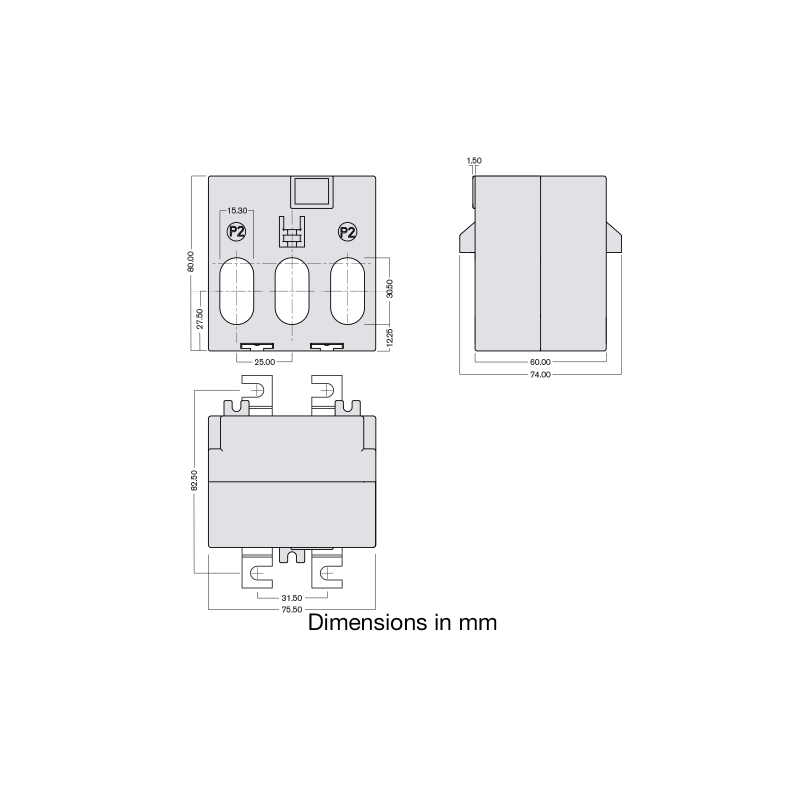

Dimensions:
H=80, W=105, D=86mm
