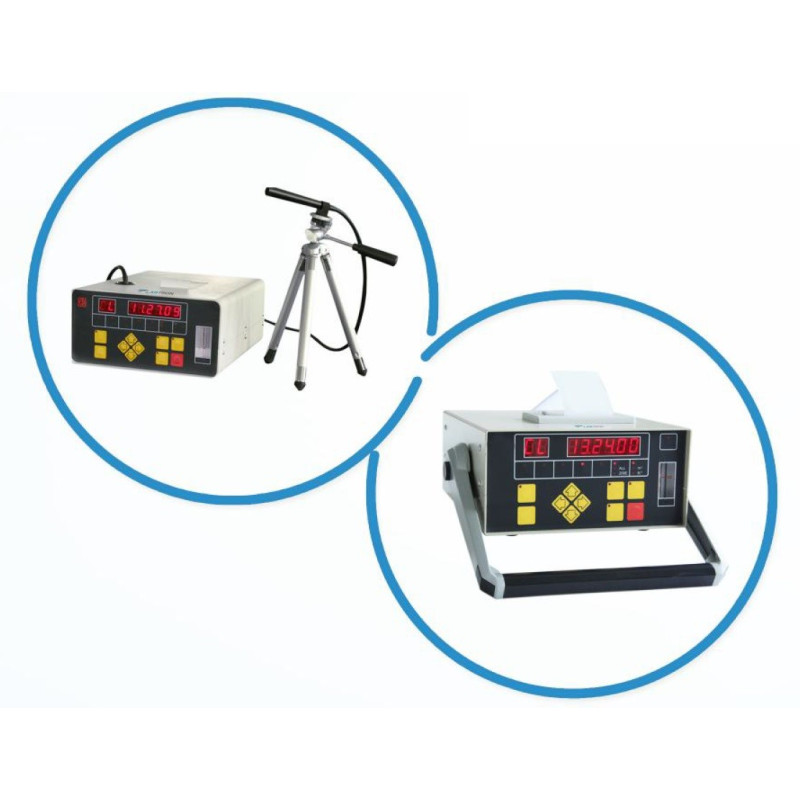

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter

LPPC-A10 Portable Airborne Particle Counter (with printer)

Reference: LPPC-A10 - Manufacturer: LABTRON

Portable airborne particle counter LPPC-A10 is a six channel microcomputer controlled unit. It has a provision of simultaneously counting particles in six different size ranges with real time monitoring. Equipped with built-in thermal sensitive printer for direct printing of pre-recorded and current data for end user convenience. The particle count data can be conveniently viewed, downloaded or printed directly using the built-in printer featuring multiple print mode.

Laser sensor based particle detection
Dual counting mode ( Auto/Manual )
Data conversion : ft3 and m3
Date and time display

Particle size channels	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm
Flow Rate	0.1 CFM ( 2.83 L/min )
Test class	Class 100 ∼ Class 300,000
Built-in battery	No
Test period	1 min ∼ 10 min ( 10 levels )
UCL Calculation	0.95
Light source and life	Semiconductor laser ( ˃ 30,000 hours )
Self-clean time	≤ 10 min
Operating temperature range	10 °C to 35 °C
Operational humidity	≤ 75 % RH
Power	220 V ± 10 %, 50 Hz ± 2 Hz
Power dissipation	15 W
Dimensions	215 x 255 x 110 mm
Weight	2.9 kgs

Used in clean room monitoring, indoor air quality testing, filter testing, tracking particle sources, pharmaceuticals, R&D labs, and electronics and semiconductor industries; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance.

Type of Instrument: Particles in Air Monitor
The instrument measures:: Optical Particle Counting
Instrument for:: Hospitals, Lab's, Clinics
Function:: Analyze Particle Size

Download (164.66KB)
