MINI APC Airborne Particle Counter

► View simultaneously concentration curves, sampling data and sampling schemes.
► Select operational modes and view a variety of sampling details.

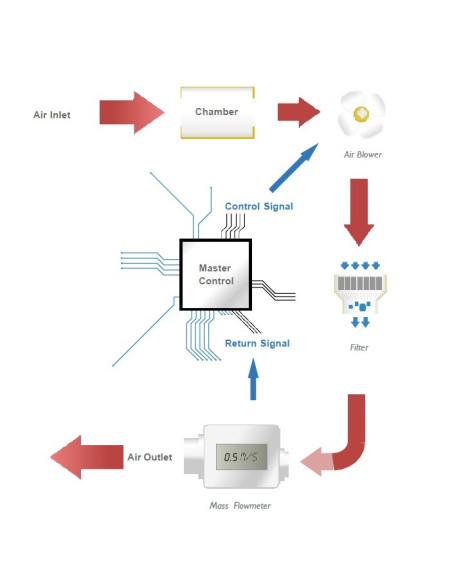

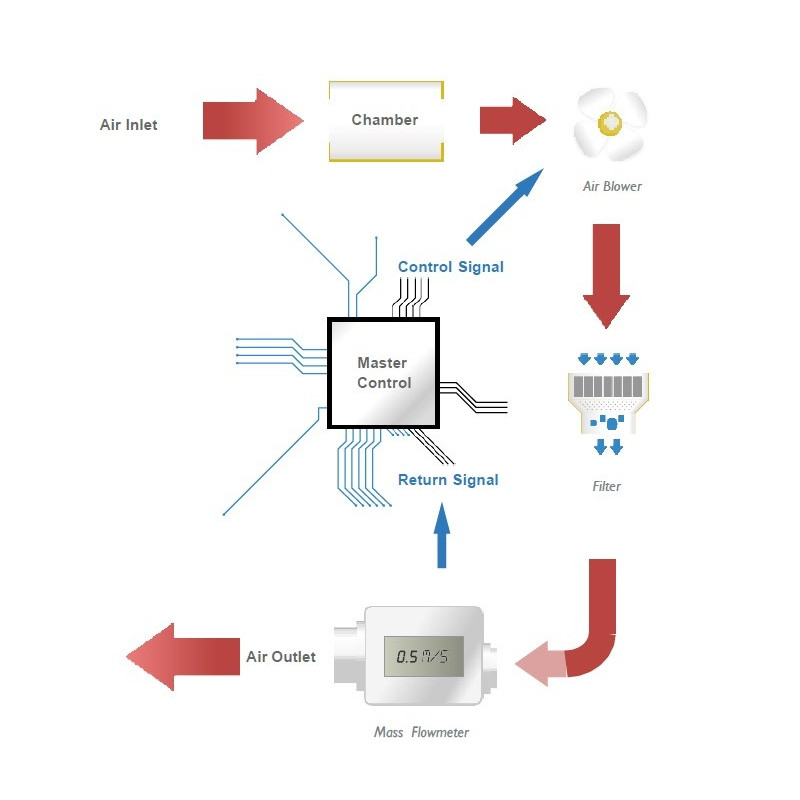

System Air Flow
The Air flow is monitored by a mass flow meter.
The PID controller automatically adjusts the blower speed.
A reaction speed of 100m/s ensures stable flow and flow rate accuracy ±3%.

Optical System
MicronView's Airborne Particle Counter (APC) laser temperature control system ensures the laser temperature remains fixed, extending the working life of the laser and keeping the output wavelength stable.
This system ensures the monitoring process is not affected by external temperature and readings remain reliable.
The surface of the scattered light collector is gold plated for a durable corrosion resistance and reliability.

Data Management
The Mini APC can store up to 5 million data records.
• 20,000 zones and 200,000 sites can be stored.
• Pre-set zone settings and sampling schemes can be exported via USB and imported into other mini APC units.
• Three-level authority management, featured with audit trail.
• The unit complies with FDA 21 CFR Part 11.
• Communication methods: WIFI, USB, RJ45 and Sensor-HUB can be realized.
• Sample data can be exported in PDF and db. files.
• Generates ISO/EU GMP/CHINESE GMP/Fed Std reports.
