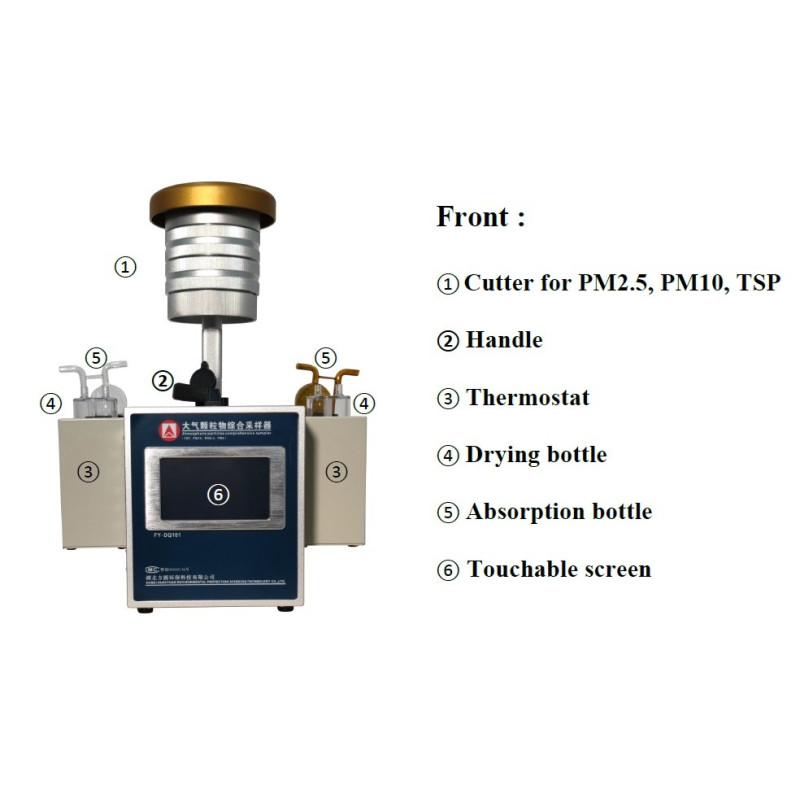

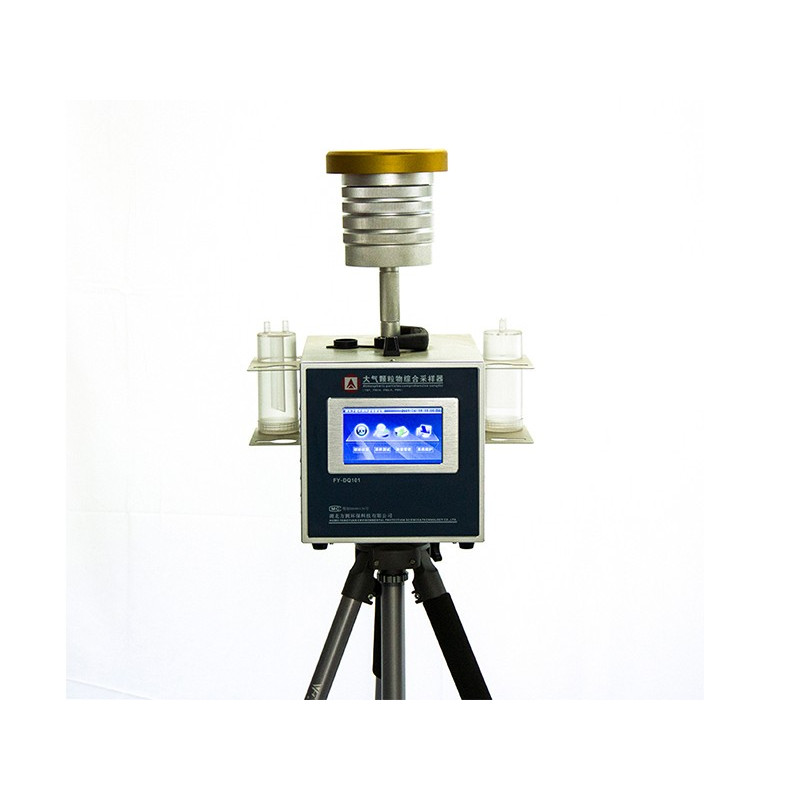

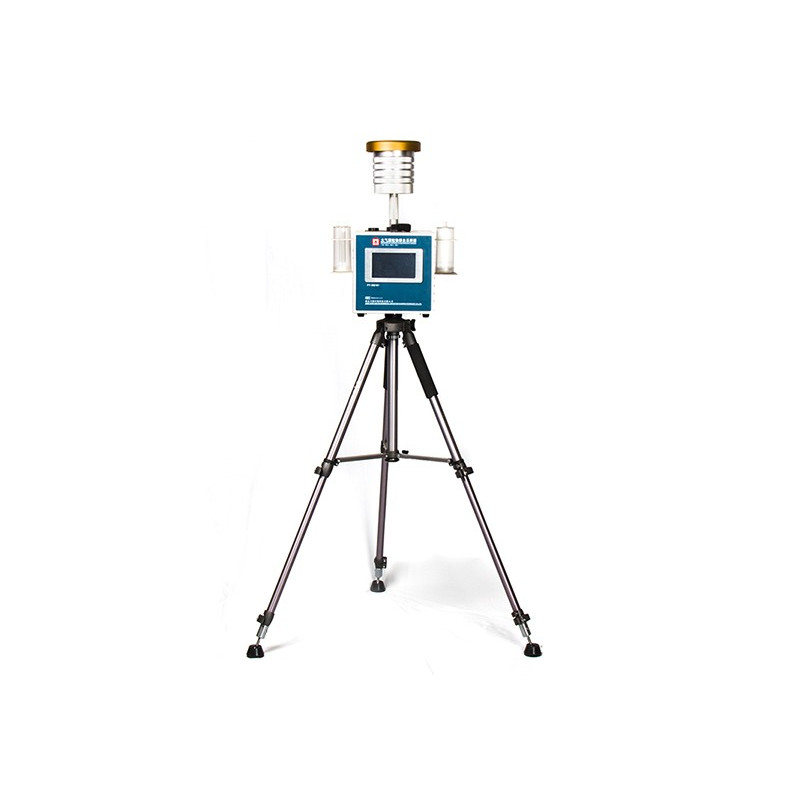

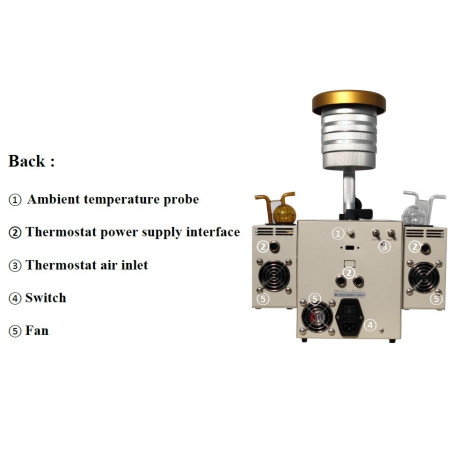

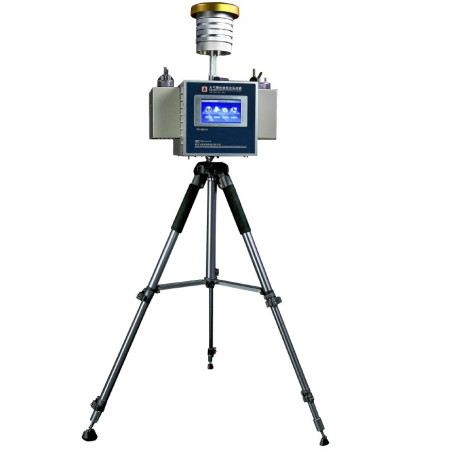

FY-DQ101 Atmospheric Particulate Sampler for Indoor Environment Testing

► Integrating particulate matter and multi-channel gas sampling function

► According to the selection, we can simultaneously realize the functions of one particle sampling, 2way 24 hour constant temperature constant current and two ordinary gas sampling

► According to the selection, the cutter acquisition  TSP PM10 PM5 PM2.5 can be replaced

► Intelligent constant current sampling, long life brushless sampling pump

► Can realize manual sampling, automatic timing sampling, periodic cycle sampling

► Can be equipped with high negative pressure, large flow, noise brushless sampling pump for particle composition analysis sampling

► Preset sampling flow, startup time, sampling time, interval time, cycle period, etc.

► Particulate matter and atmospheric sampling can be set up simultaneously or separately and independently

► Industrial 32-bit high-speed embedded processor

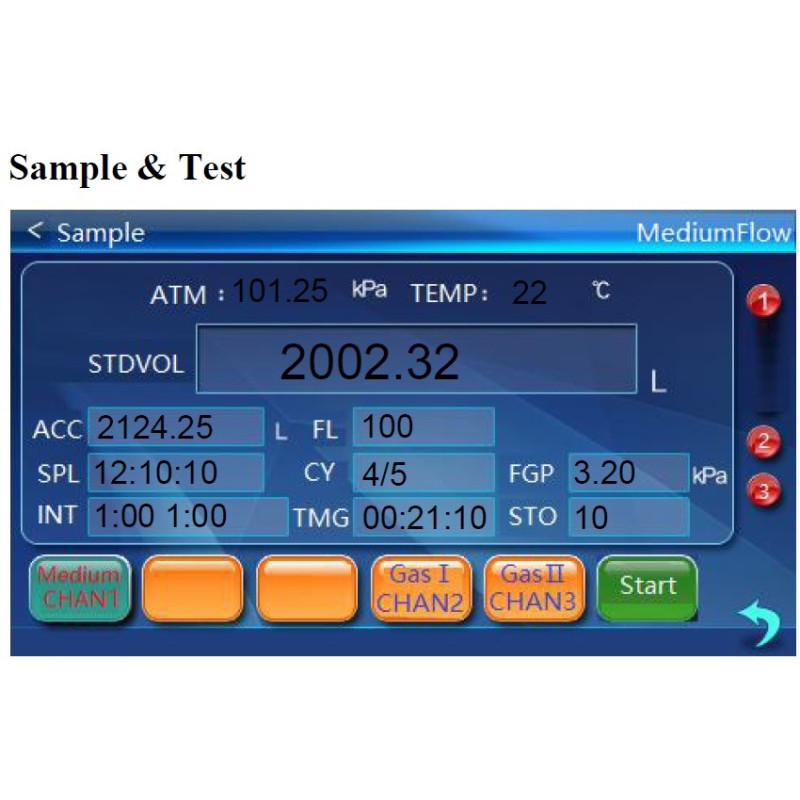

► Industrial 5.0-inch color wide temperature touch screen ,5 channels sampling parameters can be displayed simultaneously on one screen

► Built-in mass multi-memory to ensure safe and reliable storage of sampled data

► Gas sampling is designed to prevent solution suction

► Automatic measurement of ambient temperature, field atmospheric pressure, automatic calculation of volume of standard conditions.

► The whole process of work with power-down protection function, call can automatically restore sampling

► Can be equipped with rain shield, suitable for 24-hour round-the-clock sampling

► Multi-point Network Monitoring Management

► Our Portable Mobile Power Supply Sampling

► Optional U disk data copy function

► Optional thermal or needle wireless printer, background printing

► Sampling of power supply of large capacity lithium electronic batteries in selective inner and seb

► Beidou, GPS location and data transmission functions can be selected to realize the integrated management of the Internet of things
