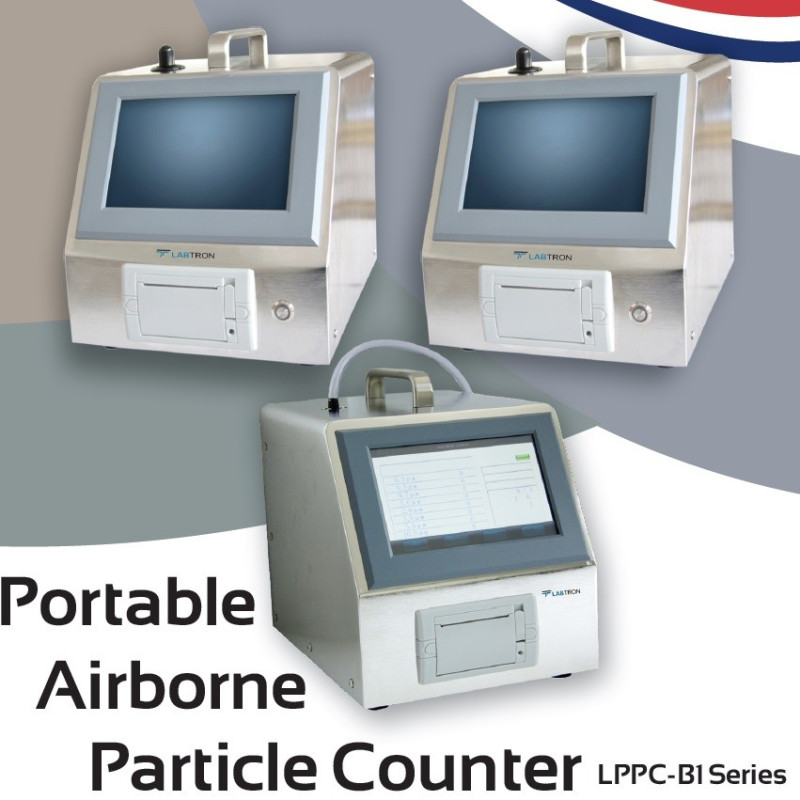

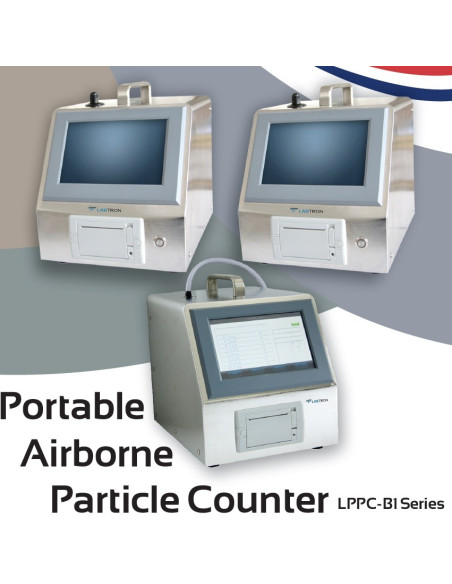

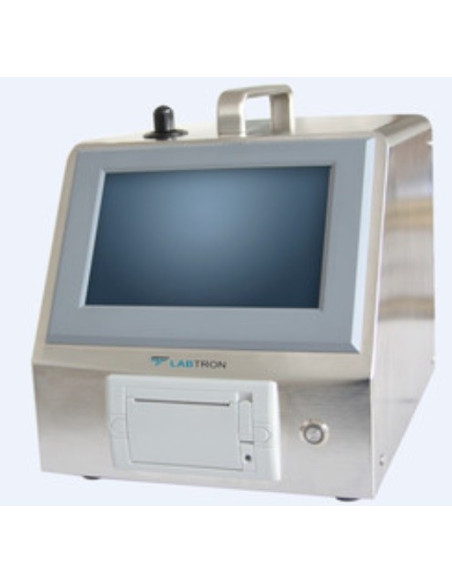

LPPC-B12 Portable Airborne Particle Counter (8 channels and printer)
Portable airborne particle counter LPPC-B12 is an eight channel unit with higher flow rates that can confirm the class of a clean room. It has a provision of simultaneously counting particles in eight different size ranges with real time monitoring. It features a user-defined particle count limit thus offering end user flexibility. The particle count data can be conveniently viewed on screen, downloaded or printed directly using the built-in printer.
- 7 inches colour touch screen for displaying particle count of all channels
- Laser sensor based particle detection
- Large data storage capacity ( 5000 samples )
- Data conversion : ft3 and m3
- UCL calculation
- Built-in thermal printer
- Direct data export using WiFi connectivity
- Stainless steel housing
| Particle size channels | 0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm |
| Flow Rate | 100 L/min |
| Sensitivity | 0.3 µm |
| Test period | 1 sec ∼ 5999 sec ( 5 L ∼ 3000 L ) |
| Max. permissible sampling concentration | 35,000 pcs/L |
| Light source and life | Semiconductor laser ( ˃ 30,000 hours ) |
| Self-clean time | ≤ 10 min |
| Operating temperature range | 10 °C to 35 °C |
| Operational humidity | ≤ 75 % RH |
| Batteries | Lithium-ion ( optional ) |
| Battery life | ˃ 4 hours continuous usage |
| Communication interface | USB-485, Ethernet |
| Power | 220 V ± 10 %, 50 Hz ± 2 Hz |
| Power dissipation | 145 W |
| Dimensions (W x L x H) | 223 x 348 x 250 mm |
| Weight | 7.1 kgs |
Used in clean room monitoring, indoor air quality testing, HEPA filter performance testing, tracking particle sources; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance.
.jpg)
.jpg)
- Type of Instrument
- Particles in Air Monitor
- The instrument measures:
- Optical Particle Counting
- Instrument for:
- Hospitals, Lab's, Clinics
- Function:
- Analyze Particle Size
