HD2101.2 Hygro-Thermometer Data Logger

HD2101.2

Delta Ohm

New

Thermo hygrometer data logger.
Measuring range for temperature -200 °C…+650 °C with probe TP47…, for humidity 0.0…100.0%RH. Temperature only is measured by immersion, penetration air or contact probes. The sensor can be a Pt100 or Pt1000. When the humidity/temperature combined probe is connected, the instrument calculates and displays the absolute humidity, the dew point, the partial vapour pressure, the wet bulb temperature, the mixing ratio, the enthalpy and the comfort indices.The probes are fitted with an automatic detection module, with the factory calibration data already stored inside.Storage of maximum, minimum, average value, RS232C output for data transfer in real time to a PC or printer. Functions: REL, HOLD and auto power off which can be disabled, IP 66 protection degree.

510,00 €

tax excl.

Add to wishlist

Environment of Use Indoor/Outdoor
Measured Parameters T/HR
With Display LCD

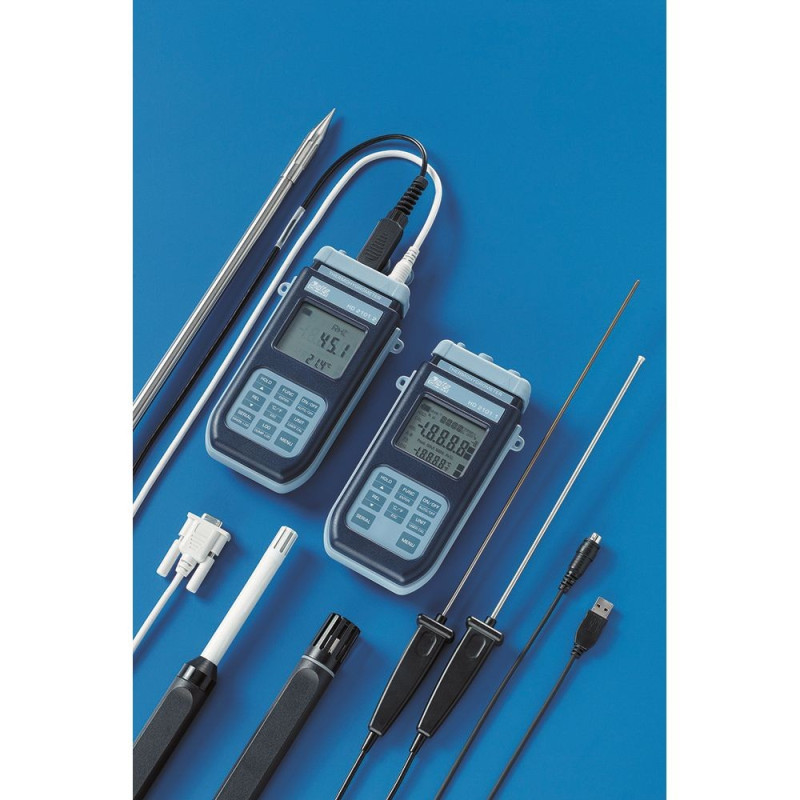

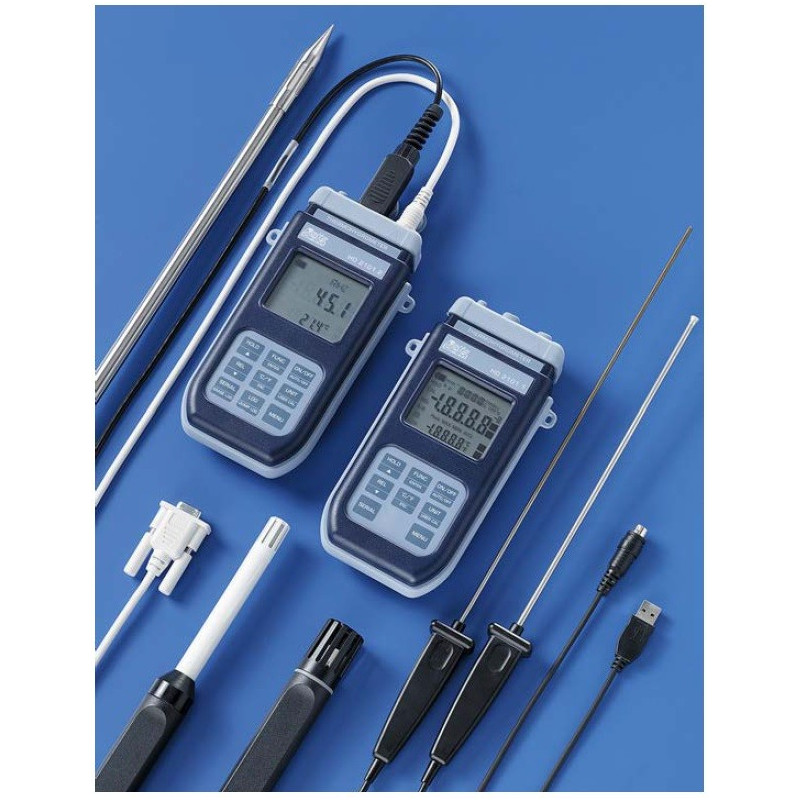

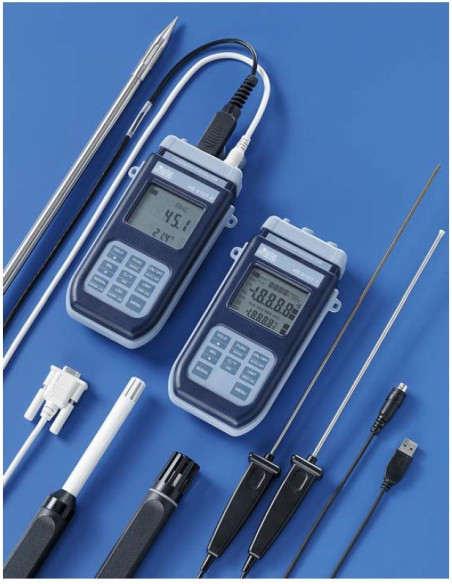

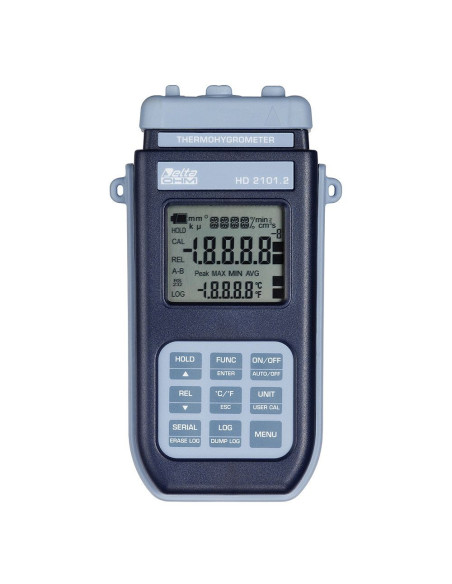

The HD2101.2 is a portable instruments with a large LCD display.

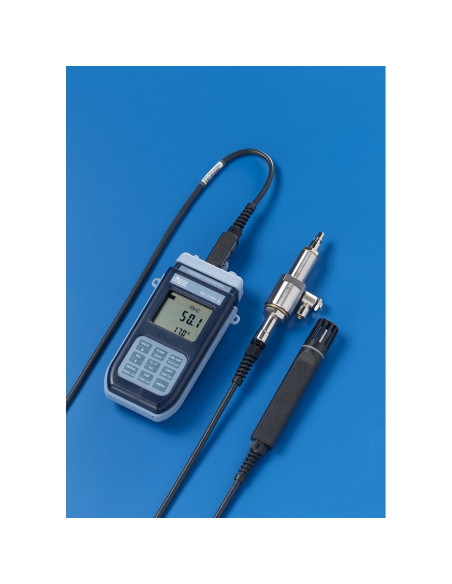

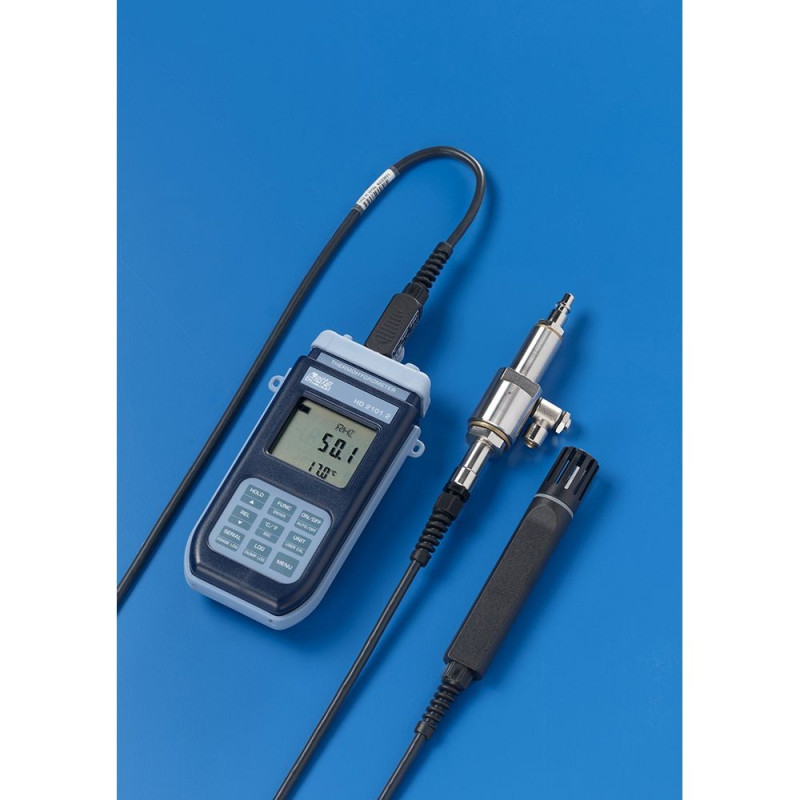

It measures relative humidity and temperature using a Pt100 sensor or thermocouple humidity/temperature combined probe. Temperature only is measured by immersion, penetration or contact probes. The sensor can be a Pt100 or Pt1000.
When the humidity/temperature combined probe is connected, the instrument calculates and displays the absolute humidity, the dew point, the partial vapour pressure, and the comfort indices.
The probes are fitted with an automatic detection module, with the factory calibration data already stored inside.

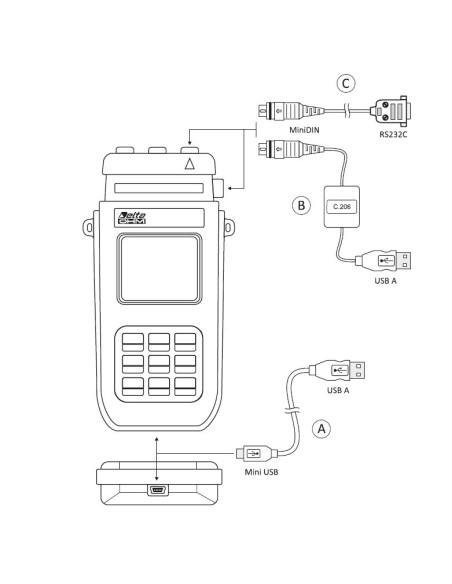

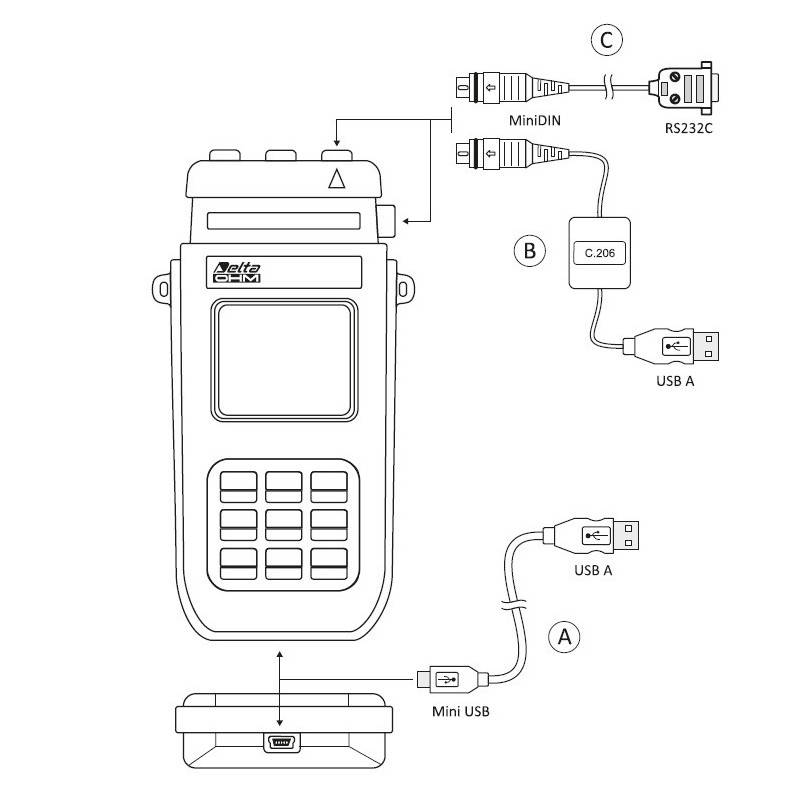

The HD2101.2 is a datalogger. It stores up to 38,000 samples which can be transferred from the instrument connected to a PC via the multi-standard RS232C serial port and USB 2.0. The storing interval, printing, and baud rate can be configured using the menu.

The HD2101.2 is fitted with an RS232C serial port and can transfer the acquired measurements in real time to a PC or to a portable printer.
The Max, Min and Avg function calculate the maximum, minimum or average values.

Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off that can also be excluded.

The instruments have IP67 protection degree

Includes DeltaLog9 software.

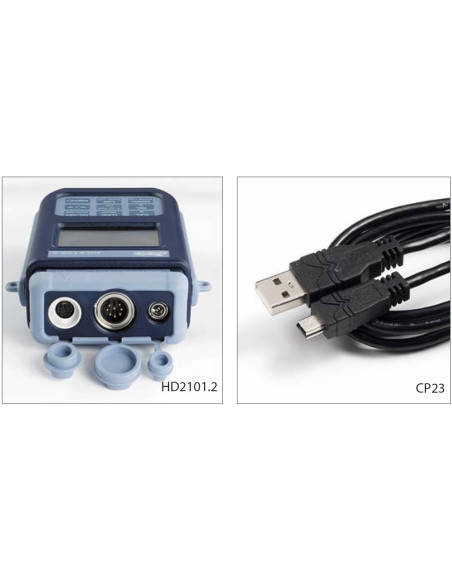

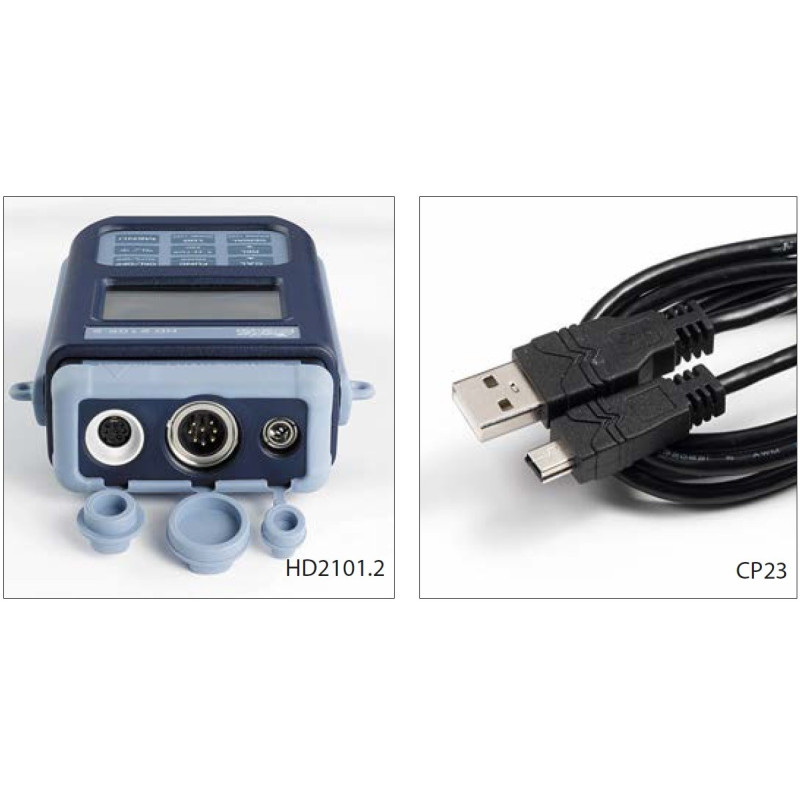

Supplied with carrying case, instruction manual, 4 batteries, CP23 USB cable. The HP… series combined humidity and temperature probes with SICRAM module have to be ordered separately.

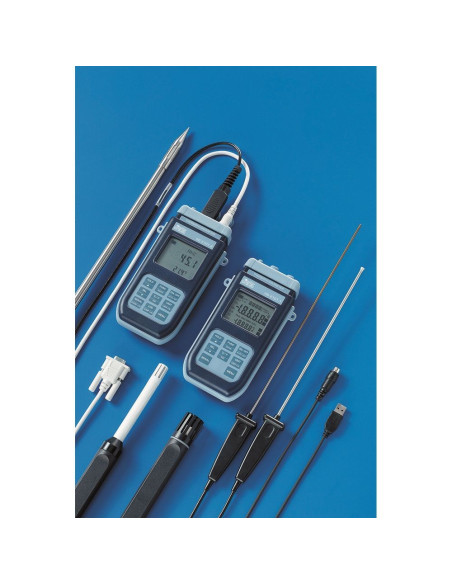

TP47…series temperature probes can be connected.
