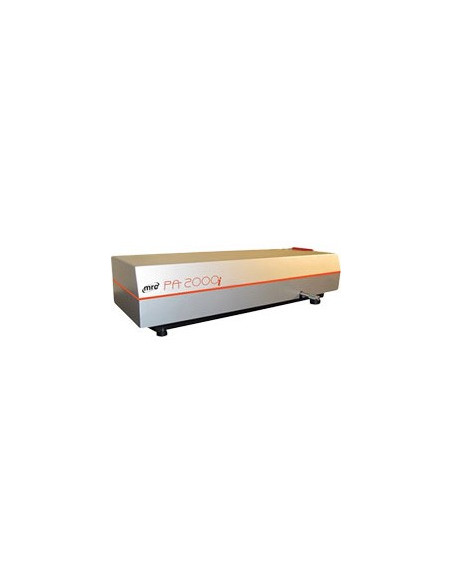

PA-2000I-Hybrid Particle Analyzer - Hybrid

Reference PA-2000I-Hybrid

Manufacturer: MRC

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

Instrument for:	Particle Size
Function:	Analyze Particle Size

PA-2000I-Hybrid_SPEC Download (486.71k)

PA-2000I-Hybrid_Present Download (1.82M)

PA2000i, Particle Size & Shape Analyzer
The PA2000i Laser Channel is a straight-forward technique
for determining micro-particle size distribution
(0.1 - 3,600 microns
Software Packages:Windows XP, MS Office, PA2000i compatible S/W package
The PA2000i Video Channel performs 2-D particles
Dynamic Size and Shape Analysis in a wide size
range (1 - 5,000 microns)
Concentration range:Up to 10^9 particles/cc (for 1μm particles).
Modular measurement cells: Liquids, emulsions, dry powders, fibers, magnetic particles, heated liquids and aerosols
Particle presentation phases:Liquid, dry and airborne phases.

Model	PA-2000i
Measured parameters	Particle Size and/or Shape
Total particle size range	0.1-5000 μm
Concentration range	Up to 10? particles/cc (for 1μm particles)
Particle presentation phases	Liquid, dry and airborne phases
System dimensions & weight	740L x 420W x 240H (mm), 14 Kg
Laser	2mW HeNe, 632.8 nm, Silicon PIN Photodiode Detector
Laser resolution	0.33% of full scale, up to 0.2 μm
Video illumination	Synchronized strobe light, adjustable intensity & duration
Video resolution	B&W CCD camera, NTSC 640x480 pixels, PAL 768x572 pixels
Software Packages	Windows XP, MS Office, PA2000i compatible S/W package
FDA	21 CFR part 11 compliant
ISO	Compliant to numerous ISO-methods
Modular measurement cells	Liquids, emulsions, dry powders, fibers, magnetic particles, heated liquids and aerosols
Available Accessories	Automatic liquid flow controller, dry powder disperser, dry powder feeder, temperature controller, aerosol controller and compatible PC
Electricity	100-130V, 205-240V, 50/60Hz, 100VA

Application Examples:

Model	PA-2000i
Geology	Soil, clay, sand, kaolin.
Environmental	Ocean water, tap water, waste water, dust, membrane filtration, flocculation.
Pharma & Bio-tech	Powders, suspensions, syrups, emulsions, pastes, micro-carriers, injectable solutions, collagen, microcapsules, drug powders.
Chemicals	Pesticides, dispersants, catalysts, resins, emulsions, preservatives.
Ceramics and Metals	Alumina, silica, magnetic powders, tungsten, sintered products, stainless steel, strontium, cobalt.
Energy	Coal, fuels, slurries, shale oil emulsions, fly ash.
Food Products	Emulsions, fine powders, beer, coffee, chocolate, ground products, agglomerated crystals, flour, peanut butter, corn-flakes.
Heavy Industry	Polymers, oil droplets, wear particle, chalk, fillers, toners, pulp & paper, coatings, pigments, PVC, paint.
Life Science	Bacteria, smears, yeast, inhalation toxicology, cell research, algae growth, blood analysis.
