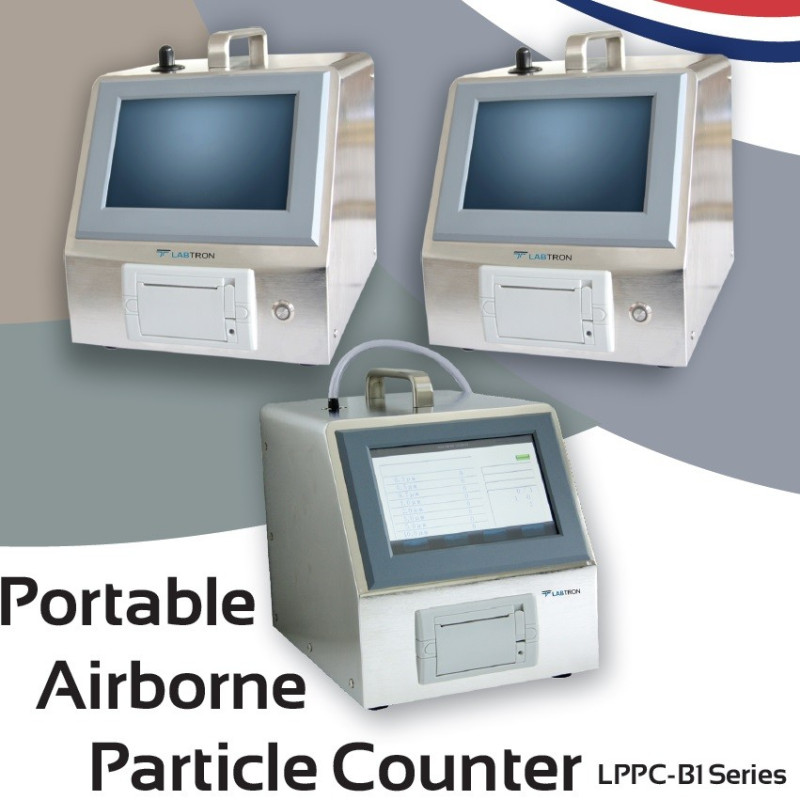

LPPC-B10 Portable Airborne Particle Counter (0.3 µm to 10.0 µm)

View larger

LPPC-B10 Portable Airborne Particle Counter (8 channels and printer)

Reference LPPC-B10

Manufacturer: LABTRON

Condition: New

Portable airborne particle counter LPPC-B10 is an eight channel unit with higher flow rates that can confirm the class of a clean room.
It has a provision of simultaneously counting particles in eight different size ranges with real time monitoring.
It features a user-defined particle count limit thus offering end user flexibility.
The particle count data can be conveniently viewed on screen, downloaded or printed directly using the built-in printer.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
ACCESSORIES
Data sheet
Download

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particle Size
Function:	Analyze Particle Size

LPPC-B10 Download (2.98M)

7 inches colour touch screen for displaying particle count of all channels
Laser sensor based particle detection
Large data storage capacity ( 5000 samples )
Data conversion : ft3 and m3
UCL calculation
Built-in thermal printer
Direct data export using WiFi connectivity
Stainless steel housing

Particle size channels	0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm
Flow Rate	1.0 CFM ( 28.3 L/min )
Sensitivity	0.3 µm
Test period	1 sec ∼ 5999 sec ( 5 L ∼ 3000 L )
Max. permissible sampling concentration	35,000 pcs/L
Light source and life	Semiconductor laser ( ˃ 30,000 hours )
Self-clean time	≤ 10 min
Operating temperature range	10 °C to 35 °C
Operational humidity	≤ 75 % RH
Batteries	Lithium-ion ( optional )
Battery life	˃ 4 hours continuous usage
Communication interface	RS485
Power	220 V ± 10 %, 50 Hz ± 2 Hz
Power dissipation	145 W
Dimensions (W x L x H)	220 x 285 x 260 mm
Weight	8.5 kgs

Used in clean room monitoring, indoor air quality testing, HEPA filter performance testing, tracking particle sources; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance.
