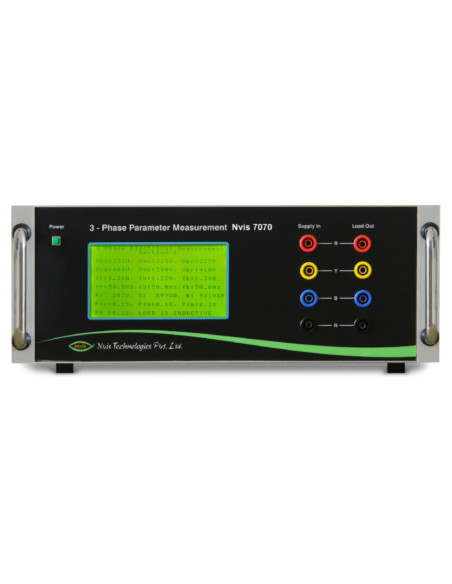

Nvis 7070 3-Phase Parameter Measurement

Reference: Nvis7070 - Manufacturer: NVIS TECHNOLOGIES

Nvis 7070 is a high accuracy 3-phase electrical energy measurement device. It is designed to measure any 3-phase electrical system simultaneously without using individual meters. It is a compact table top unit which includes signal processing required to perform Voltage, Current, Frequency, Active Power, Reactive Power, Apparent Power and Power Factor Measurements.

Nvis 7070, 3-Phase Parameter Measurement is an ideal platform to enhance education, training, skills & development amongs our young minds.

Nvis 7070 is suitable to measure active, reactive, and apparent energy in various 3-phase configurations such as WYE or DELTA services. It is Compatible with both 3-phase/3-wire and 3-phase/4-wire systems. All the parameters measured are displayed simultaneously on a single display unit.

Features:

- Microcontroller based design for accurate measurement
- 240 x 128 Graphical LCD Display to view all the parameters
- Simultaneous display of Three Phase electrical parameters
- Used with Single Phase / Three Phase supply

Download (543.4KB)
