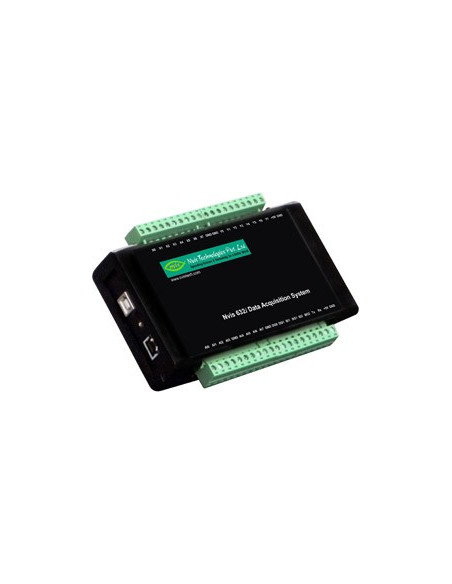

Nvis631/Nvis631iSeries Data Acquisitions Solutions (DAQ)

It has 32 channel digital isolated inputs and outputs, with high voltage protection of 2500VDC, dry contact support, reliable and rugged enough makes it ideal to be used in industrial, office and home automation. For easy connection screw terminals are provided.

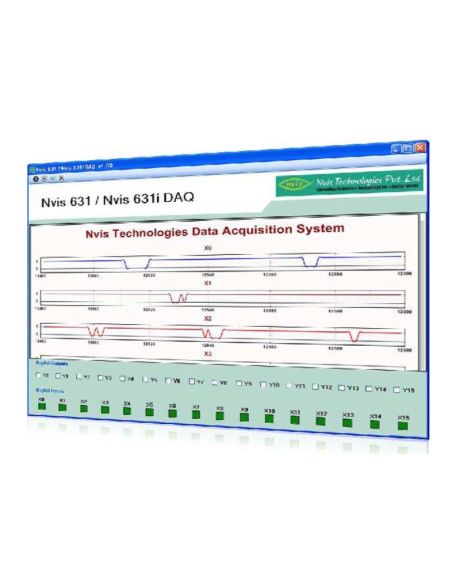

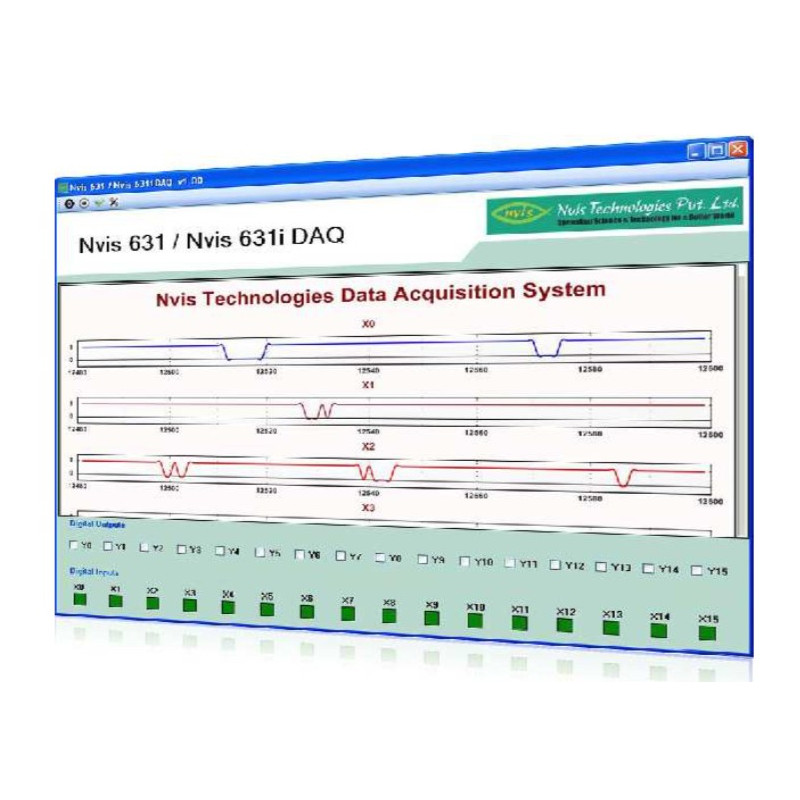

Both comes with very versatile software which uses simple USB and Ether net communication protocol so that user can use or design own software according to its need

• Features:

- 16 isolated digital Inputs
- 16 isolated digital outputs
- USB powered in Nvis 631
- High voltage isolation on all channels (2,500 VDC)
- High sink current on isolated output channels (100 mA/Channels)
- Suppor ts 5 ~ 50 VDC isolated input channels
- Timer/counter capability
- Screw terminals for easy signal connectivity
- User can make desired software by using VB6 or VB.net
- Sample code with VB6 and VB.net are provide

• Applications:

- Industrial automation
- 16 Channel logic analyser
- Home automation
- Object counting
- Timer
- Digital data logger
