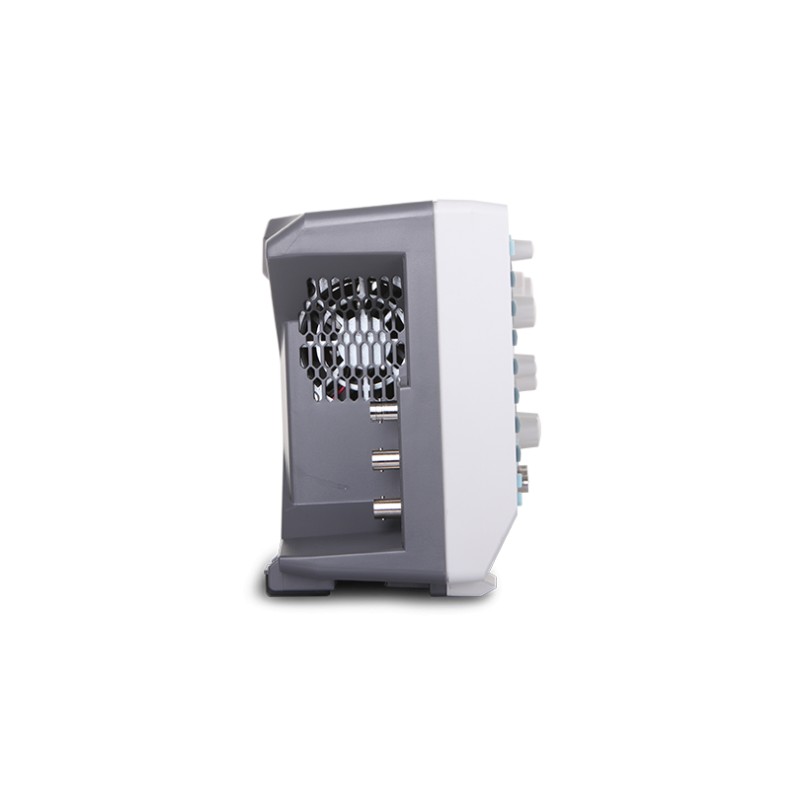

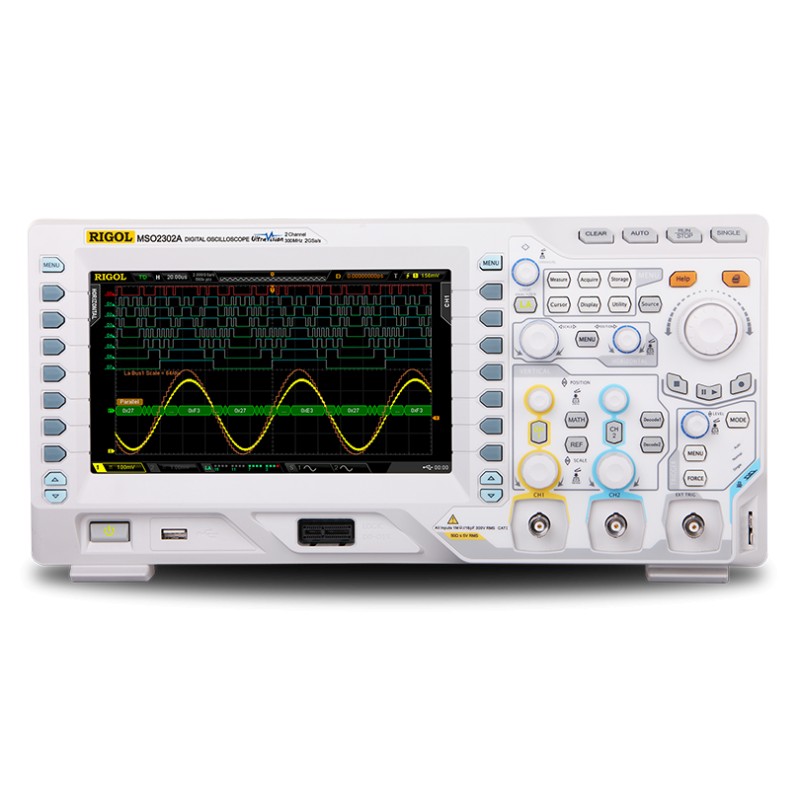

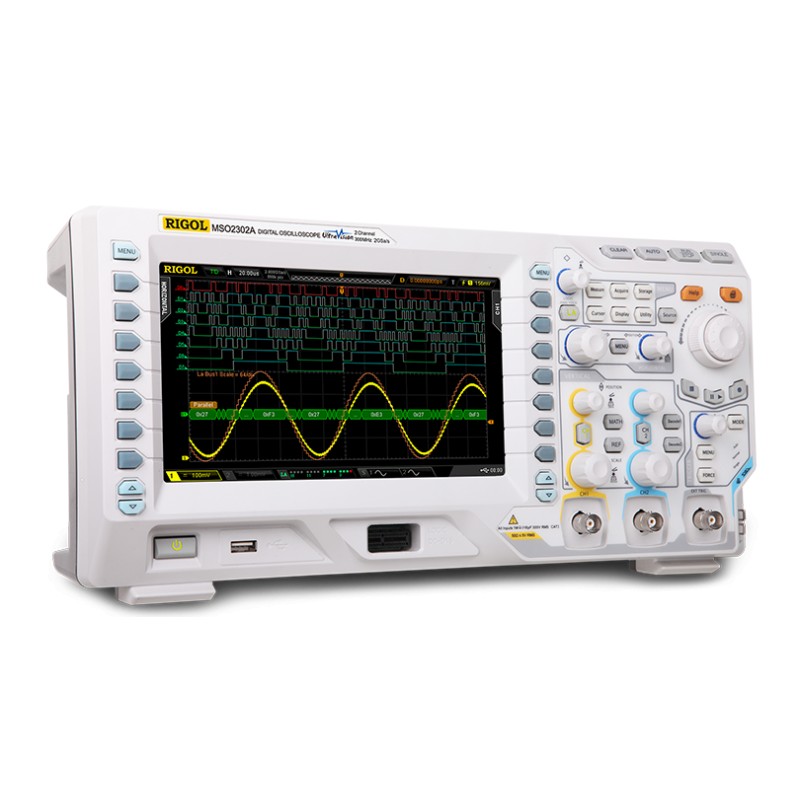

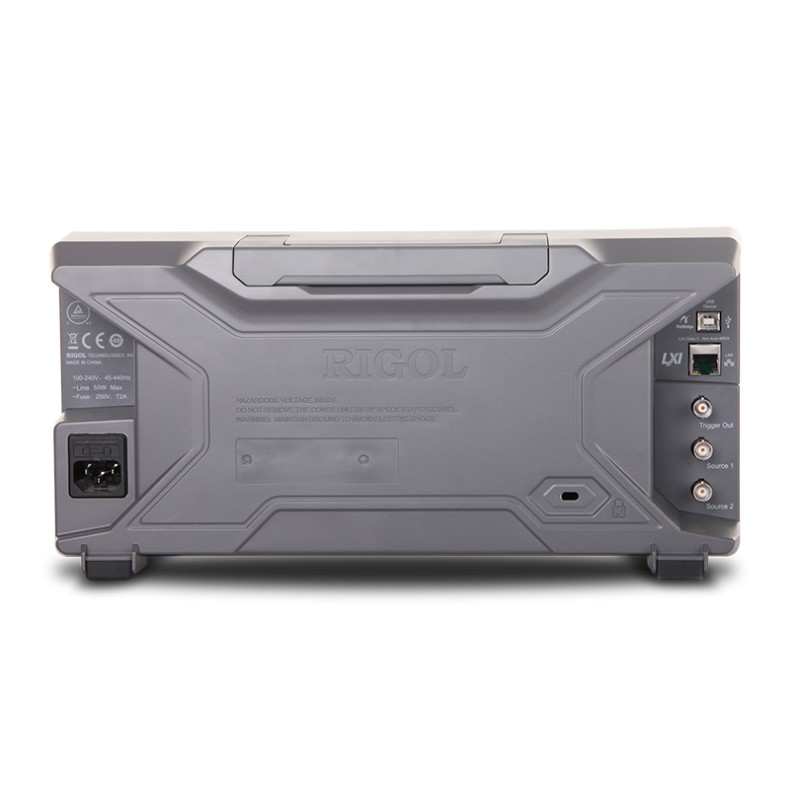

Digital Oscilloscope MSO2302A

Reference: MSO2302A - Manufacturer: RIGOL

The MSO/DS2000A series are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sample rates up to 2GSa / s, combined with a large memory depth and high waveform capture rates.

Bandwidth up to 300MHz, standard with 50Ω input

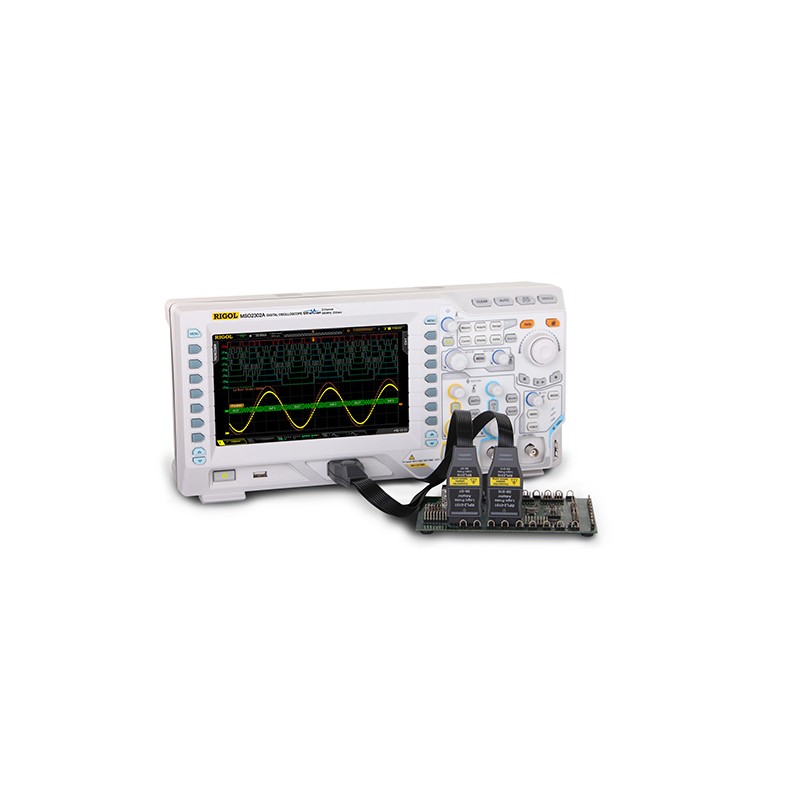

Two analog channels and 16 digital channels (MSO)

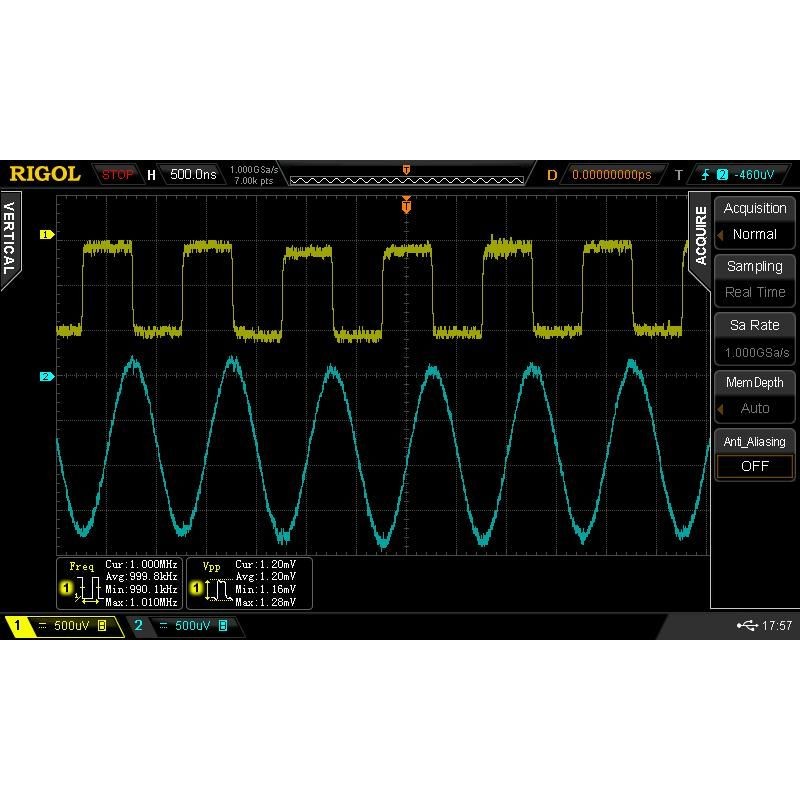

Lower noise floor, wider vertical range (500uV/div ~ 10V/div)

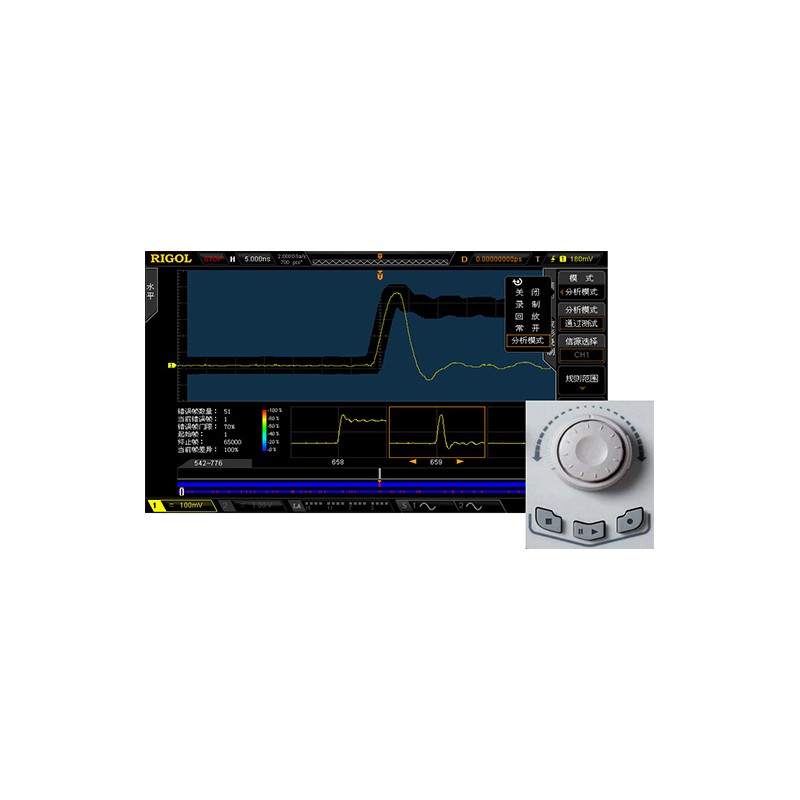

Waveform capture rate up to 50,000 wfms/s
Built-in 2 CH and 25MHz Waveform generator (-S model)

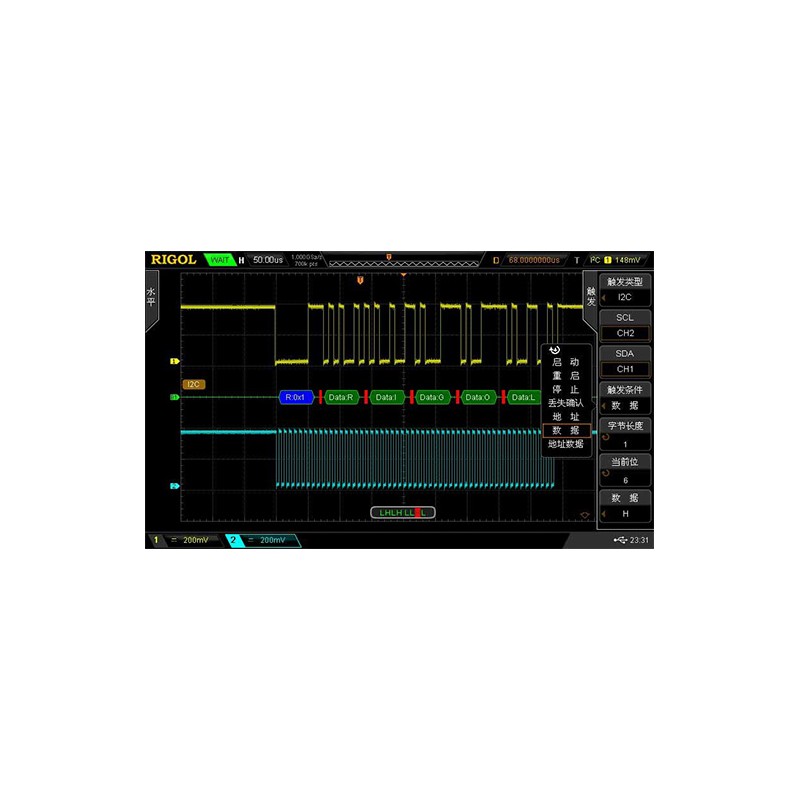

A variety of trigger and serial bus decoding functions

MEASUREMENT AND CALIBRATION INSTRUMENTS: Oscilloscopes

MSO2102A Data Sheet

Download (5.49MB)

MSO2102A Manual

Download (5.12MB)
