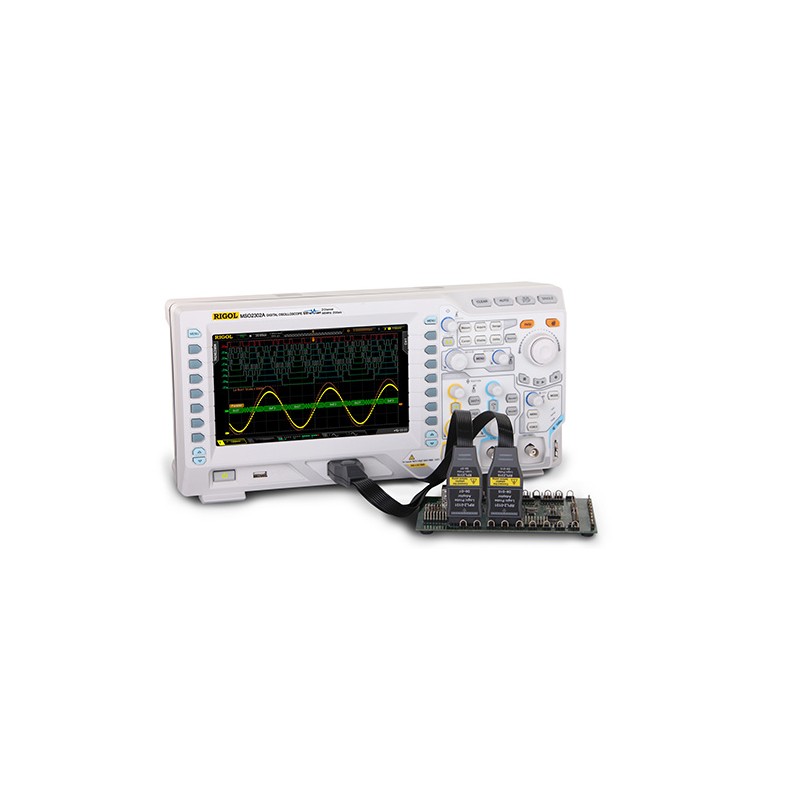

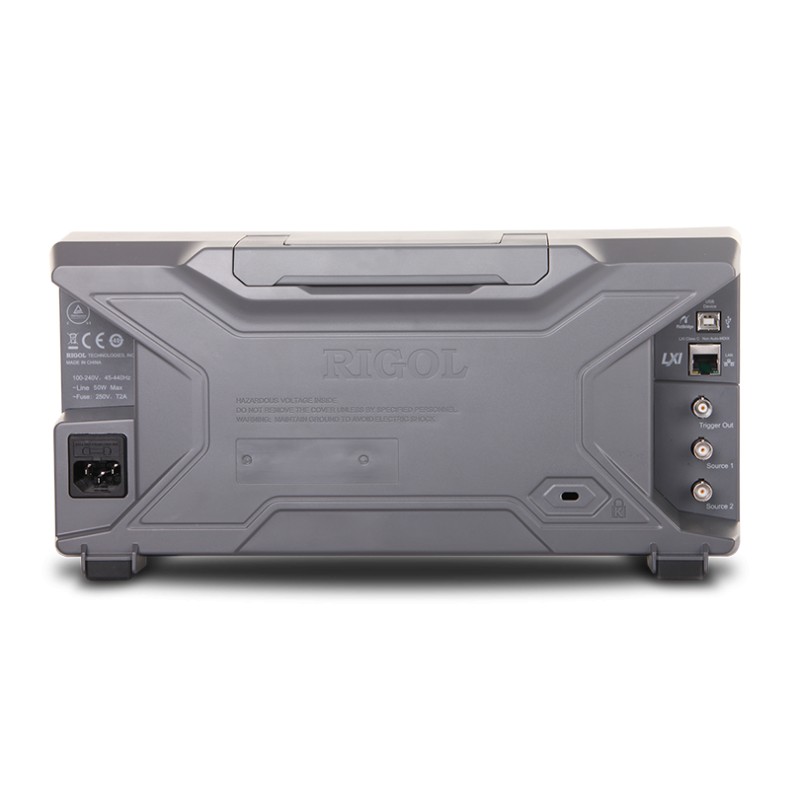

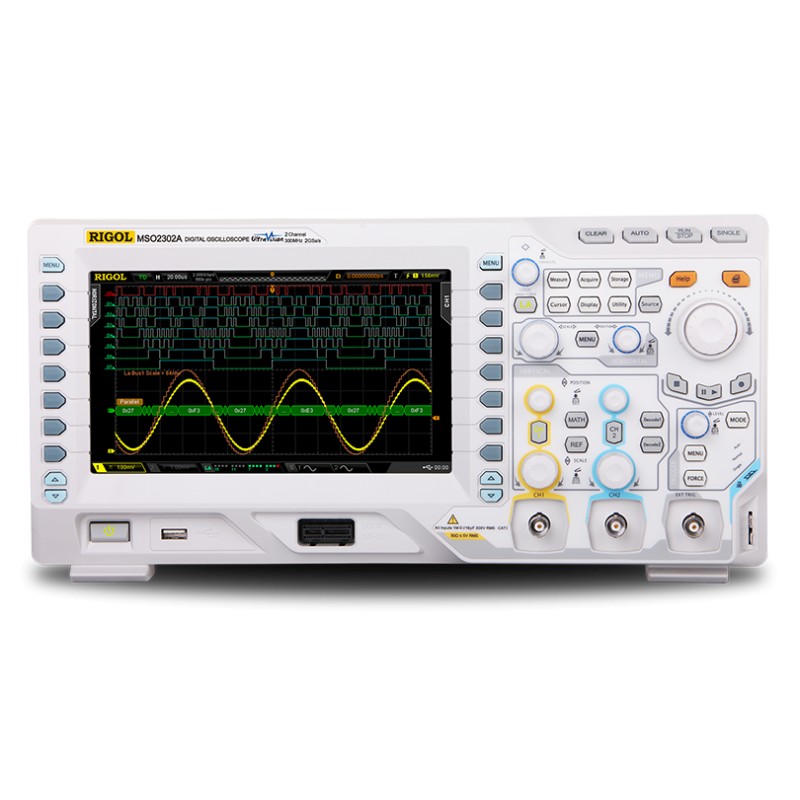

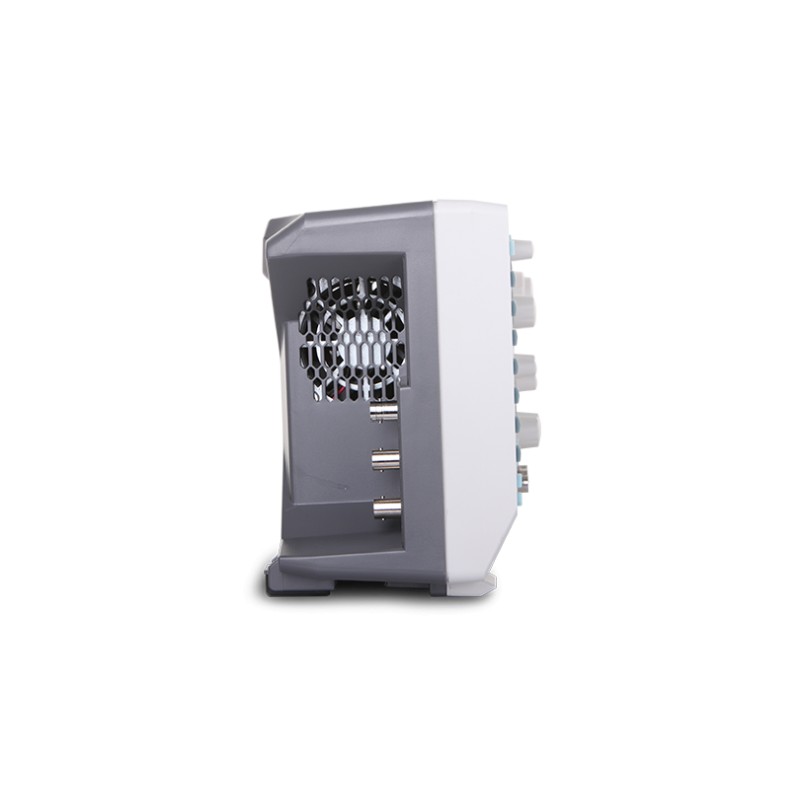

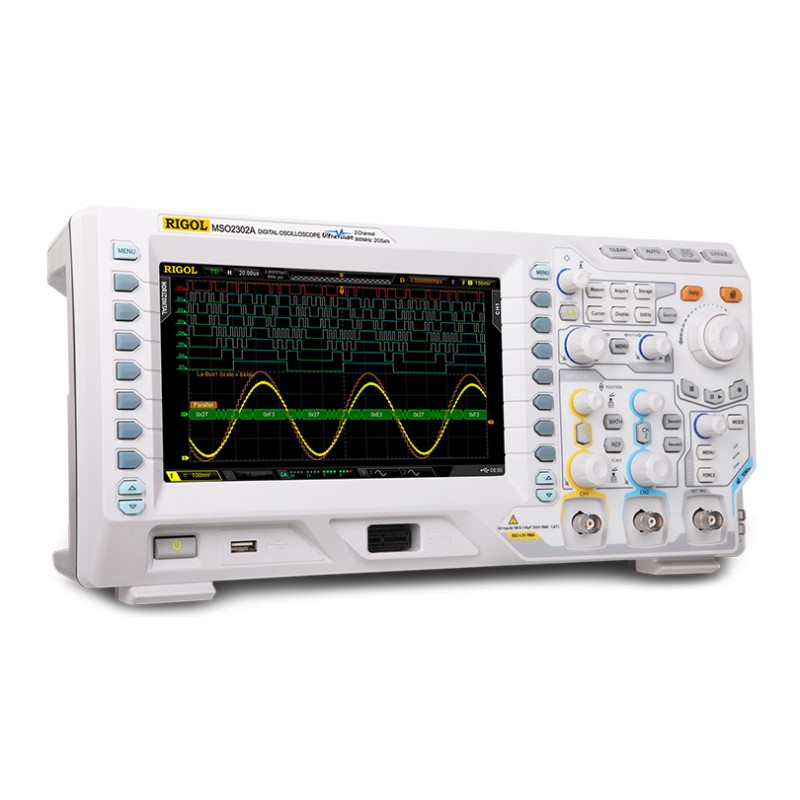

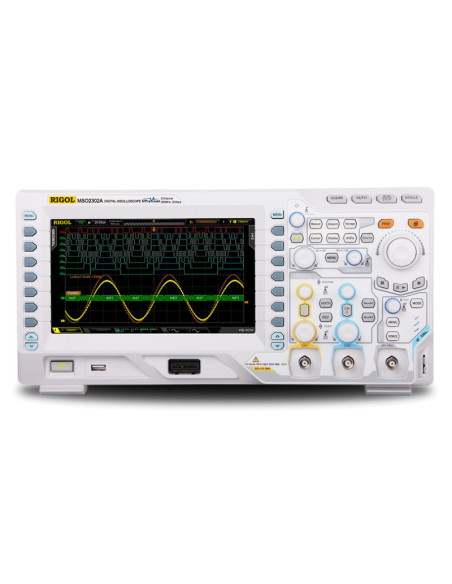

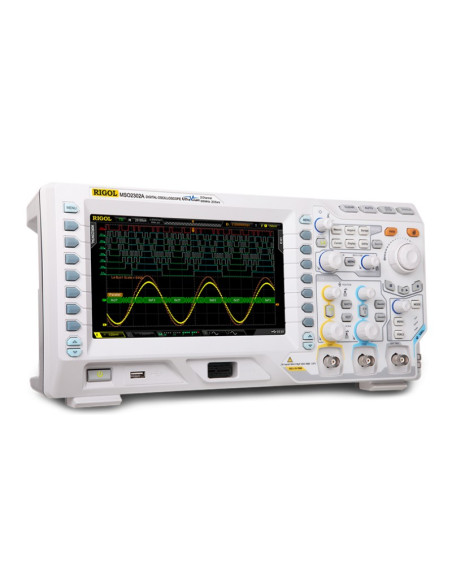

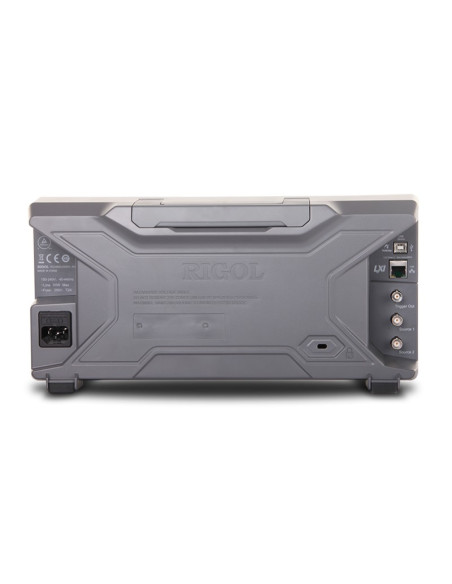

Digital Oscilloscope MSO2302A-S

View larger

Previous

Next

Digital Oscilloscope MSO2202A-S

Reference MSO2202A-S

Manufacturer: RIGOL

Condition: New

The MSO/DS2000A series are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sample rates up to 2GSa / s, combined with a large memory depth and high waveform capture rates.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

MEASUREMENT AND CALIBRATION INSTRUMENTS	Oscilloscopes

MSO2102A Data Sheet Download (5.49M)

MSO2102A Manual Download (5.12M)

Bandwidth up to 200MHz, standard with 50Ω input

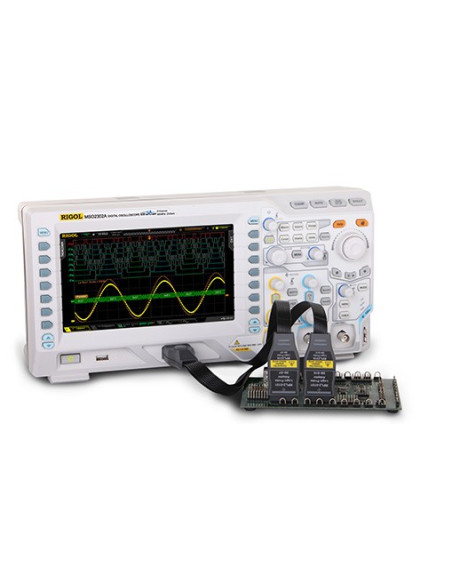

Two analog channels and 16 digital channels (MSO)

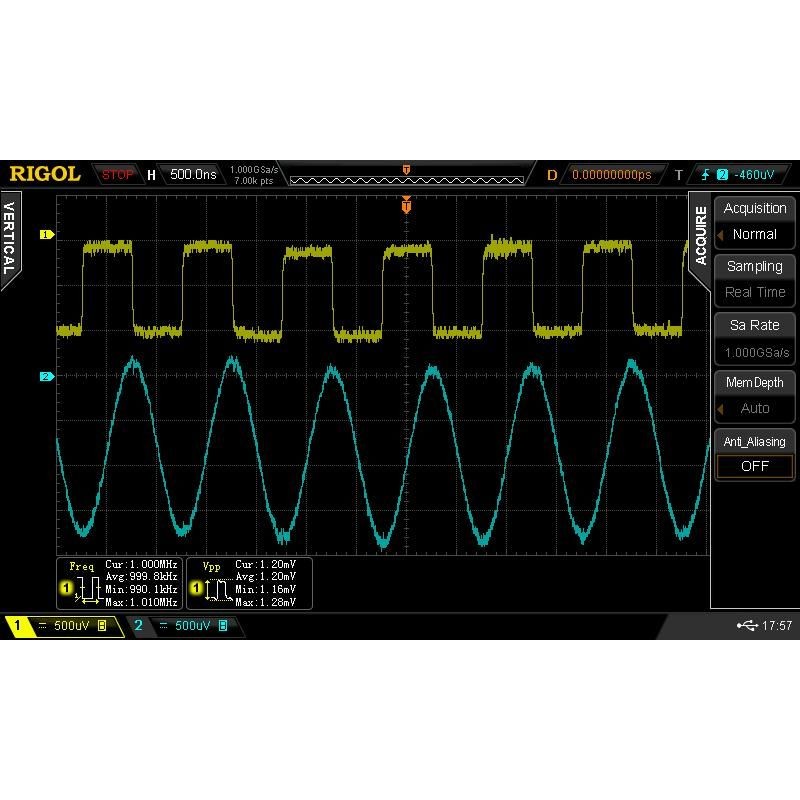

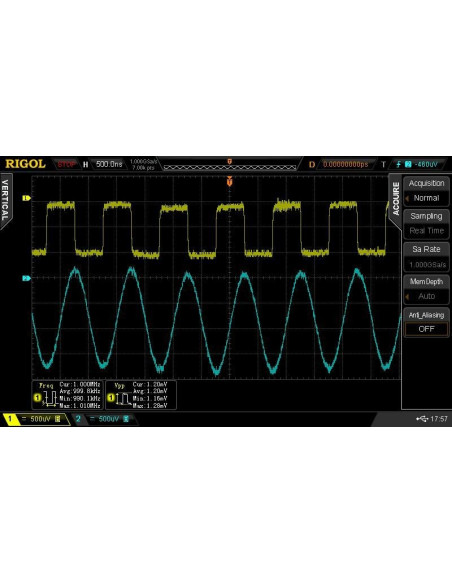

Lower noise floor, wider vertical range (500uV/div ~ 10V/div)

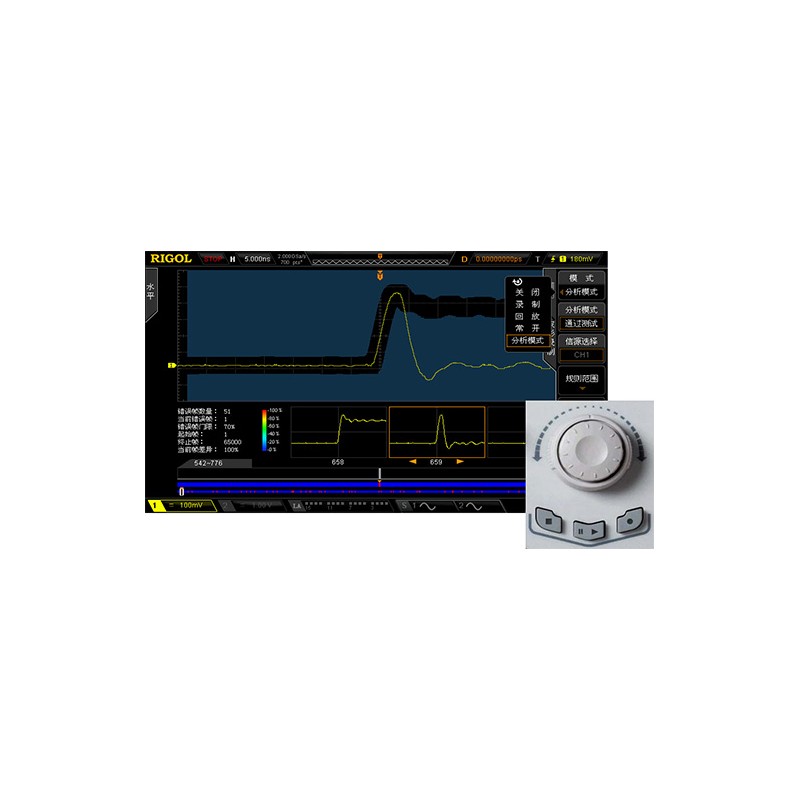

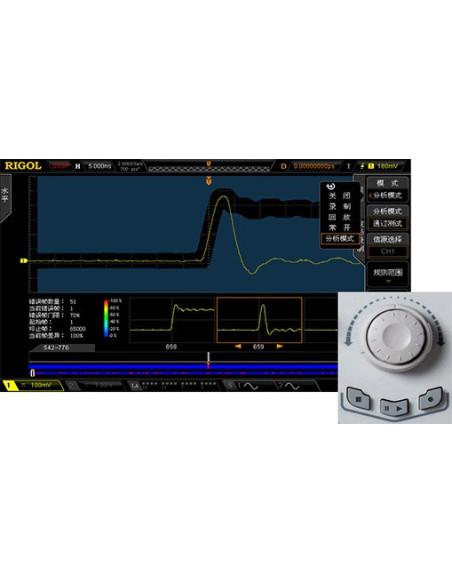

Waveform capture rate up to 50,000 wfms/s

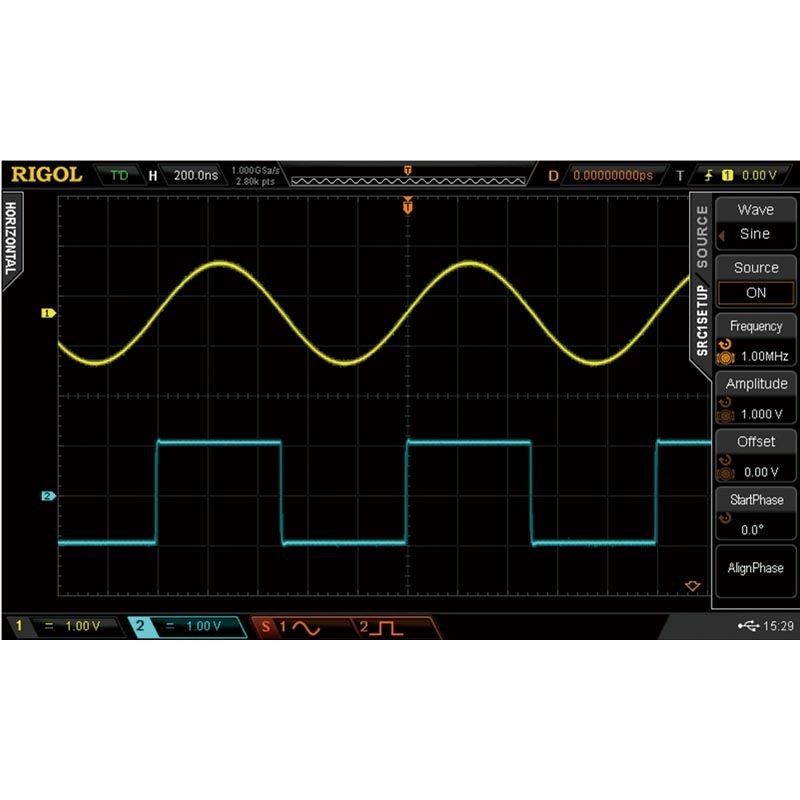

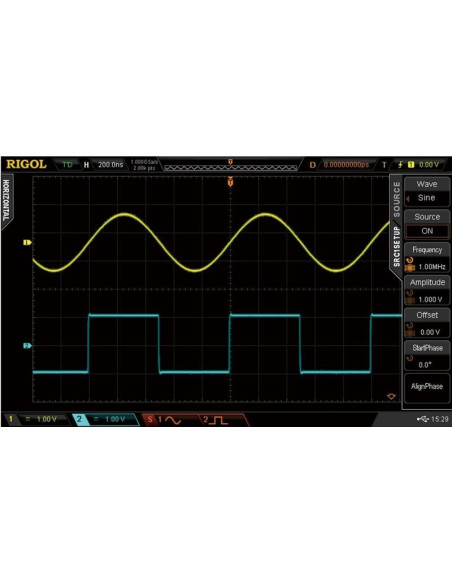

Built-in 2 CH and 25MHz Waveform generator (-S model)

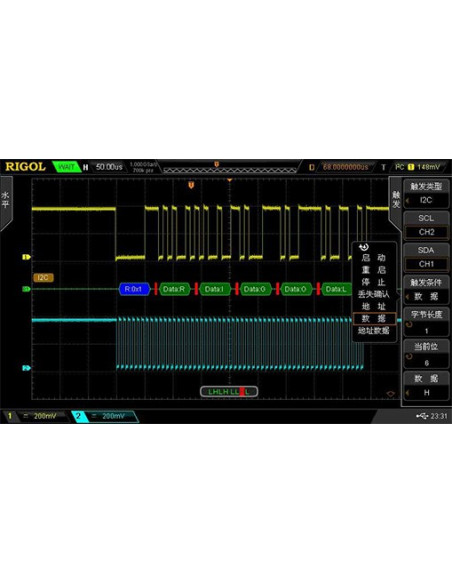

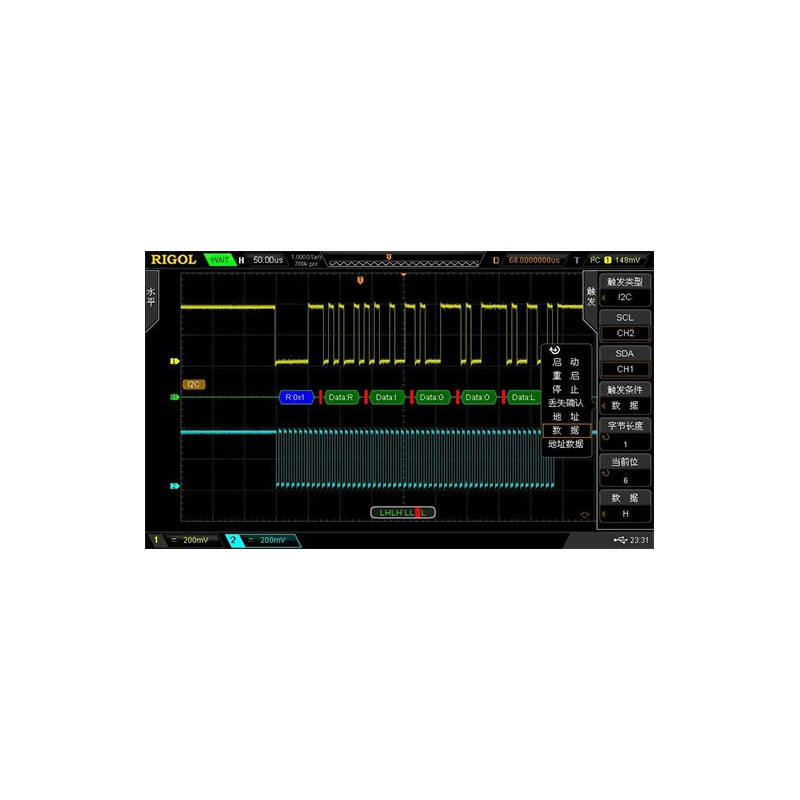

A variety of trigger and serial bus decoding functions
