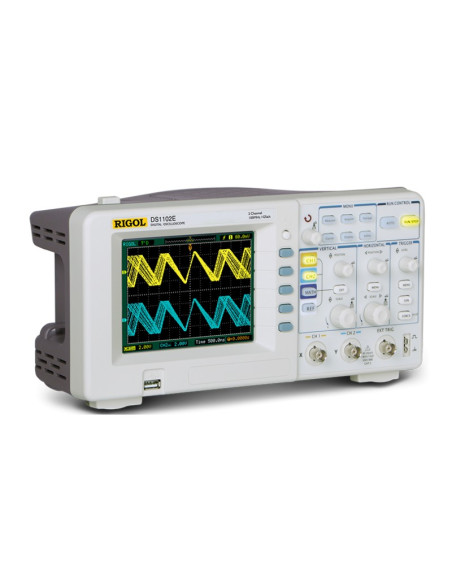

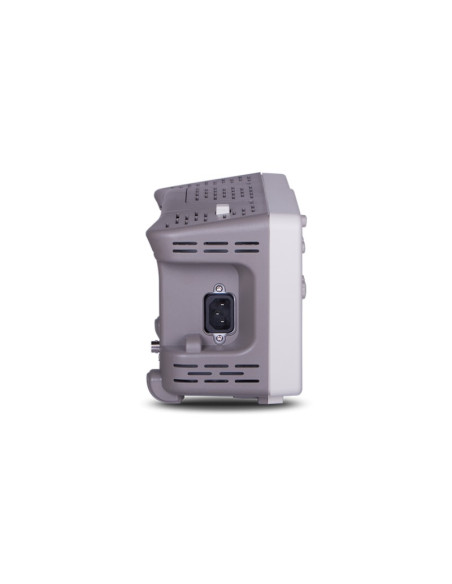

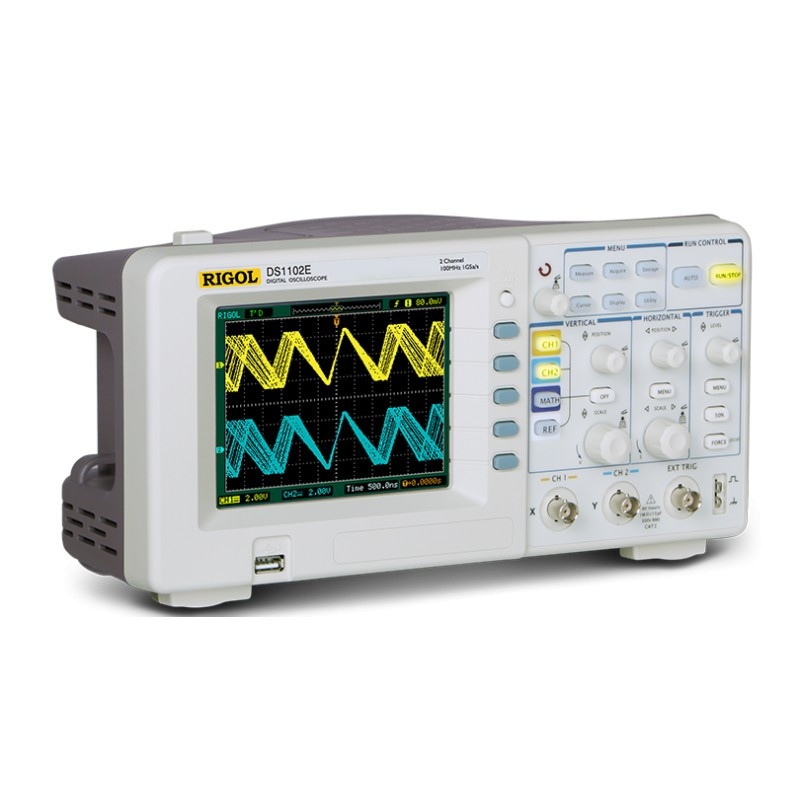

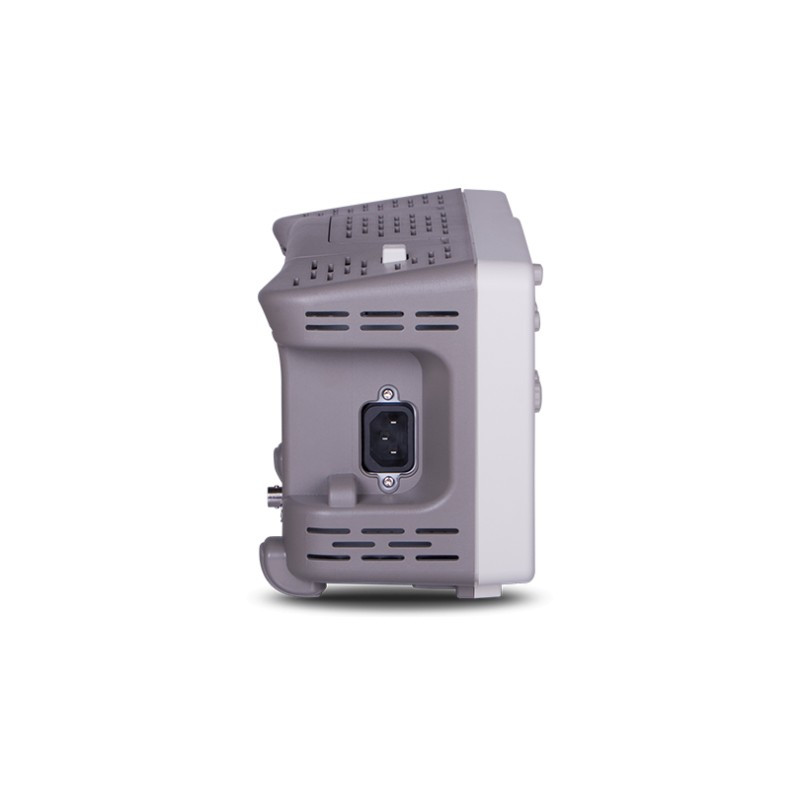

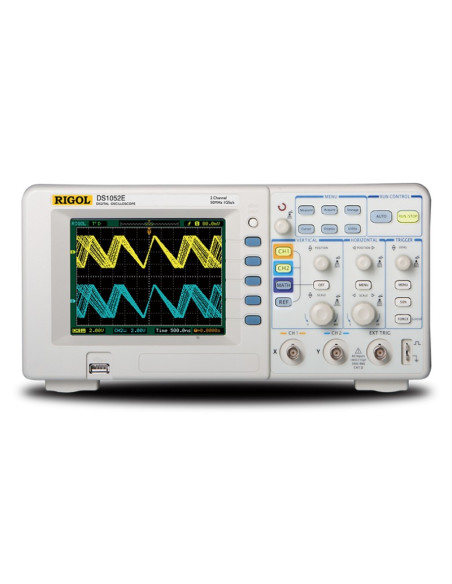

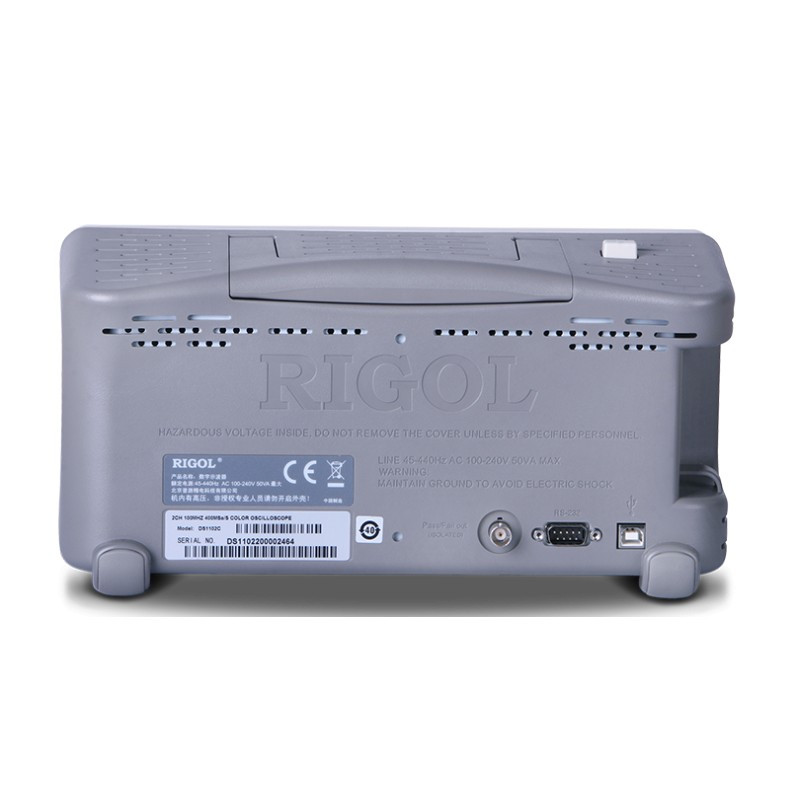

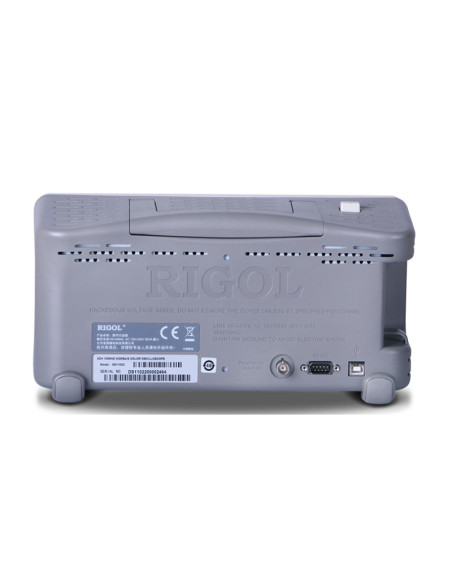

DS1052E Digital Oscilloscope

Reference DS1052E

Manufacturer: RIGOL

Condition: New

The DS1052E 50 MHz, 2 Channel, 1 GSa / s Digital Oscilloscope has excellent technical indicators and can meet the main basic testing needs. The front panel design is clear and intuitive, fully in line with traditional instrument usage habits and convenient for users to use.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
SOFTWARE
Data sheet

MEASUREMENT AND CALIBRATION INSTRUMENTS	Oscilloscopes

Easy to Use Design
- Built-in help menu enables information
acquisition more convenient
- Multiple language menu
- Can store files in USB storage device or local
the internal memory
- Analog waveform intensity can be adjusted
- To display a signal automatically by AUTO
- Pop-up menu makes it easy to read and use

Function
- Fine delayed scan function
- Built-in FFT function, hold practical digital
filters
- Pass/Fail detection function enables to
output testing results
- Multiple math operations for waveforms
- Powerful PC application software UltraScope
- Standard configuration interface: USB
Device, USB Host , RS-232 and support USB
storage device storage and PictBridge print

Specifications

Bandwidth
DS1102E	DS1052E		DS1102D	DS1052D
100MHz	50MHZ		100MHz	50MHz
Acquisition
Sample Modes	Real-Time Sample		Equivalent Sample
Sample Rate	1GSa/s^[1], 500MSa/s		DS1102X	DS1052X
			25GSa/s	10GSa/s
Averages	The waveform will be displayed one time when all the channels finish N times sample. Wherein, N could be selectable from 2, 4, 8, 16, 32, 64, 128 and 256.
Inputs
Input Coupling	DC, AC, GND
Input Impedance	1MΩ±2%, the input capacity is 18pF±3pF
Probe Attenuation Factors	1X, 5X, 10X, 50X, 100X, 500X,1000X
Maximum Input Voltage	400V (DC＋AC Peak, 1MΩ input impedance)
	40V (DC+AC Peak) ^[2]
Time Delay between Channels (typical)	500ps
Horizontal
Sample Rate Range	Real-Time: 13.65Sa/s-1GSa/s Equivalent: 13.65Sa/s-25GSa/s
erpolation	Sin(x)/x
Memory Depth	Mode	Sample rate	ory Depth (normal)	Memory Depth (long memory)
	Single channel	1GSa/s	16kpts	N.A.
	Single channel	500MSa/s or lower	16kpts	1Mpts
	Dual channel	500MSa/s or lower	8kpts	N.A.
	Dual channel	250MSa/s or lower	8kpts	512kpts
Scanning Speed Range (Sec/div)	2ns/div~50s/div, DS1102X 5ns/div~50s/div, DS1052X 1-2-5 Sequence
Sample Rate and Delay Time Accuracy	±50ppm (any interval ≥1ms)
