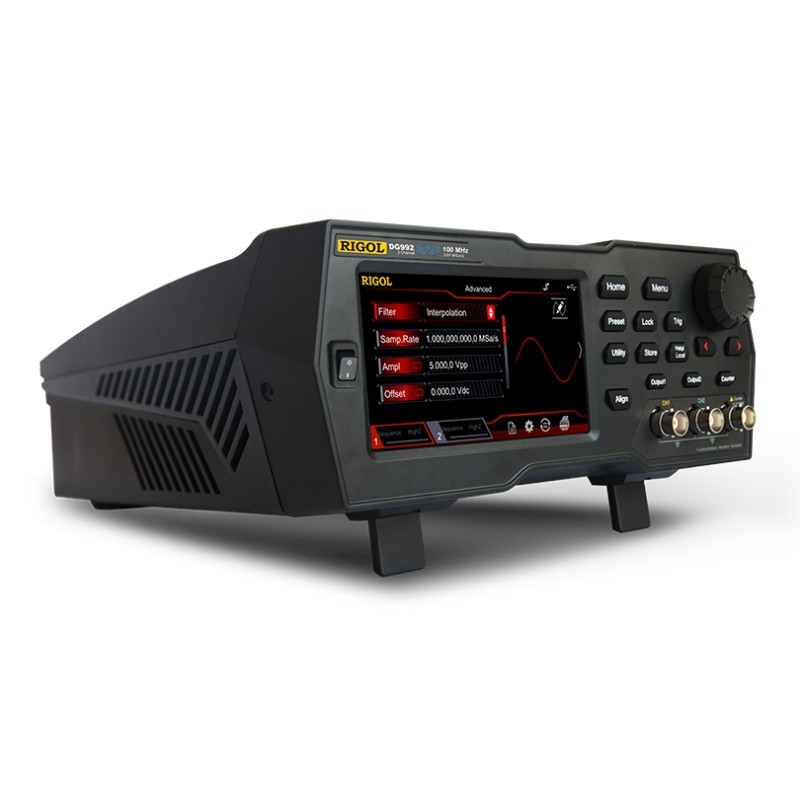

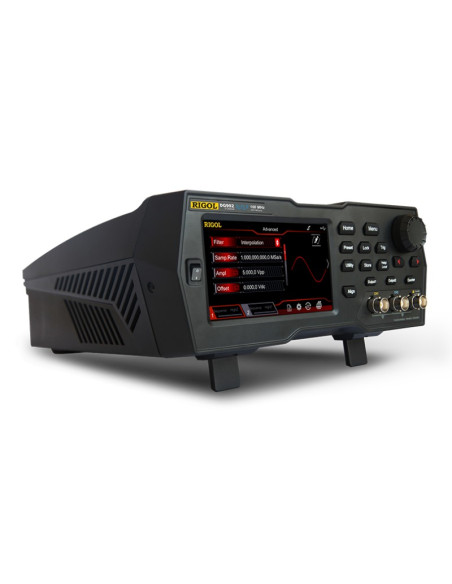

Waveform Generator DG972, 70MHz 2 chan, 250MSa/s,16bit, 16Mpt,7digits/s counter

Reference: DG972 - Manufacturer: RIGOL

The DG900 Generator Series with frequencies up to 100 MHz, 16-bit resolution and arbitrary waveforms up to 16 Mpts, reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities, making it one of the most flexible generators on the market.

70MHz 2 channel,250MSa/s sample rates,16bit resolution,16Mpt memory depth,7digits/s counter

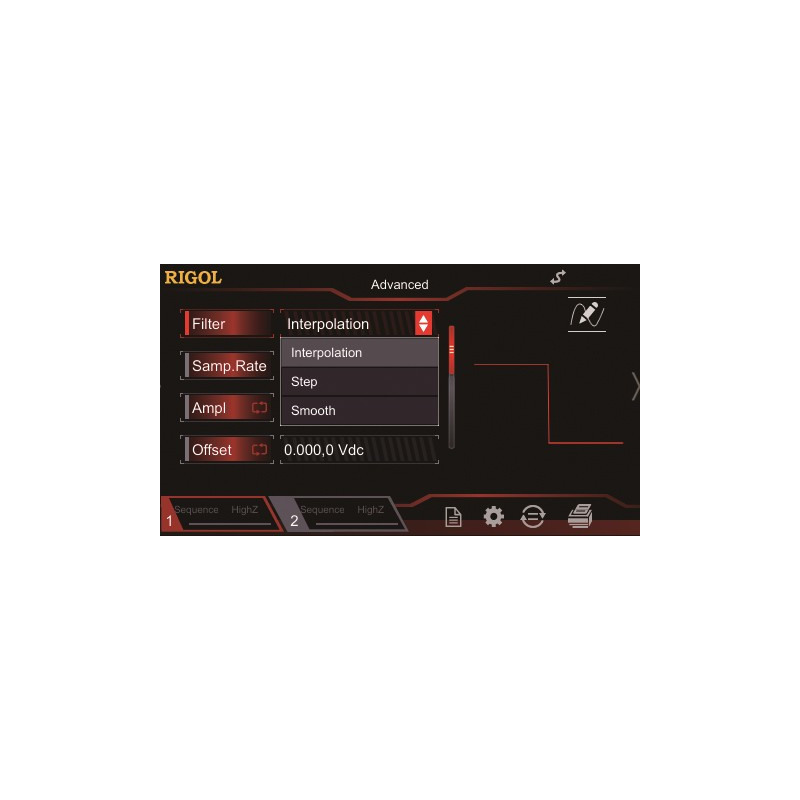

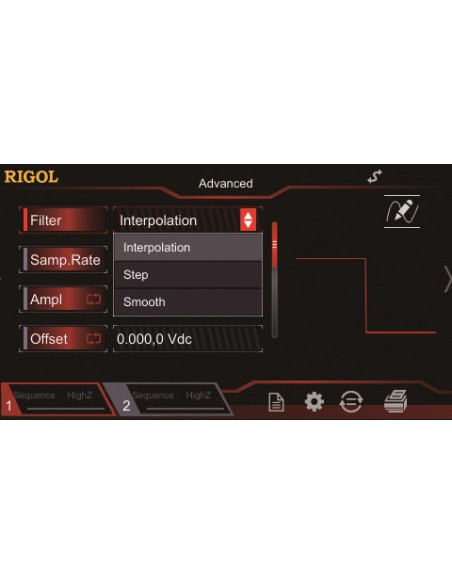

SiFi II technology, generating the arbitrary waveforms points by points, outputting high-quality waveforms accurately

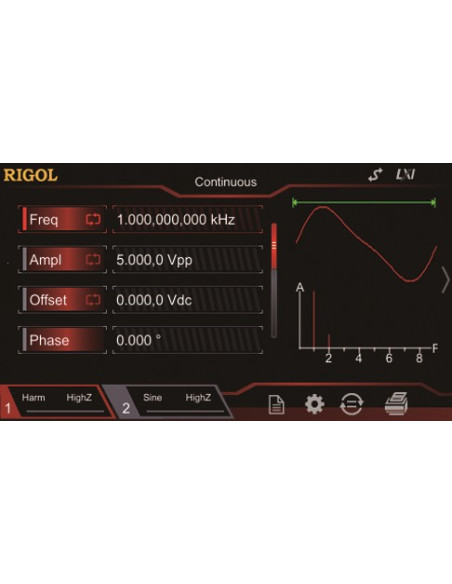

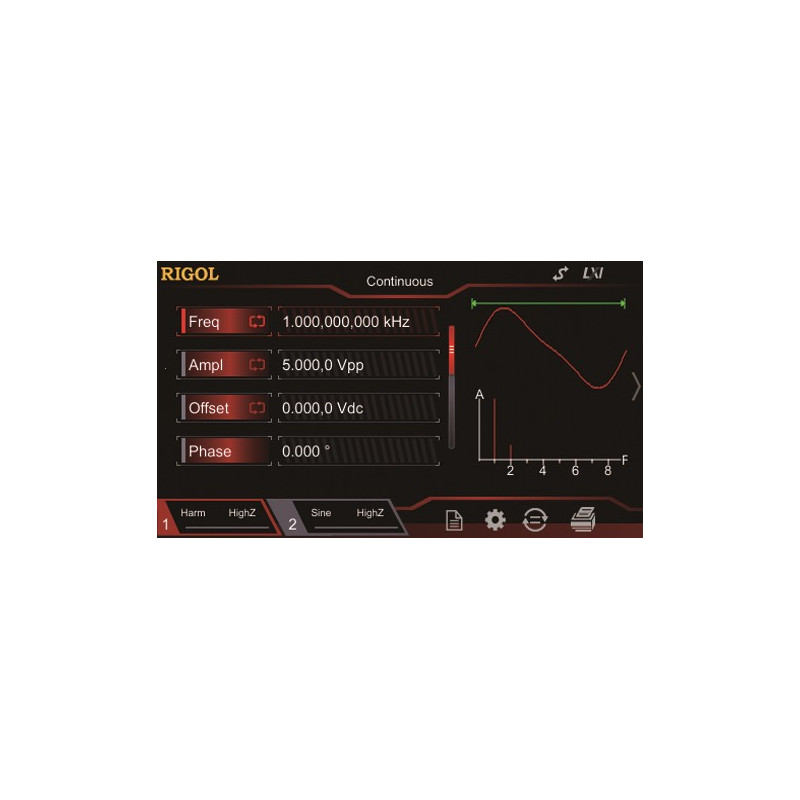

Built-in 8 orders harmonics generator
Up to 250 Msa/s sample rate and 16 M memory depth

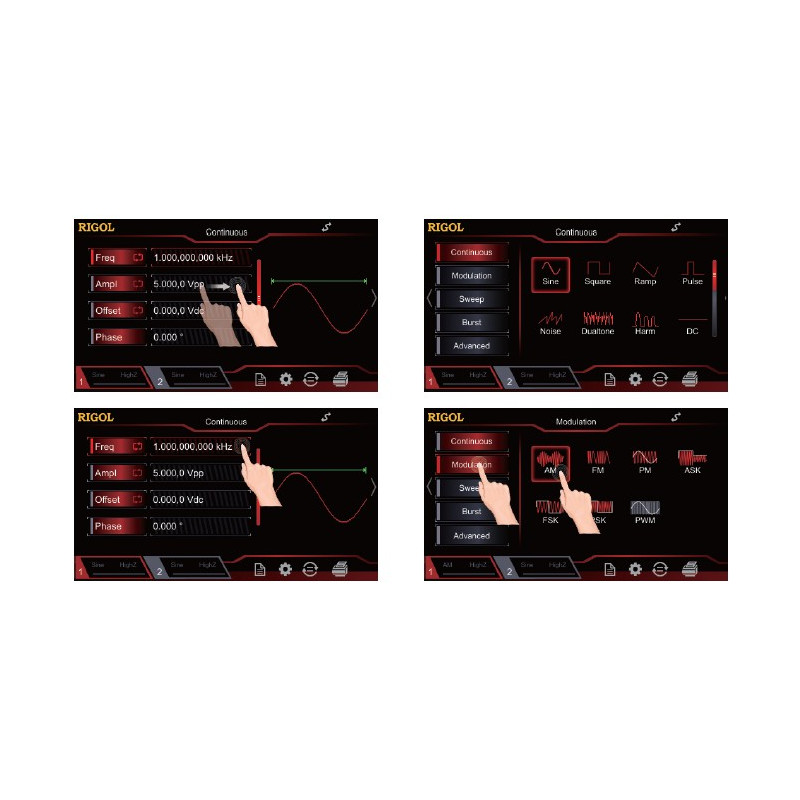

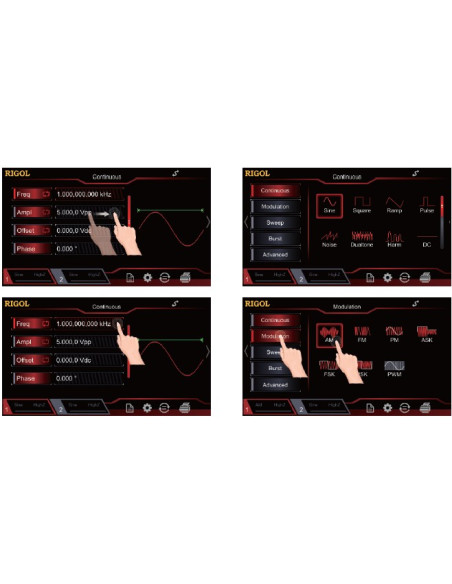

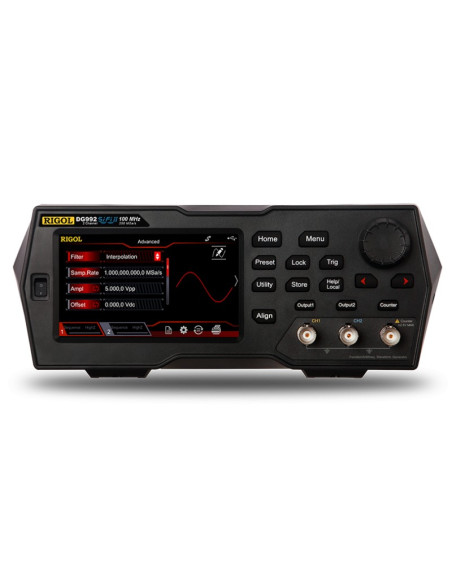

4.3'' TFT color touch screen and brand new UI design

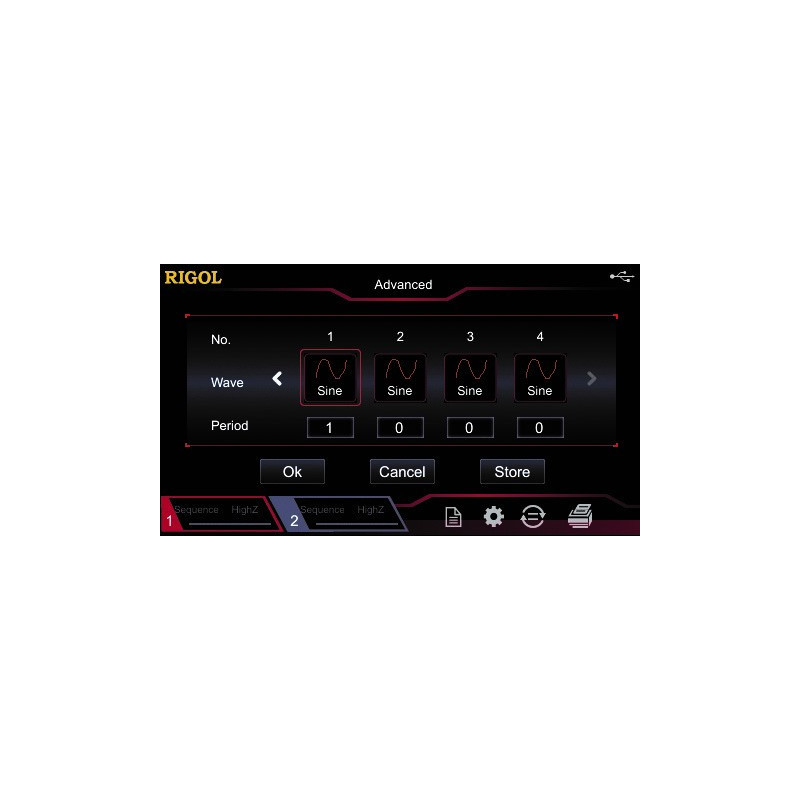

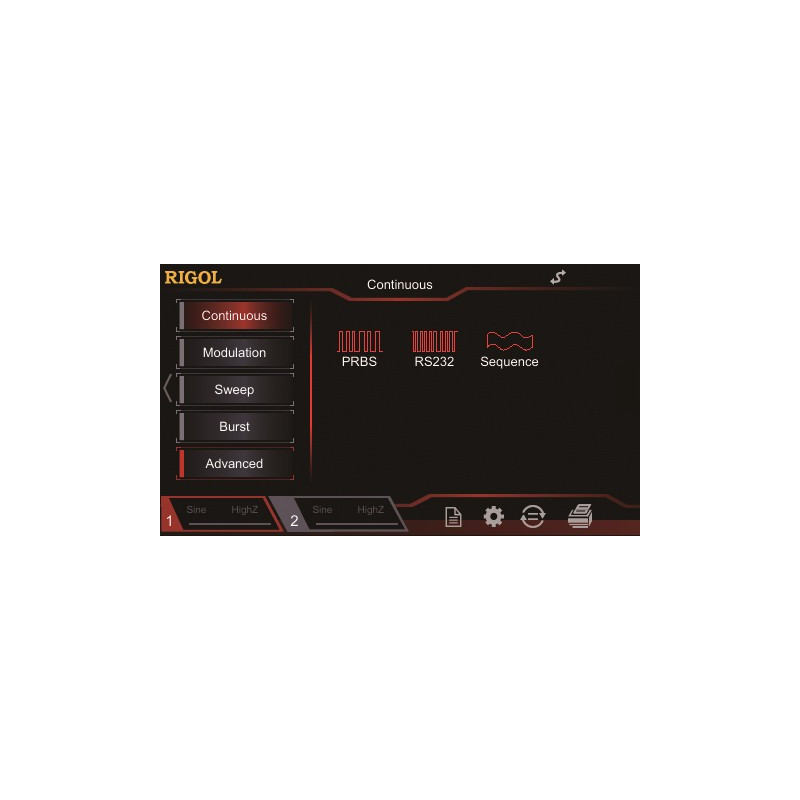

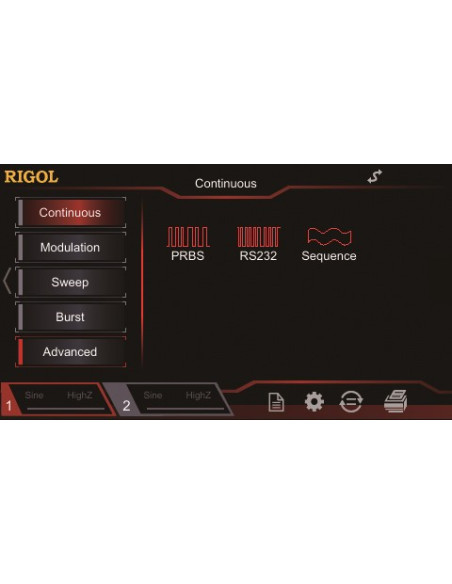

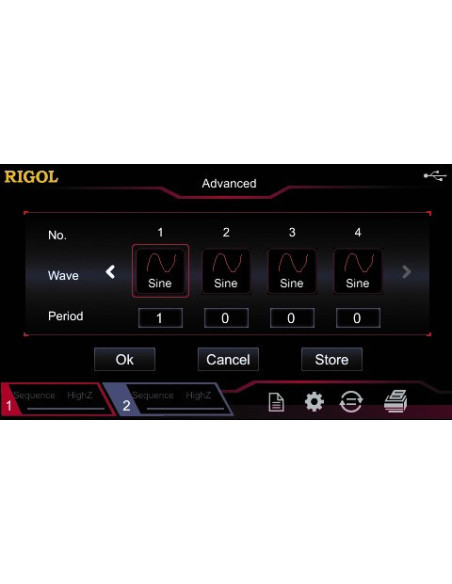

PRBS, RS232, and Sequence

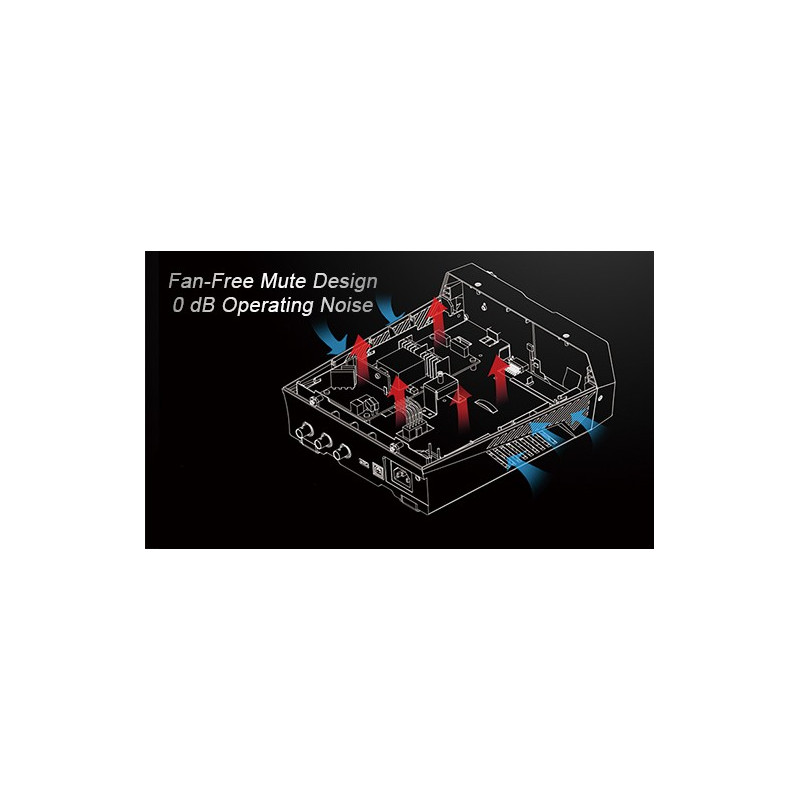

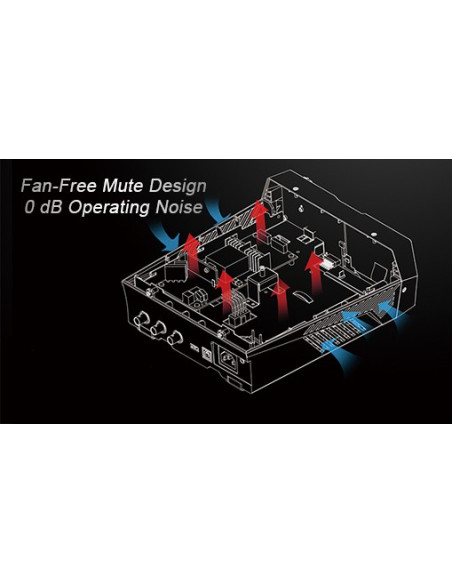

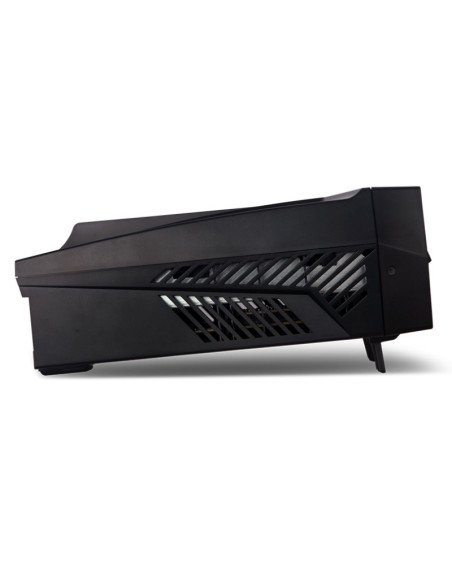

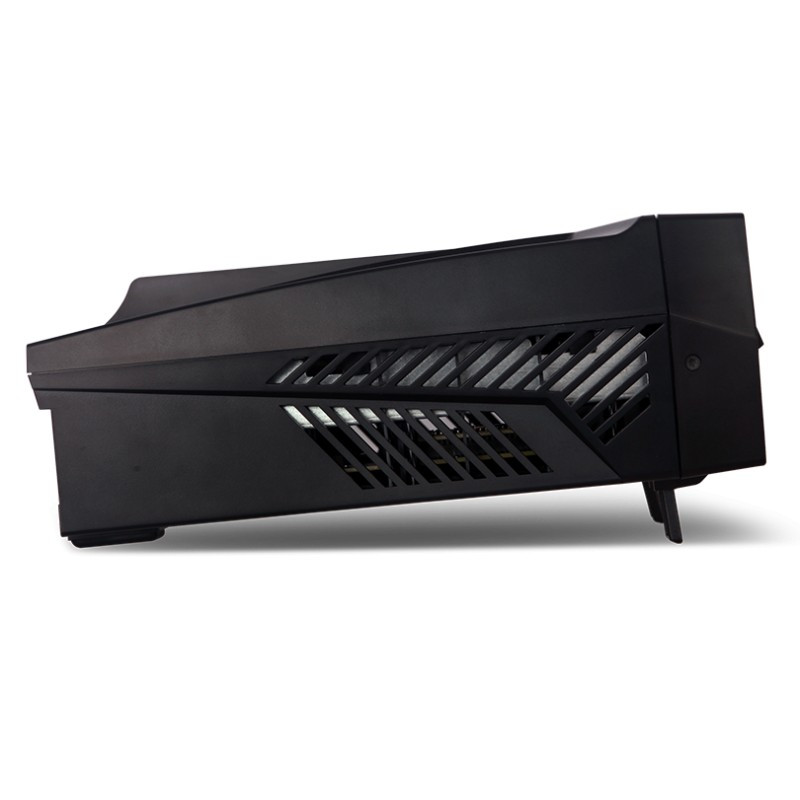

Fan-free mute design

MEASUREMENT AND CALIBRATION INSTRUMENTS: Function Generators

DG900 Series Manual

Download (2.27MB)

Data Sheet Serie DG900

Download (4.48MB)
