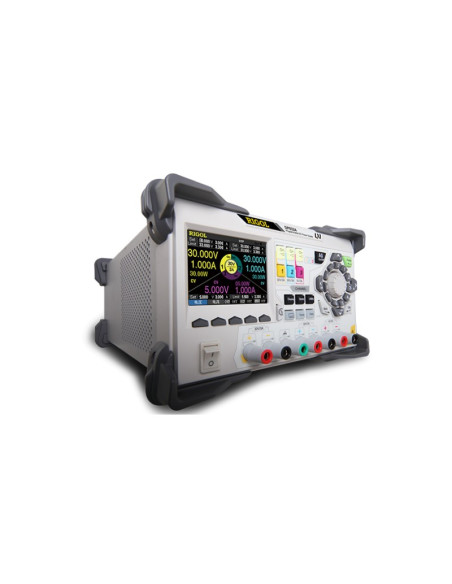

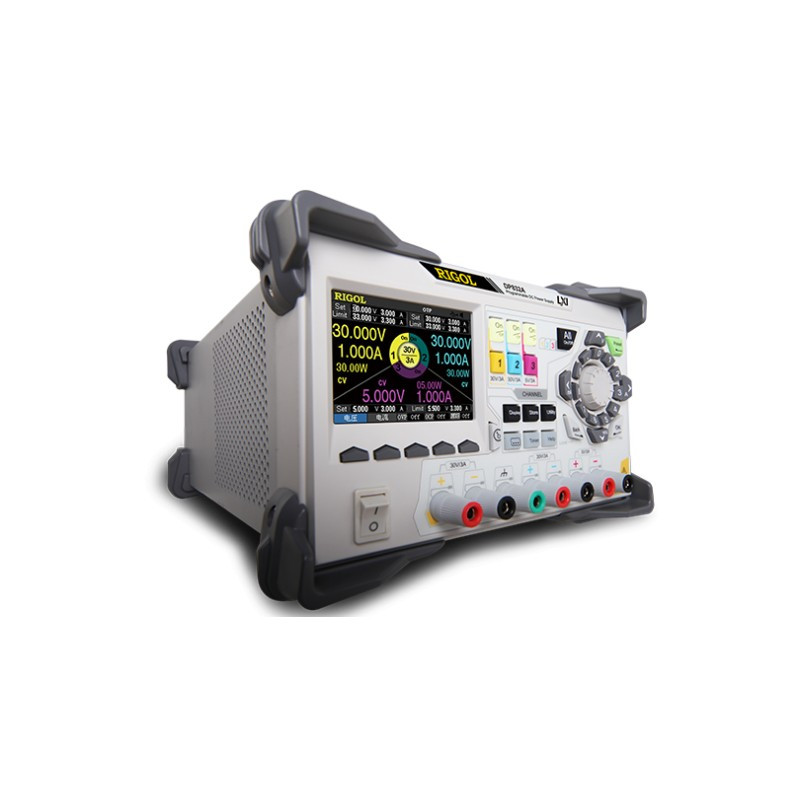

DC Power Supply DP811

DC Power Supply DP811

Reference: DP811 - Manufacturer: RIGOL

DP800 series includes single output, two output and three output programmable linear DC power supply. They have pure output, excellent performance indicators, multiple analysis functions, rich interfaces, and can meet the diverse testing needs.

Ask for Quote

200W, 1CH(20V/10A or 40V/5A),10mV/10mA resolution. Ripple<350uV
1, 2 or 3 outputs, the maximum power is up to 195W

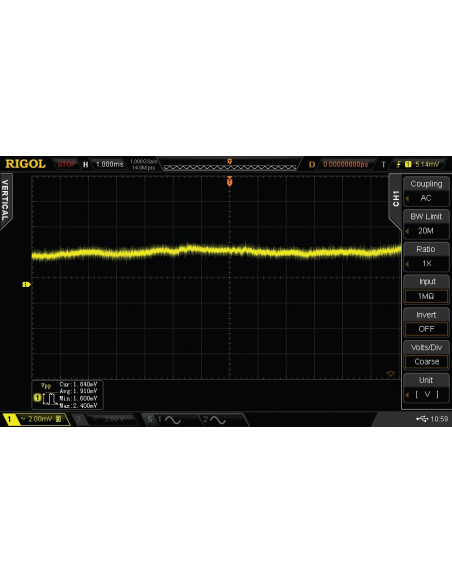

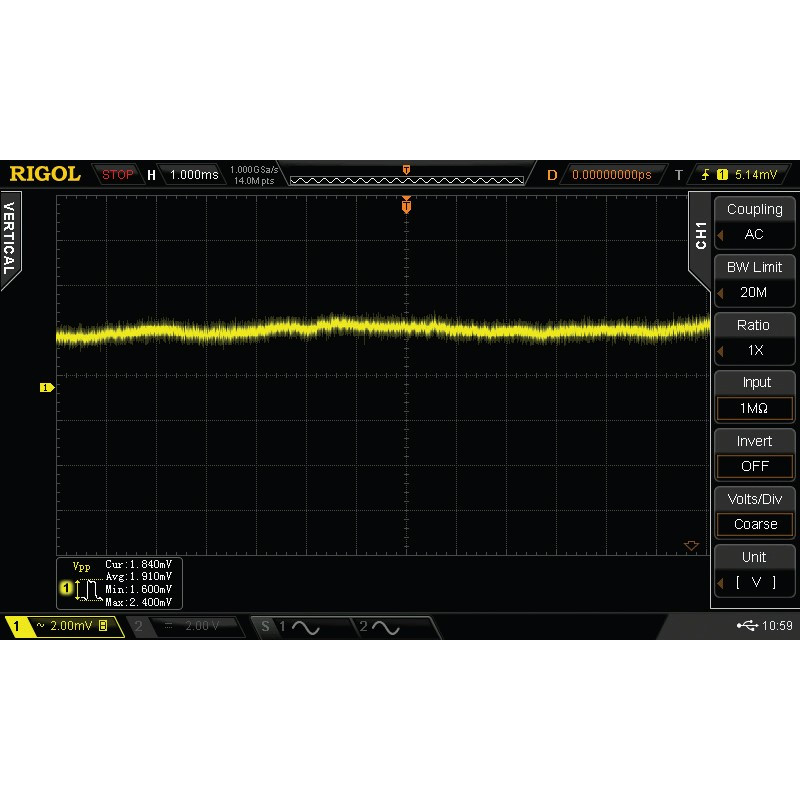

Low Ripple and Noise: <350uVrms/2mVpp

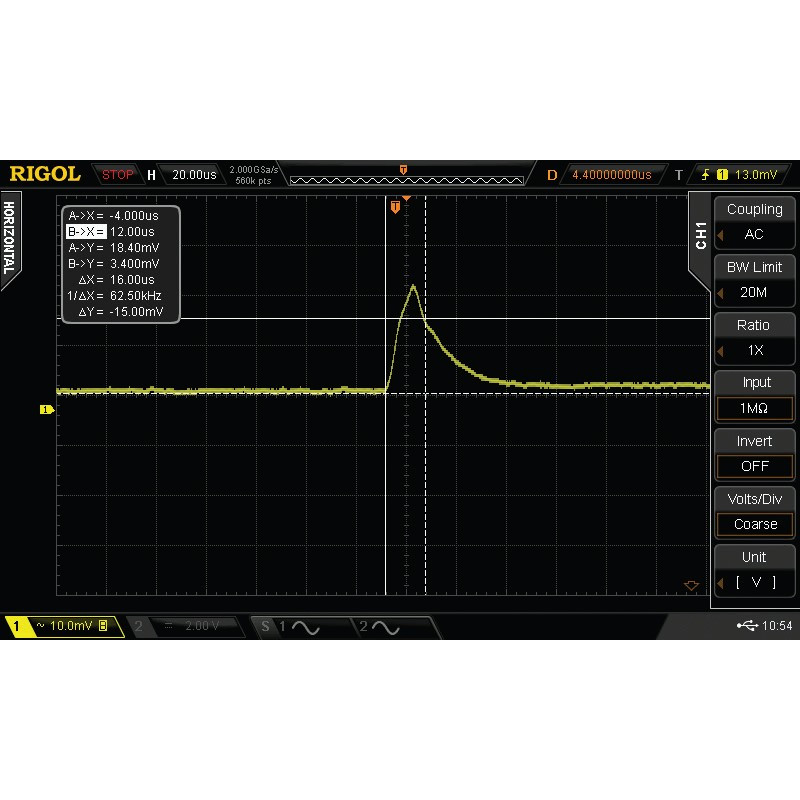

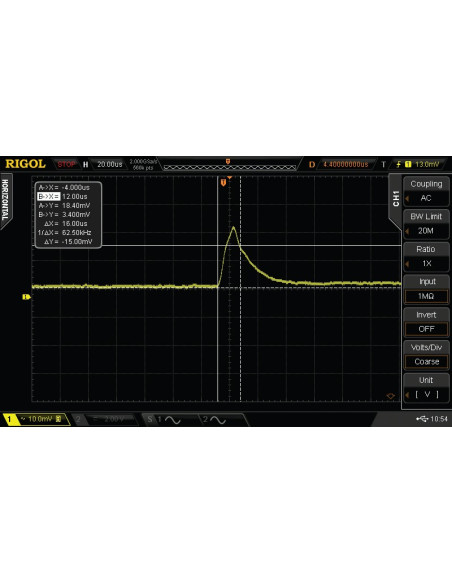

Fast Transient Response Time: < 50us
0.01% Linear Regulation Rate and Load Regulation Rate

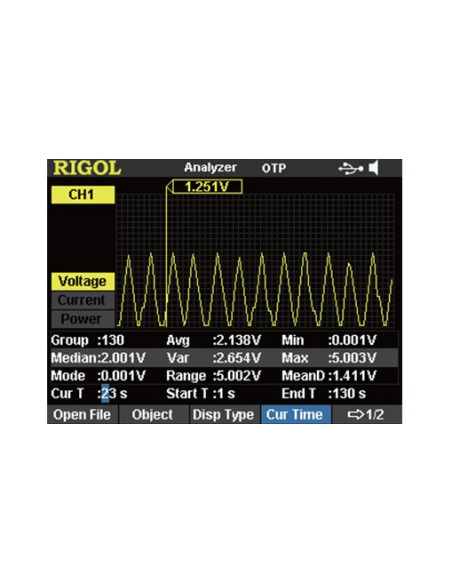

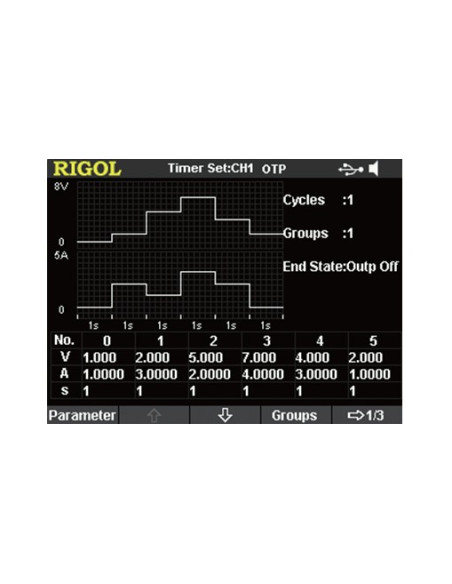

Standard Timing output; Built-in V,A,W measurements and
waveform display
3.5 inch TFT display, easy for operation

MEASUREMENT AND CALIBRATION INSTRUMENTS: DC Power Supplies

DP800 Series Manual

Download (2.08MB)

DP800 Series Datasheet

Download (2.48MB)

16 other products in the same category:

RIGOL

Current probe, DC-300 KHz, Rigol RP1001C

RIGOL

RP1001C

RIGOL probes for better testing and measurement

View

RIGOL

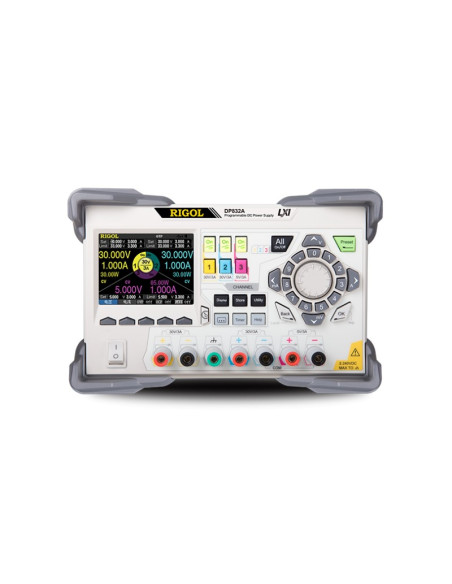

DC Power Supply DP832A
