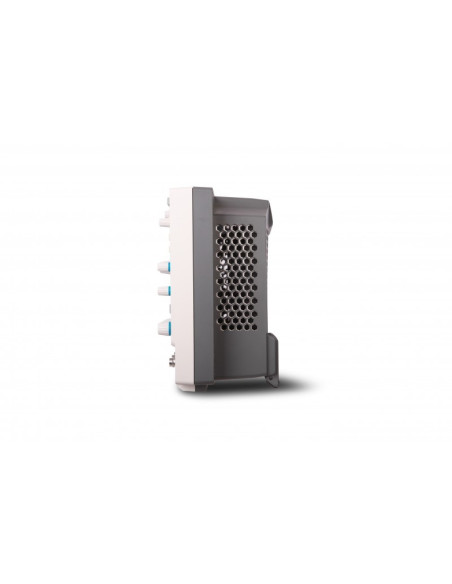

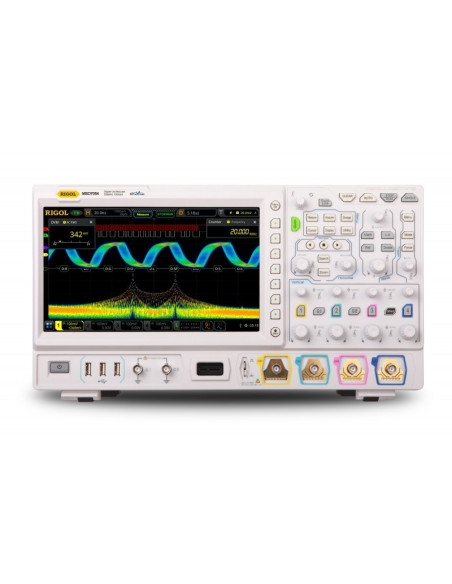

Digital Oscilloscope DS7024

200MHz BW, 4Channel, 10GSa/s
Analog bandwidth: 200 MHz; bandwidth upgrade option supported 4 analog channels, 1 EXT channel
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (option)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback Functions
Integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one arbitrary waveformgenerator, one digital voltmeter, one high-precision frequency counter and totalizer, and one protocol analyzer
A variety of serial protocol triggers and decodes

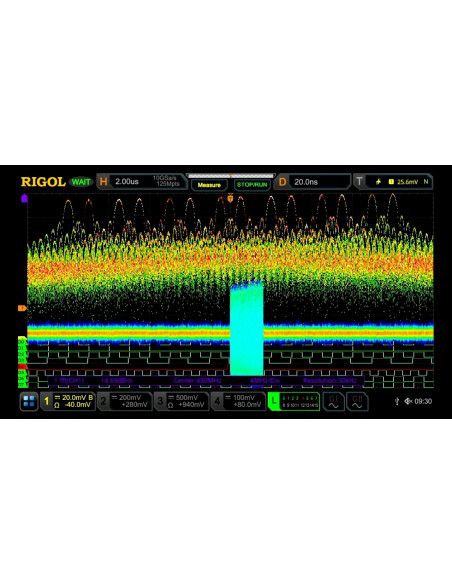

10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
