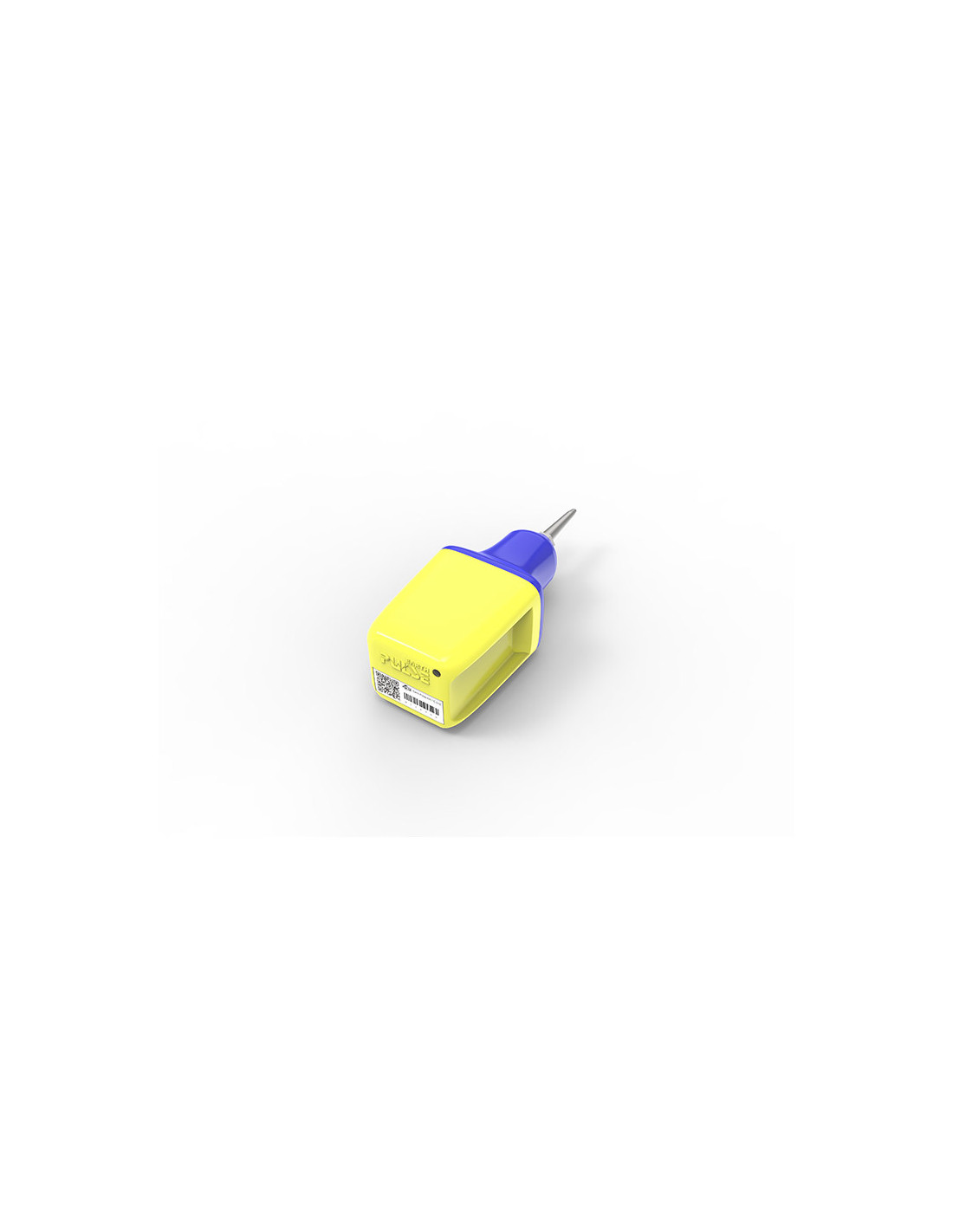

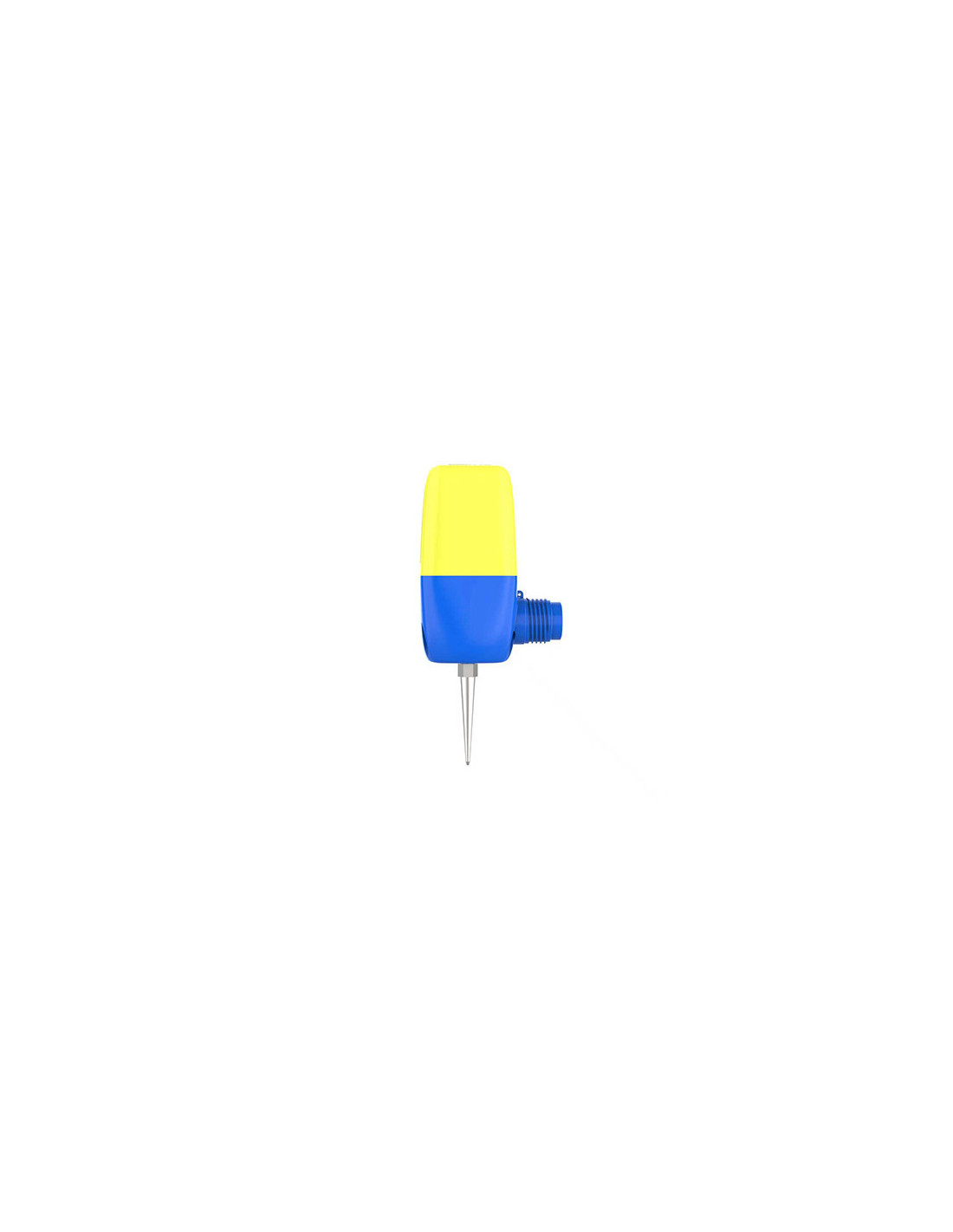

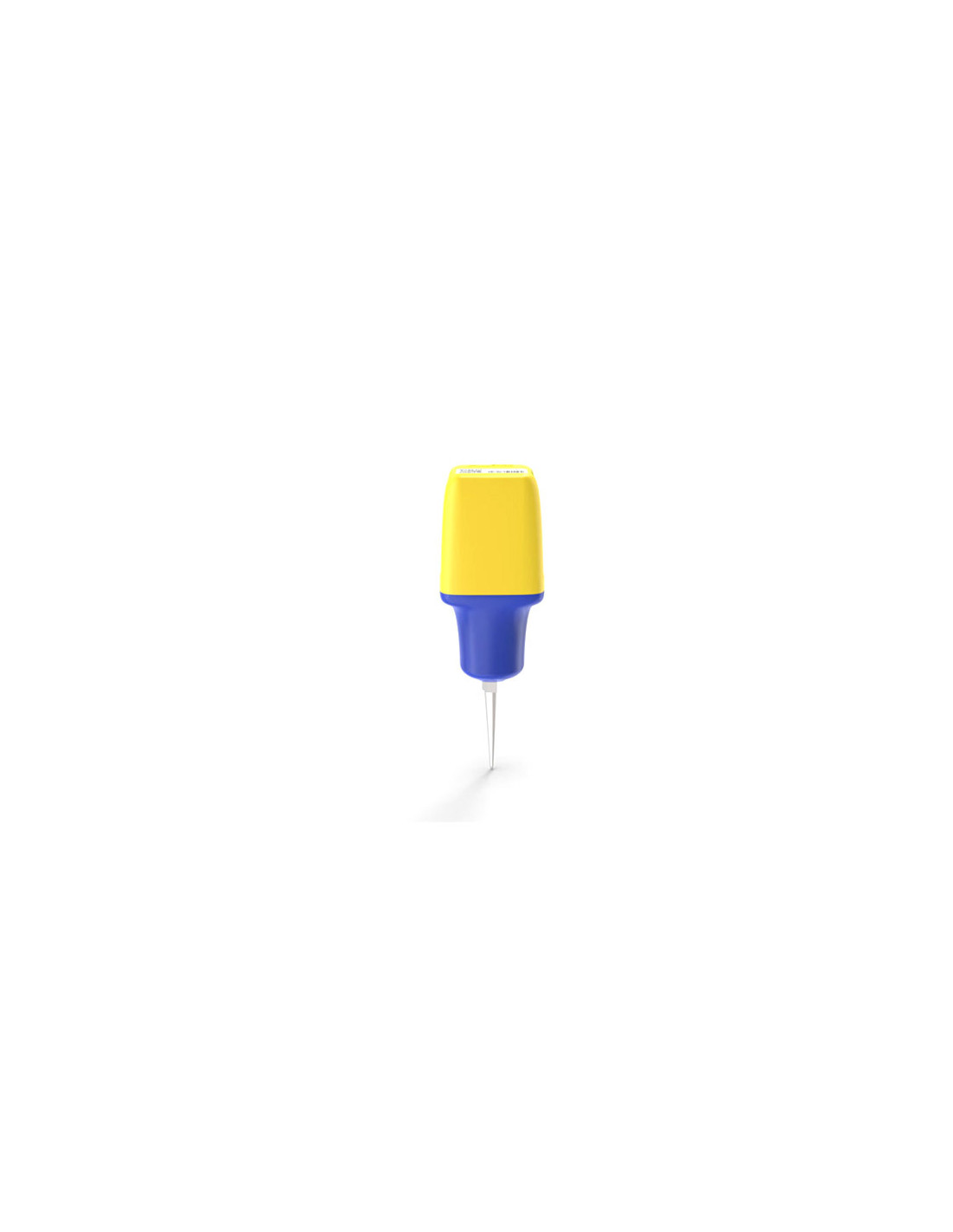

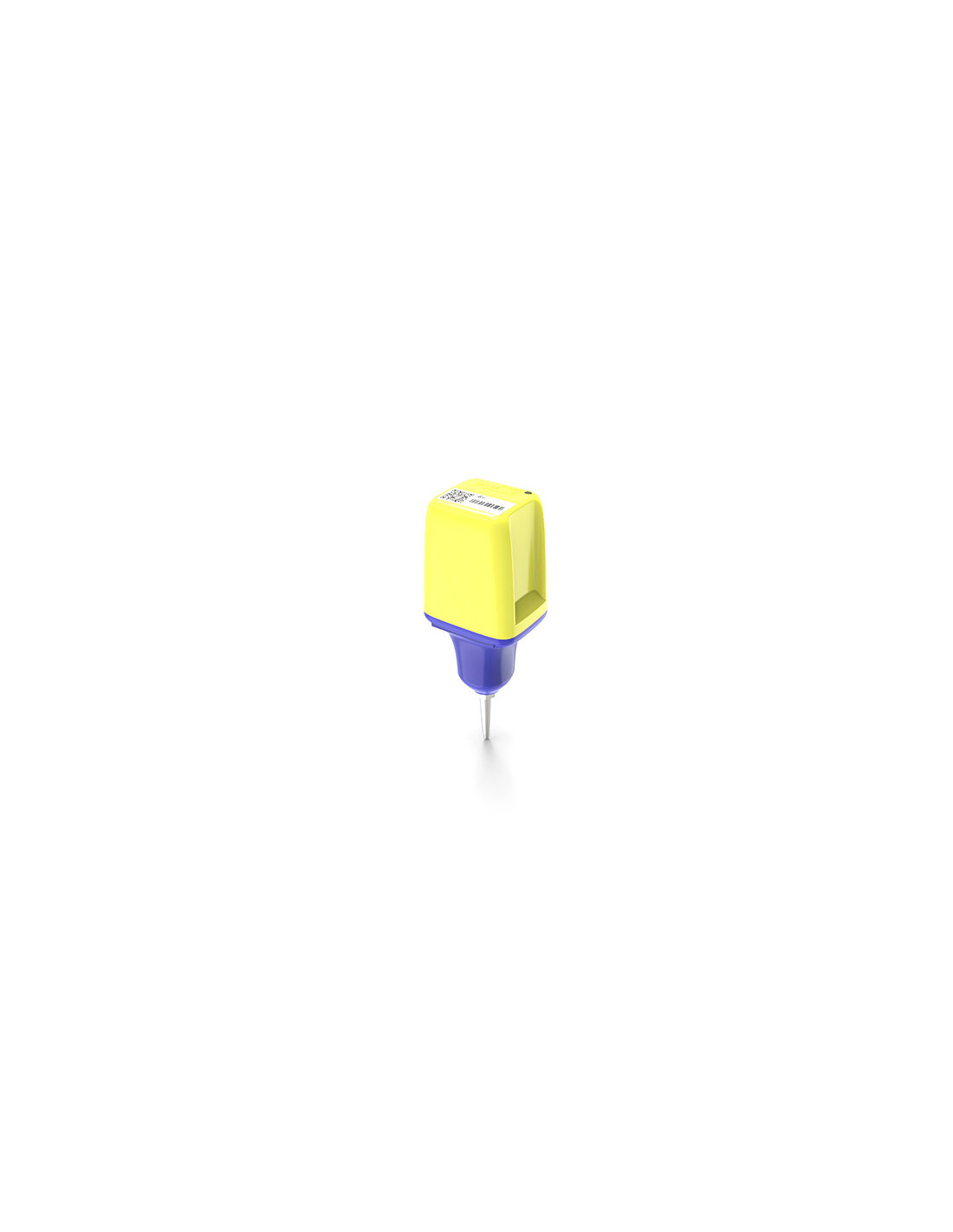

Ant-1C-5Hz GEOANT ultra-portable nodal seismometer

Reference: Ant-1C-5Hz - Manufacturer: GEOANT

Ultra-portable single-component nodal seismometer with a 5 Hz geophone, GNSS timing and IP68 protection for efficient field seismic exploration.

Its compact design, long operating life and zero external contacts reduce deployment complexity and project costs.

help_outlineAsk for Quote

Ant-1C-5Hz GEOANT ultra-portable nodal seismometer

I accept privacy policy rules



The GEOANT Ant-1C-5Hz is an advanced single-component nodal seismometer engineered to simplify seismic exploration with lower operational complexity, improved survey efficiency and significant project cost savings.

It integrates GPS/Beidou synchronization algorithms, ultra-low-power circuitry, and wireless data and charging technology. With high integration, extended operating life and zero external contacts, it supports intelligent and automated deployment in complex terrain and harsh environments.

Its state-of-the-art ADC architecture delivers exceptional dynamic range for reliable micro-vibration detection, and it supports UAV-assisted surveys at altitudes above 300 meters AGL.

Recommended applications:

  • Seismic zonation and safety assessment
  • Shallow geological surveys
  • Urban subsurface exploration
  • Geothermal exploration
  • Coal mine goaf detection
  • Oil, natural gas, coal and nonferrous mineral exploration

Its compact deployment-ready format helps teams improve productivity while maintaining rugged field reliability.

Physical parameters

Weight 560 g (excluding spike)
Dimensions 55 x 55 x 148 mm
Operating temperature -40 C to +70 C
Protection IP68
Operating life at 25 C 25 days at 2 ms, 24 hrs/day operation; 50 days at 2 ms, 12 hrs/day operation
Charging time 3.5 hours

Performance specifications

Channels 1-channel Delta-Sigma ADC
A/D converter 32-bit
Sampling rate 0.25 ms; 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 10 ms; 20 ms
Preamplifier gain 0-24 dB in 6 dB steps
Low-cut filter 1 Hz, DC removed or disabled
Anti-alias filter 206.5 Hz at 2 ms (82.6% of Nyquist), selectable linear phase or minimum phase
0 dB at max input 2.5 V peak
Equivalent input noise at 12 dB 0.5 uv at 0.25 ms / 0.2 uv at 2 ms / 0.14 uv at 4 ms
Instantaneous dynamic range at 12 dB 118.9 dB at 0.25 ms / 126.8 dB at 2 ms / 130 dB at 4 ms
Total dynamic range 145 dB
Timing accuracy +-10 us, GPS disciplined
Storage Expandable from 8 GB to 32 GB
Built-in GNSS Simultaneous GPS/Beidou/GLONASS/GNSS positioning and timing, single or dual mode operation

Geophone specifications

Parameter 2 Hz 5 Hz 10 Hz
Natural frequency 2 +- 15 % 5 +- 7.5 % 10 +- 3.5 %
DC resistance 6400 +- 10 % 1850 +- 5 % 1800 +- 3.5 %
Sensitivity (open circuit) 260 +- 15 % 76.7 +- 5 % 78.7 +- 3.5 %
Damping 0.7 +- 15 % 0.7 +- 7.5 % 0.7 +- 5 %
Distortion <=3 % <=0.1 % <=0.1 %
Spurious frequency >=90 >=170 >=240
Effective frequency range 0.1 to 300 0.2 to 1000 0.5 to 1000
