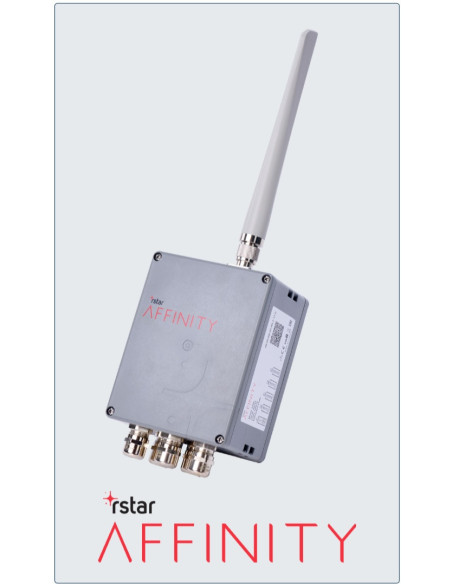

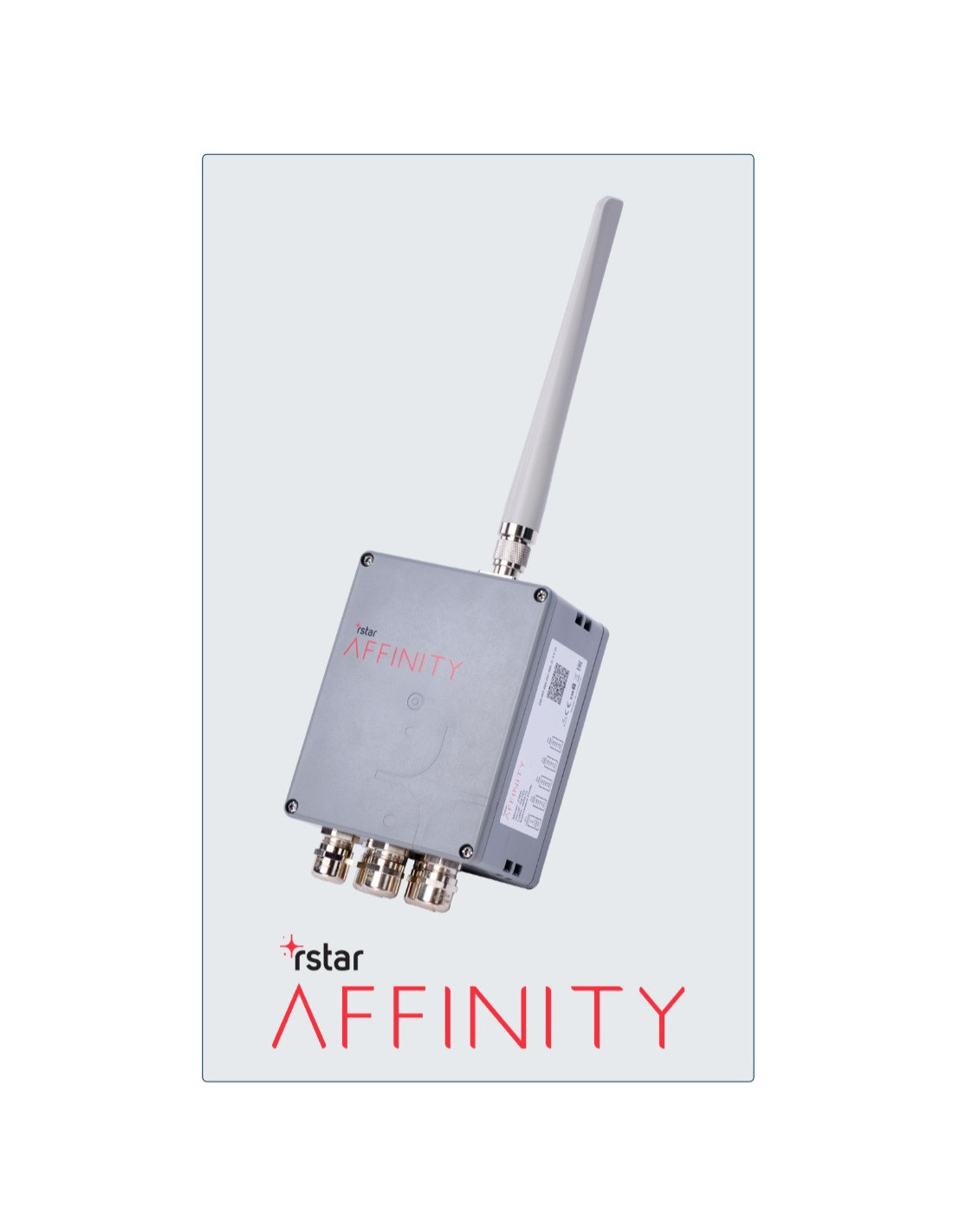

The RSTAR Affinity Data Logger connects field analog and digital sensors to the RSTAR Affinity web dashboard for secure, efficient remote data management. It supports up to five instruments, authenticated Bluetooth, and long-range LPWAN communications.

Ask for Quote

The RSTAR Affinity Data Logger is designed to connect a wide range of field analog and digital sensors to the RSTAR Affinity web-based dashboard for centralized data management.

Each logger can be configured to support up to five instruments of different types, making it a flexible option for geotechnical and remote monitoring projects.

Instrument and logger configuration is handled through secure authenticated Bluetooth Low Energy (BLE) using the RSTAR Affinity Field Utility mobile app. Readings are transmitted over LPWAN through an RSTAR Affinity Gateway, including LoRaWAN support for long-range outdoor deployments up to 15 km.

Standalone data logging is also supported, with local sync through the field app and CSV export for rapid verification in locations with limited cellular coverage.

Product features

Five configurable modules for specific instrumentation signal types.
Compartmentalized design for easier maintenance.
Bluetooth self-location for faster setup.
IP67 protection for operation from -40°C to 60°C.

Benefits

Better data insight.
Ease of use in the field.
Improved safety through remote monitoring.

Applications

Suitable for civil infrastructure, energy, surface metal mining, and underground mining.

Physical specifications

Dimensions	159 mm (L) x 120 mm (W) x 87 mm (H) enclosure only; 163 mm (L) x 185 mm (W) x 87 mm (H) with wall mounting
Total mass	500 g to 550 g
Housing material	PBT
Protection	IP67
Mounting options	Wall, pole, mounting kit available
Antenna options	External: +3 dBi and +5.8 dBi (N type connector)

General specifications

Operating temperature range	From -40°C to 60°C
Lifespan	10-year service life

BLE radio

Bluetooth	BT 5.0 single mode
Frequency	2.402 - 2.480 GHz
Raw data rates	125 kbps, 500 kbps, 1 Mbps, 2 Mbps
Maximum transmit power	+8 dBm
Low power listen mode	Continuous

LPWAN

Operating regions	LoRaWAN US915, EU868, EU433, AS923-1/2/3/4 and AU915. Consult RST for the best frequency for your region.
Protocols	LoRaWAN 1.0.1
Range	Up to 15 km at 900 MHz in open country, depending on frequency and antenna

Battery

Voltage	3.6 V
Number of cells	3 primary battery cells
Cell size	D
Recommended battery	Saft LSH20
Nominal capacity	13.0 Ah @ 20°C per cell
Life expectancy	1 x VW Piezometer @ 20°C: ~10 years; 100 Segment ShapeArray @ 20°C: ~3 years

RS485 module

Part ID	IIM-RS-485. Contact RST for full sensor list compatibility.
Supply power	12 VDC up to 300 mA
Supported protocols	RS485
Serial data rate	9600 to 115200 Baud configurable through the RSTAR Affinity digital suite
Serial port	Half-duplex
Protection	1500 VDC isolation on 12 V and 3000 VDC isolation on TTL signals; EN62368-1 certified ICs

Vibrating Wire module

Part ID	IIM-VW-VW / IIM-VW-TH
Excitation voltage	5 V
Resonant frequency measurement range	300 Hz to 7,000 Hz
Resolution	0.11 Hz (1 part in 65,000)
Accuracy	±0.7 Hz (0.01% FS)
Protection	1500 VDC isolation on 5 V, 3000 VDC isolation on TTL signals, and ESD protection up to ±2KV on instrument ports

Thermistor module

Part ID	IIM-TH-TH / IIM-VW-TH
Measurement range	0 Ohm to 196 mOhm
Resolution	0.183 Ohm
Accuracy	±0.1°C
Protection	1500 VDC isolation on 12 V and 3000 VDC isolation on TTL signals; EN62368-1 certified ICs

Ordering information

RSTAR Affinity Logger	Please specify channel number, sensor configuration, radio frequency, and mounting type
DATA LOGGER-SE	Optional secondary enclosure for 1 logger with mounting plate, hardware, and ground stake
DT100	Nut wrench for cable glands
