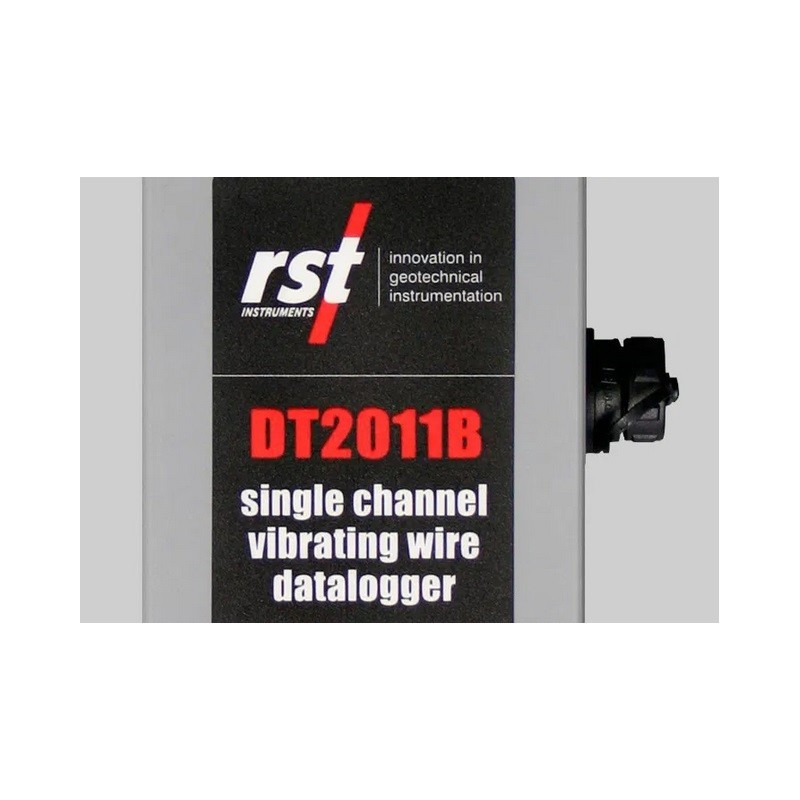

DT2011B Single Channel Vibrating Wire Data Logger

Reference DT2011B

Condition: New

- Battery powered for remote sites.
- Compatibility with all VW sensors – excluding those with auto resonant circuitry.
- 4MB memory.
- 100 year memory backup.

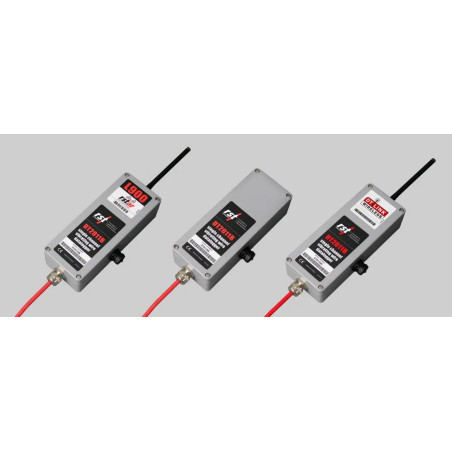

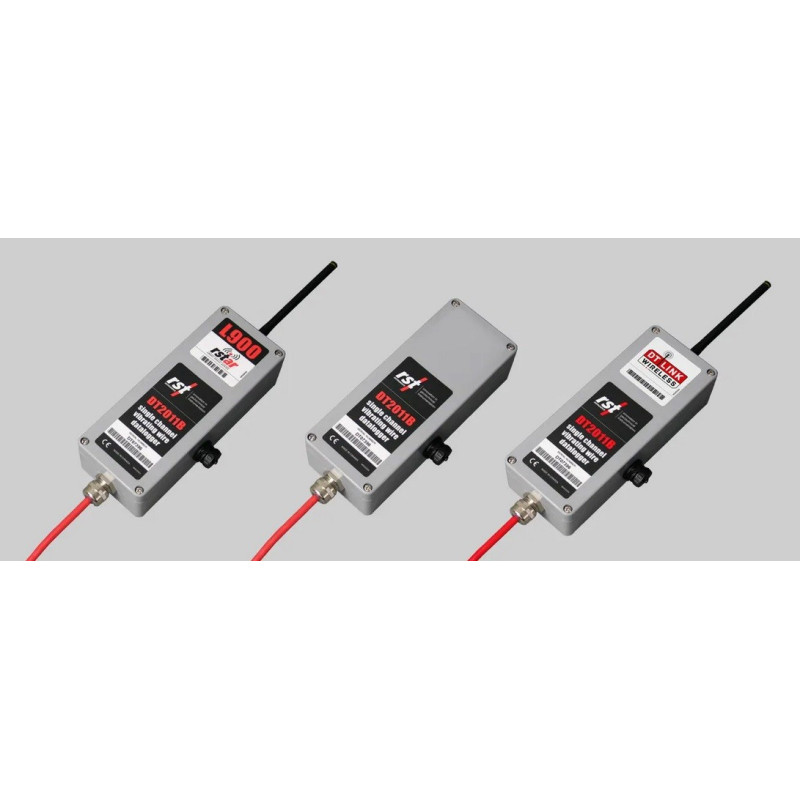

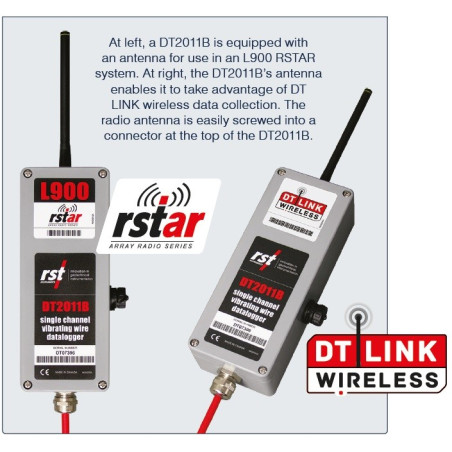

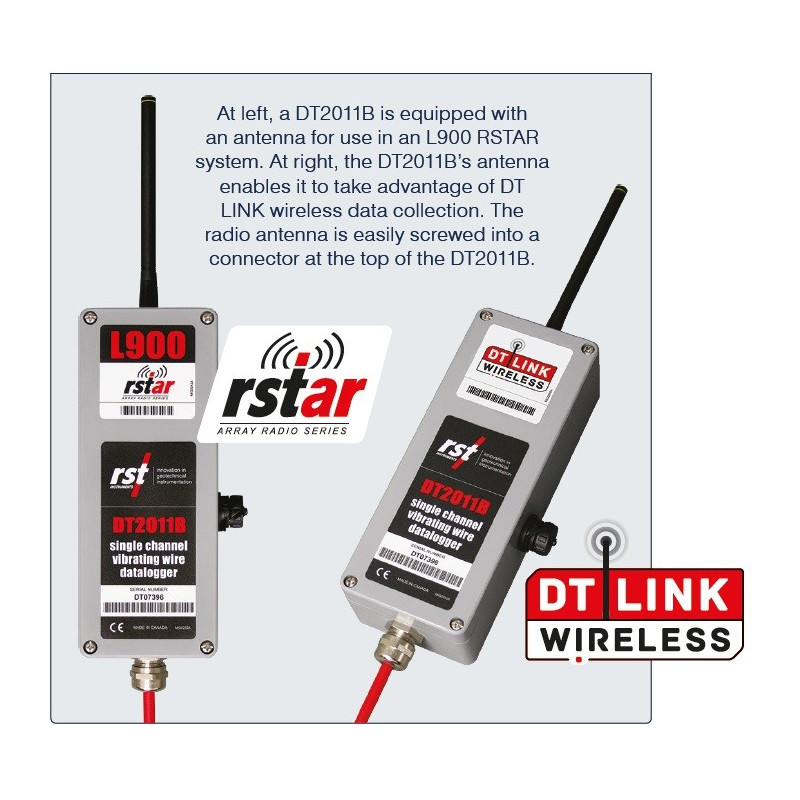

- Option for radio antenna for incorporation into an RSTAR system or DT LINK.
- 16 bit analog/digital converter.
- Weather resistant NEMA 4X (IP66) enclosure.
- 0.01µs vibrating wire resolution.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
ORDER MATRIX
Data sheet
Download

Environment of Use	Outdoor
Type of Logger	Portable
Application	Geotechnics
Number of Channels	1
ADC Bits	16 bit
With Display	No
IP Classification	IP66

DT2011B Data Sheet Download (1.94M)

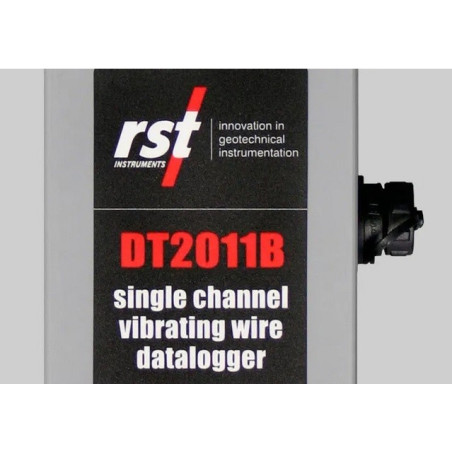

The DT2011B is a Single Channel Vibrating Wire Data Logger.
It is a low cost, battery powered logger, designed for reliable and unattended monitoring of single vibrating wire sensor and thermistor. It is a purpose built logger ideal for remote locations or instruments that require frequent reliable data logging.

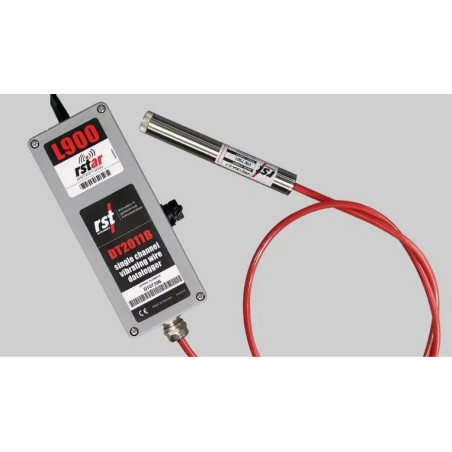

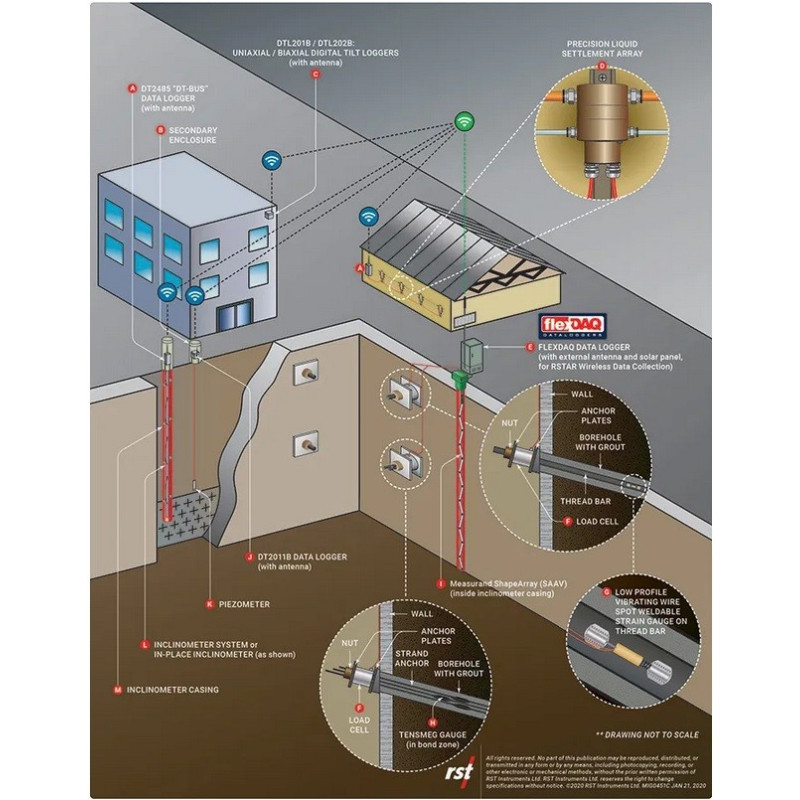

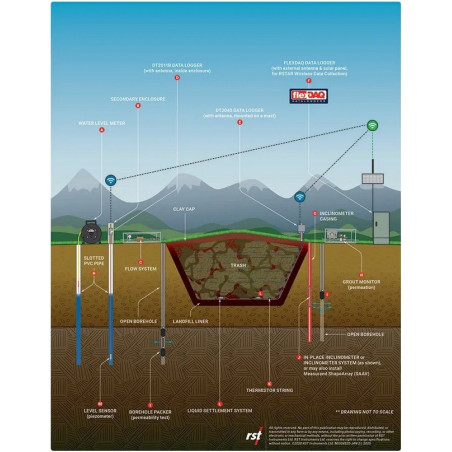

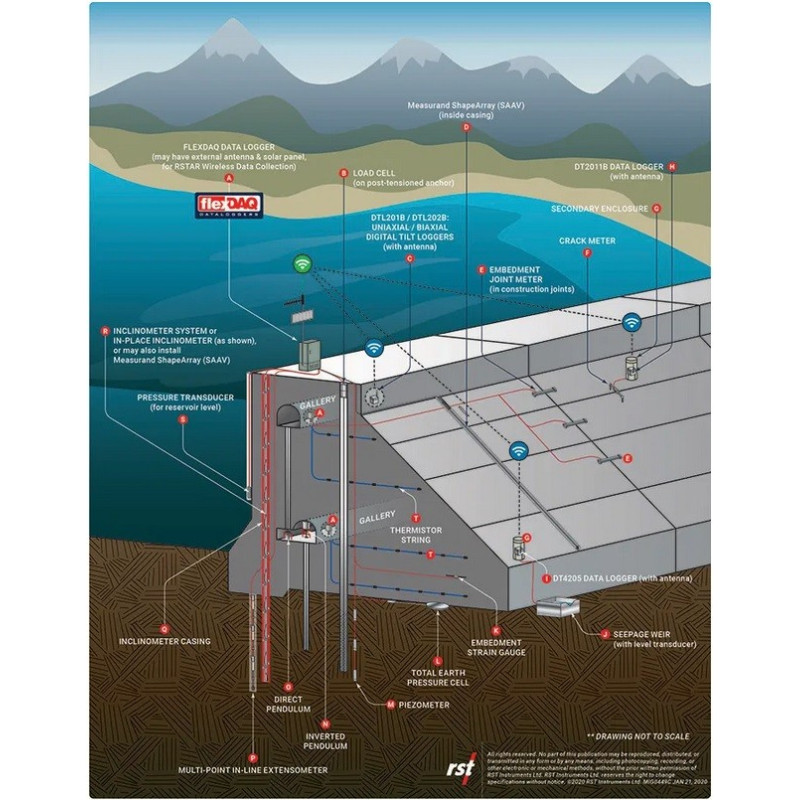

It connects to all vibrating wire sensors including piezometers, crack meters and strain gauges.
The DT2011B Single Channel Vibrating Wire Data Logger will not connect to vibrating wire sensors with auto resonant circuitry.

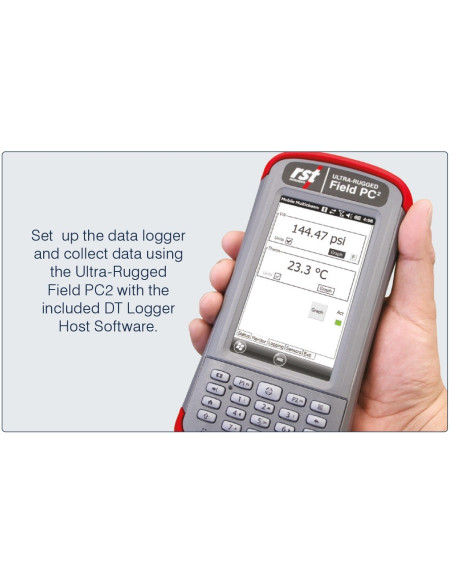

The Data logger setup and data collection is performed using the Ultra-Rugged Field PC2 or a laptop computer. RST’s DT Logger Host Software is included.
