Data Loggers for Dendrometers and Sap Flow Sensors DL18-BLE

View larger

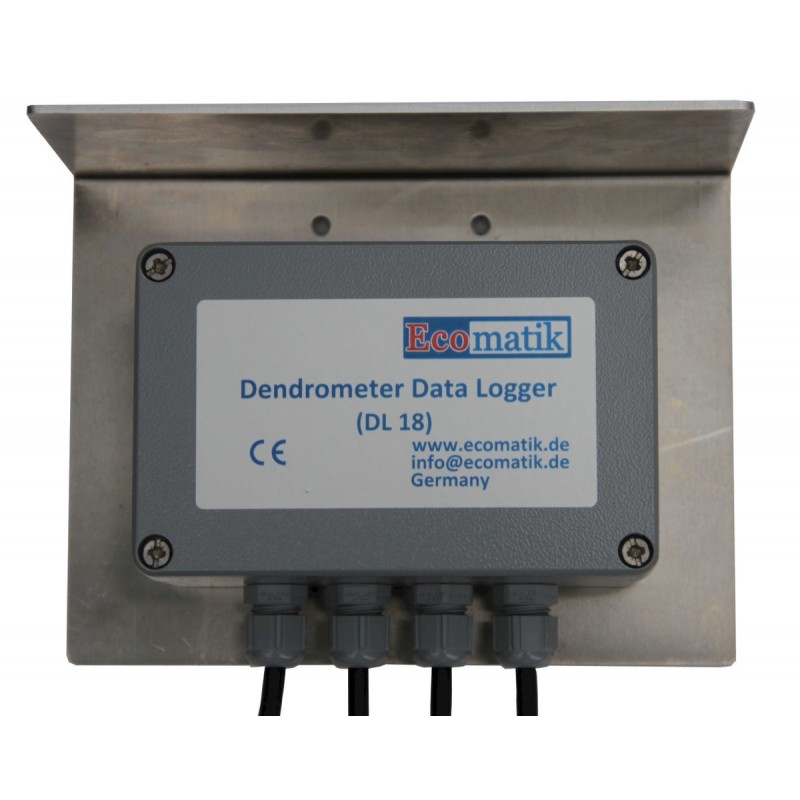

DL18-BLE Bluetooth-BLE Data Loggers for Dendrometers and Sap Flow Sensors

Reference DL18-BLE

Manufacturer: Ecomatik

Condition: New

Mini-Systems with Data Logger DL18-BLE

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
COMPATIBLE SENSORS
Data sheet
Download

Environment of Use	Indoor/Outdoor
Number of Channels	4 Analog
ADC Bits	16 bit
IP Classification	IP67
Communications	Bluetooth BLE
Battery Life	1 year
Memory Capacity	1.9 million measurements

DL18-BLE Data Sheet Download (132.99k)

DL18-BLE Manual Download (662.86k)

ECOMATIK provides the DL18-BLE (Bluetooth Low Energy) dendrometric data logger that covers all relevant logging features and options for accurate and efficient dendrometric measurements.

Suitable for connecting 1 to 4 dendrometers, temperature compensated effects, 16 bits, resolution 0.2-0.5 µm (regardless of dendrometer type), RAM for data storage of 1,900,000 (sufficient for a one-year measurement with 4 dendrometers, 1 min measurement interval), USB port, an internal battery lasts more than 1 year of measurement.
Ideal for long-term measurements with dendrometers.
Supplied with weather box and protective visor.

ECOMATIK dendrometers are compatible with all popular data loggers (eg Campbell, Delta-T, DT80). We provide assistance in connecting our dendrometers with data loggers.

DL18 and DL18-BLE comparison:

Logger-Type	Mini Logger DL 18	Mini Logger DL 18-BLE
Scope of application	Battery-powered data recording in outdoor conditions	Battery-powered data recording in outdoor conditions. Bluetooth data transfer to smartphone/tablet particularly advantageous if logger accessibility is difficult (e.g., if attached to a greater height in the tree)
Compatible Sensors	Sensors with analogue output signal: - Dendrometer (all models) - Temperature sensors (T-Series) - Leaf temperature sensor (LAT-B2) - T/RH air sensor (EM 14) - Soil moisture sensor (SMT100) - Light sensors (Par: EM 20; Pyranometer: EM 25)	Sensors with analogue output signal: - Dendrometer (all models) - Temperature sensors (T-Series) - Leaf temperature sensor (LAT-B2) - T/RH air sensor (EM 14) - Soil moisture sensor (SMT100) - Light sensors (Par: EM 20; Pyranometer: EM 25)
Special features/limitations	Small; robust, weatherproof metal box; cost-effective; easy to use; long battery life	Small; robust, weatherproof plastic box; wireless communication with mobile devices via Bluetooth; cost-effective; easy to use; long battery life
Number of measuring channels & measuring range	4 channels for 0 to 2.5 V	4 channels for 0 to 2.5 V
Recording interval	Adjustable between 1 sec and 18 hours (averaging possible)	Adjustable between 1 sec and 18 hours (averaging possible)
Storage capacity	4 MB (max. 1,900,000 measured values) e.g. For 4 channels and 30 minutes recording interval sufficient for 7,900 days	4 MB (max. 1,900,000 measured values) e.g. For 4 channels and 30 minutes recording interval sufficient for 7,900 days
Resolution	40 μV e.g.: Dendrometer, depending on the model: 0.2 to 1 μm T-Series, LAT-B2: 1.6 * 10^-3 ° C	40 μV e.g.: Dendrometer, depending on the model: 0.2 to 1 μm T-Series, LAT-B2: 1.6 * 10^-3° C
Accuracy	± 0.1 mV ± 0.1% of measured value	± 0.1 mV ± 0.1% of measured value
By the logger supplied sensor excitation voltage	2.5 V (switched, stabilized)	2.5 V (switched, stabilized)
Logger powering & battery life	2x AAA cell, user-replaceable Battery life: typically 1 year with a logging interval of 1 minute	2x AAA cell, user-replaceable Battery Life: typically 1 year with a logging interval of 1 minute and activated Bluetooth
Interface	USB to PC (Windows or MacOS)	Bluetooth Low Energy to Windows-PC, tablet or smartphone (Android or iOS); range up to 30 m line-of-sight
Operational conditions	Normal outdoor conditions, recording -20 to 70 ° C, 0 to 100% relative air humidity	Normal outdoor conditions; recording -20 to 70 ° C, 0 to 100% relative air humidity
Size and Weight	17x13x8 cm, 725 g (complete in metal protection with mounting plate)	17x13x8 cm, 600 g (complete in plastic protection with mounting plate)
