OMK610-NP Food Through Process Monitoring System

Grant Instruments

New

Through Process Monitoring: A comprehensive through process monitoring system designed for data logging in extreme environments. Sensor Probes not included.

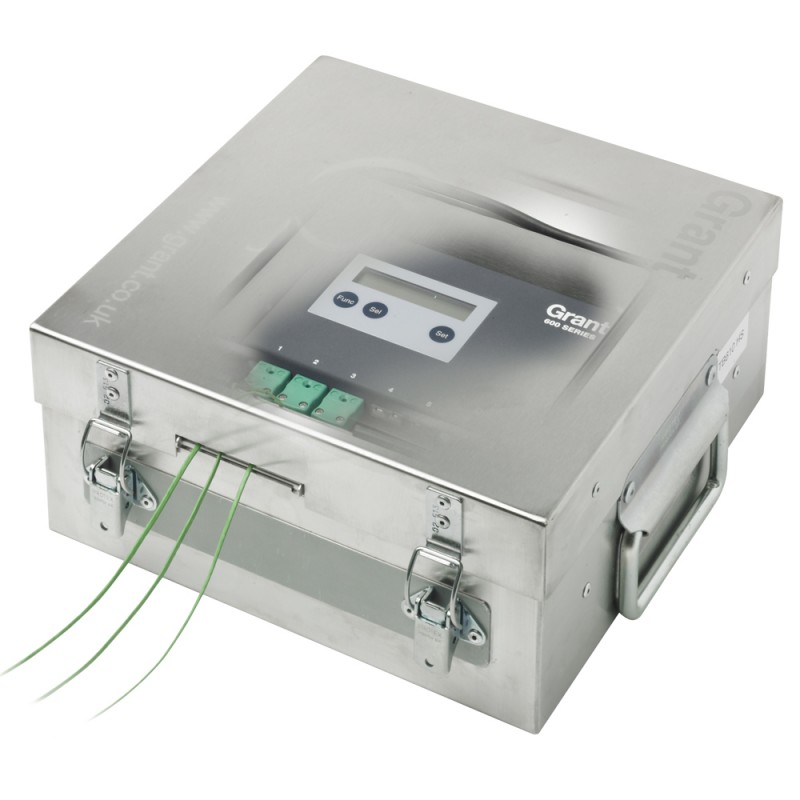

If you are heat treating products in your manufacturing process, you need to know that they have been exposed to the right temperature for the right amount of time in order to ensure consistent product quality. By passing a Grant OQ610 oven logger – protected by a thermal barrier – through your process, a temperature profile can be produced that will show you exactly what is happening to your products and the process.

Benefits of through process monitoring include improved quality of your product and increased efficiency, reduced energy costs, quality assurance reports for compliance and traceability and complete quality control for your process.

2 440,00 €

tax excl.

Add to wishlist

Environment of Use Indoor
Type of Logger Multicanal
Measured Parameters Temperature
Application Food Process Logging
Number of Channels 6 channels
Precision ±0.5°C
Resolution 0.1°C
With Display LCD
Communications USB
Memory Capacity 260,000 readings

OQ610-S Logger Download (868.36k)

OQ610-S Getting Started Download (4.26M)

Thermal Barriers Grant Download (498.99k)

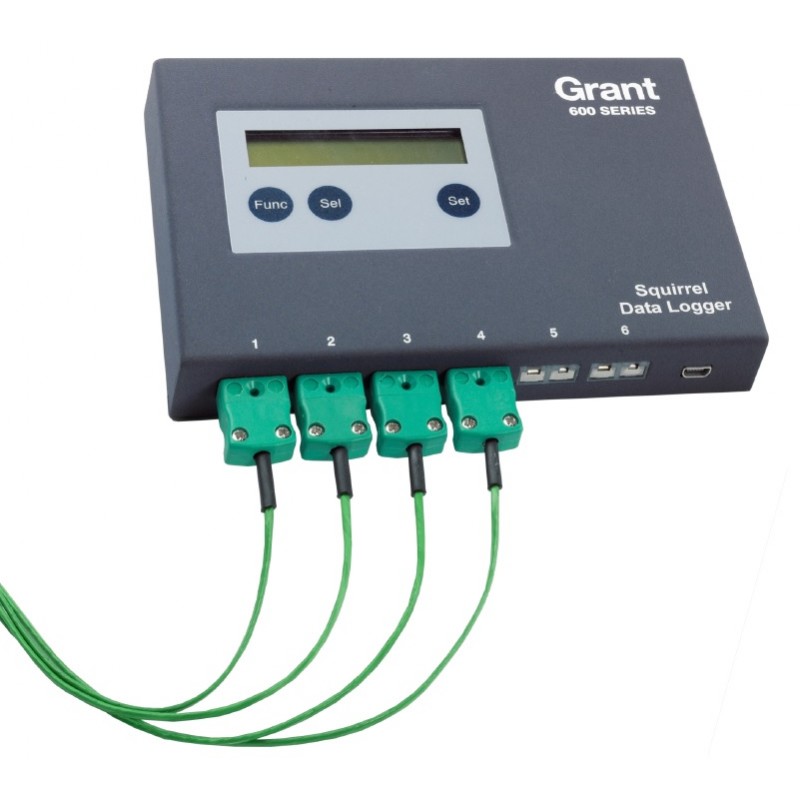

Complete system for through process monitoring based on 6-channel Squirrel OQ610

  • High accuracy
  • Compact and simple to use
  • USB connectivity for direct print-out of temperature readings with time and date
  • Can be configured to automatically start and stop logging on time or temperature levels
  • Can provide automatic cure calculation in through process applications
  • Wide choice of temperature probes and thermal barriers

OQ610 Squirrel Data Logger, complete with thermal barrier (TB610), USB connection cable, light weight carry case, getting Started guide and PaintView configuration and data analysis software.

Analogue input channels 6
Input types:
– Temperature, K Thermocouple √
– Temperature, T Thermocouple √
Temperature measuring range -200°C to 1300°C (K type)
-200°C to 400°C (T type)
Max number of readings (per second per channel) 8
Accuracy -50 to 500°C, ±0.5°C
-200 to 1300°C, ±1.0°C
Resolution 0.1°C
Display alphanumeric display 2 x 16 characters; shows cure pass/fail, battery status, probes connected, real time readings and communication to printer or PC
Memory size/number of readings stored 0.25Mb
USB communications √
Power supply 2 x AA cells to give 200 hours operation at default settings
Dimensions and weight (l x w x h) 148 x 95 x 21mm, 450 g
Operating environment temperature range -30 to 65°C
humidity 95%
Set-up/analysis software SquirrelView*
Temperature probes (K or T thermocouple) optional (choose from the Grant range)
TB series thermal barrier (for through process monitoring in the food industry) or CI606-Q thermal barrier (for use in paint and finishing ovens) optional (choose from the Grant range)
*SquirrelView PC software is supplied as standard with every new Squirrel. SquirrelView Plus is available at extra cost.
  • Food Manufacturing including cakes, bread, confectionery, meat fish, poultry, beverages, dairy products, pizza, pasta, ready made meals as well as chilled and frozen foods
  • Surface Coatings; powder coating & stove enamelling
  • Furnaces, kilns and any form of oven or conveyor system

New OMK610-KIT1 Squirrel oven logging system complete kit. Maximum of 100 minutes at 250°C

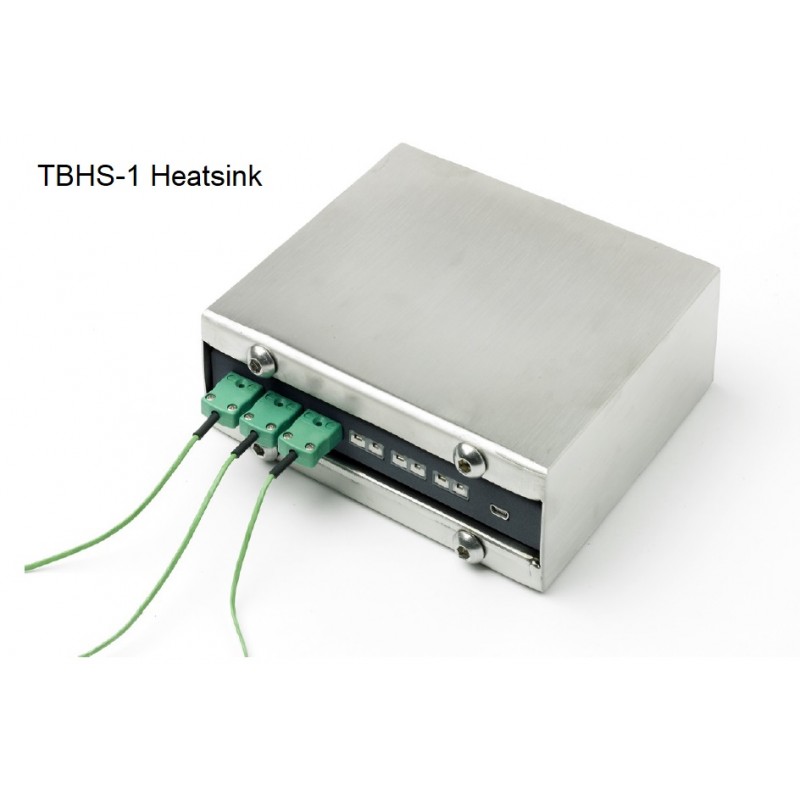

OQ610 Squirrel Data Logger, complete with thermal barrier (TB610HS), heat sink (TBHS-1), USB connection cable, light weight carry case
Getting Started giude and PaintView configuration and data analysis software with Calibration Certificate CAL610 and 6 x TC-K-N3-3
combined magnetic clamp Surface probes


OMK610-HS Squirrel oven logging system. Maximum of 100 minutes at 250°C
OQ610 Squirrel Data Logger, complete with thermal barrier (TB610HS), heat sink (TBHS-1), USB connection cable, light weight carry case
Getting Started giude and PaintView configuration and data analysis software.

Probes are NOT included - please select up to 6 suitable probes from the list below

OMK610-NP Squirrel oven logging system. Maximum of 50 minutes at 250°C
OQ610 Squirrel Data Logger, complete with thermal barrier (TB610), USB connection cable, light weight carry case
Getting Started guide and PaintView configuration and data analysis software.

Probes are NOT included - please select up to 6 suitable probes from the list below:

Probes for OQ610 Oven Logger - to DIN IEC 60584-2
"These all new temperature probes are Type K (NiCr-Ni), are supplied triple insulated (teflon - copper - teflon) as standard and are terminated
with a miniature thermocouple connector, producing a more rugged and faster responding probe design"

Air Temperature Probes:
Suitable for use with all substrate materials (ferrous, non-ferrous, plastics, composites etc.)
CAP-K-G1.5-3 Air probe with clamp 1.5m PTFE coated, triple insulated cable
CAP-K-G3-3 Air probe with clamp 3.0m PTFE coated, triple insulated cable
CAP-K-G6-3 Air probe with clamp 6.0m PTFE coated, triple insulated cable


Air Temperature Probes:
Suitable for use with magnetic substrate materials (ferrous metals etc.)
MAP-K-G1.5-3 Air probe with clamp 1.5m PTFE coated, triple insulated cable
MAP-K-G3-3 Air probe with clamp 3.0m PTFE coated, triple insulated cable
MAP-K-G6-3 Air probe with clamp 6.0m PTFE coated, triple insulated cable


Surface Temperature Probes (with integral clamp):
Suitable for use on non-magnetic substrate materials (e.g. non-ferrous metals, plastics, composites etc.)
CSP-K-G1.5-3 Surface probe with clamp 1.5m PTFE coated, triple insulated cable
CSP-K-G3-3 Surface probe with clamp 3.0m PTFE coated, triple insulated cable
CSP-K-G6-3 Surface probe with clamp 6.0m PTFE coated, triple insulated cable


Surface Temperature Probes (with integral magnet):
Suitable for use with magnetic substrate materials (ferrous metals etc.)
MSP-K-G1.5-3 Surface probe with magnet 1.5m PTFE coated, triple insulated cable
MSP-K-G3-3 Surface probe with magnet 3.0m PTFE coated, triple insulated cable
MSP-K-G6-3 Surface probe with magnet 6.0m PTFE coated, triple insulated cable


Original Style Combined Probes for OQ610 Oven logger:
Suitable for use with all substrate materials (ferrous, non-ferrous, plastics, composites etc.)
TC-K-N1.5-3 Combined magnet & clamp fasteners for air and surface measurements. 1.5m PTFE Coated cable
TC-K-N3-3 Combined magnet & clamp fasteners for air and surface measurements. 3m PTFE Coated cable
TC-K-N6-3 Combined magnet & clamp fasteners for air and surface measurements. 6m PTFE Coated cable
