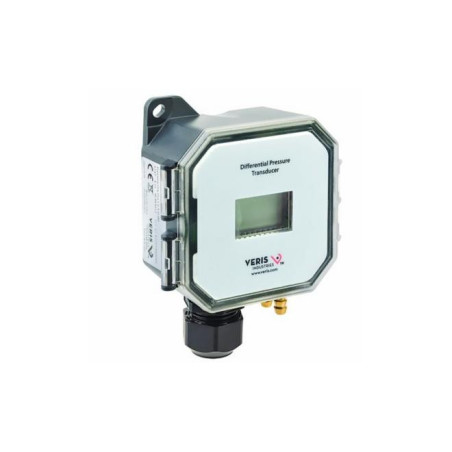

Differential Air Pressure Transducer
Accurately measures air pressure or velocity with the flip of a switch. Perfect for HVAC systems, laboratories, and industrial applications.
A transducer sensor that can measure either air pressure or velocity with the flip of a switch. Available in the universal configuration, with pressure and velocity range options: 0-10" WC / 0-7,000 ft/min, with seven field-selectable sub-ranges for pressure and eight for velocity. Available with display. This sensor has an IP65/NEMA 4 environmental rating.
Requirements for use with specific data loggers:
- HOBO MX1100 series: a 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1).
- HOBO U12, UX120-006M, or ZW series: a 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1).
- HOBO RX3000: an analog input module (RXMOD-A1).
- HOBO U30: an analog input module (VIA).
- HOBO H22: an analog input module (S-FS-CVIA).
Features
- Switch-selectable ranges and scales reduce setup time.
- High reliability sensor technology for long-term, maintenance-free operation.
- Monitors positive and negative pressure for application versatility.
Specifications
Media Compatibility: Dry air or inert gas
Input Power: 12-30VDC, or 24VAC nominal
Output: Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped) or 3-wire 0-5V/0-10V
Pressure Ranges:
- Unidirectional: 0.1/0.25/0.5/1/2.5/5/10 in. WC, switch selectable
- Bidirectional: ±0.1/±0.25/±0.5/±1/±2.5/±5/±10 in. WC, switch selectable
- Unidirectional: 25/50/100/250/500/1,000/2,500 Pa, switch selectable
- Bidirectional: ±25/±50/±100/±250/±500/±1,000/±2,500 Pa, switch selectable
Velocity Mode:
- 500/1000/2000/3000/4000/5000/6000/7000 ft/min
- 2.5/5/10/15/20/25/30/35 m/s
Response Time: Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
Mode: Unidirectional or bidirectional, switch selectable
Display (option): Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
Proof Pressure: 3 psid (20.6 kPa)
Burst Pressure: 5 psid (34.5 kPa)
Accuracy: ±1% F.S. of selected range (combined linearity and hysteresis)
Temperature Effect: 1" 0.05%/°C; 10"
Zero Drift (1-year): 1" 2.0% max.
Zero Adjust: Pushbutton auto-zero and digital input (2-pos terminal block)
Operating Environment: 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing
Fittings: Brass barb; 0.24” (6.1mm) o.d.
Physical: UL 94 V-O Fire Retardant ABS
