MARKUS 10 Portable instrument for determining the Radon content in soil

Reference MARKUS 10

Manufacturer: GAMMADATA

Condition: New

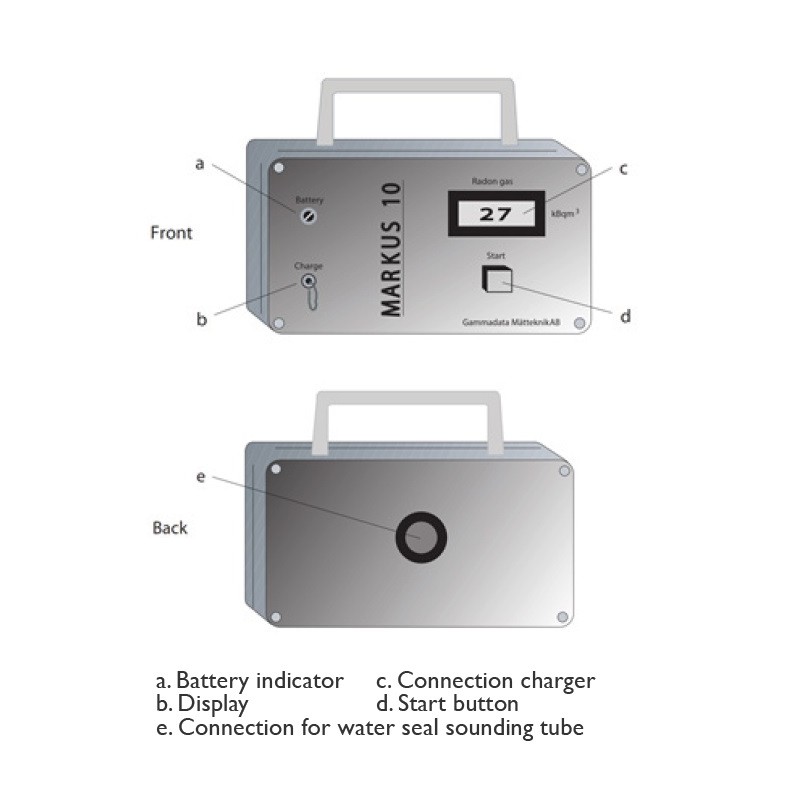

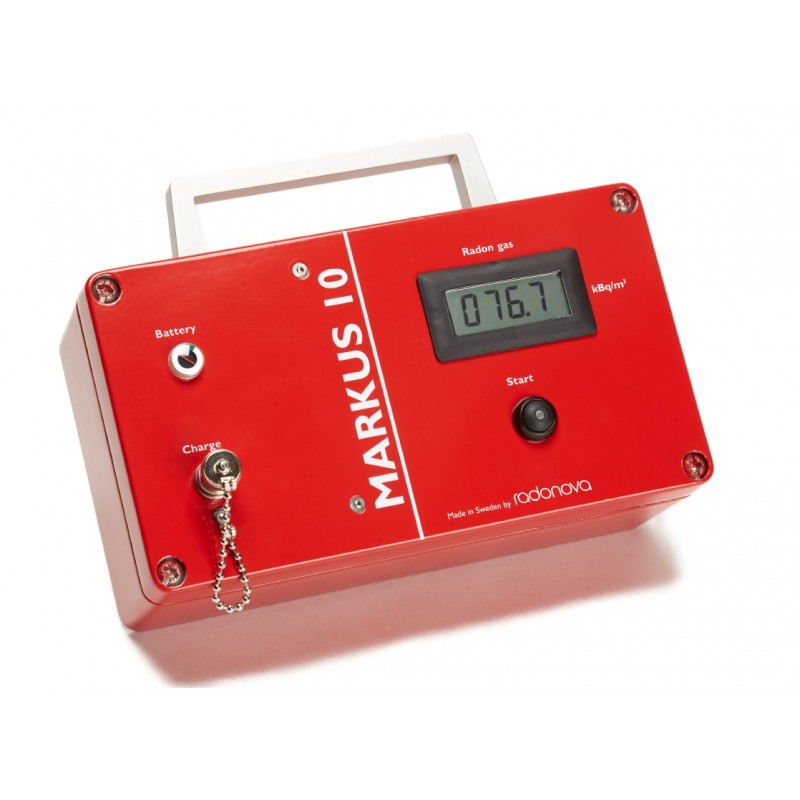

The Markus 10 is a portable, battery-powered instrument for determining the radon content in the soil.
It is designed to be as simple as possible to operate.

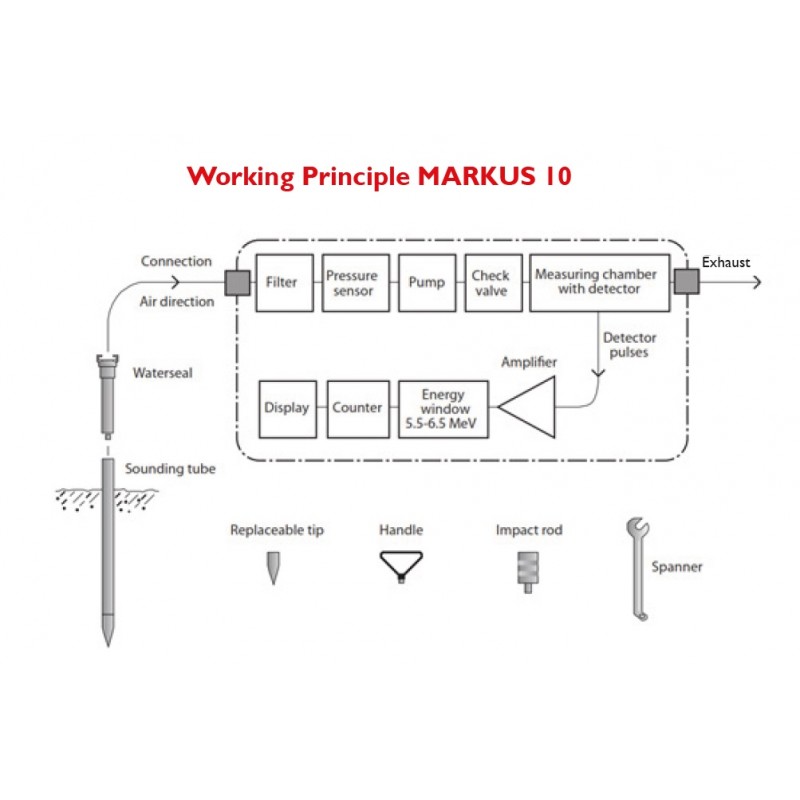

In the initial measuring phase, air from the soil is pumped up through a sounding tube into a measuring cell.
The pumping time (about 30 sec) has been chosen to ensure that all fresh air in the system is pumped out.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet

Type of Instrument	Air Quality Analyzer
The instrument measures:	Radon in soil

A pressure sensor stops the pump if the pressure in the tube drops below a given value. When the pressure rises, the pump
starts again. The pump’s effective running time is always the same, which guarantees a certain minimum volume of air to be
measured. The pumping time is about 30 seconds.
When the measurement starts the detector high voltage is switched on. The charged radon daughters, formed by the decaying radon gas, are driven towards the detector by an electric field in the chamber.
The detector registers the alpha radiation originating from the radon daughters.
The instrument only accepts pulses from the short-lived radon daughter polonium 218 (with a half-life of about 3 minutes). This eliminates the slow variations in the background from polonium 214.
The pulses are counted and the result is kBq/m³ of radon-gas activity.
The display flashes during the measuring phase, and becomes steady when the measurement is completed. As the instrument only counts pulses from the short-lived nuclide polonium 218, a new measurement can be started after just 18 minutes. In that time, activity from the previous measurement will have decayed sufficiently.
