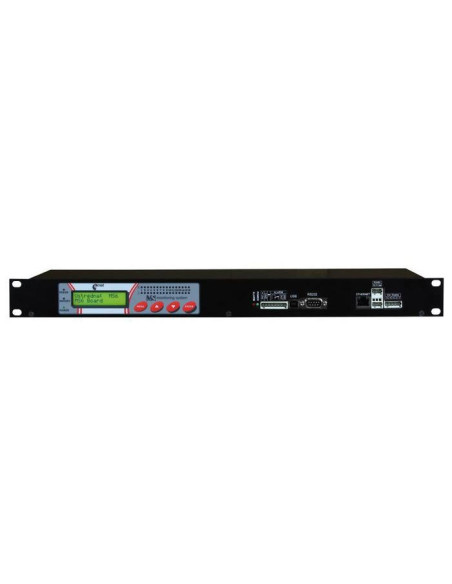

MS6-Rack DataLogger 19" Rack 16 Channels

Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Input measured values (1 to 16 inputs)

are defined for each channel by installed input modules (see table) accordingly to user requirements

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

9 to 30Vdc, 24Vdc recommended

Operating temperature range

0 to +50°C

Dimensions

483 x 190 x 44 mm (W x D x H) - one rack unit 1U

Protection

IP20

Weight

approximately 800 g

Warranty

2 years
