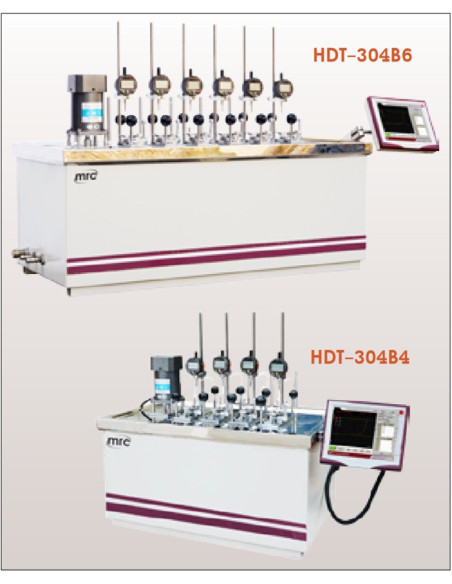

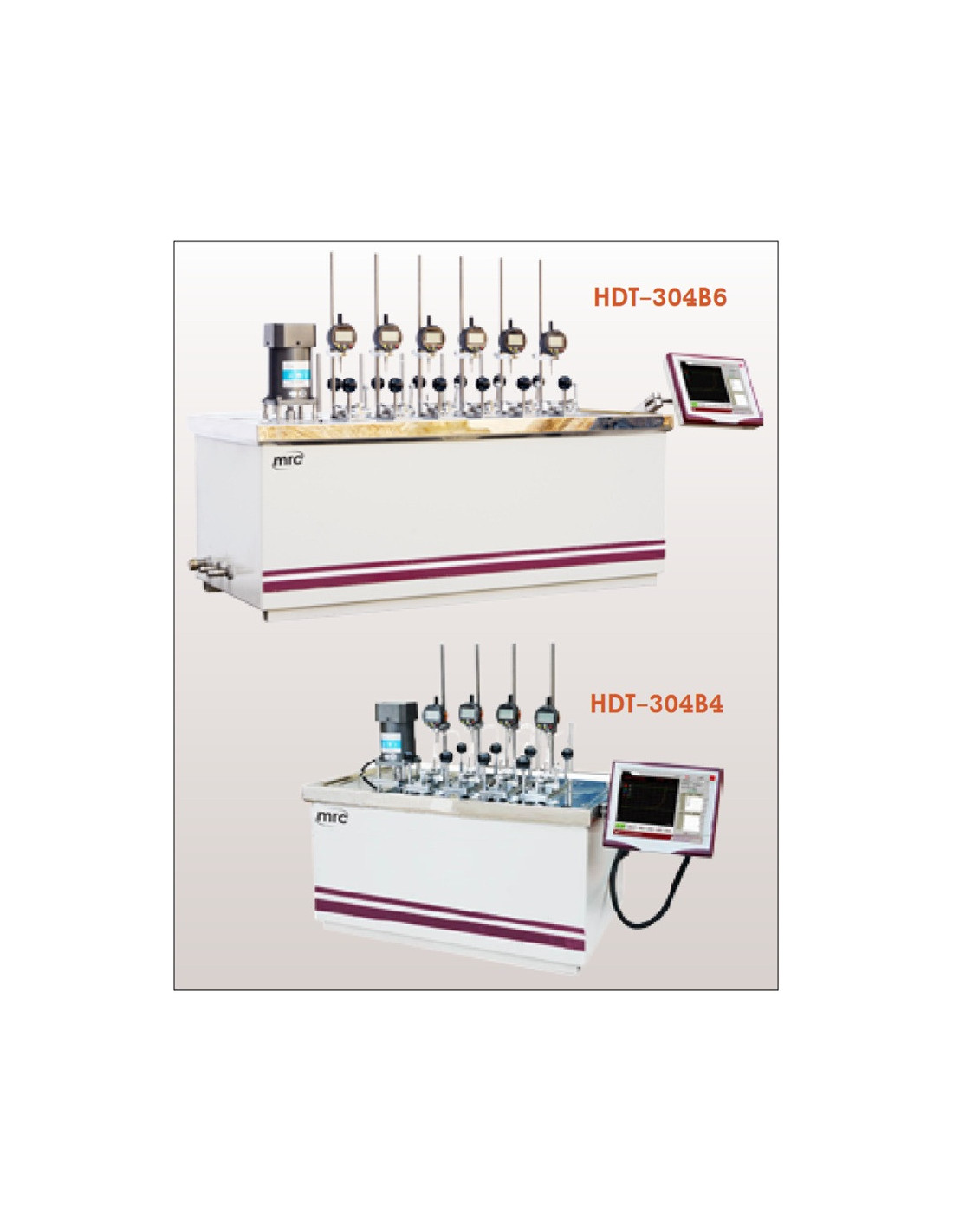

HDT-304B4/6 Vicat Tester, Heat Deflection Tester - 4 temperature measuring points - 4 Stations
Reference:
HDT-304B4
HDT-304B4 is equipped with JJTEST software to control and display temperature & deformation, describe and record test curves, output testing result, save historical data as well as print out testing results, etc.
Controlled by PC or colorful touch screen.

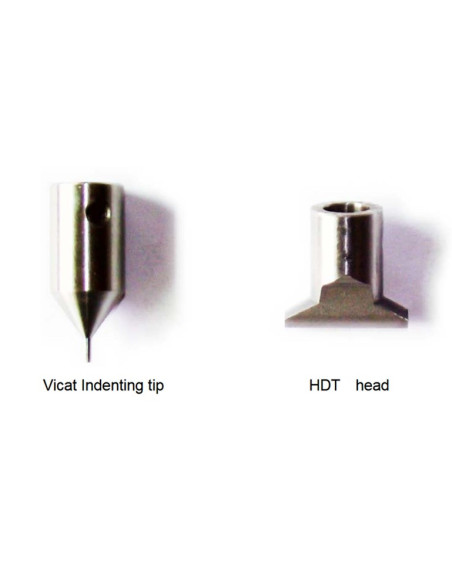

The tester is used to determine the Heat Deflection Temperature or the Vicat Softening Point.
All the specimens are charged with a constant load and immersed in a bath where temperature is increased at a standard velocity.
The attained heat resistance rate of plastic material is a widely required parameter for product characterization, for quality control as well as for evaluating their conformity to the previewed applications.
The optional software system enables to produce graphs showing the deformation of each specimen and temperature increase versus time.
.jpg)
● Operating temperature: ambient temperature to 300°C
● Heating rate: (120±10) °C/h or (50±5) °C/h.
● Max Temperature Error: ±0.5°C
● Distortion Range: -0.1 mm >- 1.1 mm
●The Max. Distortion Error: 0.01 mm
● Heating Medium: methyl silicon oil
● Power Supply: 110V/220V 60HZ/50HZ.
Apparatus is used to determine the Heat Deflection Temperature.
This tester may be used for tests conforming to the following standards: ISO 75, ISO 306, ASTM 0648, ASTM 0 1525, G81T 1633, G81T 1634.
Housing made of steel.
Stainless steel inner bath.
The designed volume ensures a very good thermal exchange.
