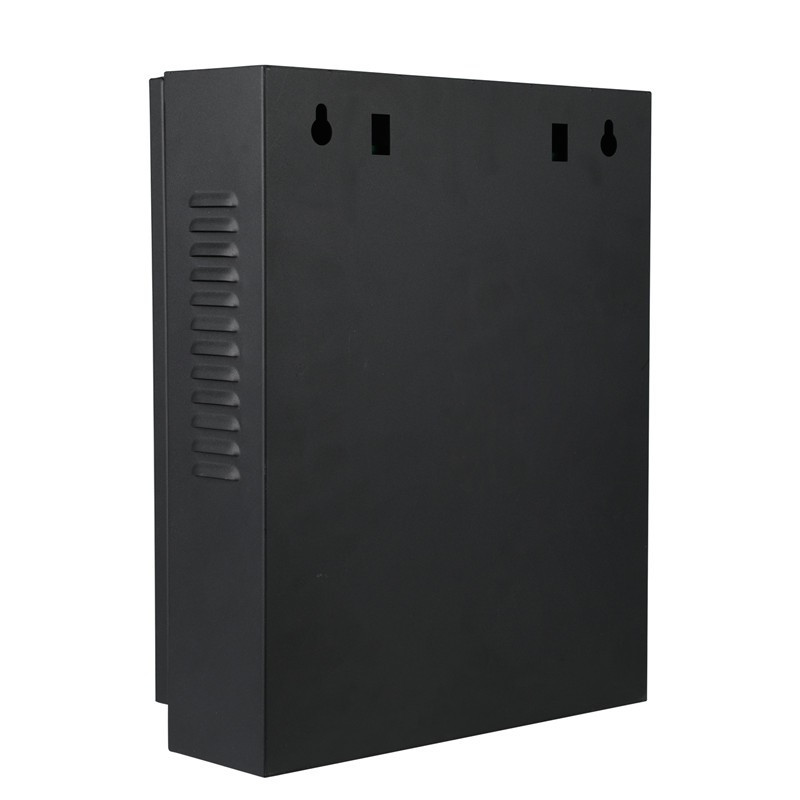

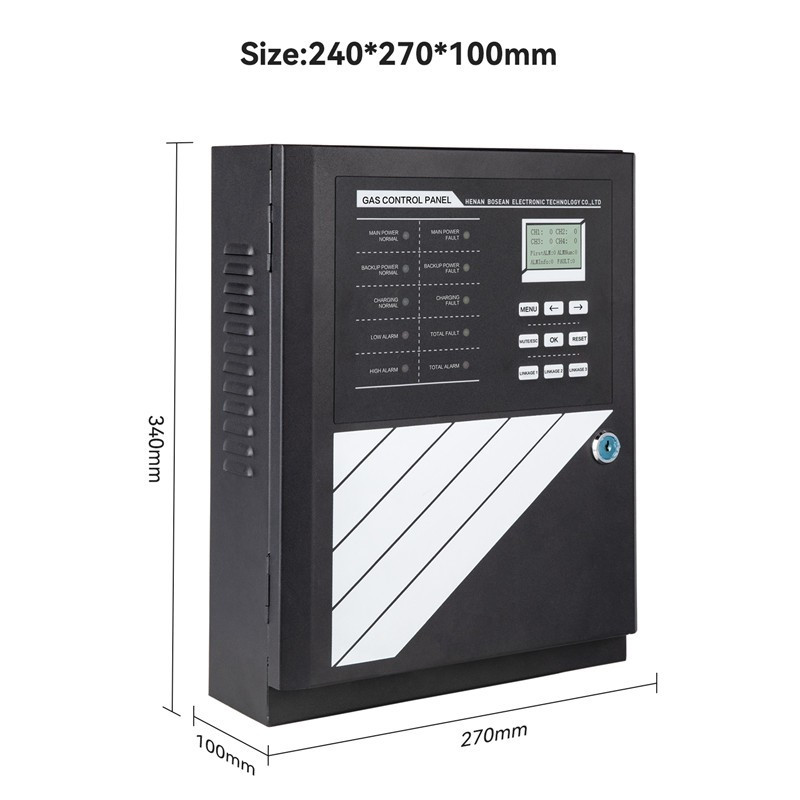

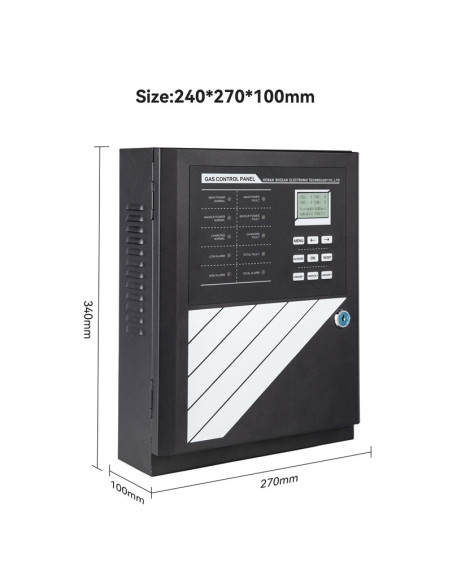

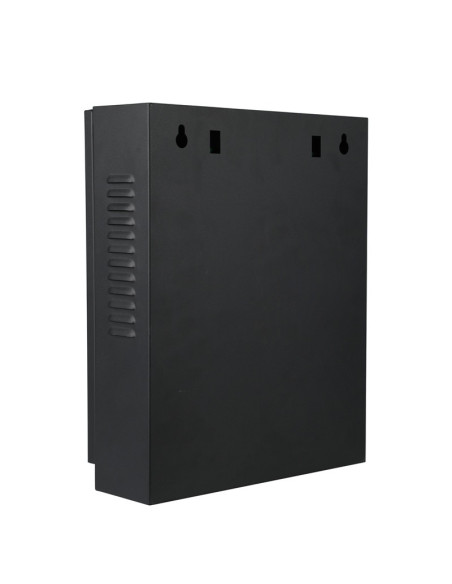

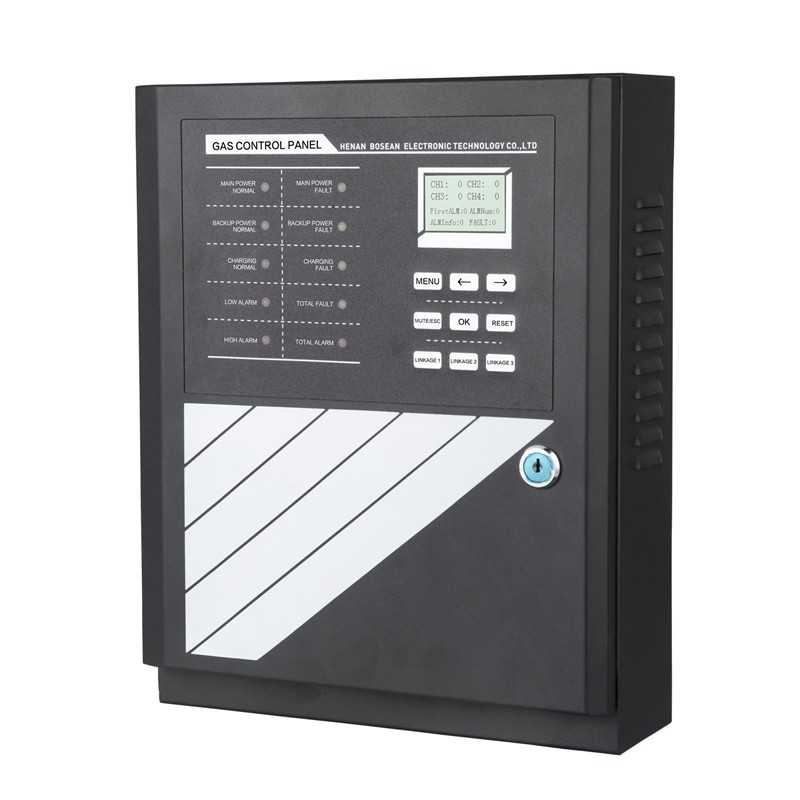

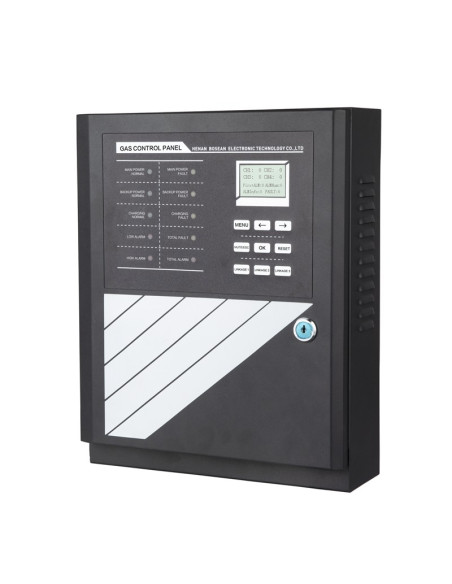

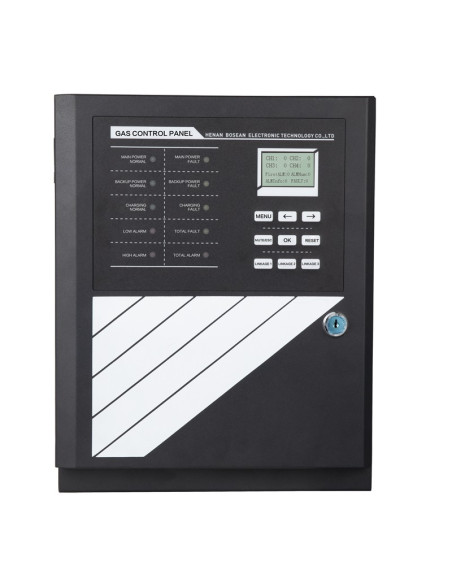

AO-S-8000 Gas Monitoring System

Reference AO-S-8000

Manufacturer: Bosean

Condition: New

Advanced S-8000 gas control system with LCD touch screen and visual and audible alarms for real-time gas concentration detection.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
VIDEO

The S-8000 Gas Monitor System is a RS485 signal controller system. It is used for detecting gas concentration in the air. The system could connect to detectors for different gases at the same time. The system adopts MCU as the control unit, with a large LCD touch screen, excellent gas sensor with high sensitivity and fast response. It will give visual and audible alarm when the gas concentration reaches or exceeds the preset alarm level to remind you to take effective actions in time and it could also start the ventilation fan and other equipment to prevent accidents and explosions.

Method	Natural diffusion
Output signal	RS485, relays
Cable signal	RVVP, 4*0.5mm²
Work environment	-40~70℃, ≤93%RH no dew
Response Time	T9o≤30s
Working voltage	DC24V士3.6V
Thread size	M20*1.5
Sensor life	More than 1 year
Product Size	15413866mm
Weight	about 820g

Display	LCD screen and LED light
Panel consumption	≤80W
Product size	342710cm (about 7kg)
Working humidity	≤95% no dew
Operation temperature	0~40℃
Detector power supply	DC24V±6V
Voltage	AC220v 50/60Hz
Contact output	Three passive contacts (consumption: 10A/250VAC or 10A/30vDC)
Input	RS485 digital signal
Digital upload protocol	Two RS485, supports MODBUS, O'reina
