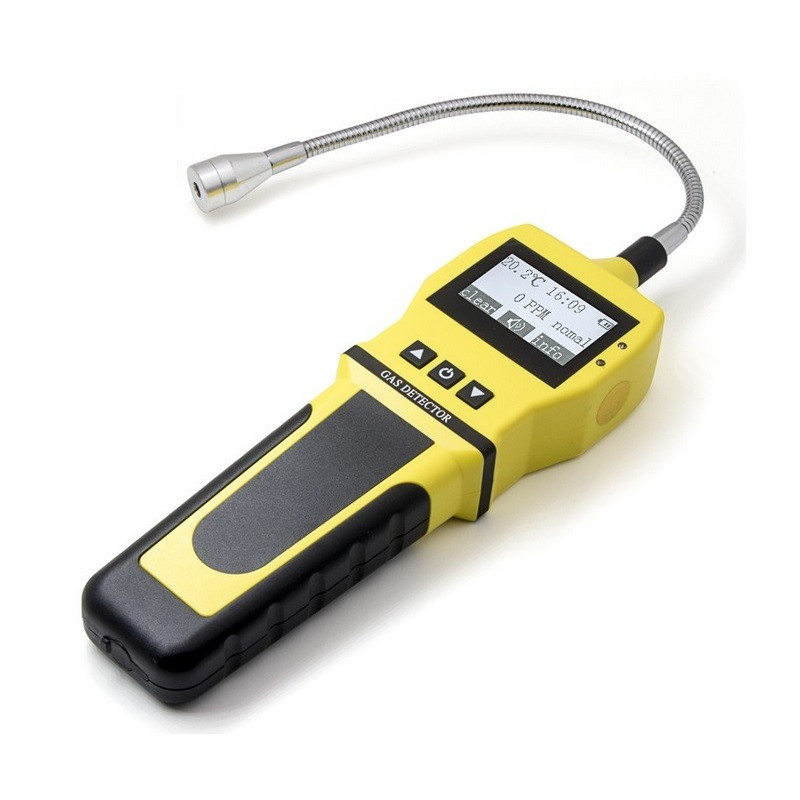

AO-90E Gas Leak Detector - Detects Fuel Gases

AO-90E portable gas detector is a new type of detector for detecting gas leakage from the gas pipelines, gas valve, and other possible places.

With its imported high quality semi-conductor sensor and embedded microcontroller the AO-90E has a very high sensitivity and an excellent man-machine operation interface and various adaptive abilities.

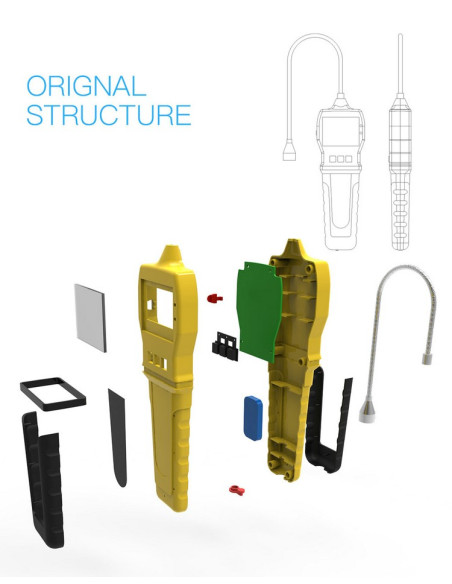

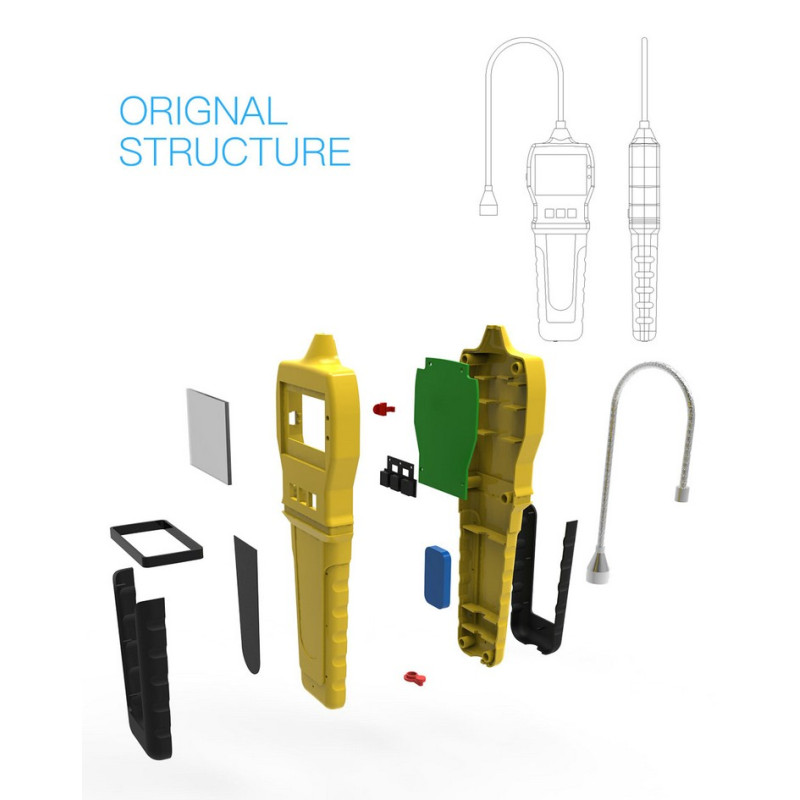

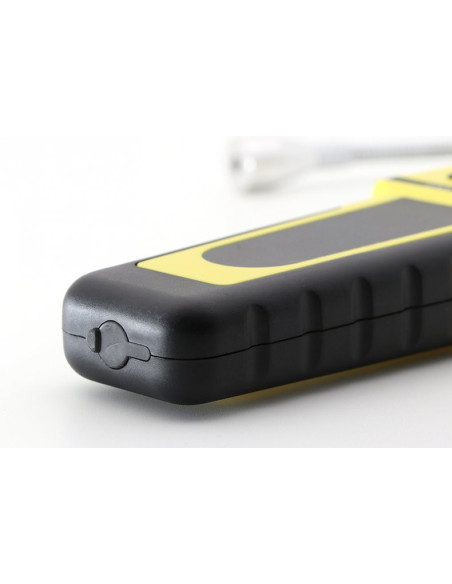

The housing of the detector is made of high strength engineed plastic and compound anti-slip rubber.
It is waterproof, dustproof, and with good grip handle.

* MCU control and low consumption

* High resolution STN LCD

* Housing made of high strength engineering plastics and compound anti-slip rubber

* Detection range (low alarm point, high alarm point) adjustable

* Low battery alert, intrinsically safe design

* Alarm types: sound (mute mode also available), light and vibration

* Gas calibration completed by the factory

* Zero adjustment and data logging

-  Target gas: Combustible gas

-  Range:  0-10,000ppm (μmol/mol)

-  Sampling method: Natural diffusion

Alarm point
-  Default: Low alarm: 500ppm; High alarm: 2000ppm.
-  Support personalized setting.

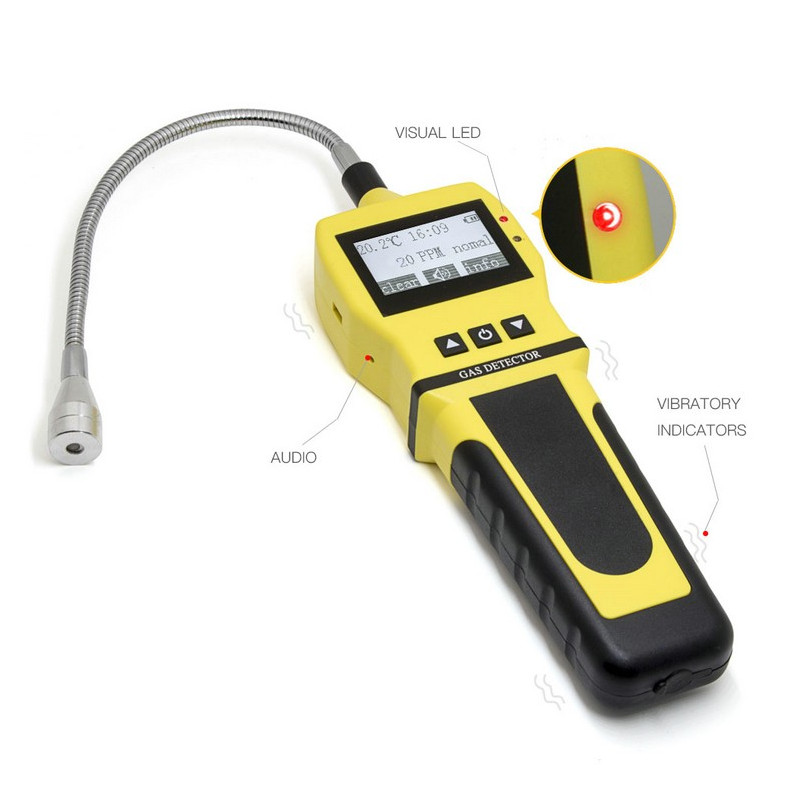

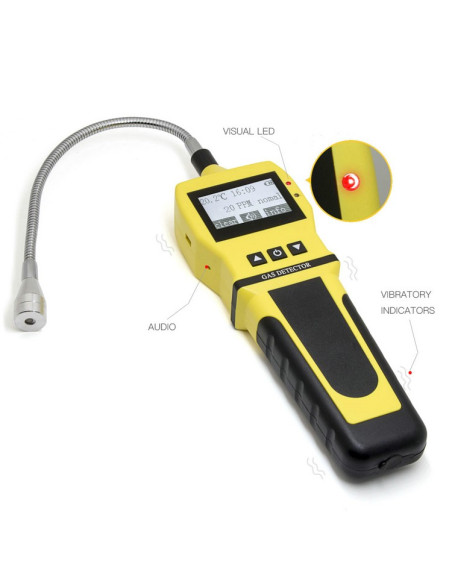

Alarm types: Audible buzzer alarm; Visual LED light alarm; Vibration alarm

-  Warm-up time: 60S

-  Response time: ＜30s

-  Protection level: IP65

-  Explosion-proof grade: Exib IIB T3 Gb

-  Sensor type: Imported FIGARO sensor

-  Sensor life: 2 years

-  Power supply: Rechargeable lithium battery, DC3.7V 1800mAH

-  Charging time: 6h-8h

-  Continuous working hours: No less than 8 hours (normal working environment)

-  Working condition: Temperature: -10～40℃ Humidity: ≤95% RH with no condensation.

-  Storage condition: Temperature: -20～50℃ Humidity: ≤85% RH, avoid caustic gases or substances.

-  Weight: Approx. 300g (excluding accessories)

-  Dimensions: Approx. 210mm(L)×66mm(W)×30mm(H)

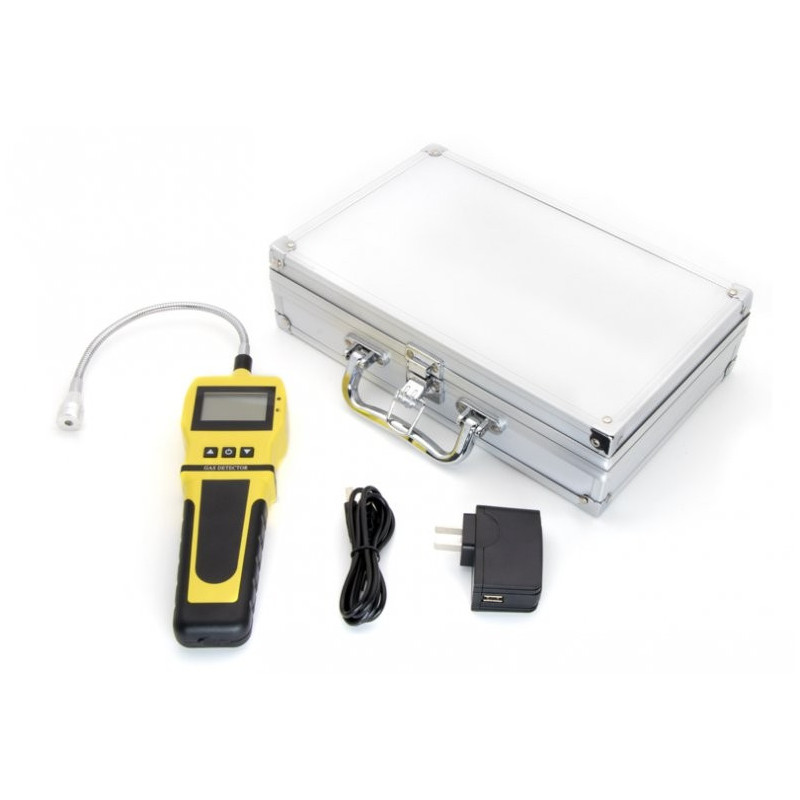

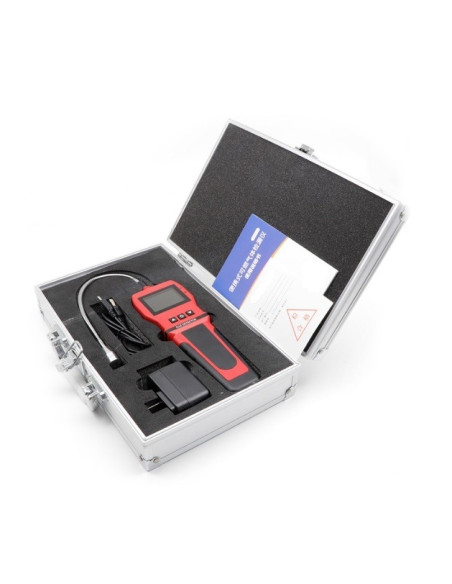

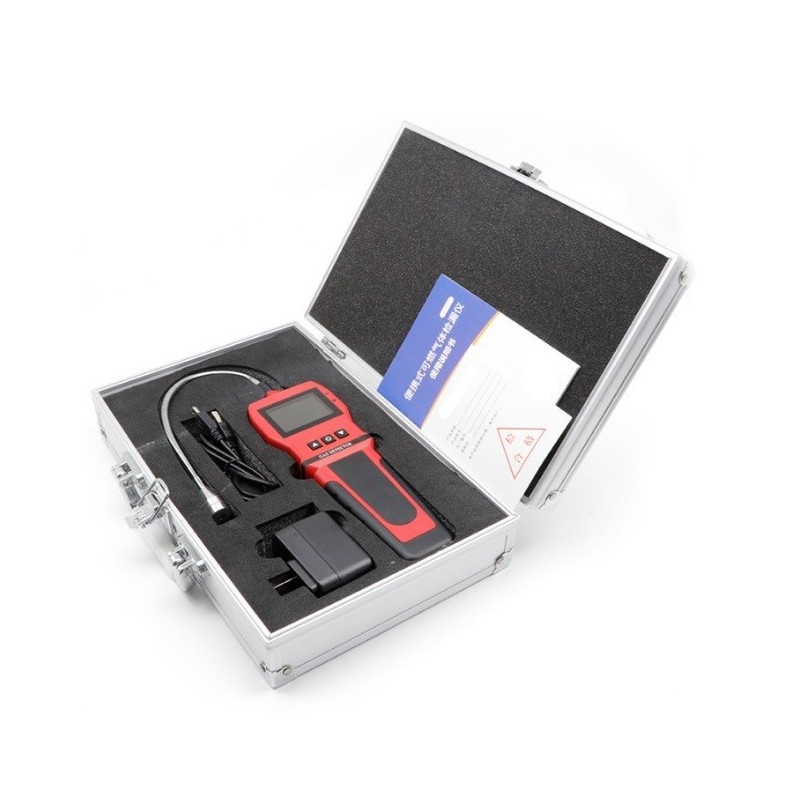

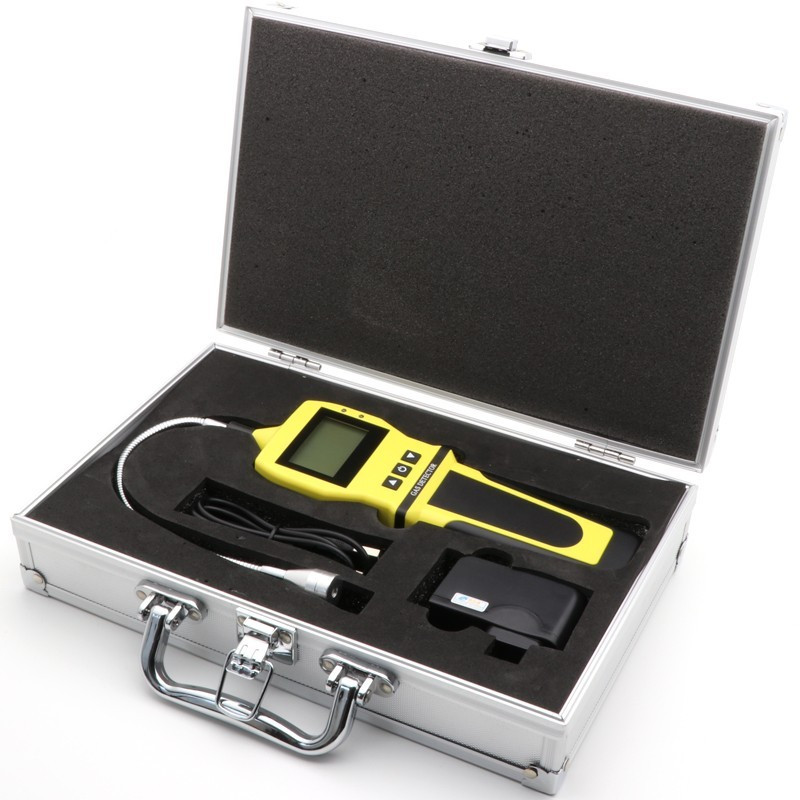

-  Packing list: Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.

The BH-90E portable gas detector the detector is widely used in oil, coal, municipal construction, chemical engineering, environmental protection, metallurgy, refining, gas transmission and distribution, biochemistry, agriculture, pharmaceutical industries.
It is a new type of gas leak detector that adopts LSI technique and meets international smart technology standards.
With imported high quality semi-conductor sensor and embedded microcontroller, it detects gas leakage with high sensitivity and strong adaptive ability.
It is waterproof, dustproof, explosion-proof, and easy to use with high reliability,
