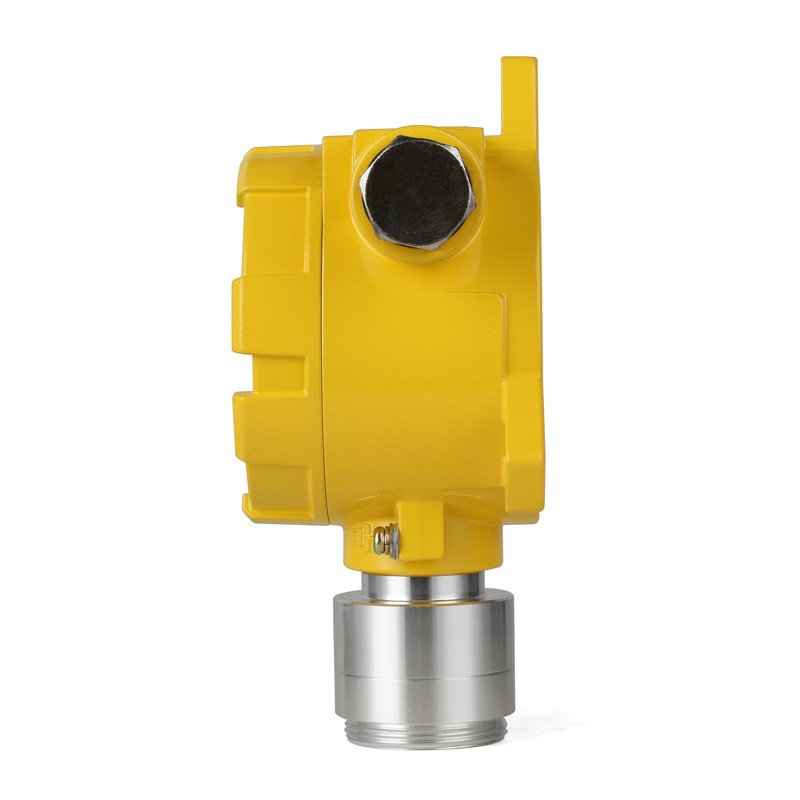

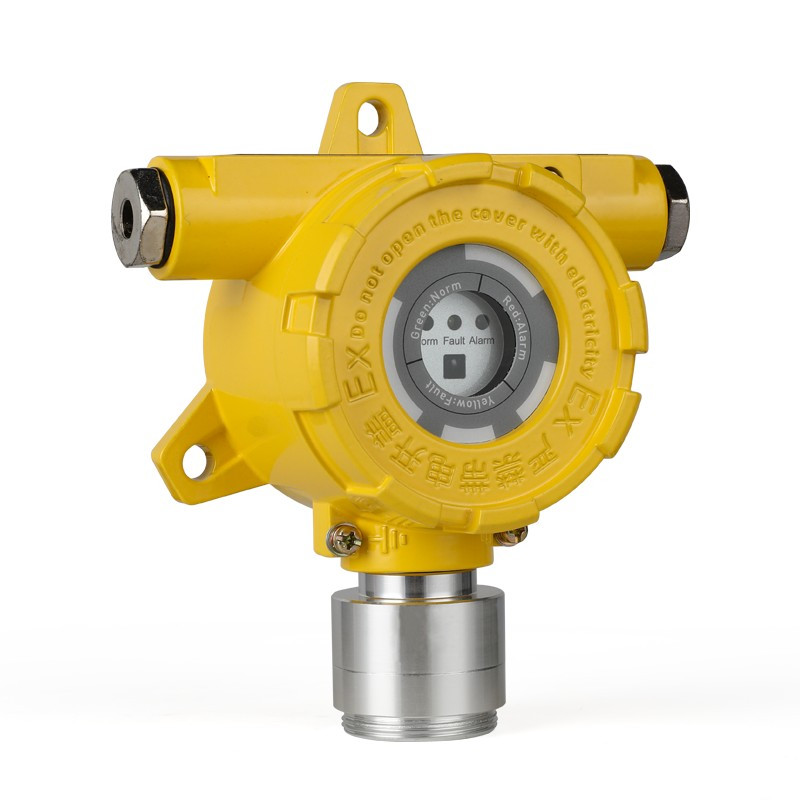

AO-GTYQ-S10 Fixed Gas Detector

Reference AO-GTYQ-S10

Manufacturer: Bosean

Condition: New

GTYQ-S10 fixed gas detector with RS485 digital signal output. Ideal for refineries, chemical plants, and LPG stations, providing precise and reliable monitoring.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
VIDEO

The GTYQ-S10 fixed gas detector with RS485 digital signal output adopts an advanced gas sensor module, which can translate the gas concentration in the air to the digital signal output. The detector can be used to detect gas in refineries, chemical plants, LPG stations, boiler rooms, painting plants, and other places where gas exists. We provide gas detector OEM/ODM service.

Features:

Advanced gas sensor
RS485 digital signal output
Applicable in refineries, chemical plants, LPG stations, and more
Compact and durable design
Easy installation and maintenance

Method	Natural diffusion
Output signal	RS485, relays
Cable section	RVVP,4*0.5mm²
Working environment	-40~70℃,≤93%RH no dew
Response Time	T9o≤30s
Working voltage	DC24V士3.6V
Thread size	M20*1.5
Sensor life	More than 1 year
Product Size	15413866mm
Weight	About 820g

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-100%LEL	1%lel	20%LEL	50%LEL
C2H4O	0-100ppm	1/0.1ppm	20ppm	50ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
C3H8	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
C2H5OH	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
NH3	0-100ppm	0.1/1ppm	20ppm	50ppm
CL2	0-20ppm	0.1ppm	5ppm	10ppm
O3	0-10ppm	0.1ppm	2ppm	5ppm
SO2	0-20ppm	0.1/1ppm	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5000ppm	1ppm/0.1%vol	1000ppm	2000ppm
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1/0.01ppm	10ppm	20ppm
HCL	0-20ppm	0.001/0.1ppm	5ppm	10ppm
CH2O	0-20ppm	1/0.1ppm	5ppm	10ppm
HF	0-100ppm	0.01/0.1ppm	2ppm	5ppm
C7H8/C8H10	0-20ppm	0.01/0.1ppm	5ppm	10ppm
