AO-K-10
New
The K10 portable gas detector ensures industrial safety with its advanced technology and high-quality sensors, offering excellent sensitivity and reliability.
This product is no longer in stock
Availability date:

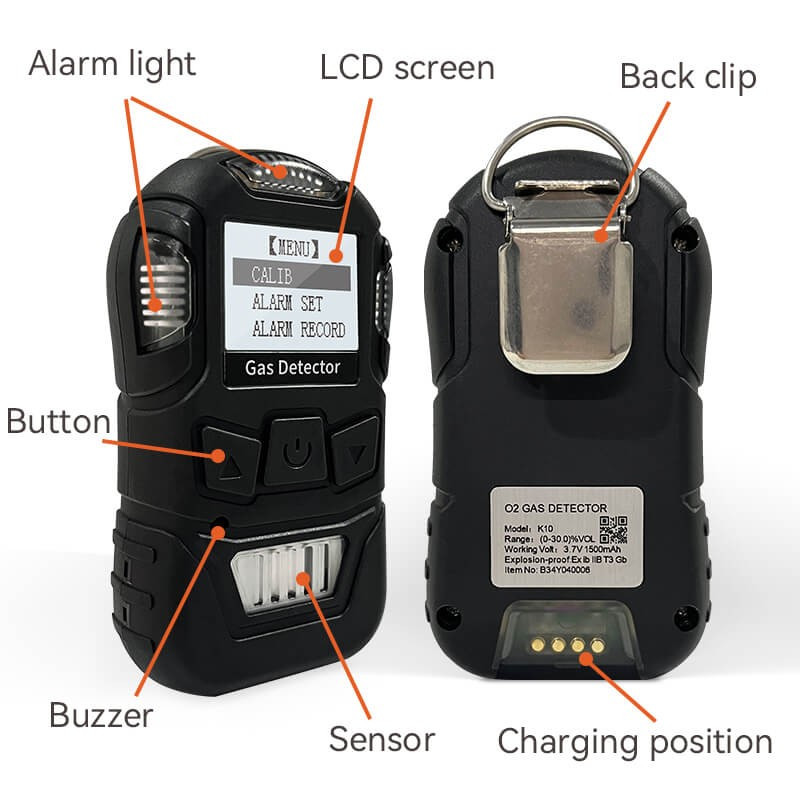

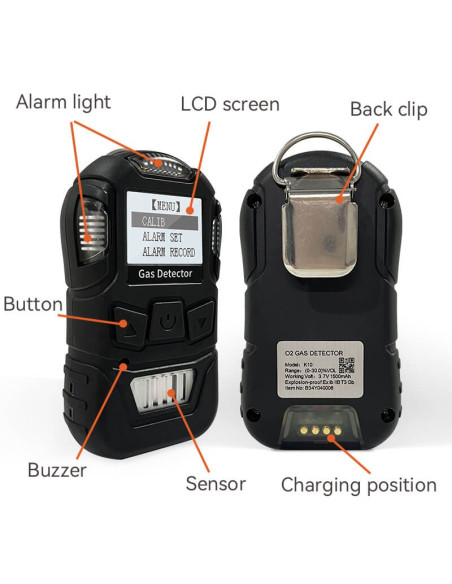

The K10 portable gas detector uses advanced large-scale integrated circuit technology, intelligent design technology, and patented digital simulation hybrid communication technology. The detector employs a natural diffusion method to detect gas, with high-quality sensors ensuring excellent sensitivity and repeatability. It is user-friendly and easy to maintain, significantly enhancing industrial safety. We provide gas detector OEM/ODM service. The shell is made of high-strength engineering plastics and composite non-slip rubber, offering high intensity, good feel, waterproof, dustproof, and explosion-proof properties. This detector is widely used in industries such as oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture, and more.
Sampling Method | Natural diffusion |
Accuracy | ≦ 5% F.S. |
Response Time | T<30s |

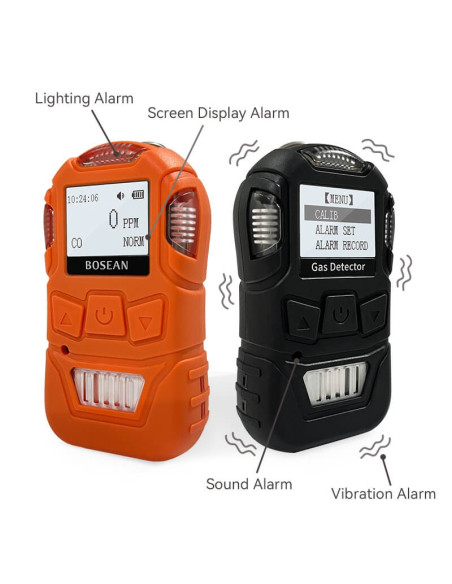

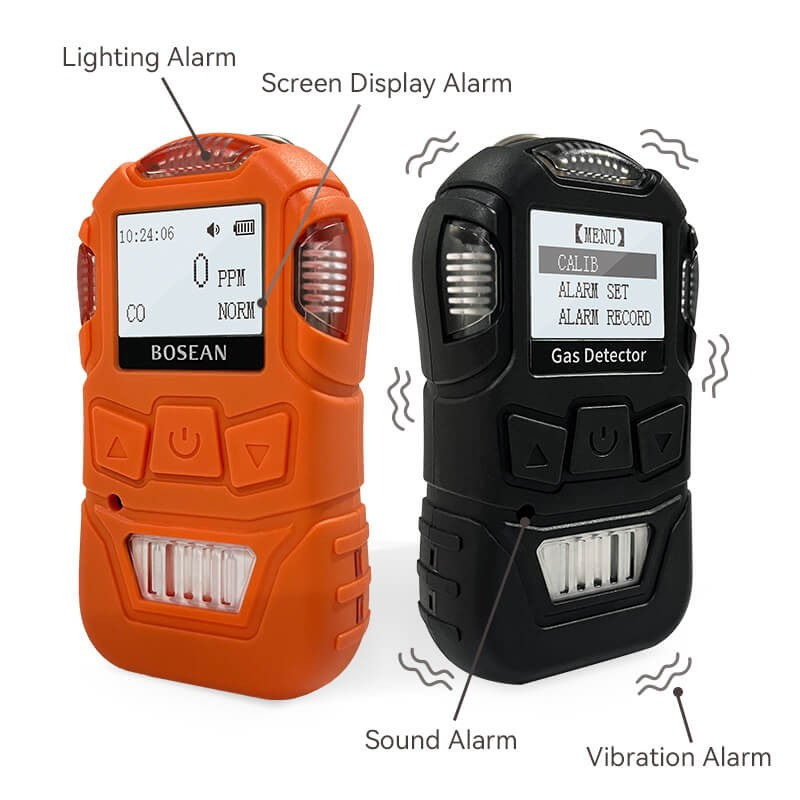

Alarm Method | Four alarm methods: sound, vibration, light, display |
Operating Environment | Operating temperature -10℃~55℃ |
Humidity | <95%RH non-condensing |
Operating Voltage | DC3.7V Li battery 1500mAh |
Working Time | ≧8h continuously |
Charging Time | 4h~6h |
Sensor Life | 2 years |
Protection Category | IP67 |
Weight | About 130g (including battery but without accessories) |
Dimensions | 109mm×60mm×30mm |
Model | Range | Resolution | L-alarm | H-alarm |
---|---|---|---|---|
CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
O2 | 0-30%vol | 0.1%vol | 19.5%vol | 23.5%vol |
H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
CH4 | 0-100%LEL | 1%lel | 20%LEL | 50%LEL |
C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
EX | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
C3H8 | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
C2H5OH | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
CO2 | 0-5000ppm | 1ppm/0.1%vol | 1000ppm | 2000ppm |
NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
