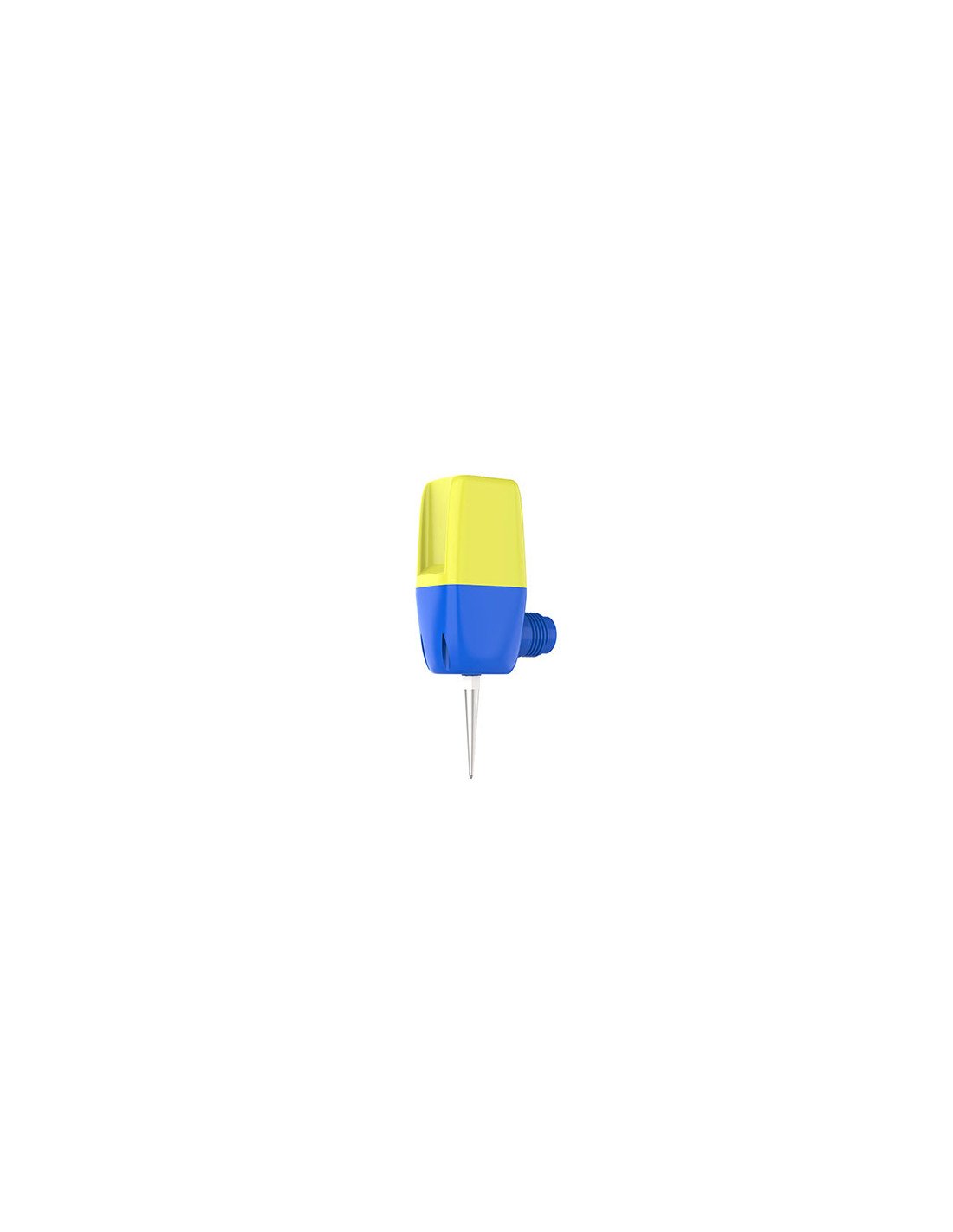

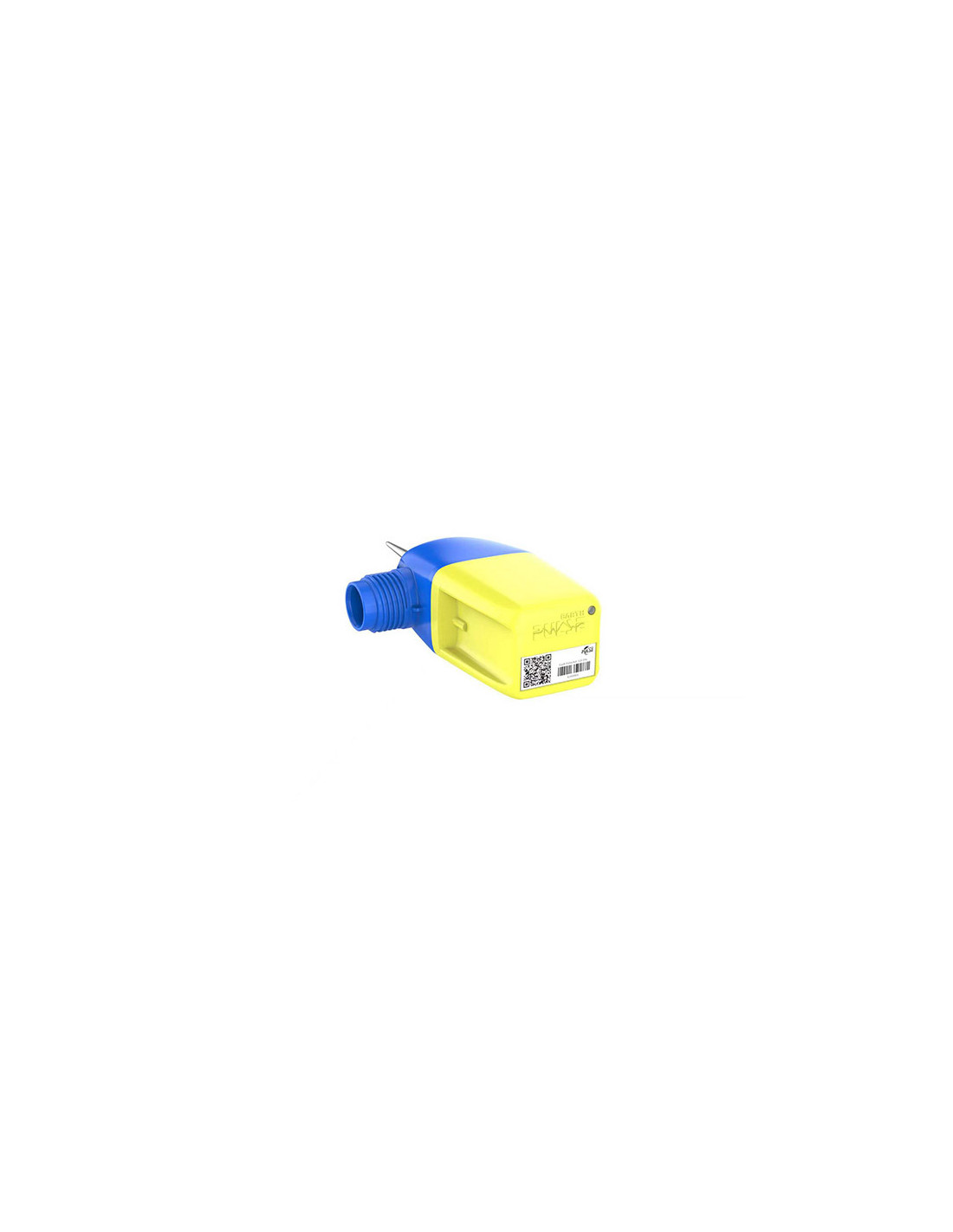

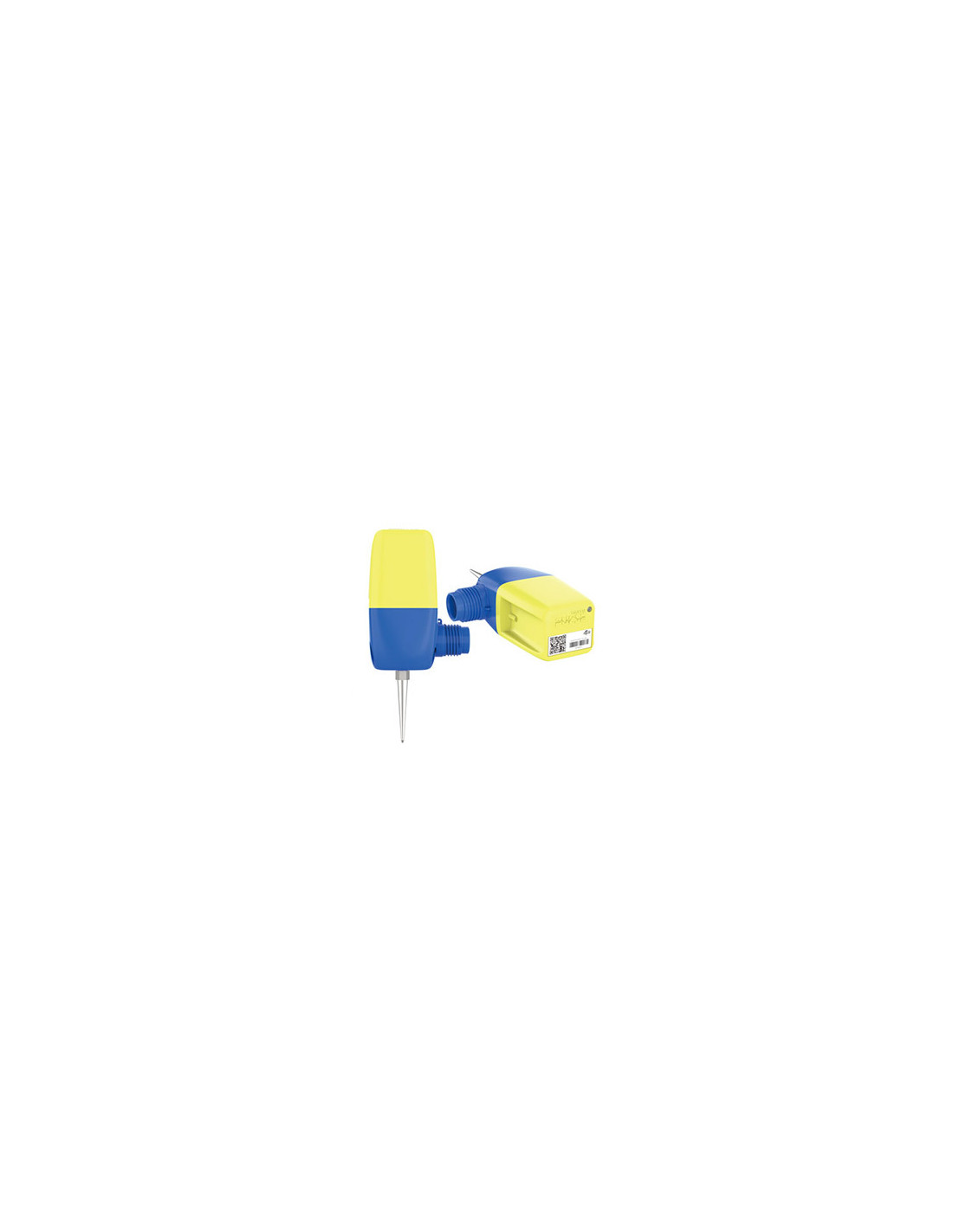

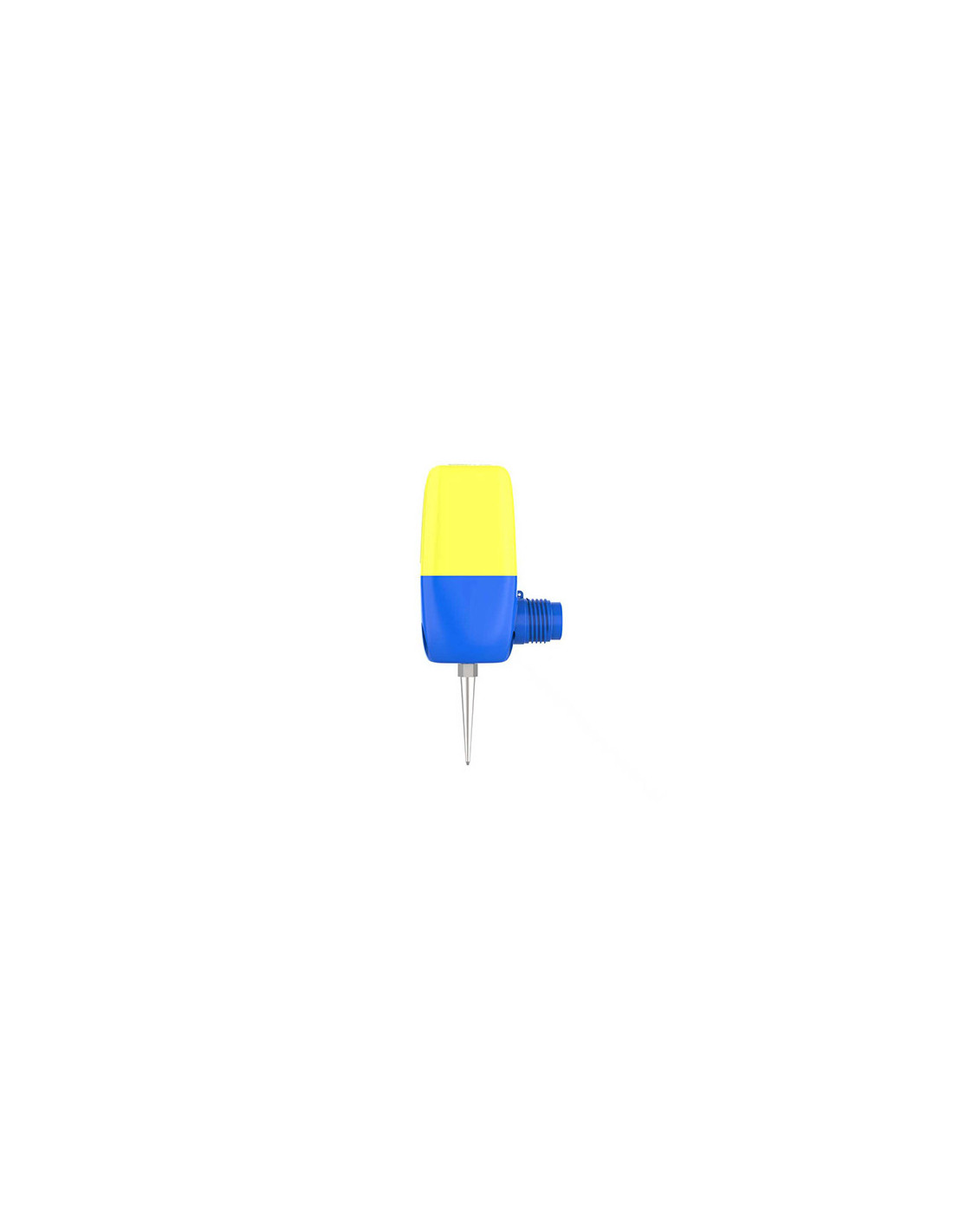

Ant-1CE-5Hz Nodal Seismometer with External Interface
Ultra portable single-component nodal seismometer with 5 Hz geophone, GNSS GPS/Beidou timing and IP68 sealing for dependable seismic surveys in demanding terrain.
Ant-1CE-5Hz: ultra portable nodal seismometer for advanced seismic exploration

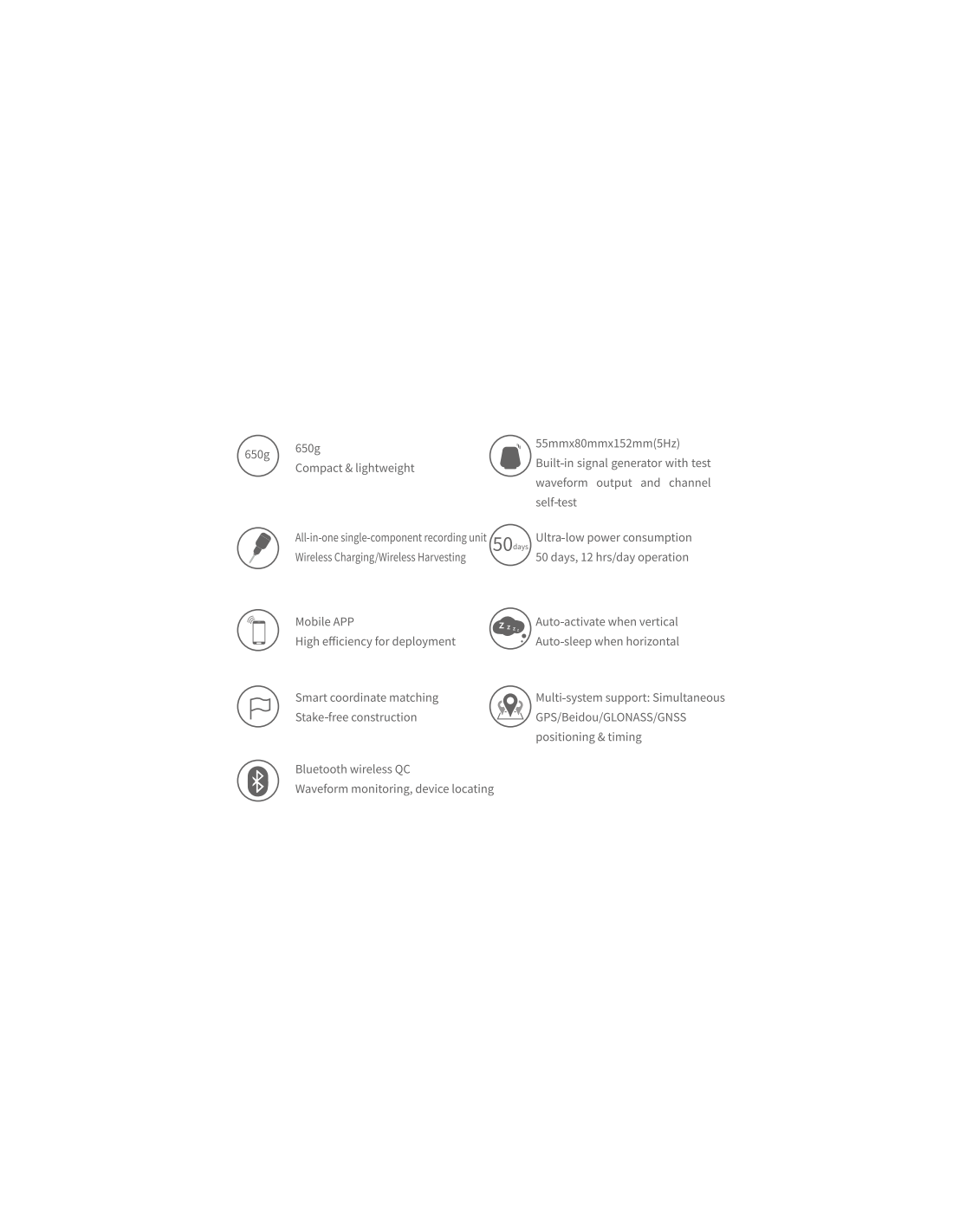

The GEOANT Ant-1CE-5Hz is a single-component nodal seismometer with external interface engineered to reduce operational complexity, improve survey efficiency and lower field project costs. It combines advanced GPS/Beidou synchronization algorithms, ultra-low-power circuitry and wireless data and charging technology for streamlined deployment and recovery.

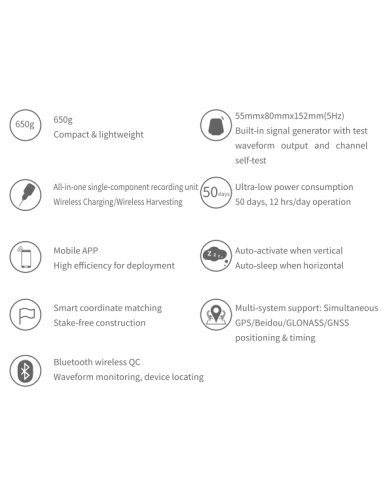

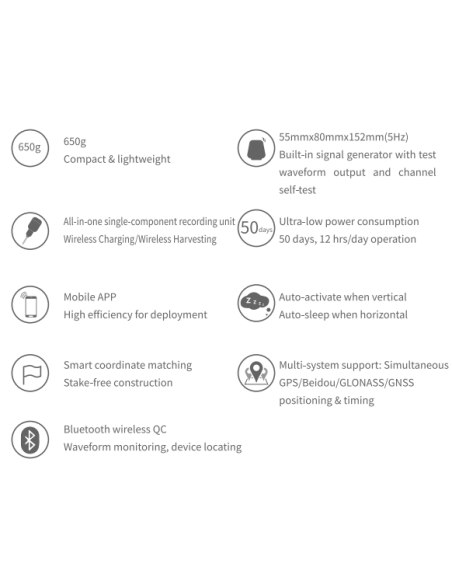

Its highly integrated design, zero external contacts and IP68 ingress protection make it well suited to complex terrain and harsh environments. The system provides long operating life, supports intelligent or automated deployment workflows and uses a state-of-the-art ADC design with exceptional dynamic range for detecting micro-vibrations with precision.

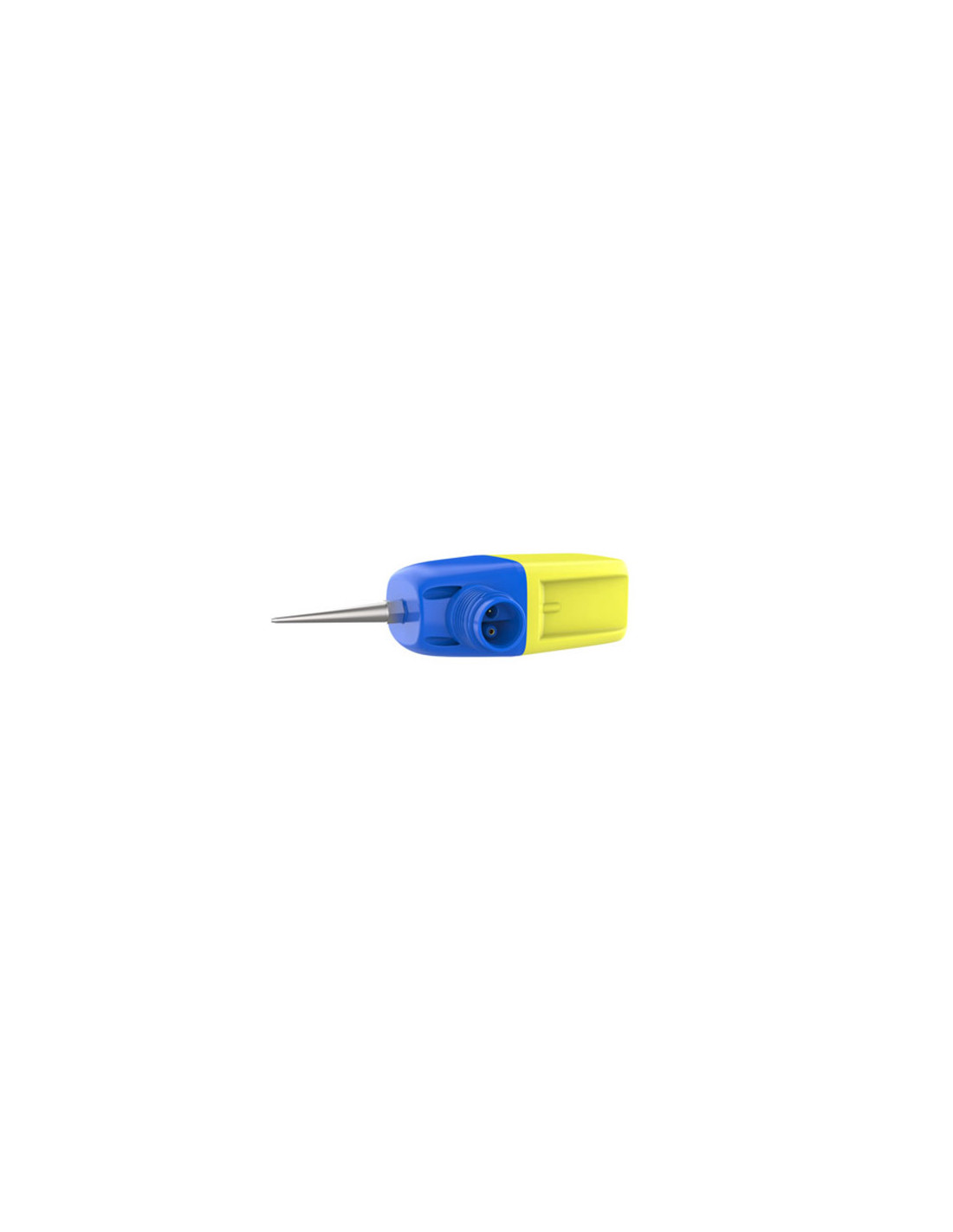

The Ant-1CE also supports external connectivity with land geophone strings, marsh phones and hydrophones, and it is suitable for UAV-assisted surveys above 300 meters AGL. Typical application areas include seismic zonation safety assessment, shallow geological surveys, urban subsurface exploration, geothermal projects, coal mine goaf detection and exploration for petroleum, natural gas, coal and nonferrous minerals.
Technical specifications
Physical parameters
| Weight | 650 g (excluding spike) |
| Dimensions | 55 x 80 x 152 mm |
| Operating temperature | -40 C to +70 C |
| Ingress protection | IP68 |
| Operating life at 25 C | 25 days at 2 ms and 24 h/day; 50 days at 2 ms and 12 h/day |
| Charging time | 3.5 hours |
System performance
| Channels | 1 channel |
| A/D converter | 32-bit Delta-Sigma ADC |
| Sampling rates | 0.25 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 10 ms and 20 ms |
| Preamplifier gain | 0 to 24 dB in 6 dB steps |
| Low cut filter | 1 Hz, DC removed or disabled |
| Anti-alias filter | 206.5 Hz at 2 ms, selectable linear phase or minimum phase |
| Max input | 2.5 V peak at 0 dB |
| Equivalent input noise | 0.5 uV at 0.25 ms; 0.2 uV at 2 ms; 0.14 uV at 4 ms |
| Instantaneous dynamic range | 118.9 dB at 0.25 ms; 126.8 dB at 2 ms; 130 dB at 4 ms |
| Total dynamic range | 145 dB |
| Timing | <1 ppm standard; +/-10 us GPS-disciplined accuracy |
| Storage | Expandable from 8 GB to 32 GB |
| Built-in GNSS | GPS/Beidou/GLONASS/GNSS positioning and timing, single or dual mode |
| Gain accuracy | <1 % |
Selectable geophone
| Natural frequency | 5 Hz +/-7.5 % |
| DC resistance | 1850 +/-5 % |
| Open-circuit sensitivity | 80 +/-5 % |
| Damping | 0.7 +/-7.5 % |
| Distortion | <=0.1 % |
| Spurious frequency | >=170 Hz |
| Effective frequency range | 0.2 to 1000 Hz |
