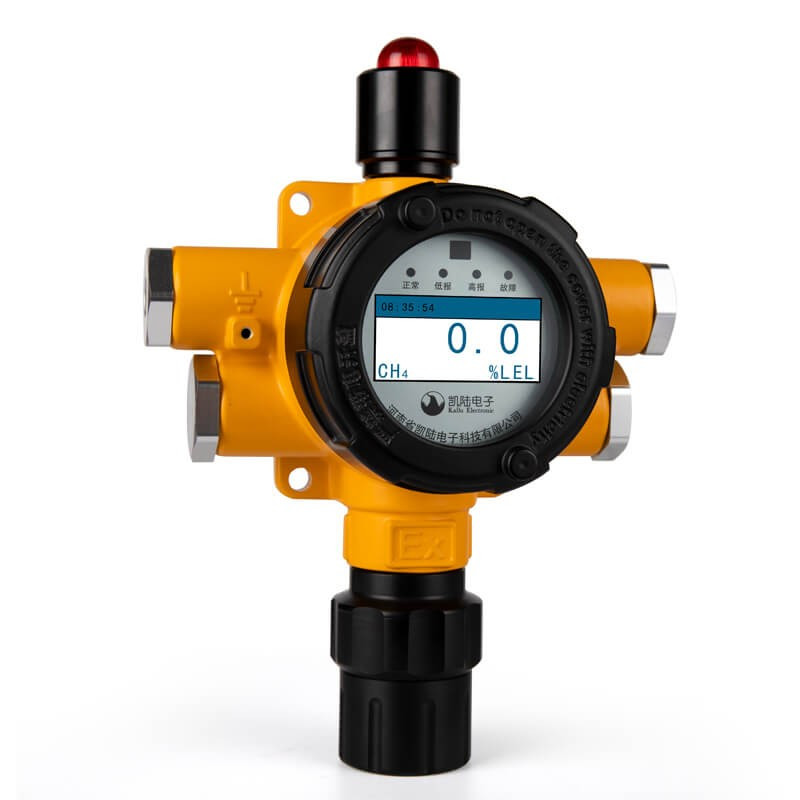

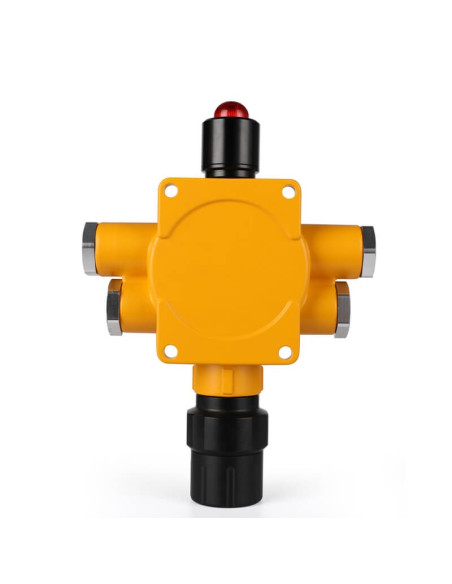

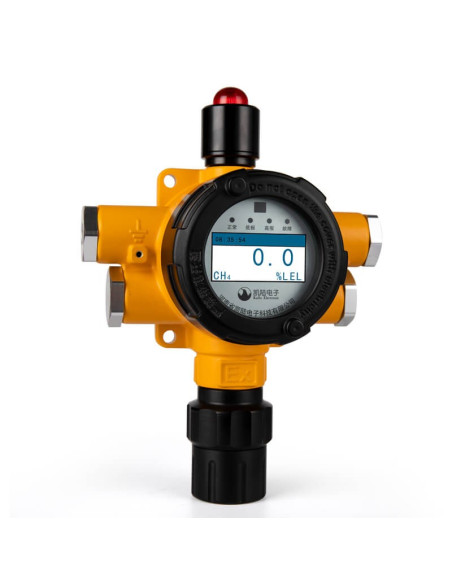

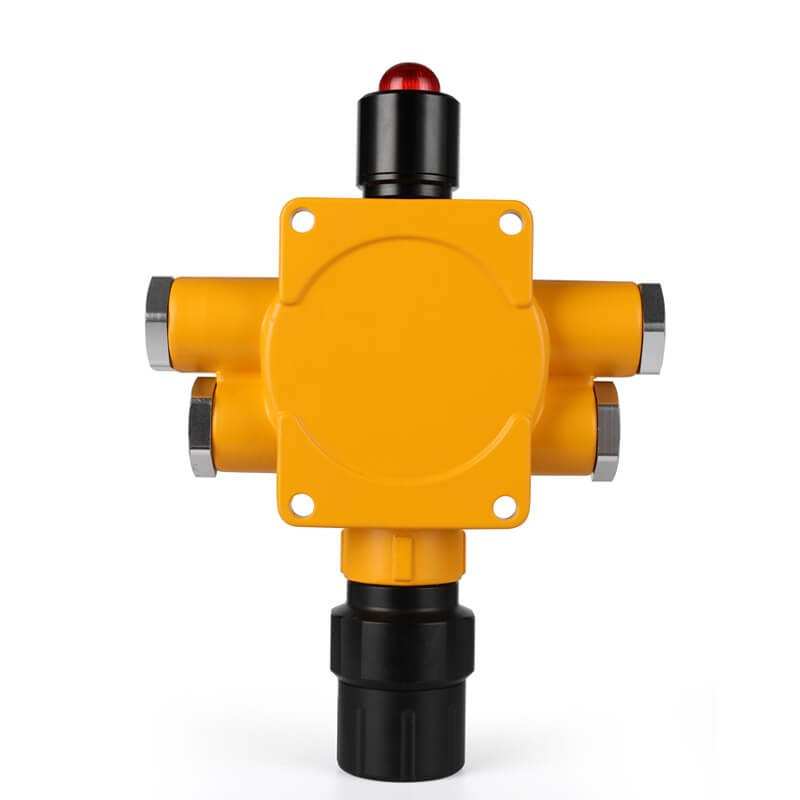

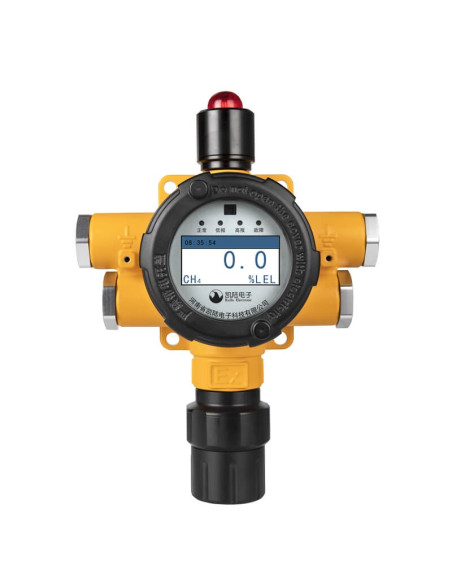

AO-GT-K90 Fixed Gas Detector IP66

Reference AO-GT-K90

Manufacturer: Bosean

Condition: New

The GT-K90 fixed gas detector supports the detection of over 300 types of gases, such as CO, EX, H2S, CO2, O2, CH4, O3, SO2, HCL, among others, with customizable ranges. Equipped with a 2.4-inch OLED display, it offers real-time monitoring and alarms with high precision and stability.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS

The GT-K90 fixed gas detector supports customization of more than 300 kinds of gases such as CO, EX, H2S, CO2, O2, CH4, O3, SO2, HCL, etc., and customization of different ranges. This gas detector is a smart product with various communication methods and real-time display. This product uses a 2.4-inch industrial-grade OLED screen with high stability, high accuracy, and high intelligence. Real-time monitoring and alarming can be carried out through simple settings.

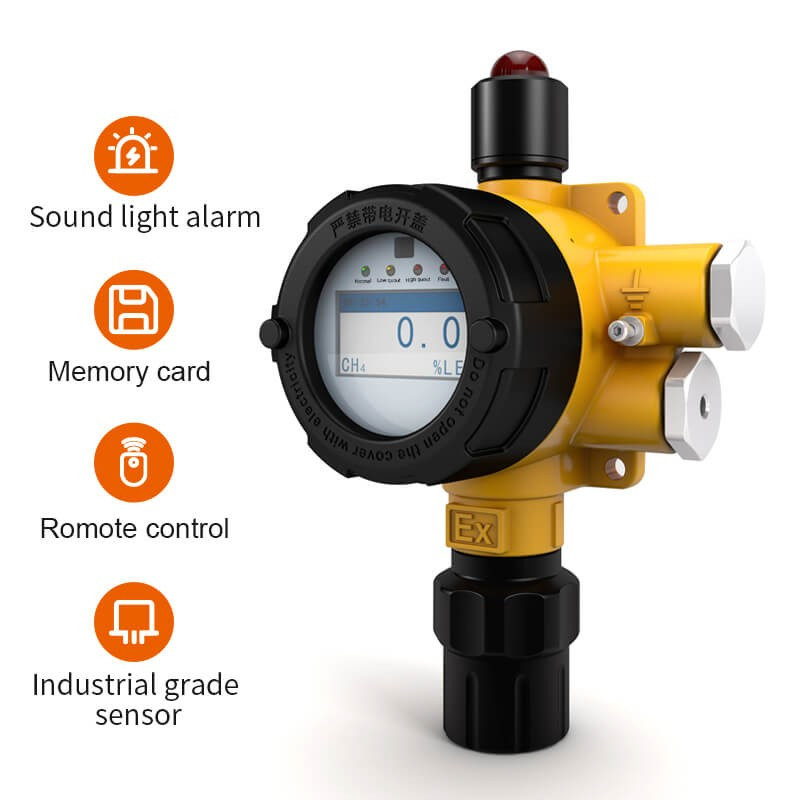

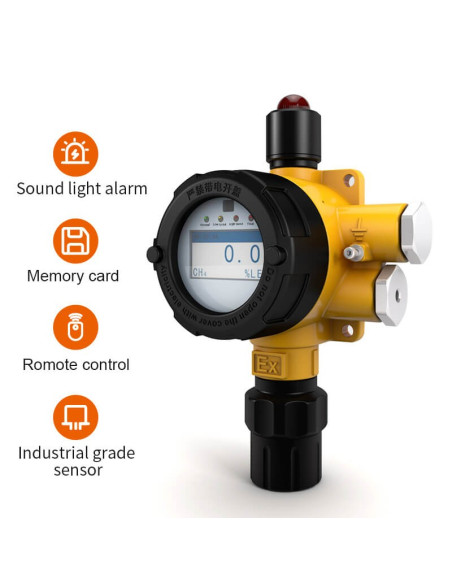

Integrated sound and light alarm indication
SD memory card plus FLASH, data storage and export are more convenient
Full-scale temperature compensation, over-range protection

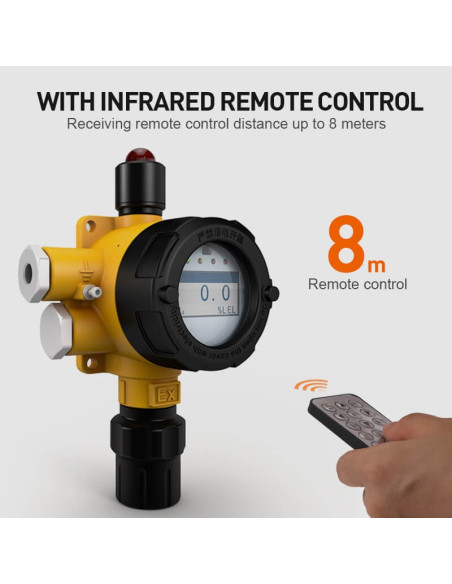

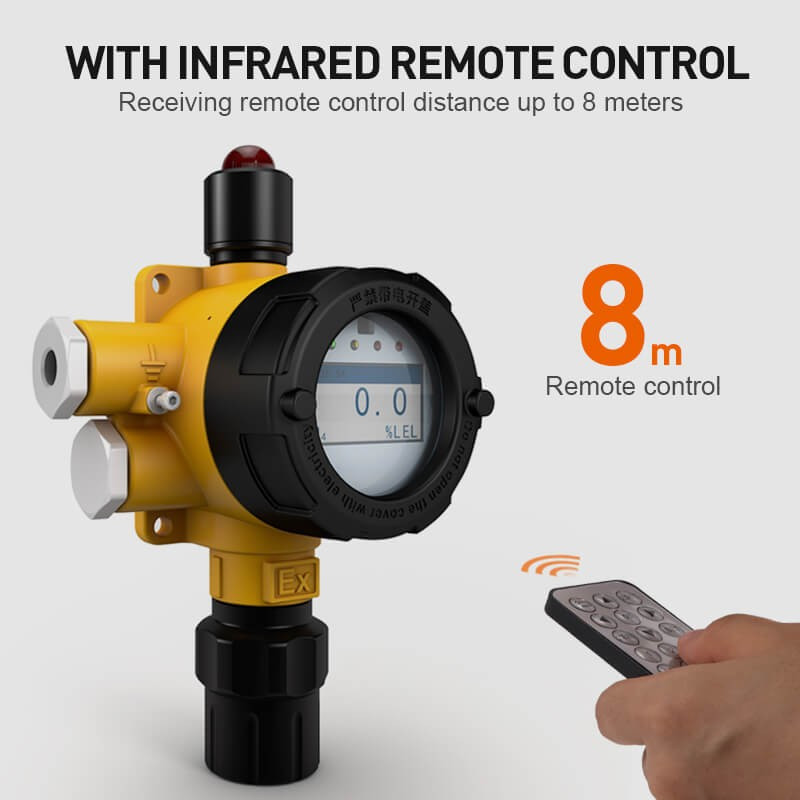

Equipped with infrared remote control, the remote control distance is up to 8 meters

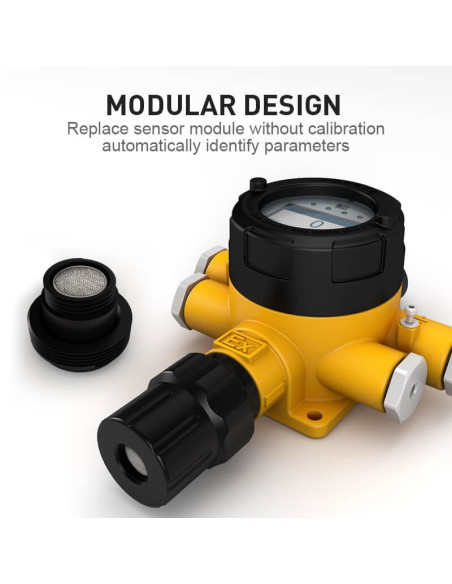

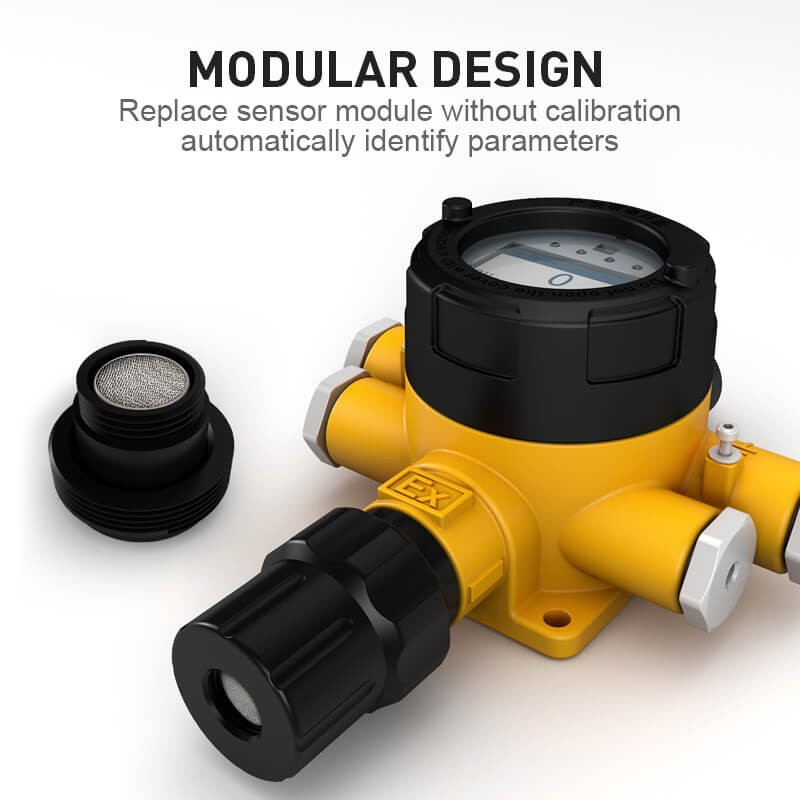

Replace the sensor, no need for calibration
Independent RTC dock
IP66 protection grade

Product Name	GT-K90 Fixed Gas Detector
Protection Class	IP66
Connection Port	M27*1.5mm
Zero Drift	≦±2% F.S.
Response Time	≦30s
Working Pressure	36~106Kpa
Working Environment	-40℃～70℃ ＜93%RH (no dew)
Resolution	0.1%LEL
Display Error	±3%LEL
Detection Principle	Catalytic combustion
Gas Sensor Life	2 years
Explosion-proof Grade	Ex d IIC T6 Gb
Cable	3x1.5mm2, 4x1.5mm2 shielded cable
Weight	2.1KG
Dimensions	261913.5cm

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-100%LEL	1%lel	20%LEL	50%LEL
C2H4O	0-100ppm	1/0.1ppm	20ppm	50ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
C3H8	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
C2H5OH	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
NH3	0-100ppm	0.1/1ppm	20ppm	50ppm
CL2	0-20ppm	0.1ppm	5ppm	10ppm
O3	0-10ppm	0.1ppm	2ppm	5ppm
SO2	0-20ppm	0.1/1ppm	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5000ppm	1ppm/0.1%vol	1000ppm	2000ppm
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1/0.01ppm	10ppm	20ppm
HCL	0-20ppm	0.001/0.1ppm	5ppm	10ppm
CH2O	0-20ppm	1/0.1ppm	5ppm	10ppm
HF	0-100ppm	0.01/0.1ppm	2ppm	5ppm
C7H8/C8H10	0-20ppm	0.01/0.1ppm	5ppm	10ppm
