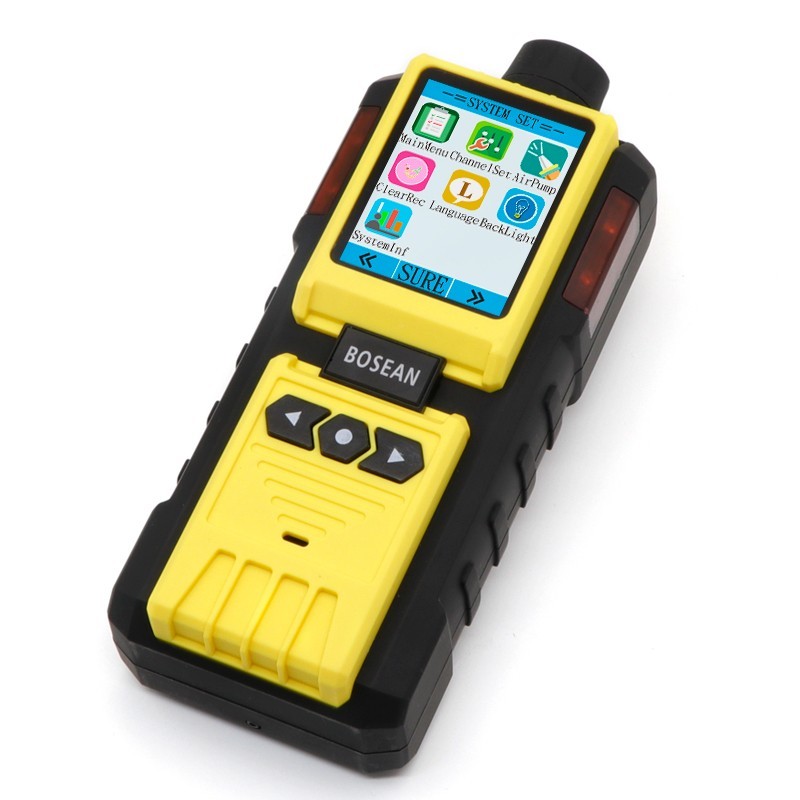

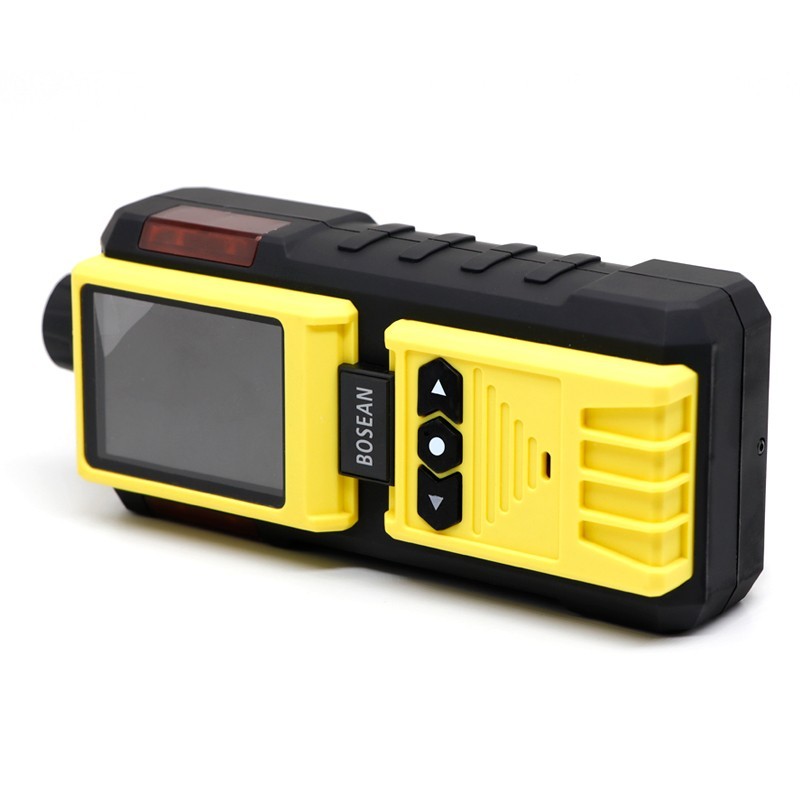

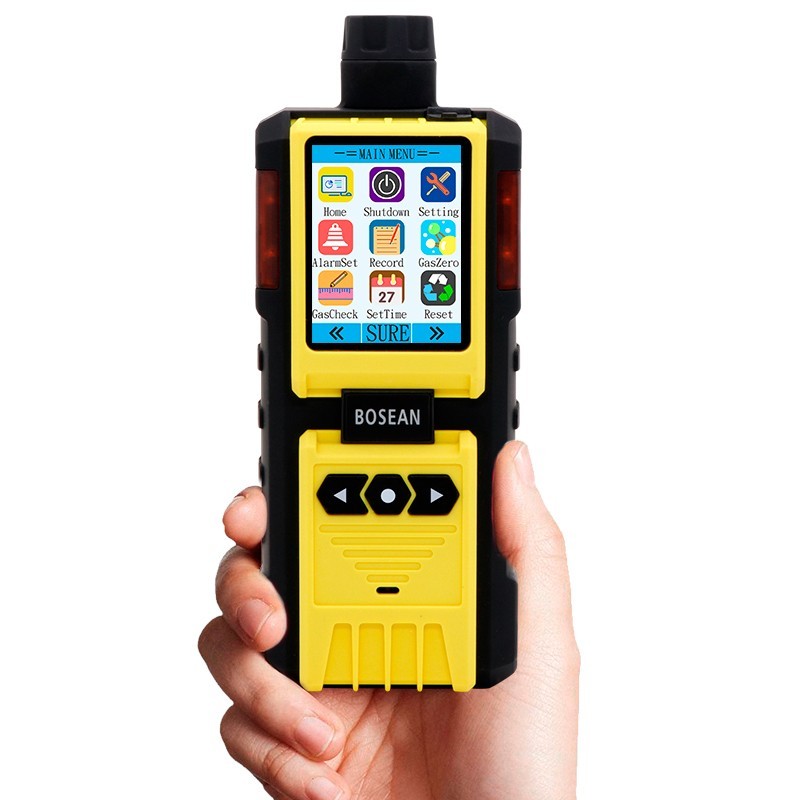

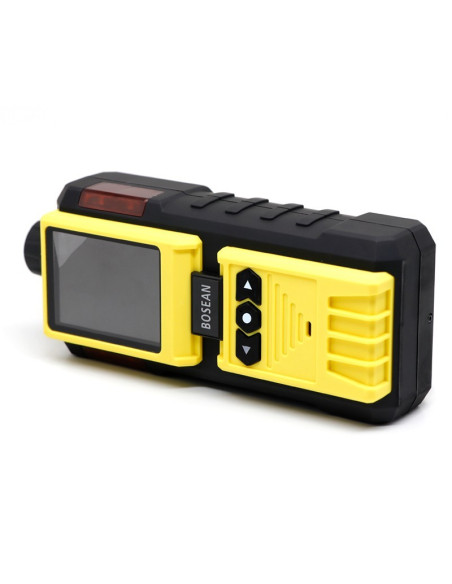

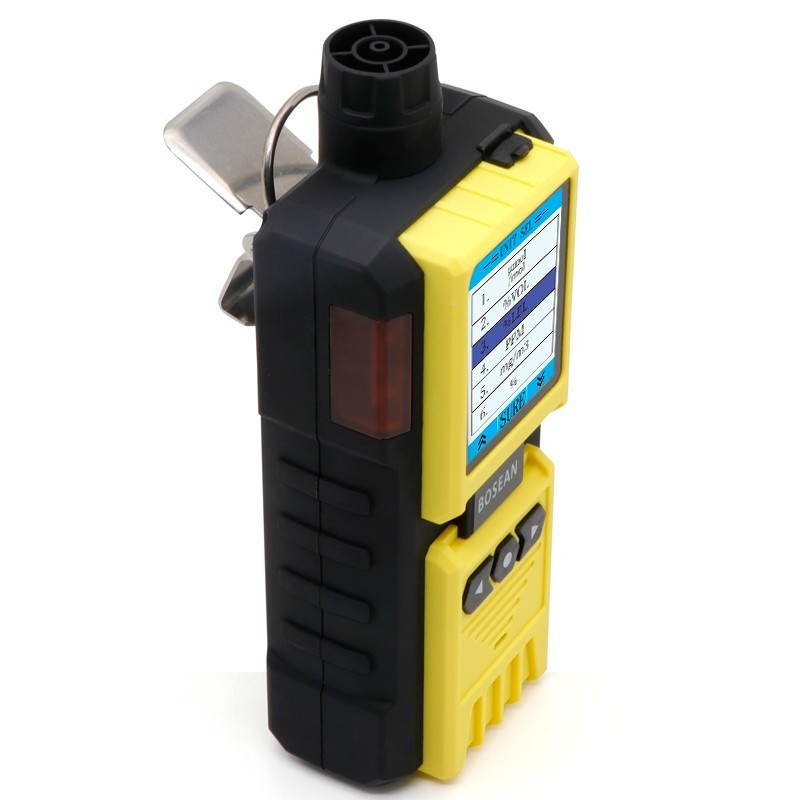

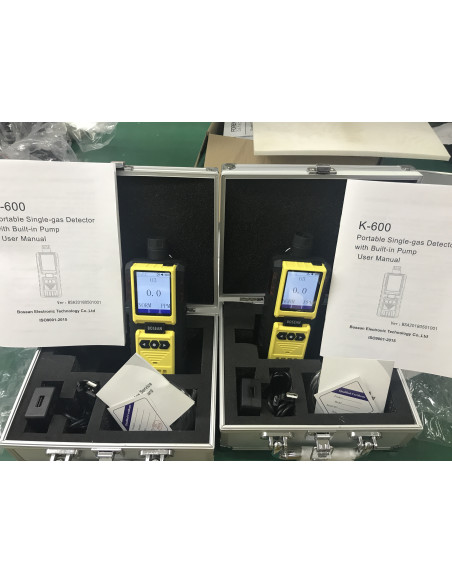

K-600 Gas Detector with Built-in Pump
Gas detector with built-in pump. Detects a single gas to choose from list.... (request Quote)
K-600 gas detector with built-in pump, which adopts an advanced integrated circit, with standard intelligent level design technology, and propietary digital analog hybrid communication technology.
The gas detector is made of high strength engineering plastics, compound non-slip rubber, with water-proof, dustproof and explosion-proof.
The price may vary, depending on the gas to be detected.

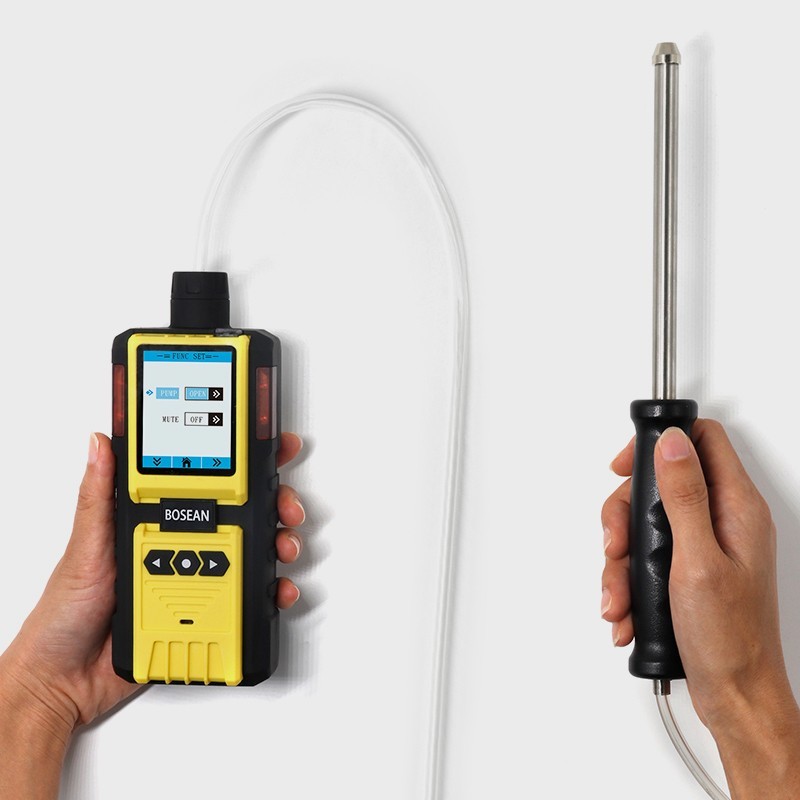

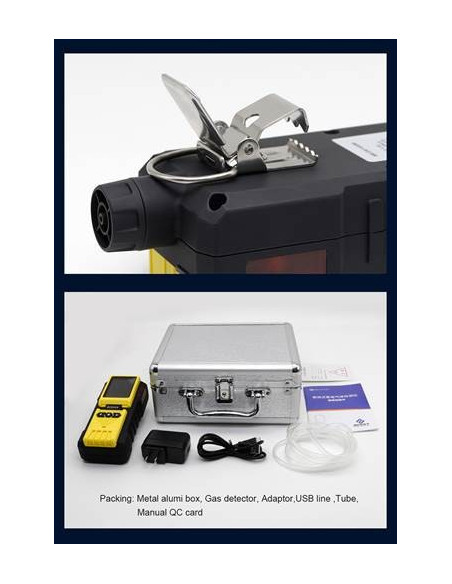

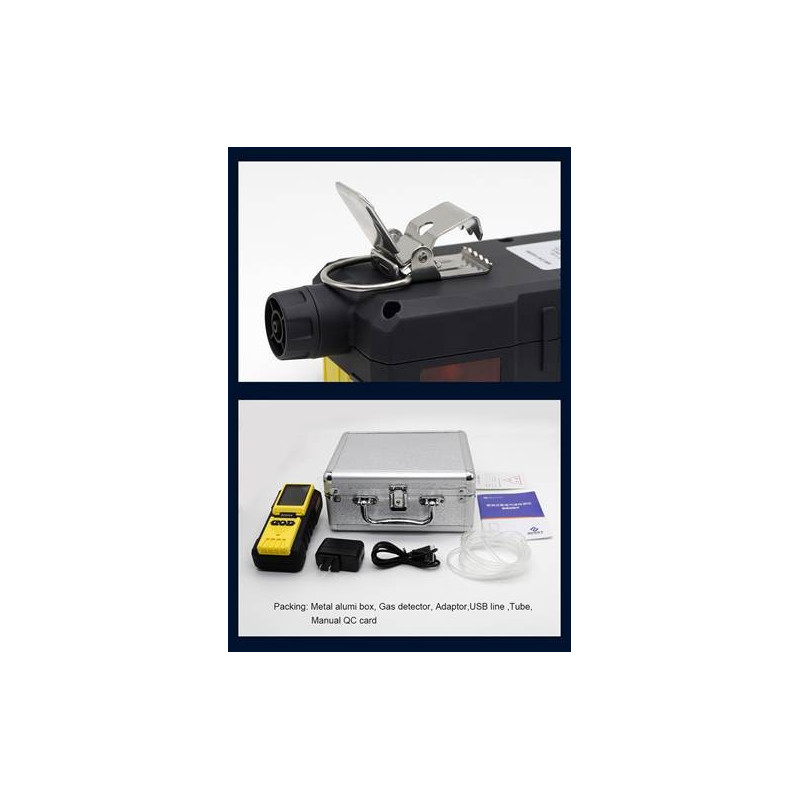

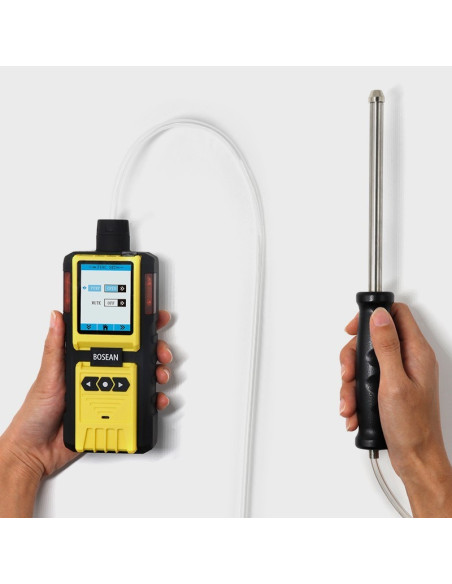

Option: Hand probe
List of Detected Gases (select one for this unit):
Combustible gas (CH4,C3H8,H2) and toxic gas, oxygen, Other rare toxic gas like ammonia, NO, PH3, NH3, NO2, HCN, SO2 etc also available,Can be specified by the Customer in advance to quote.
* Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.
* 32-bit built-in MCU, high reliability and self-adaptation ability.
* Full functions, easy operation.

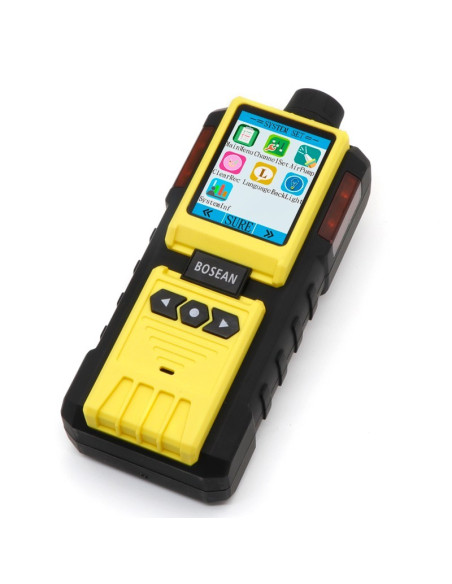

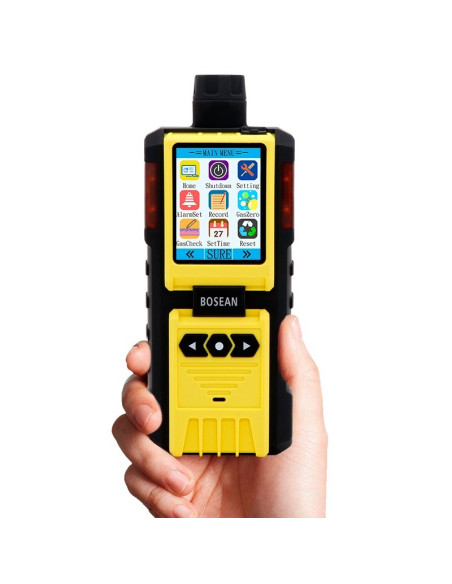

* CSTN colorful LCD, more intuitionistic, abundant and clear indication.
* Compact design, easy carrying.
* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
*1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.

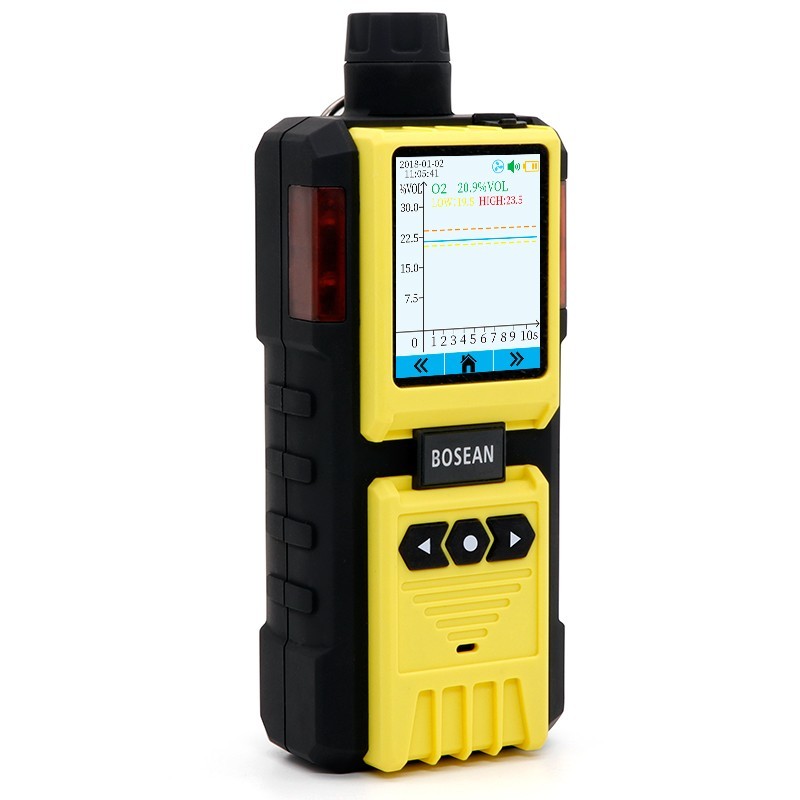

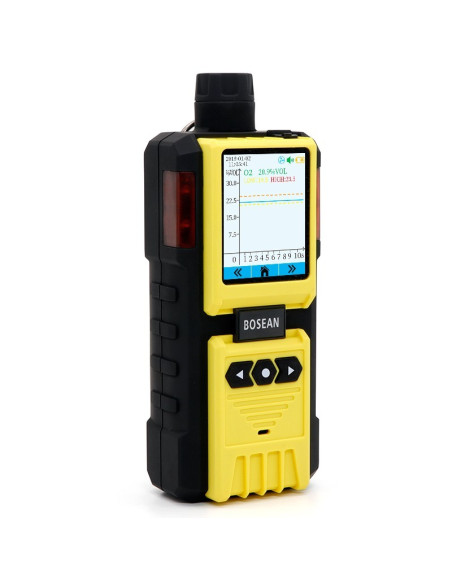

*Gas curve display.
|
Gas sampling method |
Gas pump sampling |
| Accuracy | ≦±5% F.S. |
| Response Time | ≦30s |
| Indication | LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state. |
| Working environment | -20℃～50℃, ＜95%RH (no dew) |
| Power Source | DC3.7V Li-on battery, 3200mAh |
| Charging time | 6h~8h |
| Working time | ≧8h continuously (without alarming) |
| Gas Sensor Life | 2 years |
| Explosion-proof grade | Ex ib IIBT4 Gb |
| Protection Grade | IP65 |
| Weight | Appr. 400g (with battery) |
| Dimensions | 130mm×67mm×30mm(L × W × H) |
| Modelo | Rango | L-alarma | H-alarma |
| CO | 0-1000ppm | 35ppm | 200ppm |
| O2 | 0-30%vol | 19.5%vol | 23.5%vol |
| H2 | 0-100%LEL | 20%LEL | 50%LEL |
| H2S | 0-100ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-20ppm | 10ppm | 15ppm |
| C2H4 | 0-100%LEL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 25ppm | 50ppm |
| CL2 | 0-20ppm | 5ppm | 10ppm |
| O3 | 0-20ppm | 5ppm | 10ppm |
| SO2 | 0-100ppm | 2ppm | 5ppm |
| PH3 | 0-20ppm | 0.3ppm | 5ppm |
| CO2 | 0-50000ppm | 1000ppm | 2000ppm |
| NO | 0-250ppm | 20ppm | 50ppm |
| NO2 | 0-20ppm | 5ppm | 10ppm |
| HCN | 0-500ppm | 10ppm | 20ppm |
| HCL | 0-50ppm | 10ppm | 20ppm |
| CH2O | 0-10ppm | 2ppm | 5ppm |
| VOC | 0-100ppm | 20ppm | 50ppm |
| C6H6 | 0-100ppm | 20ppm | 50ppm |
- Type of Instrument
- Gas detector
- The instrument measures:
- A gas to choose from
