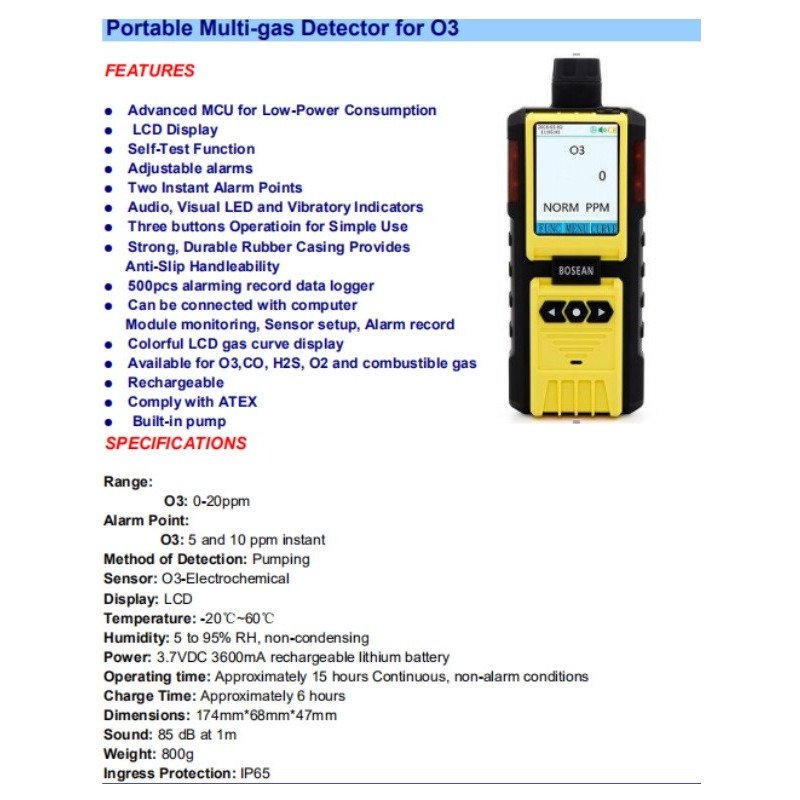

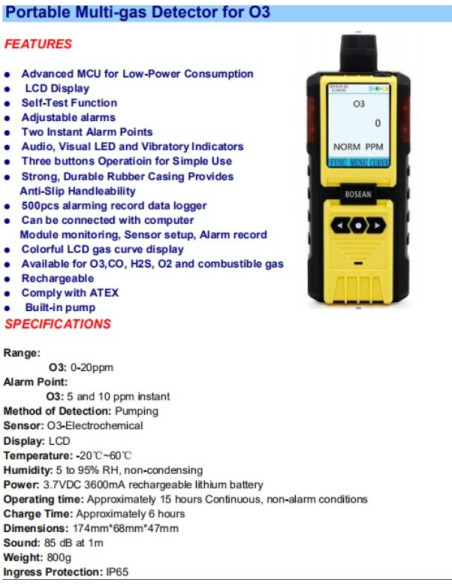

AO-K-600-O3 Single Gas Detector (0 - 20ppm)

Reference: AO-K-600-O3 - Manufacturer: Bosean

- Electrochemical Sensor.
- O3 alarm: 5 and 10 ppm

* Built-in 32-bit MCU, high reliability and self-adaptive capacity.

Other Gases Detected (See Specifications and Consult Prices):
Combustible gas (CH4, C3H8, H2) and toxic gas, oxygen, other rare toxic gases such as ammonia, NO, PH3, NH3, NO2, HCN, SO2, etc. also available, can be specified by the customer in advance..



The K-600 portable gas detector with built-in pump is a new smart gas detector, adopting advanced integrated circuit, with standard smart level design technology and proprietary digital analog hybrid communication technology.

The detector is of excellent sensitivity and repeatability, making it very easy to use and maintain. Therefore, it largely meets the safety requirements of industrial sites with high reliability.

The detector is made of high-strength engineering plastics, non-slip compound rubber, which is high strength and good hand feeling. Furthermore, the detector is waterproof, dustproof and explosion proof.

It is widely used in petrochemical, environment, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

* Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.
* 32-bit built-in MCU, high reliability and self-adaptation ability.
* Full functions, easy operation.

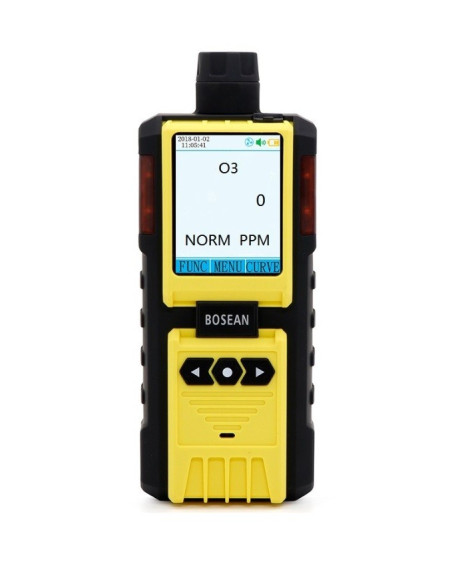

* CSTN colorful LCD, more intuitionistic, abundant and clear indication.
* Compact design, easy carrying.
* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
*1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.
*Gas curve display.

Gas sampling method
 Gas pump sampling
Accuracy ≦±5% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.
Working environment  -20℃～50℃, ＜95%RH (no dew)
Power Source  DC3.7V Li-on battery, 3200mAh
Charging time 6h~8h
Working time ≧8h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade Ex ib IIBT4 Gb
Protection Grade IP65
Weight Appr. 400g (with battery)

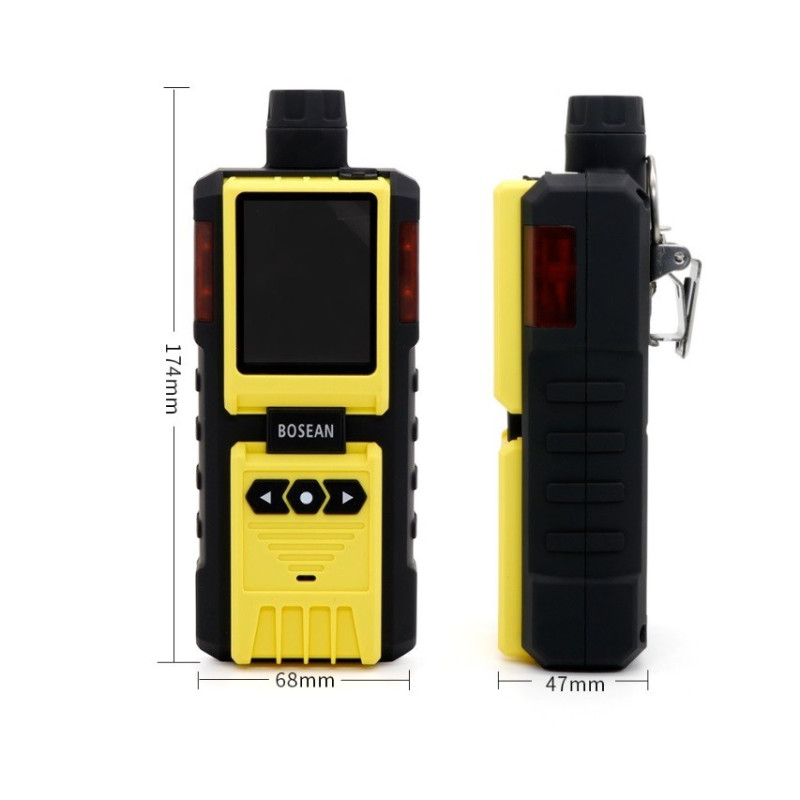

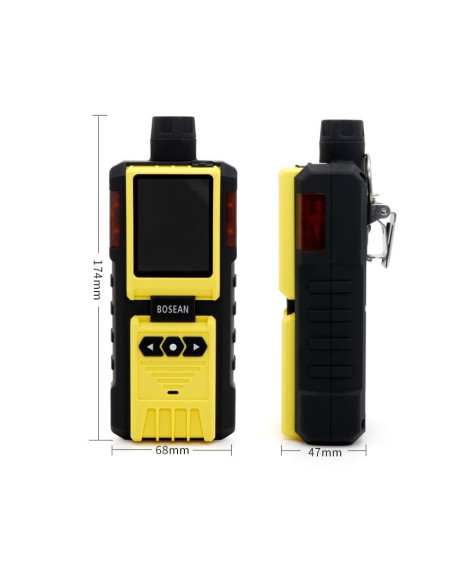

Dimensions 130mm×67mm×30mm(L × W × H)



Other Gases Detected:
gas  Range Detection Accuracy 90% Response Time Minimun Readout Alarm Set Point Low/High
PH3 0-2000ppm ±5%(F.S) ≦25s 0.01ppm 0.3/5ppm
O2 0-30%vol ±5%(F.S) ≦15s 0.10% 19.5%/23.0%
EX 0-100%LEL ±5%(F.S) ≦5s 1%LEL 25.0%/50.0%LEL
CO 0-1000ppm ±5%(F.S) ≦25s 1ppm 50ppm/100ppm
CO2 0-5000ppm ±5%(F.S) ≦25s 1ppm 1000ppm/2000ppm
H2S 0-100ppm ±5%(F.S) ≦30s 1ppm 10ppm/20ppm
NO2 0-20ppm ±5%(F.S) ≦25s 0.1ppm 3ppm/10ppm
NO 0-250ppm ±5%(F.S) ≦60s 1ppm 25ppm/50ppm
SO2 0-100ppm ±5%(F.S) ≦30s 0.1ppm 2ppm/10pppm
CL2 0-20ppm ±5%(F.S) ≦30s 0.1ppm 1ppm/10ppm
NH3 0-100ppm ±5%(F.S) ≦50s 1ppm 25ppm/50ppm
H2 0-1000ppm ±5%(F.S) ≦60s 1ppm 50ppm/10ppm
HCN 0-50ppm ±5%(F.S) ≦200s 0.1ppm 10ppm/20ppm
HCL 0-20ppm ±5%(F.S) ≦60s 0.1ppm 5ppm/10ppm
CH4 0-100%LEL ±5%(F.S) ≦5s 1%LEL 25.0%/50.0%LEL
Type of Instrument
Gas detector
The instrument measures:
O3 Ozone
