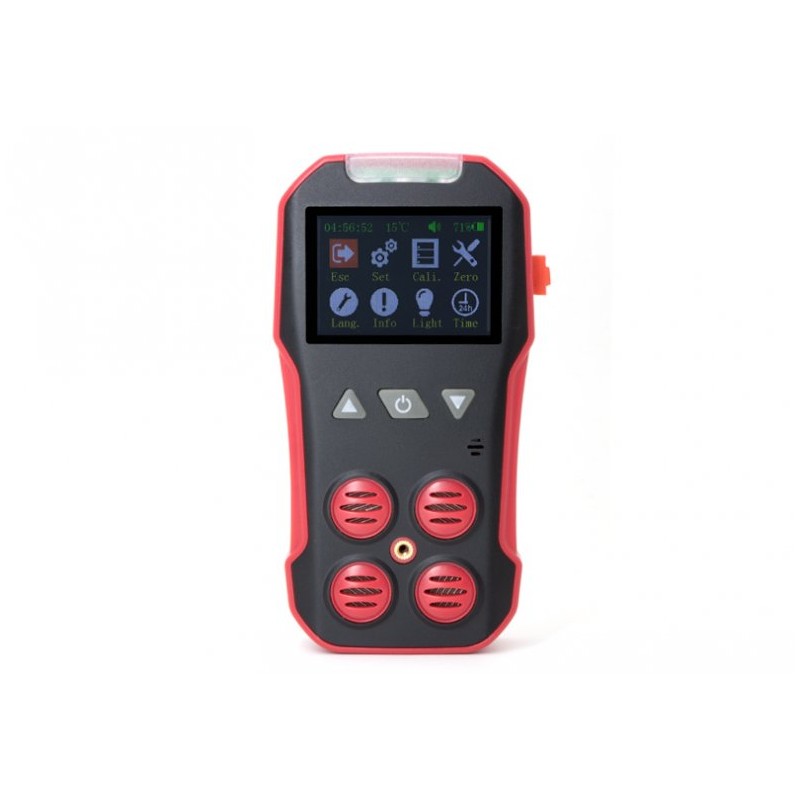

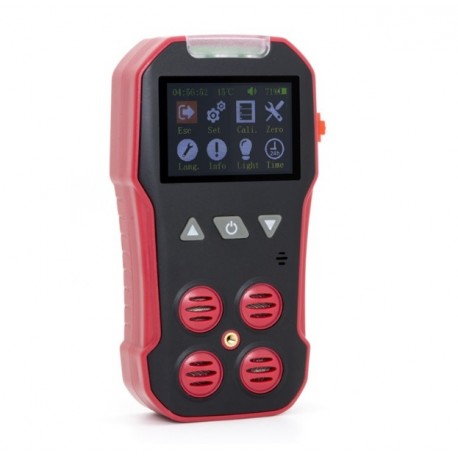

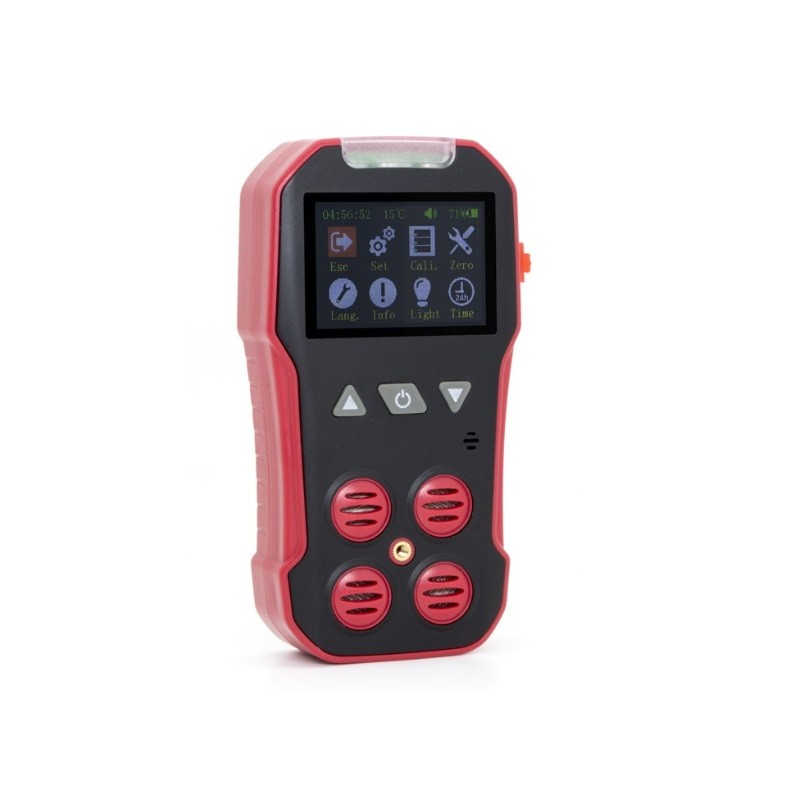

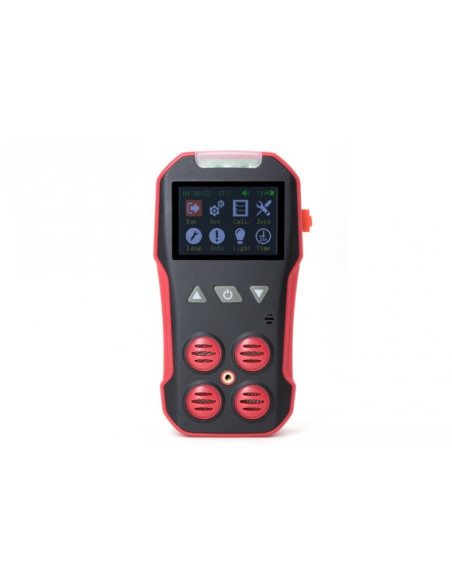

AO-4AS 4 in 1 Multi-Gas Detector

Bosean

New

AO-4AS portable multiple gas detector could detect combustible gas O2 and other two types toxic gases continuously and simultaneously.

290,00 €

tax excl.

Add to wishlist

Type of Instrument Gas detector
The instrument measures: Multi-Gas
---------- INDUSTRY ------------ Gas Analyzers and Detectors

AO-4AS portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously.
It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.

Detecting gas:

Combustible gas, H2S, CO, O2

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*CSTN colorful LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

*500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.

Accuracy

≦±5% F.S.

Response Time

≦30s

Indication

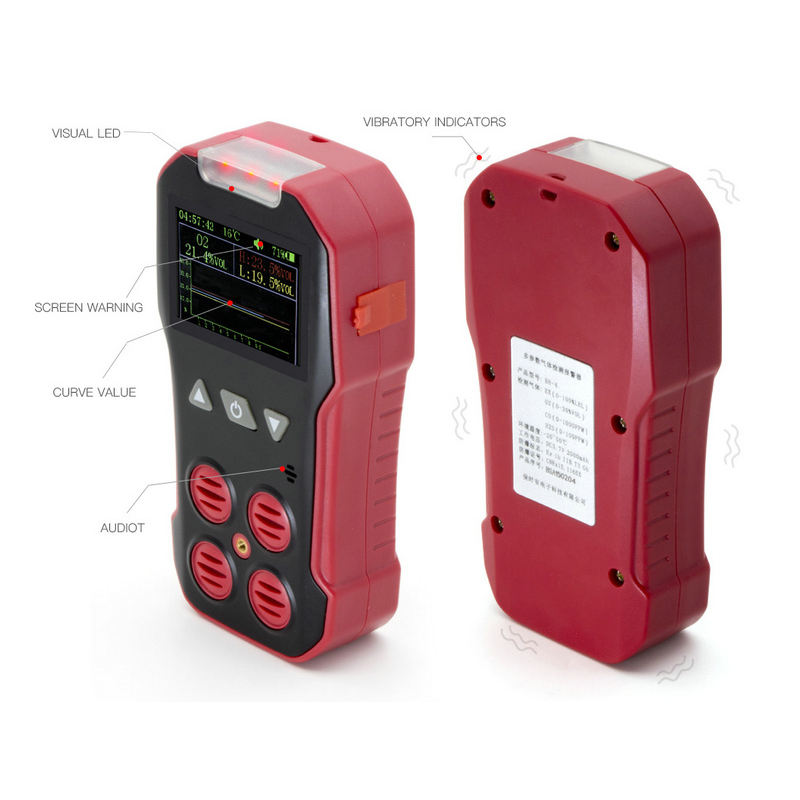

LCD displays real-time and system status;LED, audio and vibration alert for gas leakage, fault and low voltage.

Sensor

O2 /H2S / CO: plug-in electrochemical sensor

Combustible gas (LEL): plug-in catalytic combustion sensor

Alarm Type low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm

Working environment

-20℃~50℃, <95%RH (no dew)

Power Source

DC3.7V Li-on battery, 1800mAh

Charging time

6h~8h

Working time

≧8h continuously (without alarming)

Resolution 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Self-checking Function Self-checking Battery power, display, sensor, hardware failure

Gas Sensor Life

2 years

Explosion-proof grade

ExiaIICT3

Protection Grade

IP65

Weight

Appr. 400g (with battery)

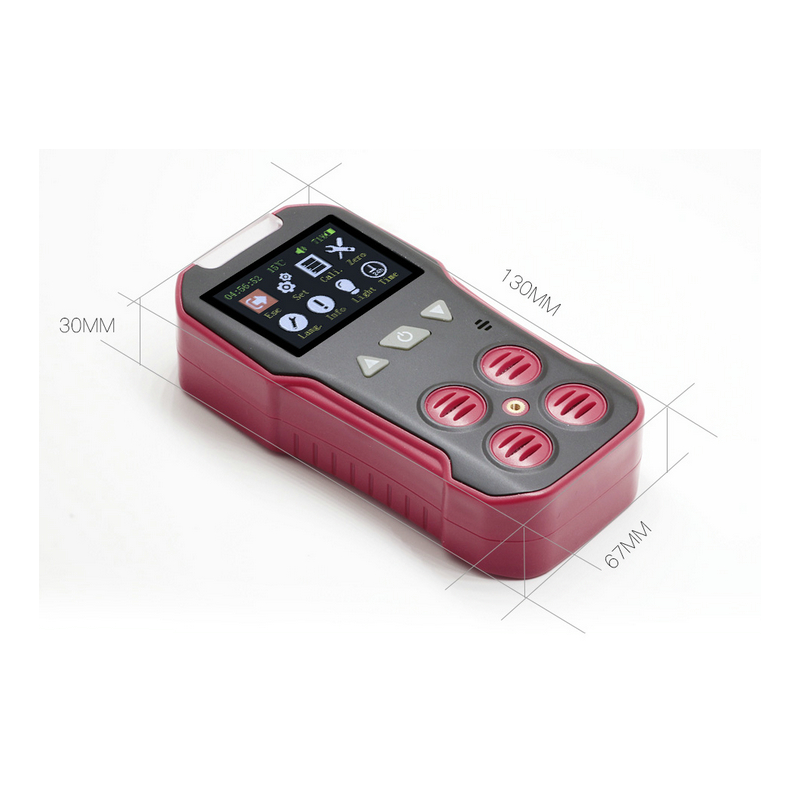

Dimensions

130mm×67mm×30mm(L × W × H)

Model

Gas

Range

Unit





AO-4AS





Ex

CO

H2S

O2







0-100%

0-1000

0-100

0-30%







LEL

ppm

Ppm

vol
