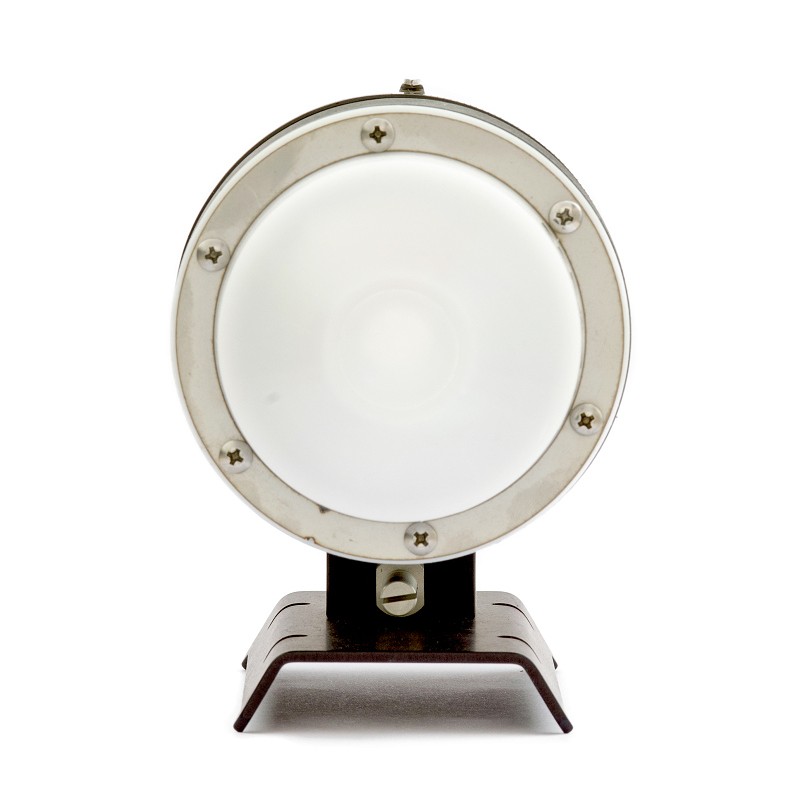

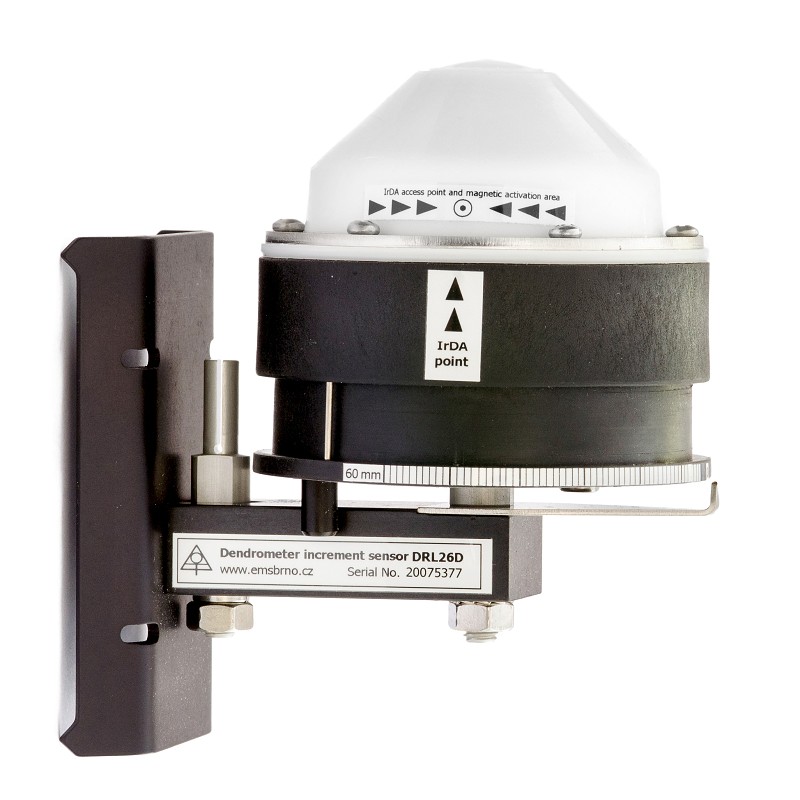

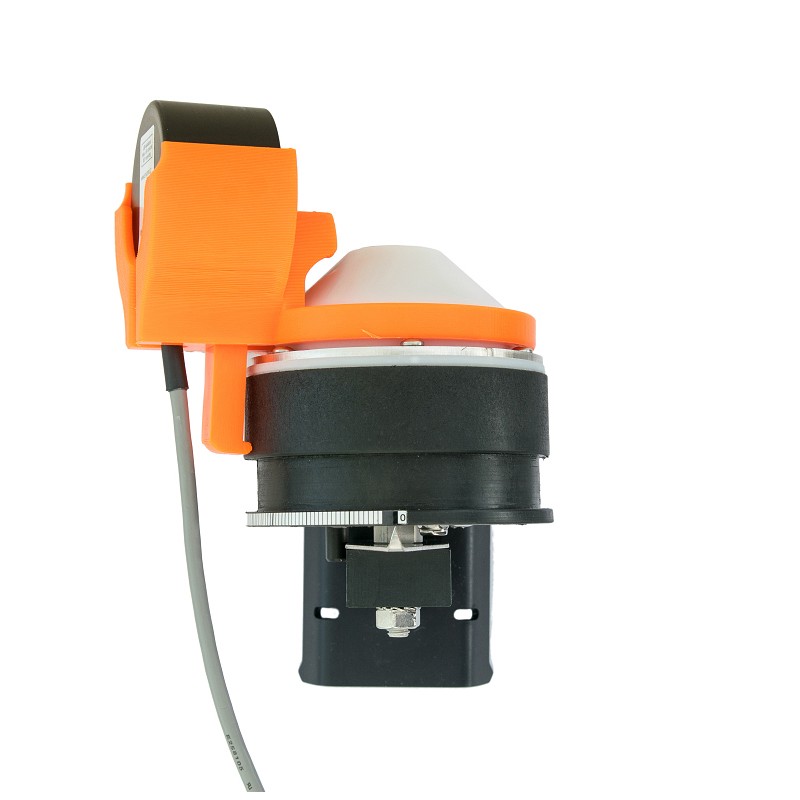

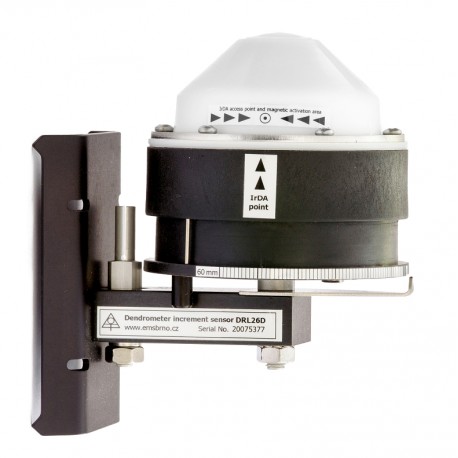

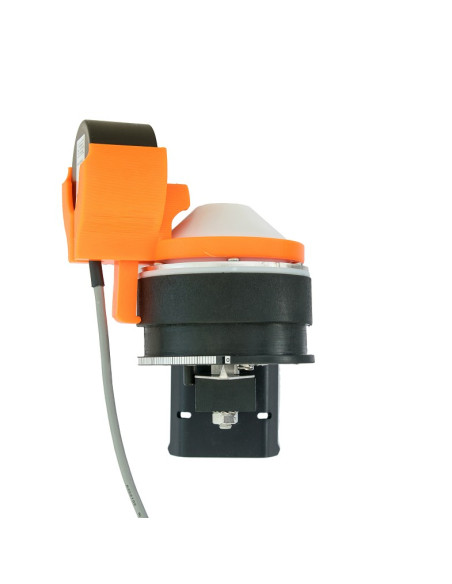

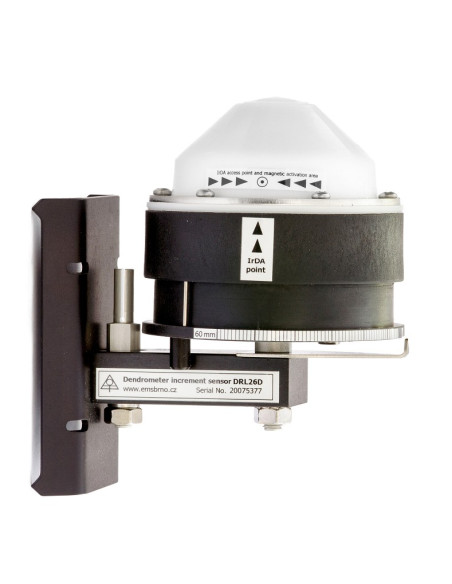

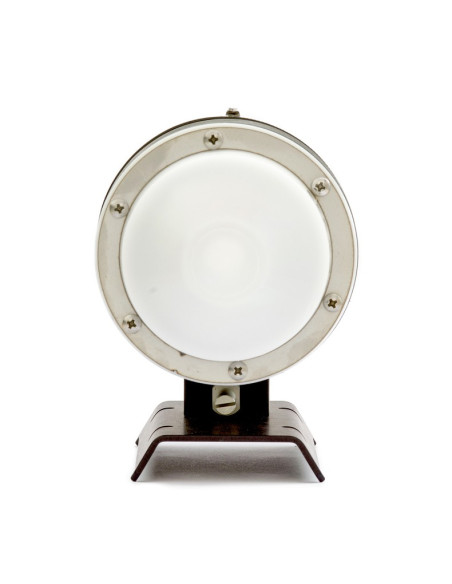

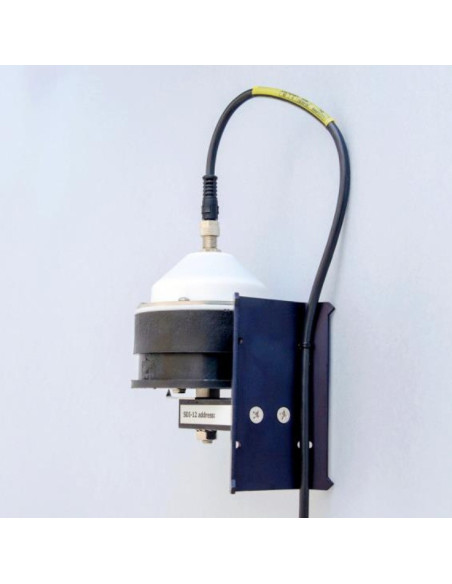

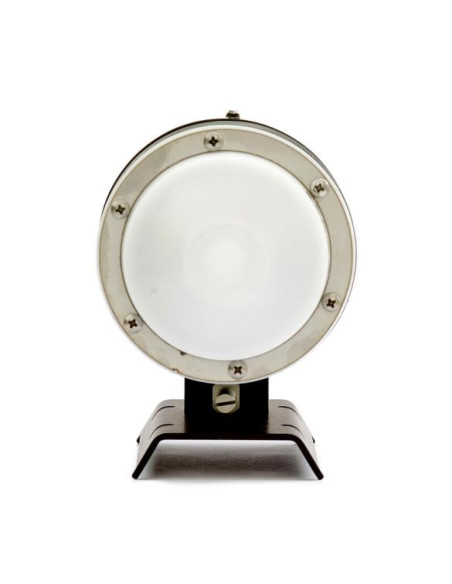

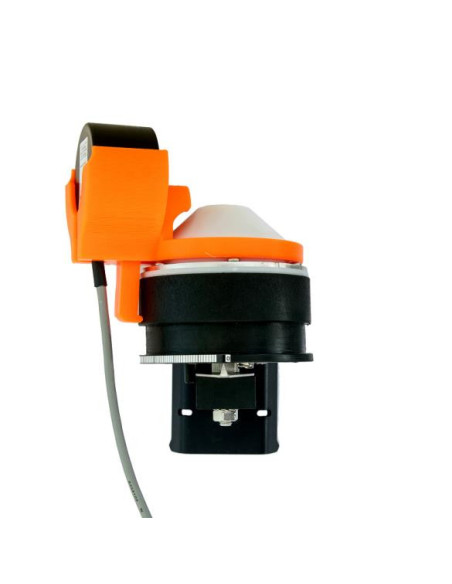

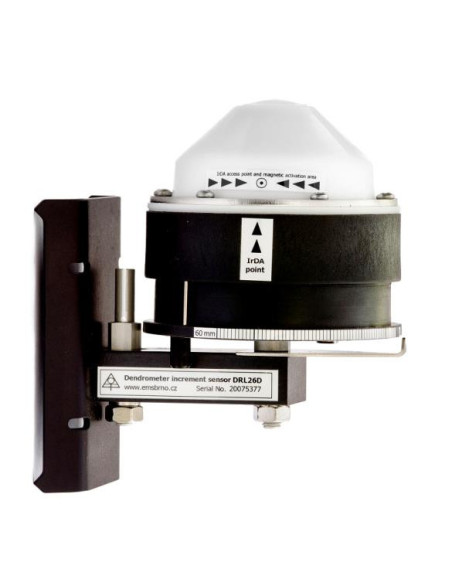

Dendrometer DRL26D

DRL26D

EMS

New

The DRL26D data logging sensor is designed to measure stem growth on large stems 8 cm or larger in diameter (optionally 4 to 8 cm with a base plate). The sensor output is calibrated directly in millimeters of stem circumference growth.

Add to wishlist

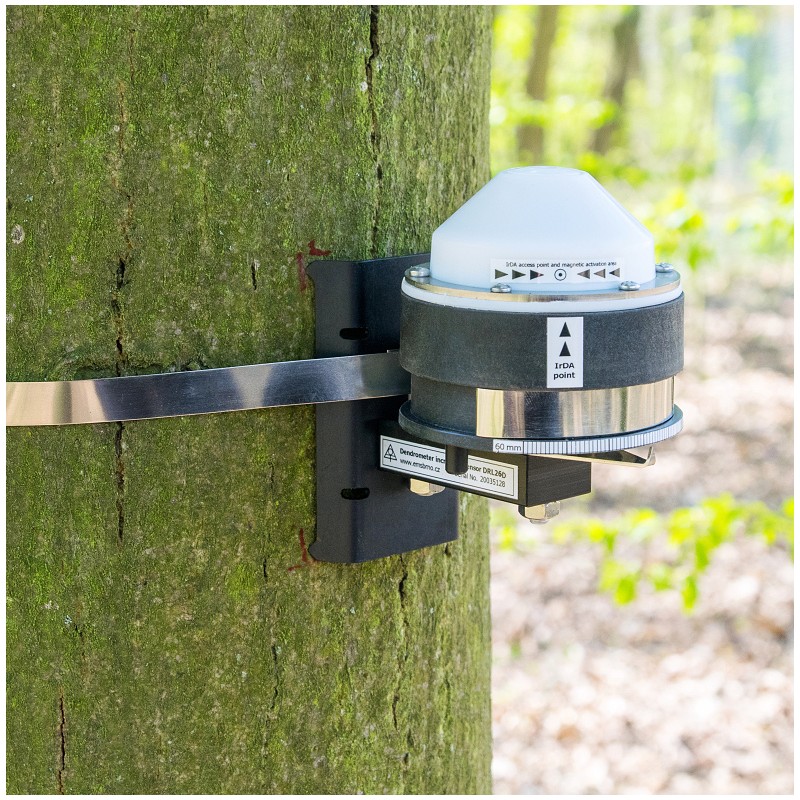

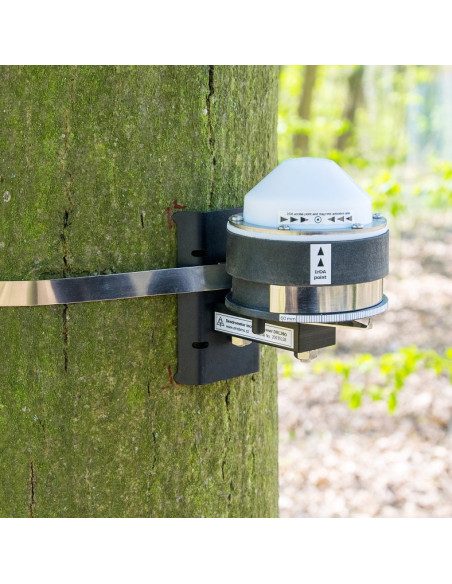

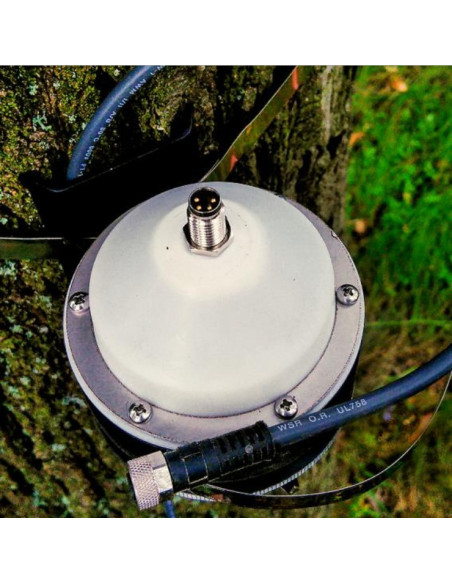

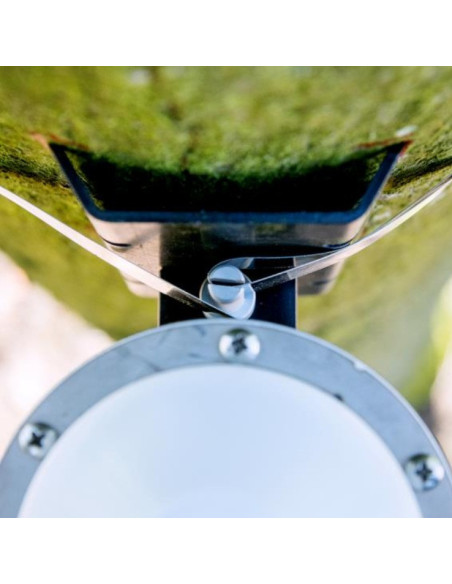

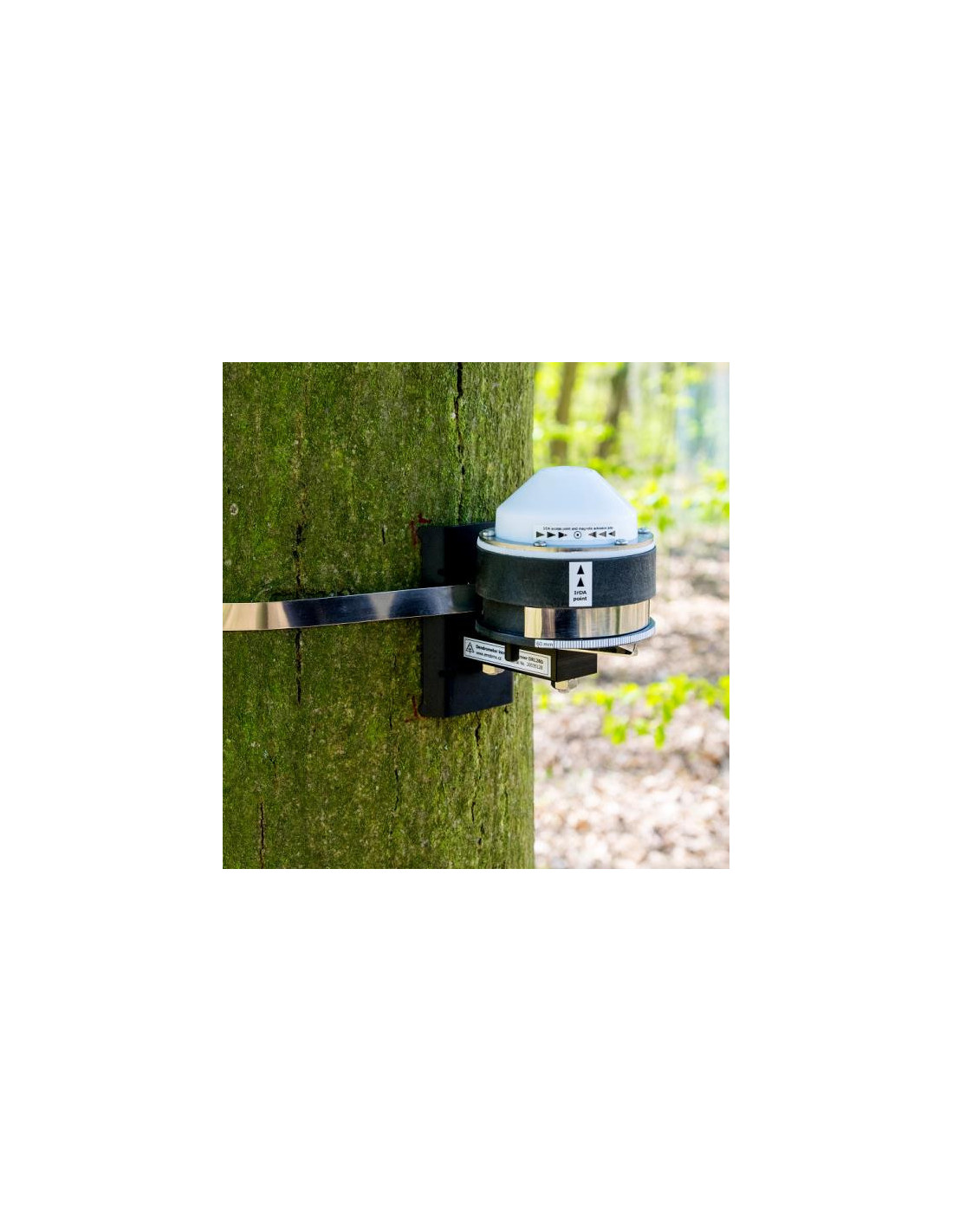

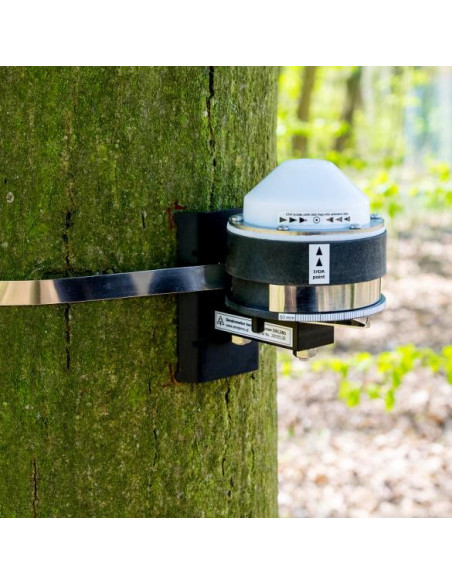

The sensor is designed for quick and easy installation. It is secured to the object to be measured using a stainless steel strap wrapped around the stem.


The adhesion pressure is established as a balance between the influence on plant tissues and position stability.


Installation Notes:

The sensor should be placed on a relatively straight and evenly shaped part of the stem, in a relatively smooth location with no irregularities in the circumference. The sensor base should sit firmly on all four points. For more information, see the installation manual.

Increment sensors type rotary position
Range 64 mm of circumference
Linearity 1 % of full scale
Resolution 1 μm
Internal tmperature accuracy ± 0.3 °C
Tape strength 15 to 20 N in the whole range, stem diameter independent
Tape temperature coefficient 16 μm/m,K
Operating environment temperature -40 to 60 °C
Operating environment humidity 0 to 100 %
Memory size (capacity) 256 kB (100,000 readings)
Battery lifetime with measuring every 10 min ca 4 years
Measuring interval 5 min to 4 hrs
Storing interval 5 min to 4 hrs
Clock accuracy (-10 to 40 °C) better than ±15 sec/month
Battery SAFT LS14250CNA
Size 100 x 70 x 100 mm
Weight (incl. battery) ca 350 g
Protection IP 63
