EMS64 DL Sap Flow System with datalogger
EMS Brno EMS64 DL sap flow system with embedded MicroSet 6X datalogger, SF64 sensor and THB method for stems from 6 to 20 mm.
EMS64 DL sap flow system with datalogger
EMS64 DL by EMS Brno is a stand-alone sap-flow measuring unit with embedded datalogger, designed to assess plant water regime under field conditions. The system is based on the tissue heat balance (THB) method, with variable power and constant temperature difference.

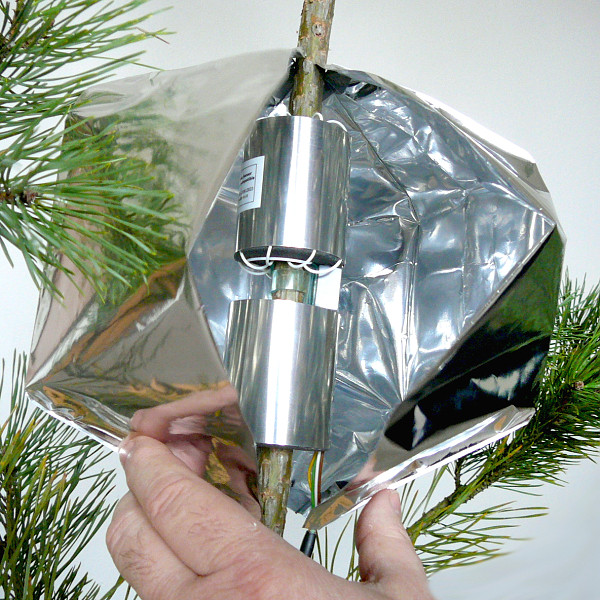

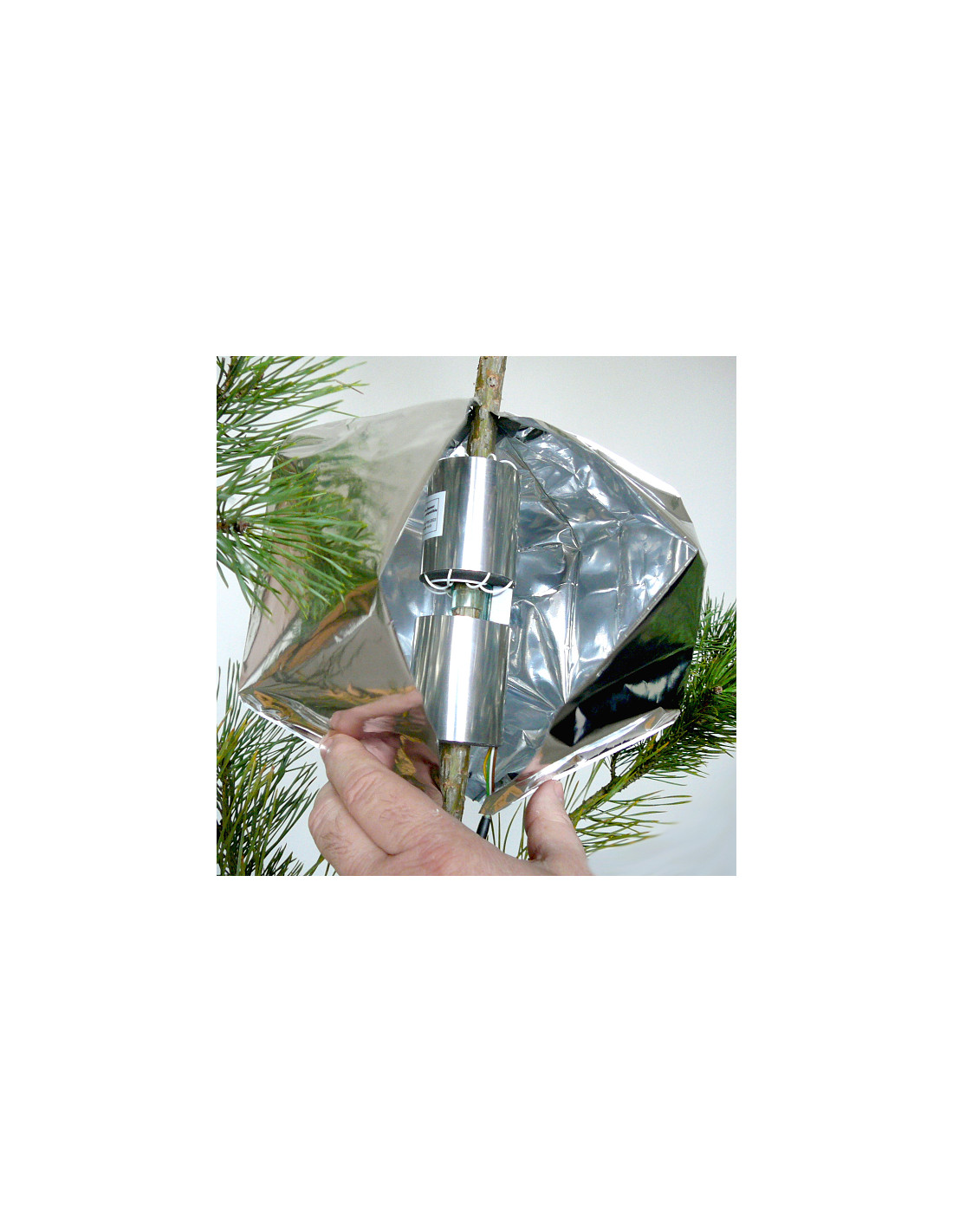

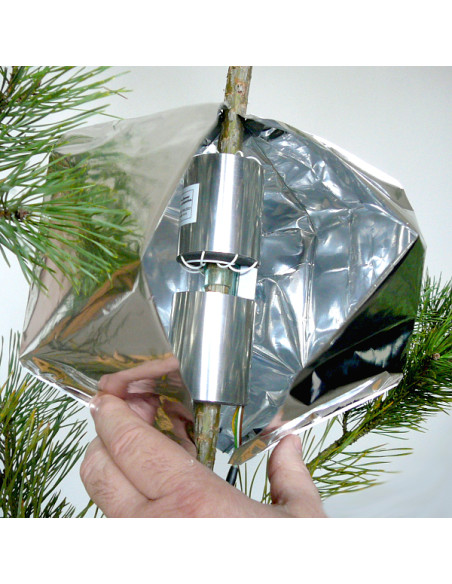

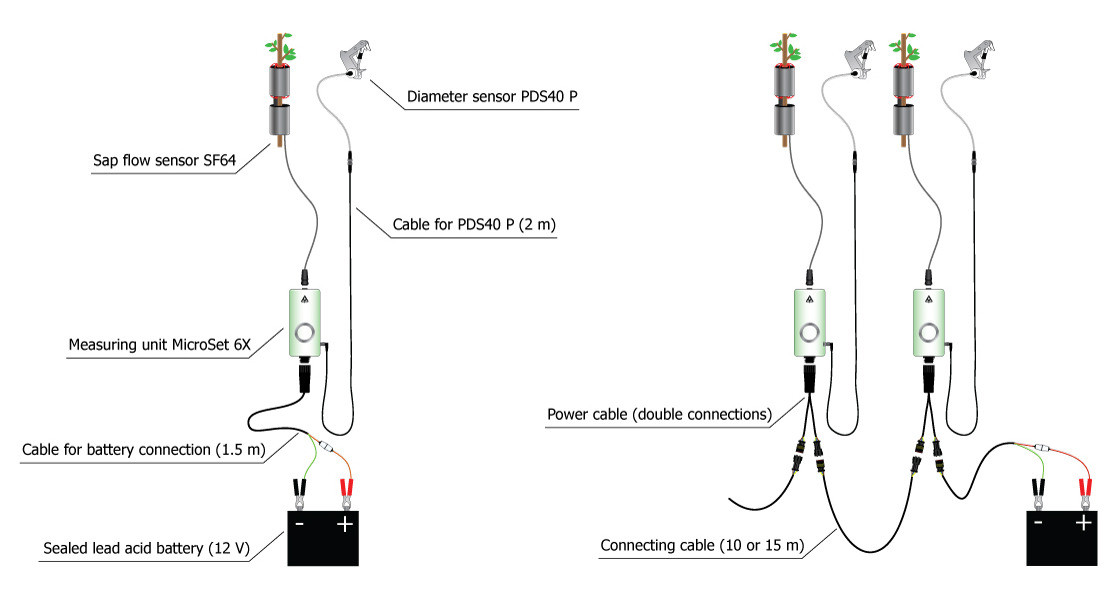

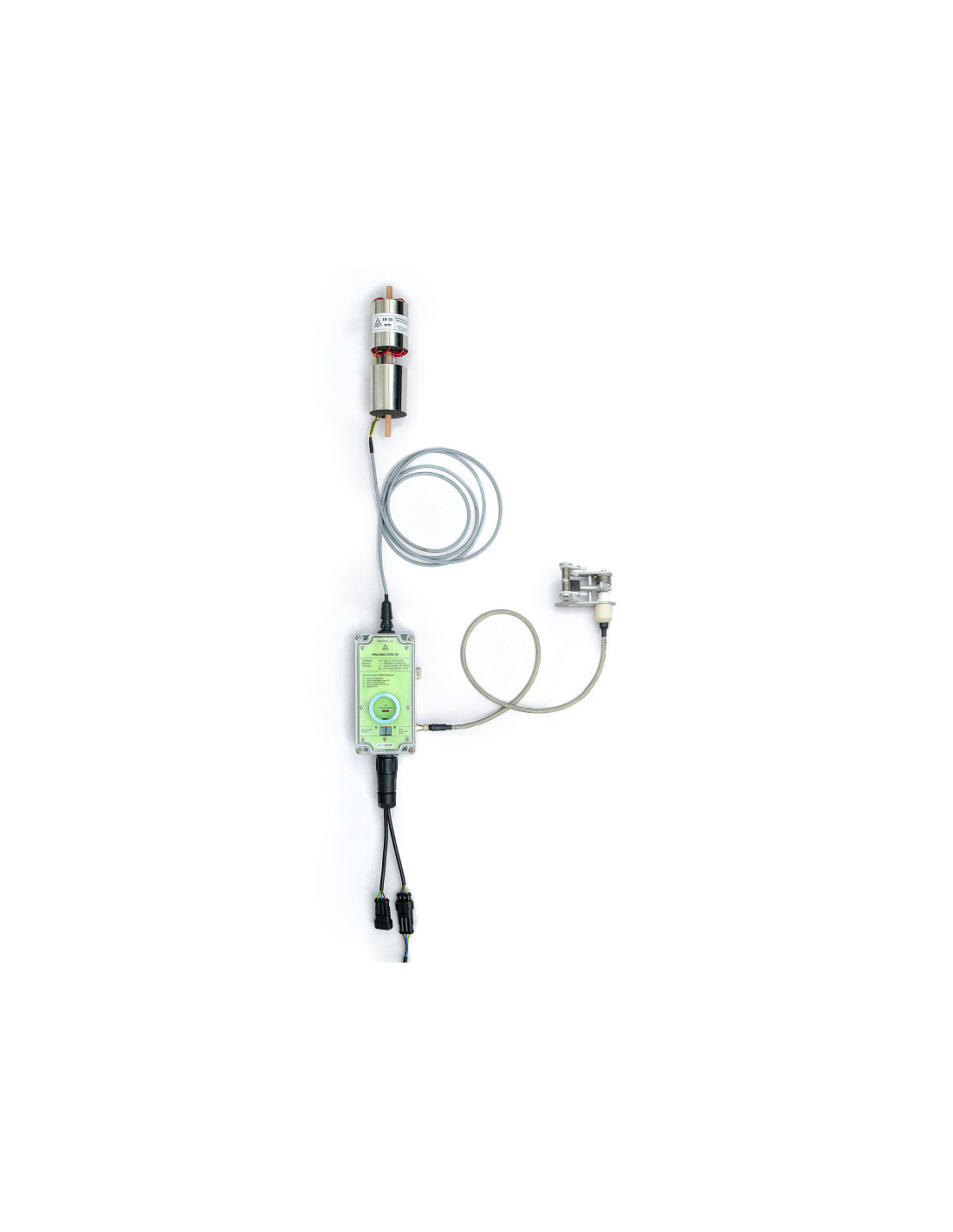

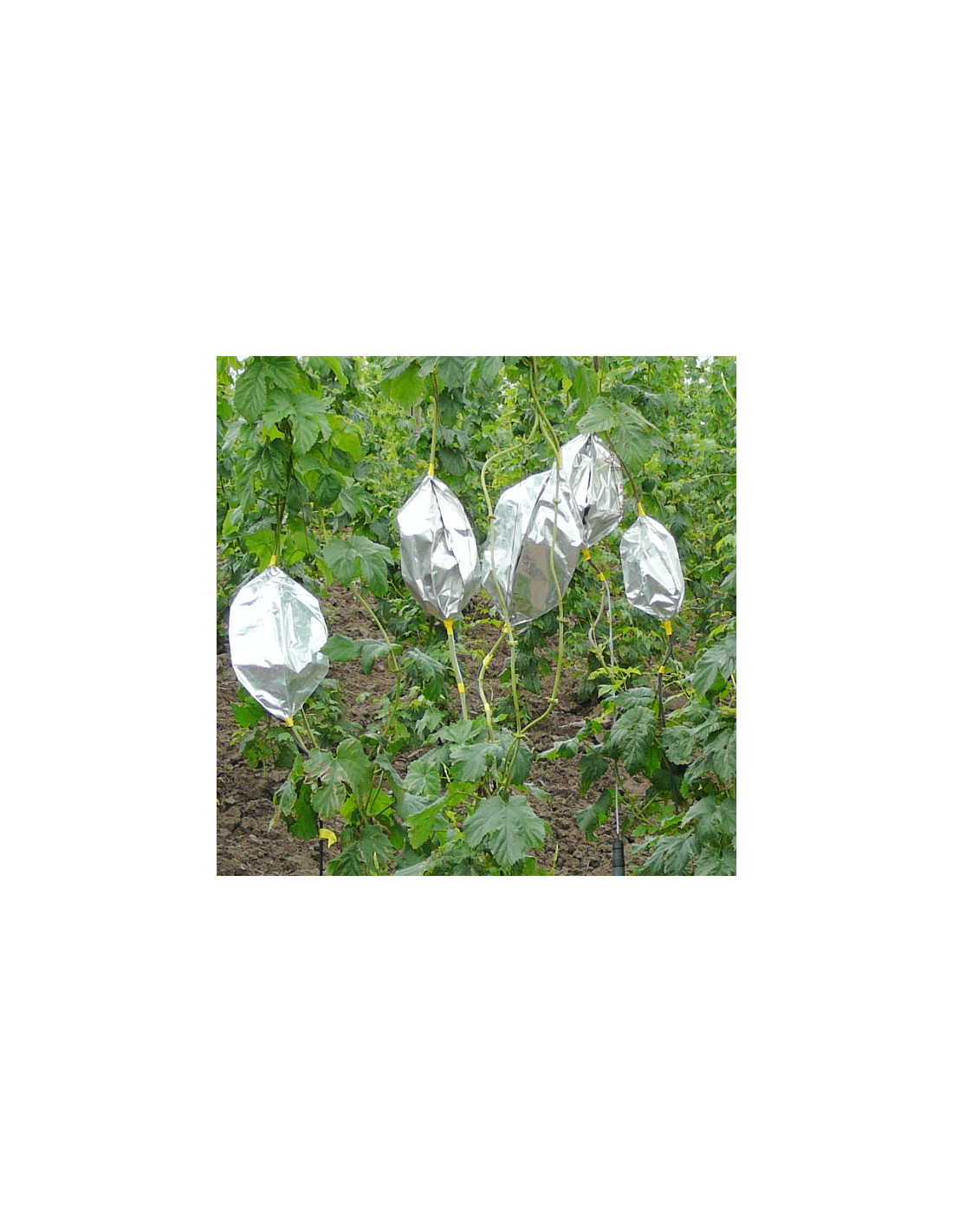

The configuration uses the MicroSet 6X unit for control, measurement and datalogging, together with SF64 sap-flow sensors for stems from 6 to 12 mm or from 10 to 20 mm. The system combines external heating, internal stem-tissue temperature measurement, weather shields, connecting cables, powering and an input for the PDS40P stem diameter sensor.
The manufacturer highlights that the constant-temperature-difference control avoids overheating of stem tissues and gives a realistic picture of plant water status. The unit supports infrared wireless data access and Mini32 software for long time series, baseline processing, quick statistics and net sap-flow calculation.
| Reference | EMS64 DL. |
| System | Stand-alone EMS64 sap flow system with embedded datalogger. |
| Method | Tissue heat balance (THB) method with variable power and constant temperature difference. |

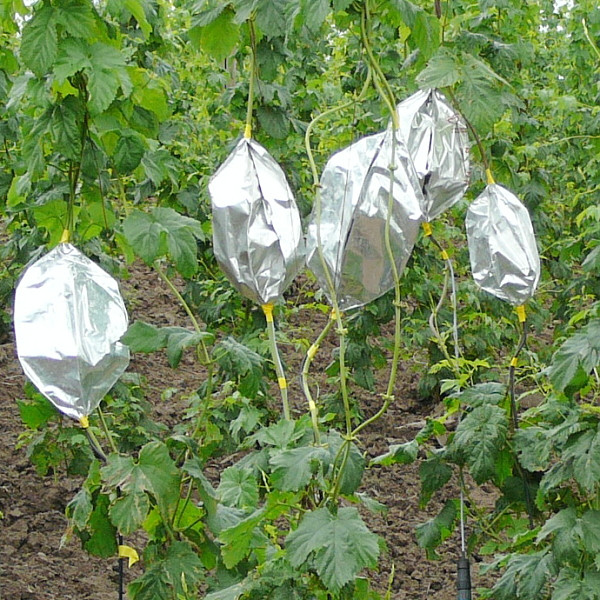

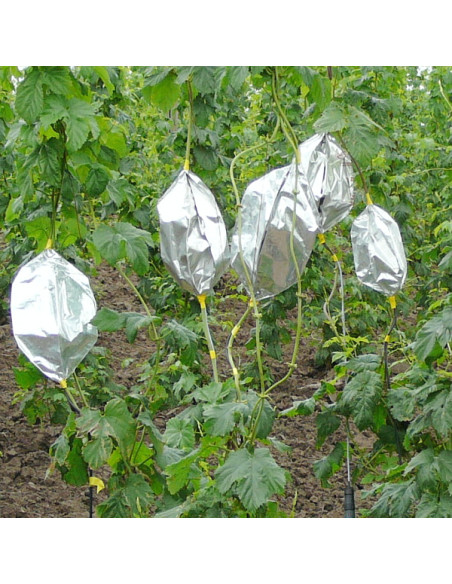

| Application | Assessment of plant water regime and field sap-flow measurement. |
| Stem diameter | SF64 sensors for stems from 6 to 12 mm or from 10 to 20 mm. |
| Output units | kg/h per plant. |

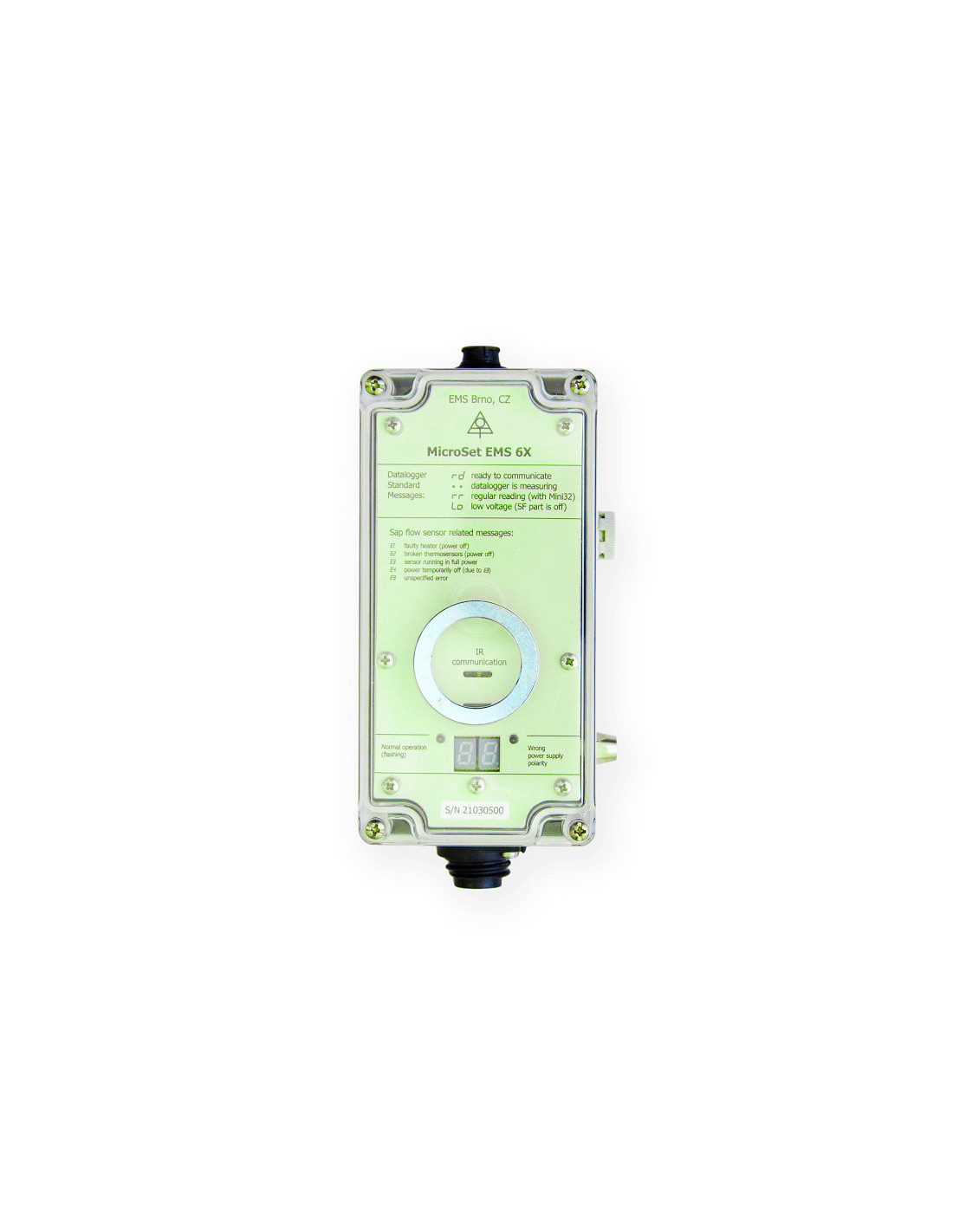

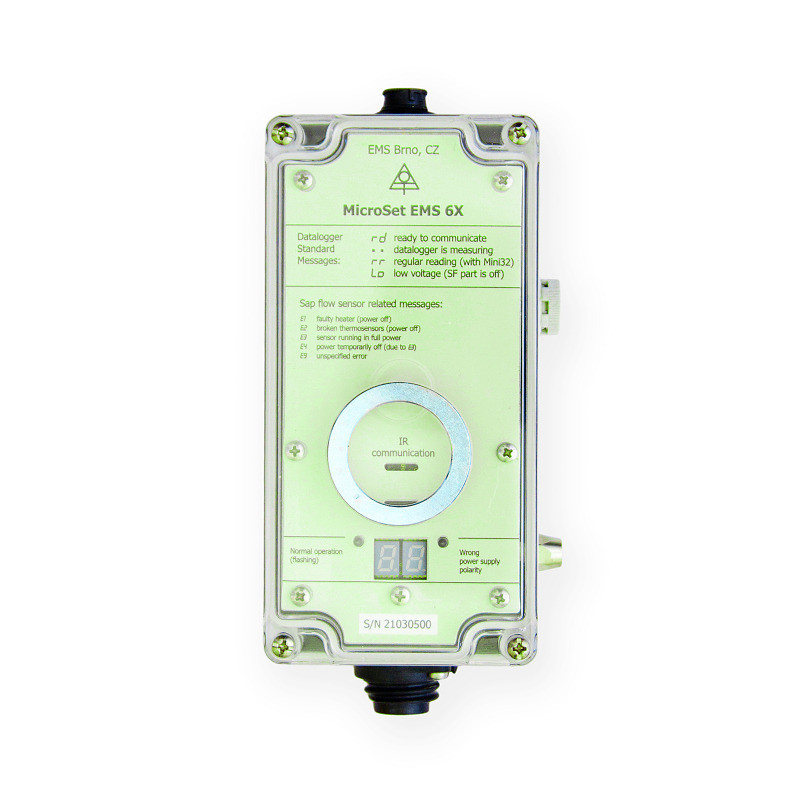

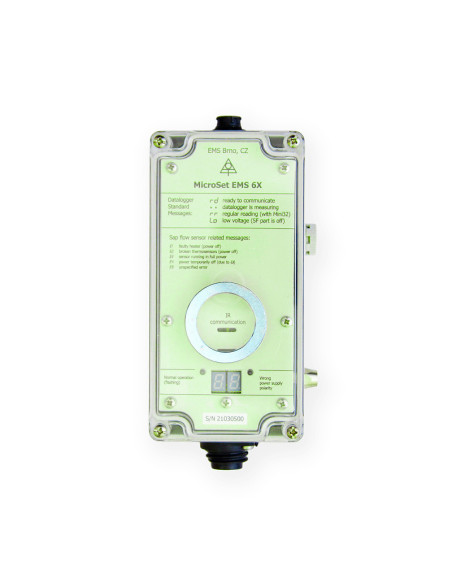

| Measuring unit | MicroSet 6X controlling, measuring and datalogging unit. |

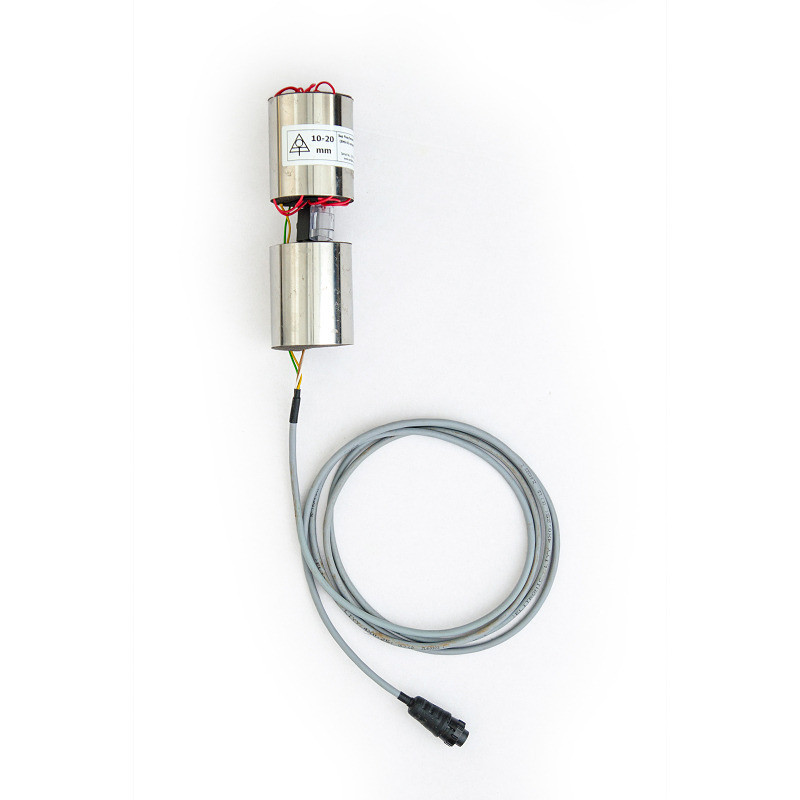

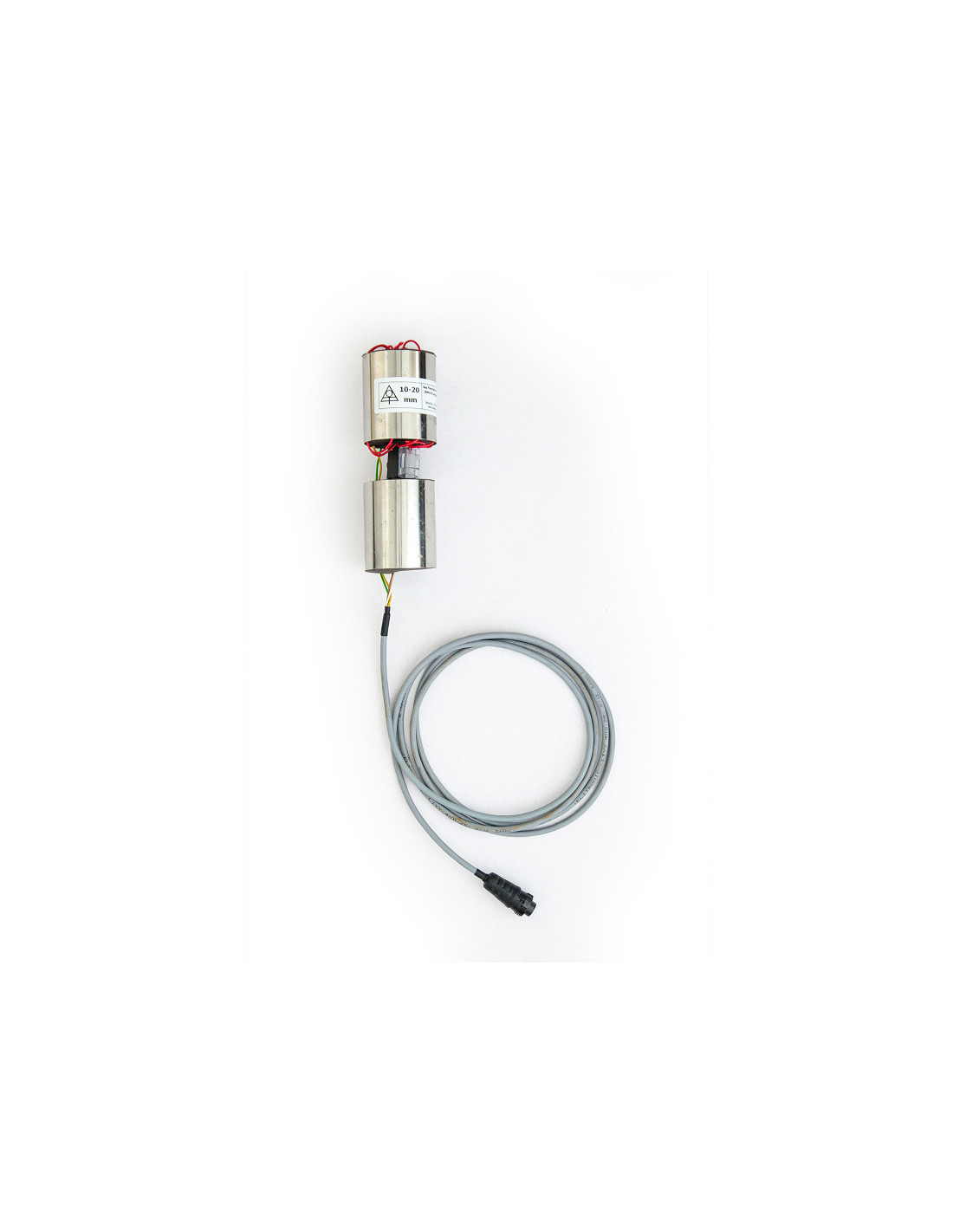

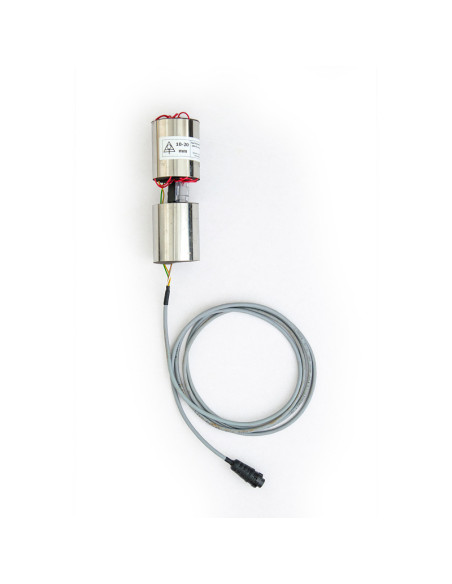

| Main sensor | SF64 sap-flow sensor with external heating and internal temperature measurement of stem tissue. |
| Additional input | Input for PDS40P stem diameter sensor. |
| Temperature difference | Constant temperature difference adjustable to 2, 4 or 8 K. |
| Data access | Infrared wireless data access and IrDA/USB interface. |
| Software | Mini32 support for long time series, baseline processing, quick statistics and net sap-flow calculation. |

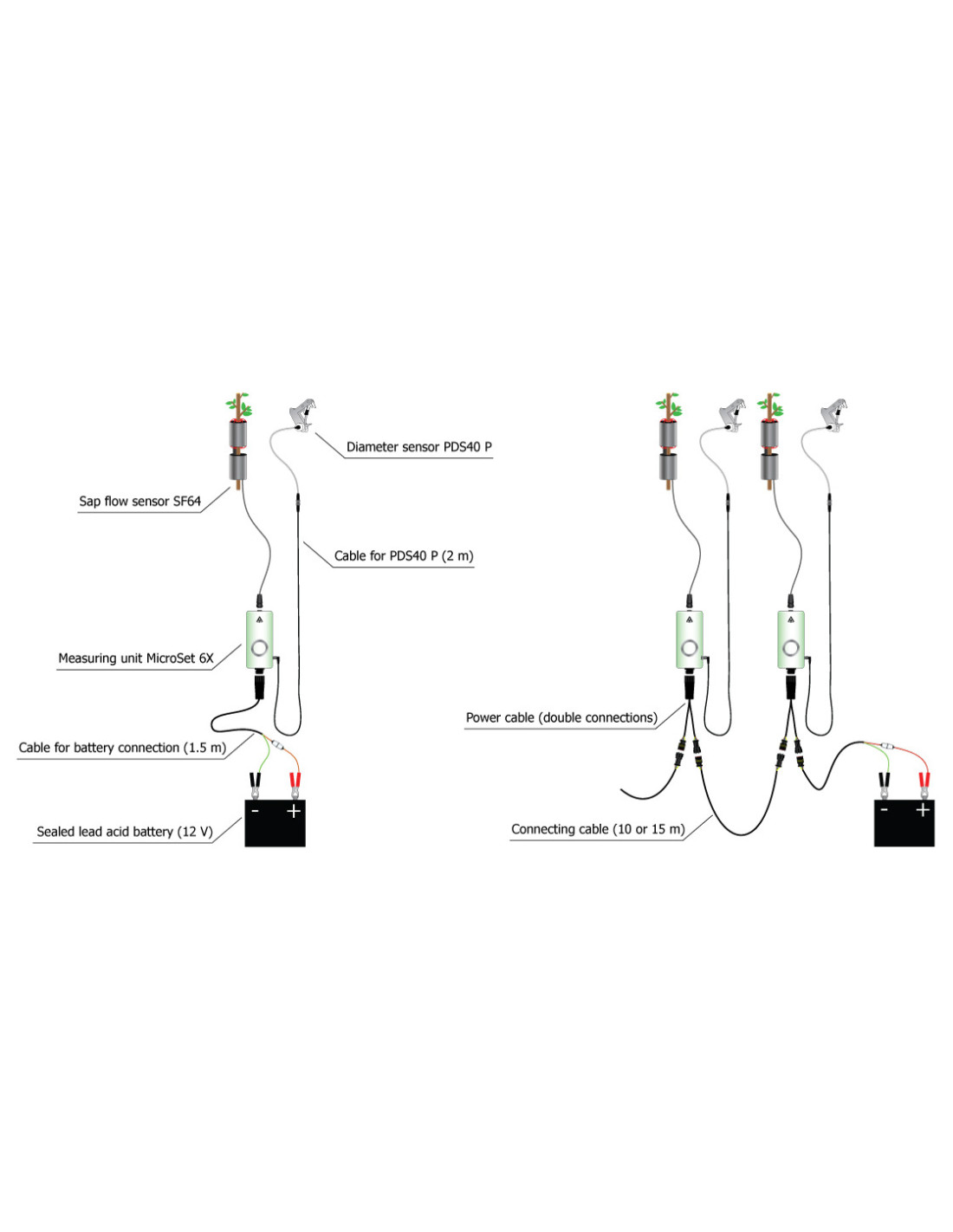

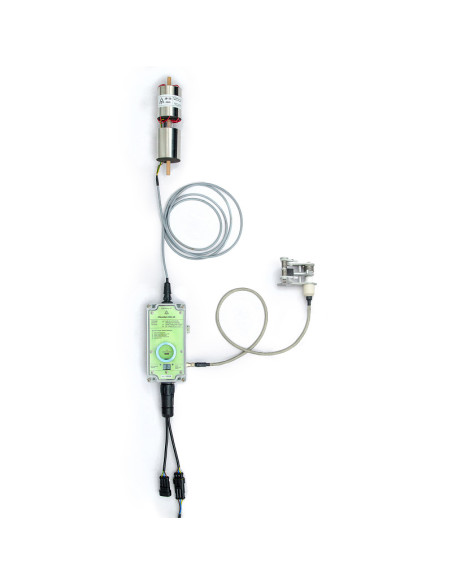

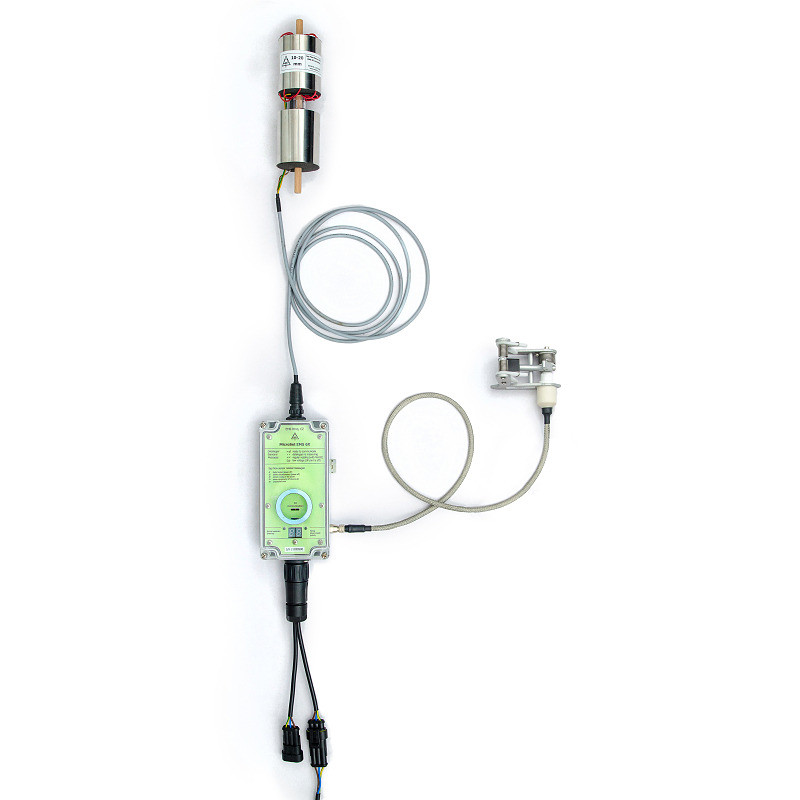

| Components | MicroSet 6X unit, SF64 sensor, weather shields, connecting cables, powering and PDS40P sensor. |
| Advantages | Efficient field measurement, no overheating of stem tissues and realistic picture of plant water status. |
