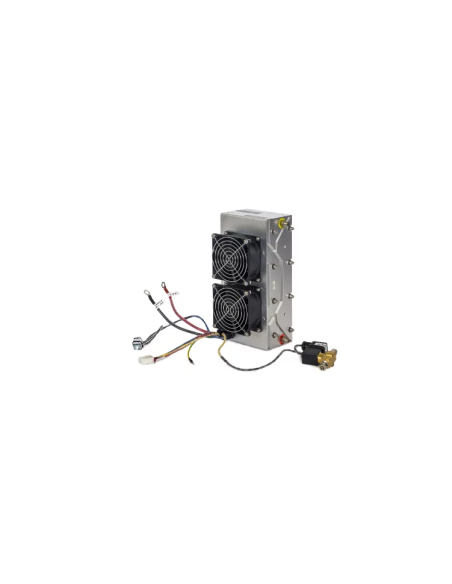

FCS-C500 H-500 PEM Fuel Cell - 500W

Reference: FCS-C500 - Manufacturer: Horizon Educational

500W PEM fuel cell system for advanced prototyping, R&D, and higher-education applications. Includes blower, valves, tubing, control box, and software-based performance monitoring.

€2,141.00
Tax excluded Envío: 3 a 6 semanas

Quantity Unit discount You Save
3 2% €128.46
5 4% €428.20
10 6% €1,284.60
15 8% €2,569.20
20 10% €4,282.00


The FCS-C500 H-500 PEM Fuel Cell - 500W is a high-output hydrogen power solution built for advanced prototyping, system development, and educational or R&D projects that require dependable performance. It delivers 500W of continuous power, making it suitable for electric bikes, scooters, boats, and renewable-energy research platforms.

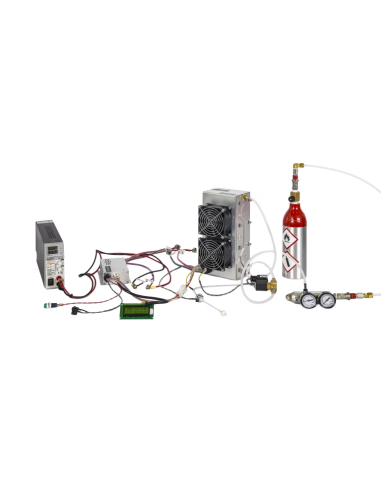

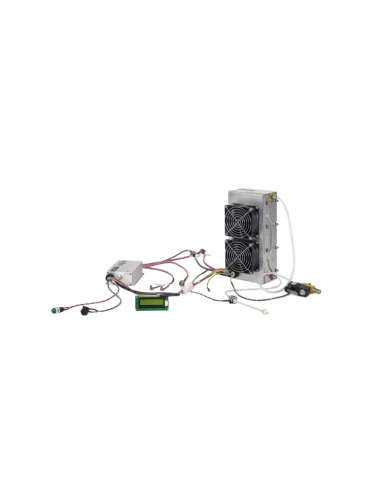

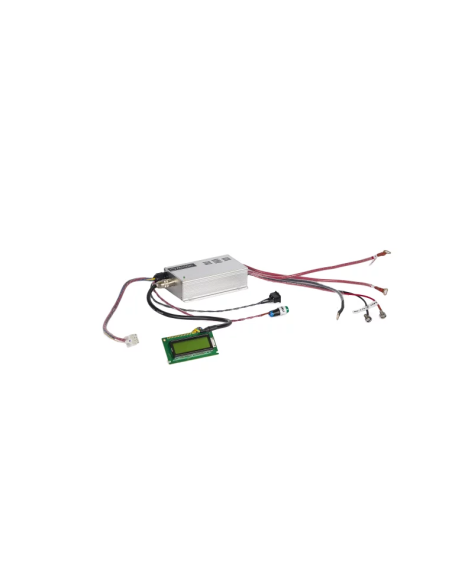

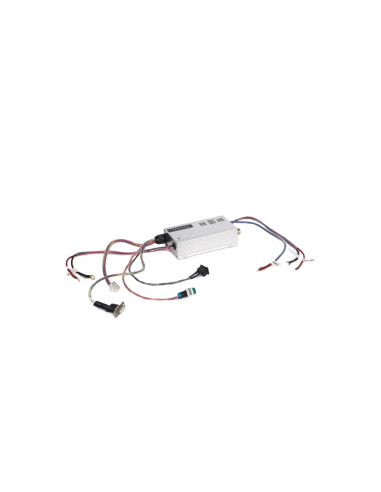

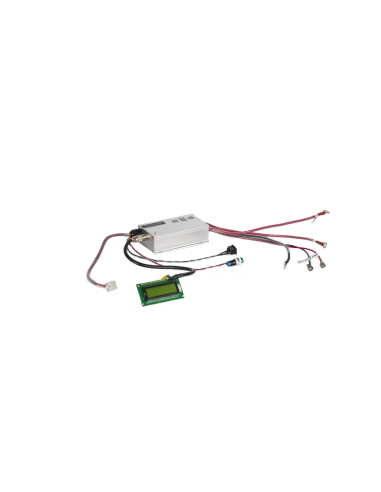

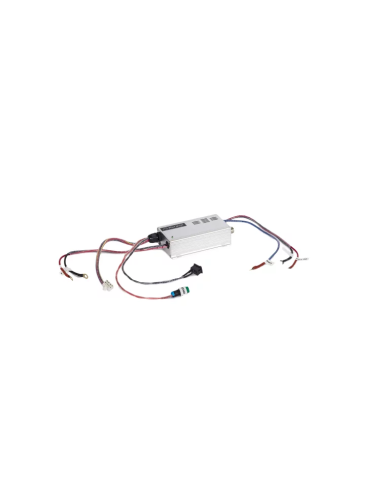

The system includes a blower, electronic valves, tubing, control box, and ON/OFF switches for straightforward setup. Users can monitor voltage and current with dedicated software, and Horizon Educational offers an adjusted controller for PC connectivity. An optional DC/DC converter can be added when a specific output voltage is required.

Key benefits:

  • Reliable 500W output for light mobility and test platforms.
  • Real-time monitoring with software and PC controller support.
  • Complete hardware package ready for integration.
  • Well suited to hydrogen innovation, university teaching, and clean-energy system development.
  • Optional DC/DC conversion for flexible output requirements.

Quick technical facts

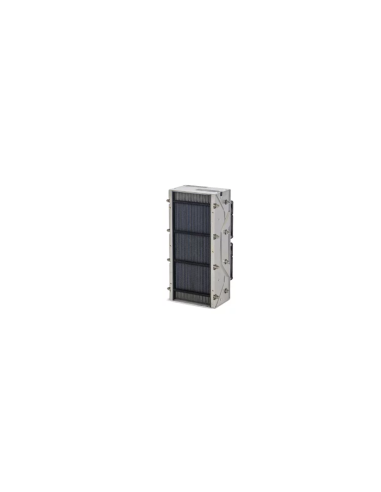

  • Number of cells: 24 fuel cells.
  • Hydrogen pressure: 0.45-0.55 bar.
  • Ambient operating temperature: 5-30 °C.
  • Humidification: self-humidifying.
  • Stack weight: 3.4 kg including fan and casing.
  • Controller weight: 0.6 kg.
  • System efficiency: 40% at 14.4 V.
  • External power supply required: 13 V at 5 A.

Safety and operation

Do not insert or disconnect power cables while the stack is turned on. Warranty is void if the fuel cell stack is disassembled or tampered with. Hydrogen is colorless, odorless, and flammable; operate and store the stack and hydrogen canisters in well-ventilated areas and always use a highly accurate hydrogen sensor to detect leaks. Refer to the H-500 user manual for full safety requirements.
