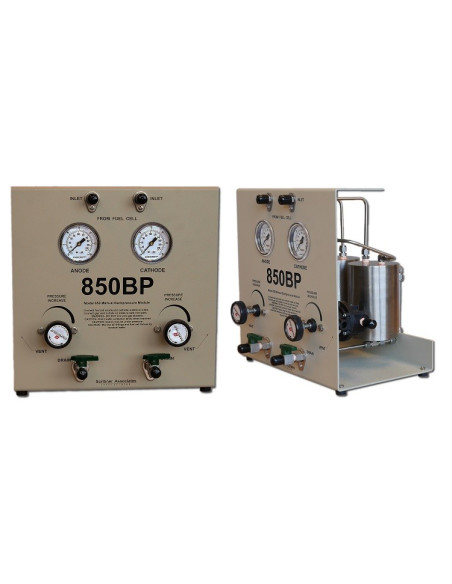

Standard Back Pressure Unit 850BP

Standard Back Pressure Unit 850BP

Standard Back Pressure Unit 850BP

Reference: 850 BP - Manufacturer: Scribner Associates

Use the model 850BP with our Model 850 Multi-Range Fuel Cell Testing System.
Updated design with larger collection tanks and more robust regulator valves.

OVERVIEW

Manually controlled backpressure (0-30 PSIG)
Dual channel anode and cathode with isolated flow paths
Pressure indicators
Stainless Steel condensate collection tanks and fittings
