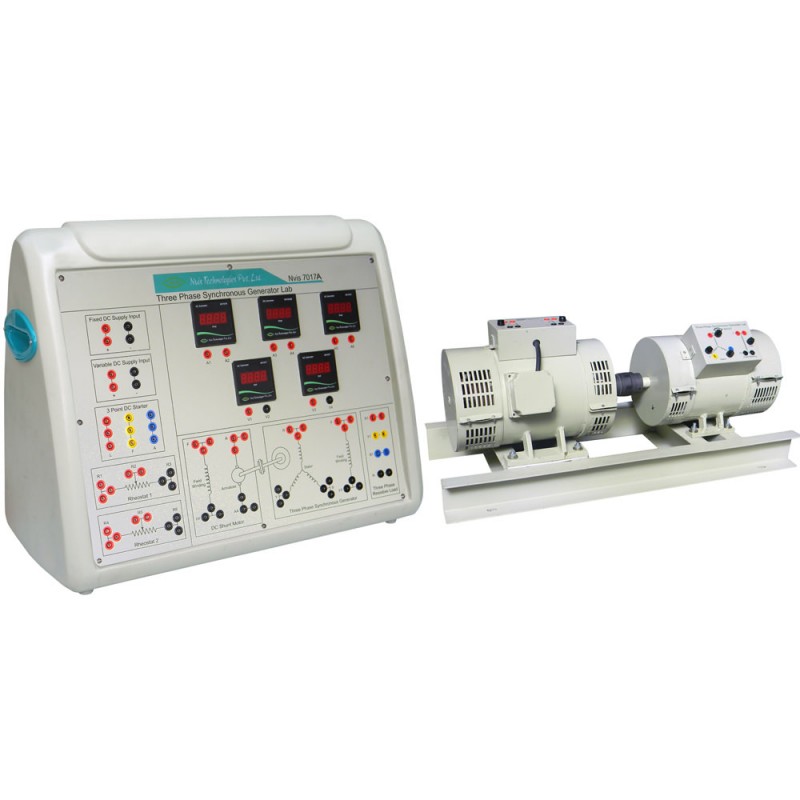

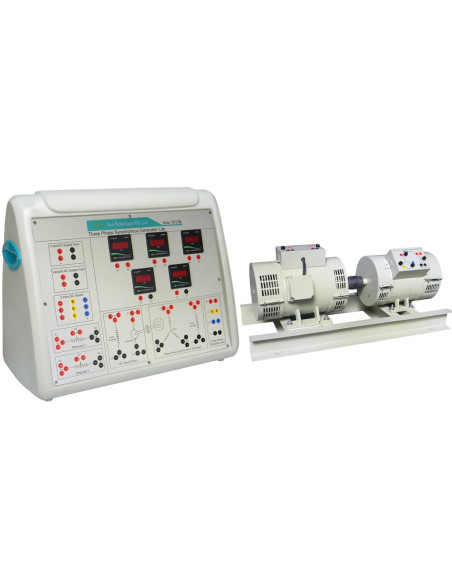

Nvis 7017 Laboratorio de Generador Síncrono Trifásico

- Machines Specification (2 nos.):
           -- Both the Machines are Flexibly Coupled and Mounted on a M.S. channel Base
- DC Machine (acts as Prime Mover):
           -- Type: Shunt
           -- Rating: 2 HP
           -- Voltage Rating: 220 V ±10 %
           -- Speed: 1500 RPM
           -- Insulation: Class 'B'
- Three Phase Synchronous Motor (acts as Generator)
           -- Type: Salient Pole
           -- Rating: 3 HP
           -- Voltage rating: 415 V ±10 %
           -- Speed: 1500 RPM
           -- Insulation: Class ‘B’
           -- Excitation Voltage: 120 V
- Digital Meters Used
           -- DC Voltmeter: 300 V
           -- DC Ammeter: 10 A, 5 A
           -- AC Ammeter: 10 A
           -- AC Voltmeter: 450 V
- Optional:
           -- DC Power Supply “Nvis 725”, Rheostat 2.8 A, 220 O

- Estudiar las características de circuito abierto (OCC) del generador trifásico síncrono
- Estudiar las características de cortocircuito (SCC) del Generador síncrono trifásico
