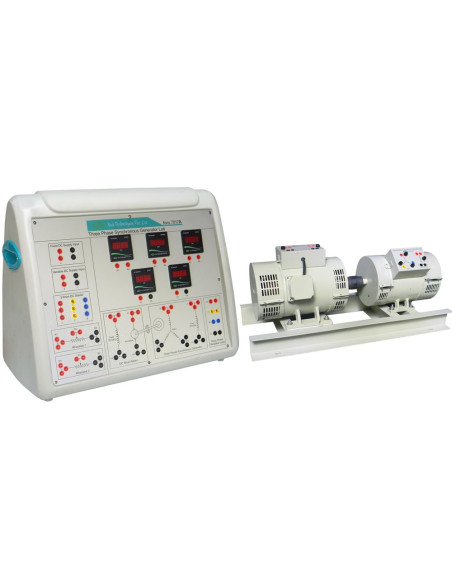

Nvis 7017 Three Phase Synchronous Generator Lab

Reference Nvis7017

Condition: New

Synchronous Generators are the primary source of electrical energy. These are used to convert mechanical power derived from (steam, gas, or hydraulic) turbine to ac electric power. The product provides hands-on experiments like Open Circuit Characteristic of Synchronous Generator and study of the relation between field cur rent and armature voltage. All protection circuits are in built so there is very less chance of fault or danger to user.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
List of Experiments
Data sheet
Download

Category	Laboratories

Nvis7017 Download (830.33k)

- Electrical loading arrangement
- Flexible shaft coupling arrangement
- Control board consist of high grade FRP material to provide utmost safety to the users
- Provided with Digital Tachometer
- Machine with Class “B” Insulation
- Heavy Duty Base/Channel
- Equipped with supply indication lamps
- Terminals provided to use the optional externally
- Equipped with supply indication lamps
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Online product tutorial

- Machines Specification (2 nos.):
           -- Both the Machines are Flexibly Coupled and Mounted on a M.S. channel Base
- DC Machine (acts as Prime Mover):
           -- Type: Shunt
           -- Rating: 2 HP
           -- Voltage Rating: 220 V ±10 %
           -- Speed: 1500 RPM
           -- Insulation: Class 'B'
- Three Phase Synchronous Motor (acts as Generator)
           -- Type: Salient Pole
           -- Rating: 3 HP
           -- Voltage rating: 415 V ±10 %
           -- Speed: 1500 RPM
           -- Insulation: Class ‘B’
           -- Excitation Voltage: 120 V
- Digital Meters Used
           -- DC Voltmeter: 300 V
           -- DC Ammeter: 10 A, 5 A
           -- AC Ammeter: 10 A
           -- AC Voltmeter: 450 V
- Optional:
           -- DC Power Supply “Nvis 725”, Rheostat 2.8 A, 220 O

- To study the Open Circuit Characteristics (OCC) of Three Phase Synchronous Generator
- To study the short circuit characteristics (SCC) of three Phase Synchronous Generator
