Moisture Meter for Pellets PEL-20
BIOMASS MOISTURE METER

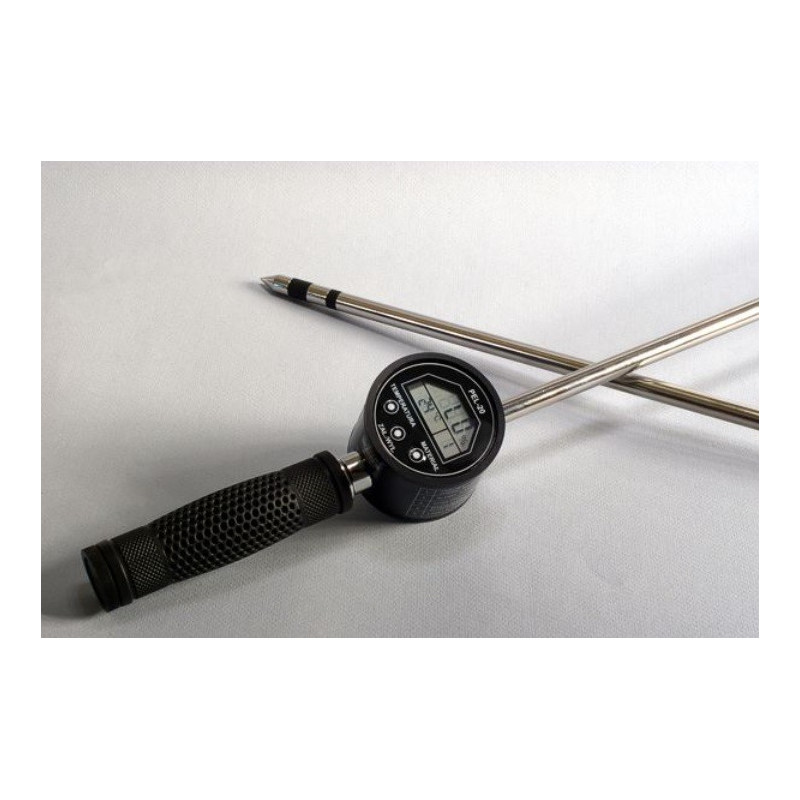

Moisture meter PEL-20 is designed for approximate measurements of moisture contents in pellets made of:
- sawdust, scobs, wood shavings,
- hay and straw,
- dried fruit waste,
- fragmented waste paper,
- sunflower hull,
- buckwheat hull, bran, chaff,
- sunflower and corn stem,
- ground grain,
- rape and soy oilseed cake.
It can be used for preliminary measurements of moisture contents of pellets delivered to power stations. As most other moisture meters the PEL-20 measures the resistance of the material. The measurement is done by inserting the electrode into a heap of pellets.
| Range | 10 % - 20 % |
|---|---|
| Resolution | 0.1 % |
| Temperature range | 0°C - 50°C |
| Electrode | ϕ 10x1000 mm |
| Display | LCD |
| Power | 1 * 12V (battery 23A) |
| Battery life | 10'000 measurements |
| Low battery warning | yes |
| Auto power off | yes, after 10 min. |
| Weight | 0.7 kG |
| Size | 60x50x1000 (1500) mm |
- The Sensor measures:
- Pellet Moisture
