WOOD MOISTURE METER WRD-100

Reference WRD-100

Manufacturer: TANEL

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet
Download

The Sensor measures:	Wood moisture

WRD-100 Manual Download (159.95k)

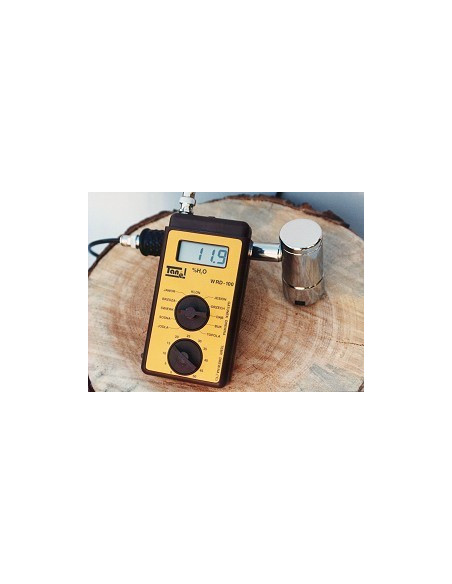

Wood moisture meter WRD-100 is a sophisticated electronic device for measuring moisture in wood from 6% to 100% of moisture contents. It can measure moisture in 11 different types of wood: pine, spruce, fir, great maple, birch, maple, ash, walnut, oak, beech and poplar. The Moisture Meter is equipped with temperature compensation control knob. The Moisture meter is also equipped with a hand and a Hammer electrode EM-1 and in addition it can be equipped with an Inertial electrode EB-1. Moisture meter WRD-100 is widely used in wood industry, forestry and other industries utilizing wood.

Range	6 % - 100 %
Resolution	0.1 %
Accuracy	±1 % (within range 6 - 15%) ±2 % (within range 16 - 28%) approx. 10 % measured val. (within range 28 - 100%)
Wood temp. range	0°C - 50°C
Number of wood types	11
Display	LCD 3¹/₂ digits
Electrodes	hammer electrode with needles ϕ 3.5x12 mm hand electrode with needles ϕ 2x6 mm
Power	1 * 9V (battery 6F22)
Battery life	10'000 measurements
Low battery warning	yes
Size device case	165x80x33 mm 270x180x55 mm
