HIT-3 Wood Moisture Meter
Moisture meter for wood includes electrodes and carrying case

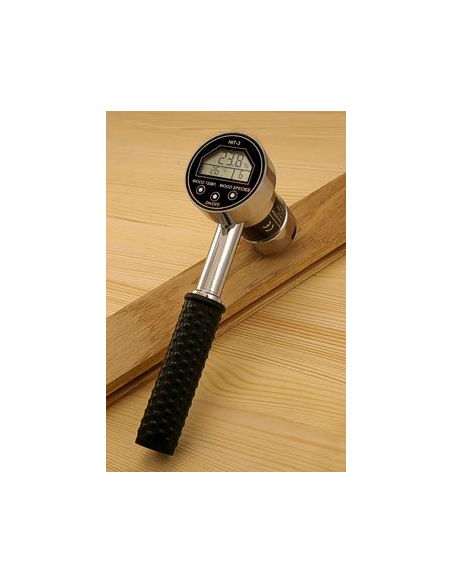

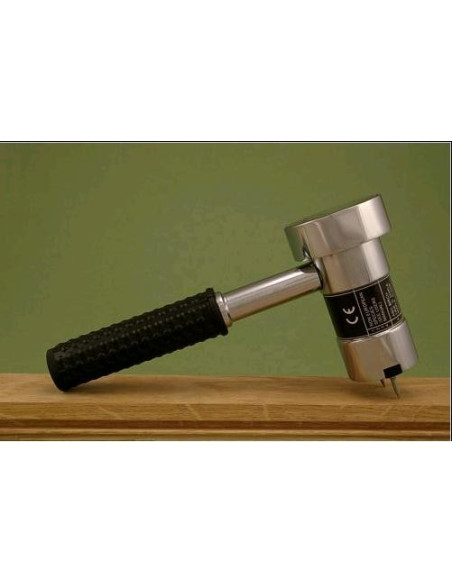

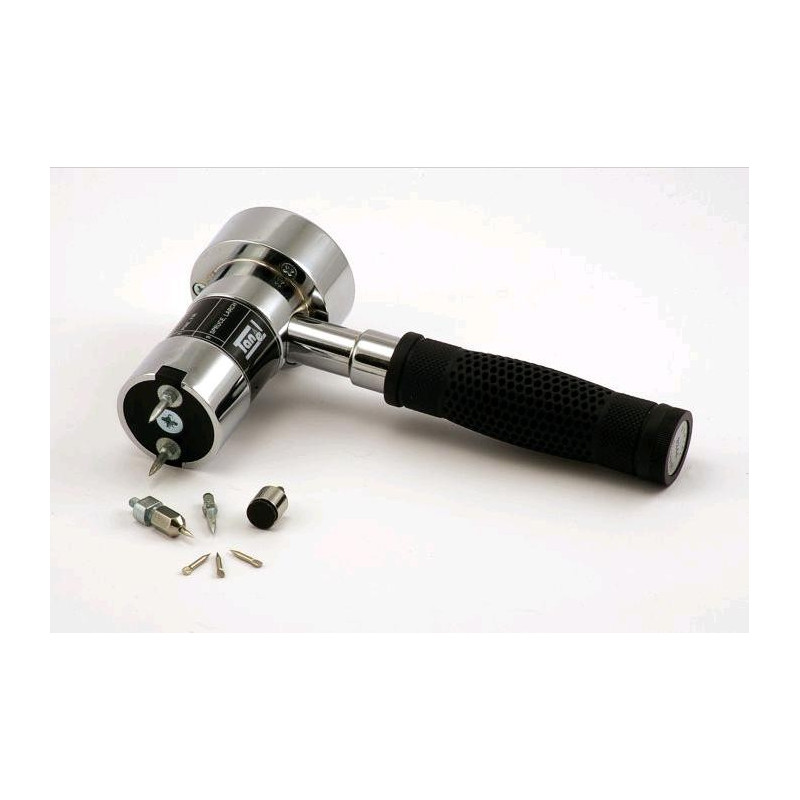

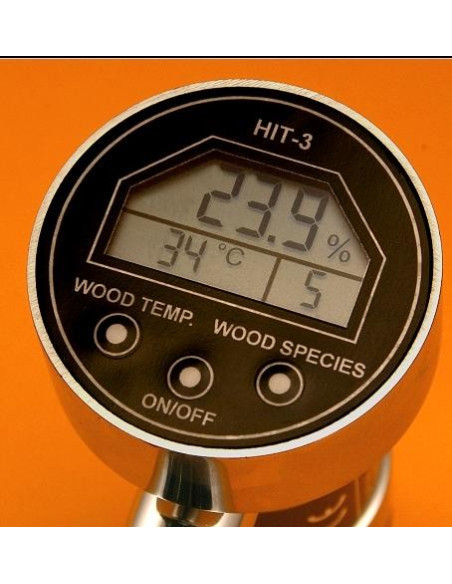

Wood moisture meter HIT-3 is an electronic device for measuring moisture contents in wood. It is equipped with wood type and temperature compensation circuits. The whole device is built in a shape of a hammer electrode with the LCD and control buttons at the back.

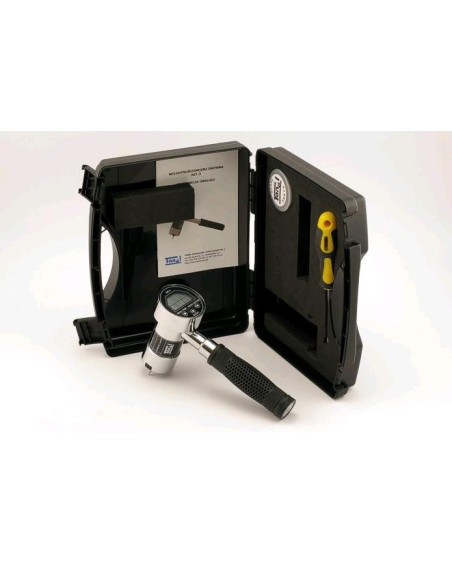

Moisture meter for wood includes electrodes and carrying case.
- State-of-the-art electronic wood moisture meter
- Measuring range from 6% to 60% of moisture contents
- No wires, no electrodes, no formulas, no correction tables

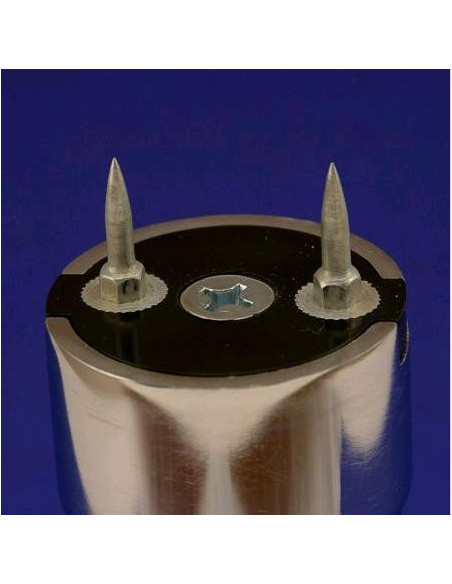

- Replaceable needles made of high quality steel

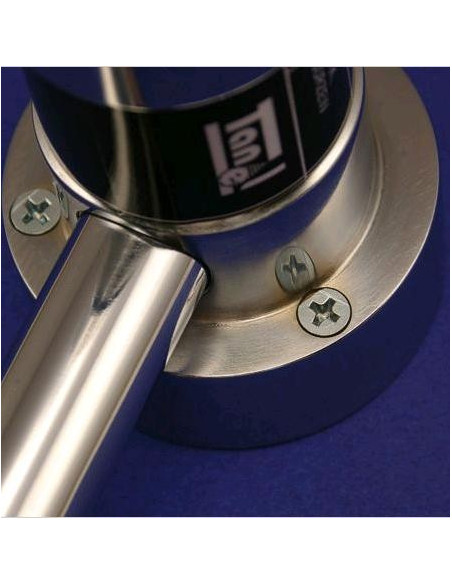

- Chromium plated steel body
- Temperature compensation from -10° to 60°C
- State-of-the-art comfortable, ergonomic design

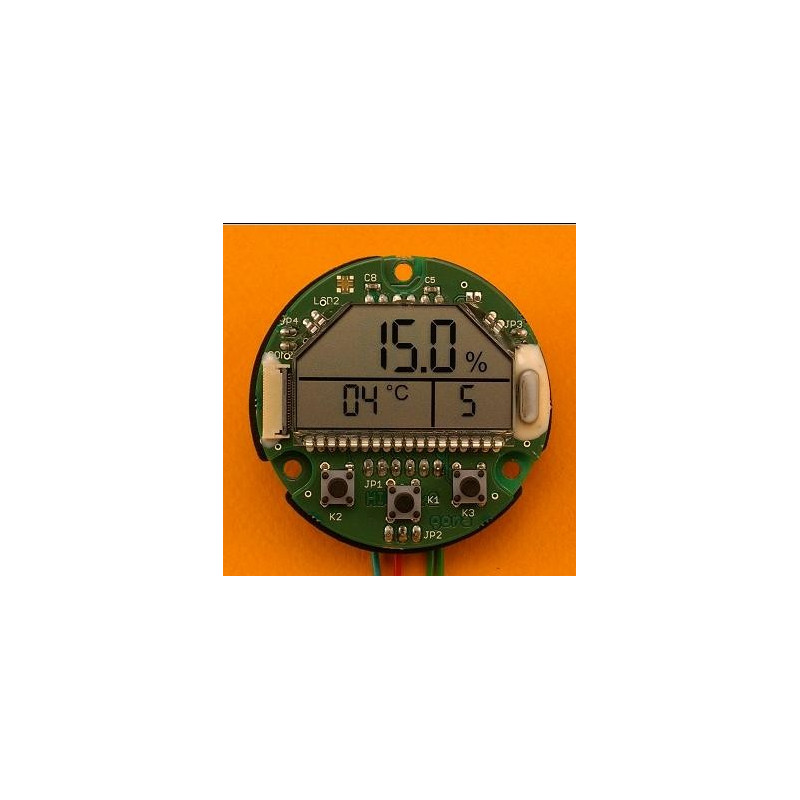

- Large LCD soldered to the board assuring long reliable operation
- Circuit board fastened with a special shock absorber (thoroughly tested for last 3 years)

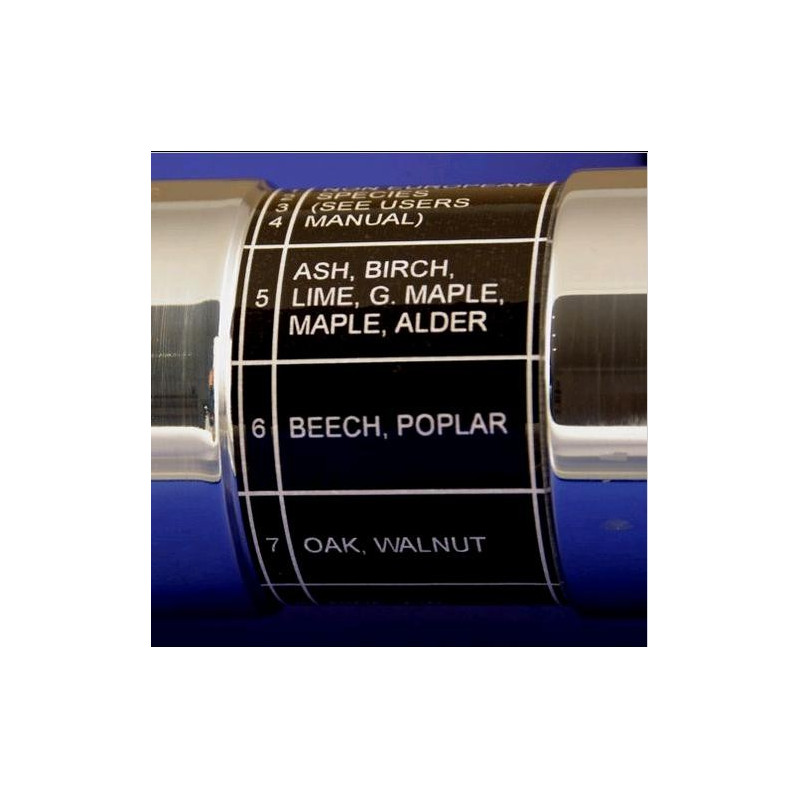

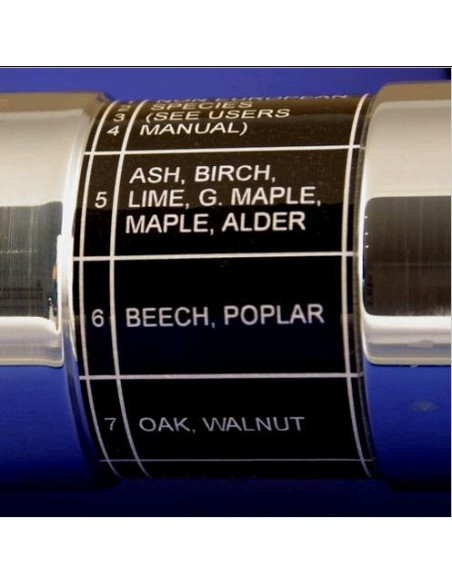

- Easy wood type selection (9 groups incl. 270 exotic types)
- Very low power consumption
- Quick and easy battery replacement
- Excellent price-performance ratio
- Auto power off
Range
| 6 % - 60 % | |
| Resolution | 0.1 % |
| Accuracy | ±1 % (within range 6 - 15%) ±2 % (within range 16 - 28%) approx. 10 % measured val. (within range 28 - 60%) |
| Wood temp. range | -10°C - 60°C |
| Number of wood types | 9 groups (12 common + 270 exotic types) |
| Display | LCD |
| Electrodes standard: optional: |
ϕ 3.5x12 mm - (2 pcs. + 2 spare) ϕ 2x6 mm veneer electrodes |
| Power | 1 * 12V (battery 23A) |
| Battery life | 5000 measurements |
| Low battery warning | yes |
| Auto power off | yes, after 5 min. |
| Weight | 0.8 kG |
| Size device case (option) |
210x120x60 mm 250x200x70 mm |
- The Sensor measures:
- Wood moisture
